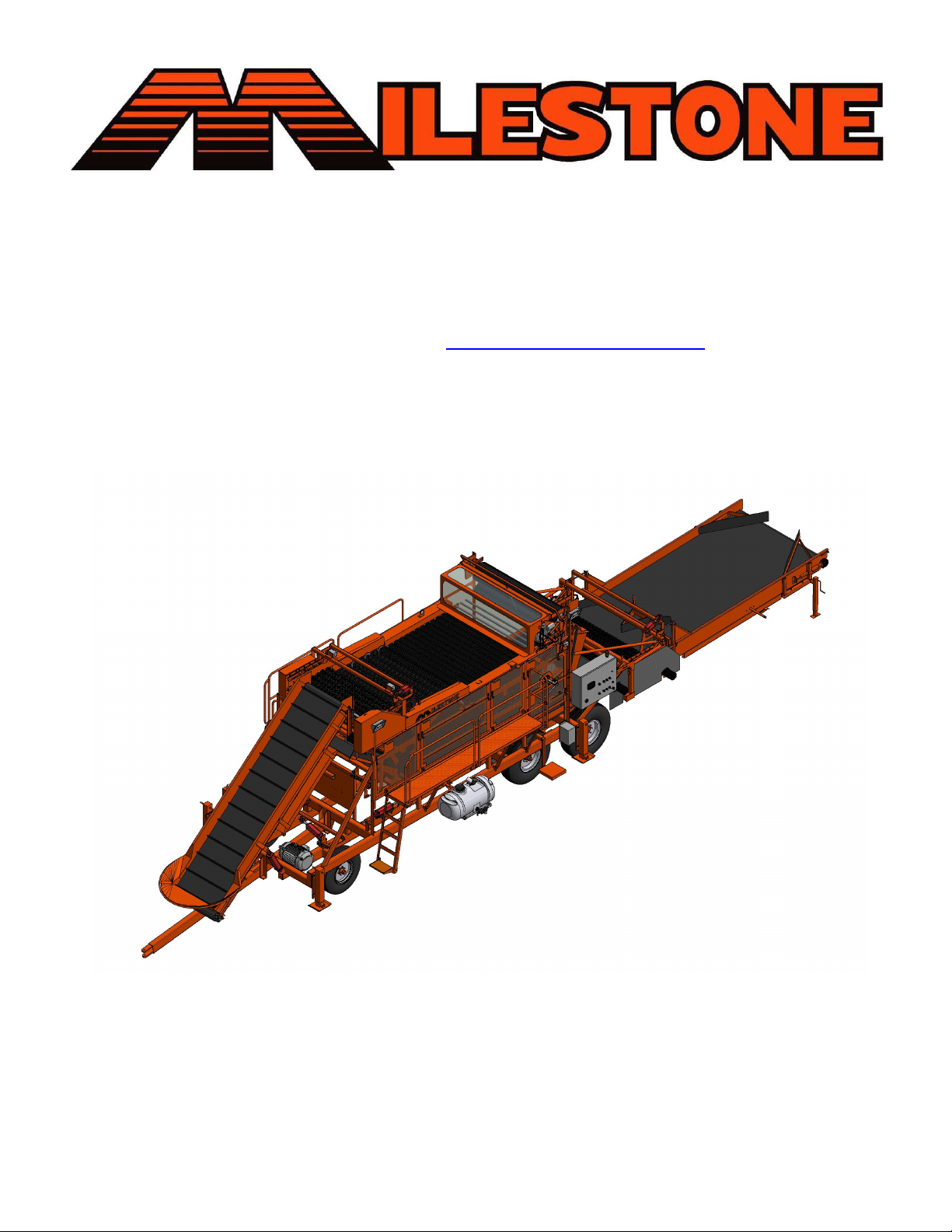

POTATO SEED CUTTER
TABLE OF CONTENTS
WARRANTY.............................................................................................................................................................. 3
SAFETY INSTRUCTIONS......................................................................................................................................... 4
STORAGE AND MAINTENANCE ............................................................................................................................. 6
OPERATION............................................................................................................................................................. 7
DECALS… ................................................................................................................................................................ 8
ADJUSTMENT PROCEDURES................................................................................................................................ 11
CUTTER SETUP & STARTUP PROCEDURES........................................................................................................ 14
CALIBRATION FOR COULTERS ON HMI................................................................................................................ 16
PARTS LIST DRAWINGS
Hopper - Presizer ......................................................................................................................................... 18
Sizer............................................................................................................................................................. 20
Progressive Roller Table.............................................................................................................................. 22
Coulter Blades - Sponge Drums................................................................................................................... 24
Drive System................................................................................................................................................ 26
Inspection Table........................................................................................................................................... 28
Wheels ......................................................................................................................................................... 30
Electrical....................................................................................................................................................... 32
Inside Electrical Panel.................................................................................................................................. 34
Trim Conveyor.............................................................................................................................................. 36
Hydraulic Diagram........................................................................................................................................ 38
Chip Cross Conveyor ................................................................................................................................... 40
Chain Belt Option ......................................................................................................................................... 42
SAMPLE TAKING & ADJUSTMENTS....................................................................................................................... 44
SEED PIECE PROFILE ADJUSTMENT TABLE ....................................................................................................... 45
3
WARRANTY
Milestone warrants that all articles of its product line will be free from defects in materials and
workmanship. Milestone’s obligation on all Pilers, Cutters, and Potato Handling Equipment shall be
limited to manufactured parts, materials, and workmanship for a period of 12 months from the date of
invoice.
On parts purchased by Milestone equipment and produced by other manufacturers, Milestone will
assist customers in making claims to the manufacturer by completing all necessary warranty claim
documents but assumes no responsibility. The ultimate responsibility for warranty on these purchased
parts rests with the original manufacturer.
This is the only warranty given by Milestone and is given in lieu of all other warranties whether
expressed or implied. Warranty will be considered null and void if, in the opinion of Milestone, the
equipment has been damaged due to misuse, abuse or has been altered in any form.
For easy reference, and when ordering parts, please refer to the Serial Number of your new Milestone
Seed Cutter.
Model Number: Serial Number:
4
SAFETY INSTRUCTIONS
A. General Information
The safety of all persons associated with farm equipment depends largely on each individual being acutely
aware of his responsibility at all times. Inspect your Milestone Potato Seed Cutter on a regular basis. It is
especially important that all operators be well trained with the safety features and functions of this equipment
prior to using equipment. Each operator will need to ensure the equipment is in proper operating condition and
under the control of qualified personnel.
Milestone is not responsible nor is it liable for damage, accidents or injury caused by
this machine.
REMEMBER!! Common sense and good safety practice always pay off.
B. Safety Instructions
Always disconnect power supply before making adjustments to your Milestone Potato Seed Cutter. Adherence
to the following safety instructions will help assure safe operation.
1. Shields
Keep all shields in place during operation.
2. Decals
Safety and warning decals are placed on the equipment for your protection. Be sure everyone
operating the equipment reads and complies with the requirements stated on the decals at all times.
3. No Standing or Climbing
Do not let anyone stand or climb on the equipment at any time during operation except in designated
areas.
4. Handrails
Always use handrails when mounting or dismounting equipment. Never mount or dismount a moving
machine.
5. Equipment Support
Never work underneath or perform maintenance on a machine without first having it properly
supported. Using mechanical as well as hydraulic means to support machines is recommended.
Hydraulic systems can fail without warning and let machines or machine parts fallunexpectedly.
5
6. Clothing/Hair
Loose clothing and/or long hair can become entangled in the many moving parts. Please take
necessary precautions to avoid accidents.
7. Use Safety Equipment
Wear gloves, hard hats, and safety glasses when performing maintenance or other functions on your
Milestone Cutter.
8. Making Adjustments
Do not allow anyone to make adjustments on a machine while in operation. Stop the machine and
disconnect the power supply. Keep hands, arms, legs, and feet clear of any moving parts and power
controls.
WARNING!!
Never sharpen coulter blades with machine in motion. To sharpen coulters: Disconnect power and
remove coulter drive chains. Use a seven-inch right angle grinder to sharpen. With the drive chains
removed, coulters will turn so an even edge can be made.
9. Clean Machines
Machine must be kept clean of debris at all times. Prevent a buildup of dirt, rocks, and debris on the
personnel platforms.
10. Maintenance/Repairs
Never perform maintenance or repairs on or under the machine without first disconnecting the power
supply. Accidents can happen when least expected.
11. Be Prepared
Never allow horseplay during the operation of the equipment. Be prepared at all times for the
unexpected.
12. Watch for Children
Be careful to watch for children at all times, especially when starting up. Remember, children like to
play around equipment.
MAKE SAFETY AN IMPORTANT PART OF YOUR OPERATION!
6
STORAGE AND MAINTENANCE
A. General Information
Proper storage of your Milestone Potato Seed Cutter when not in use will add to the life of your machine and
reduce costly repairs. Wash or steam clean the machine after the cutting season. Soil buildup will rust and
corrode many metal parts. Attention to these areas will pay off in terms of lower maintenance costs and
longevity of your Milestone Cutter.
B. Storage Suggestions
Always disconnect power supply before making adjustments to machine. Adherence to the following safety
instructions will help assure safe operation.
1. Short Term
Prior to parking the machine each night, the machine should be cleaned of debris. It should be
lubricated and visually inspected for any repairs that should be made before cutting the next day.
2. Long Term
Wash or steam all foreign matter off and disinfect your Milestone Cutter. Lubricate all chains, bearings
and fittings.
A. Slip Clutches
Cover or remove to prevent moisture from rusting and “freezing” clutches. If clutches are not
removed, back off adjusting bolts all the way.
B. Chain Belts
Belt chain should be removed, rolled loosely and stored on end, indoors, to protect them from
ultra-violet rays, moisture, and cold temperatures if the cutter is not stored indoors.
C. Roller Chain
Thoroughly clean and lubricate progressive roller cutter chain, as well as all other roller chains.
D. Covering
All rubber covered rollers, progressive table, and belts should be covered to protect from ultra-
violet rays and moisture if cutter is not stored indoors.
7
OPERATION
A. General Information
These instructions have been established after extensive field tests. They are presented as a guide to help you
adjust your cutter to obtain optimum performance. Your Milestone Potato Seed Cutter is designed and built to
cut almost any seed variety. Certain seed variety and/or size may require additional adjustments.
B. Pre-Operational Check List
1. Visual Inspection
Visually inspect your cutter to make sure all shields are in place. Make sure all belts, nuts, screws, and
setscrews are in place and properly secured.
2. Roller Chain Alignment
Check roller chain and sprocket alignment. Inspect for wear and tighten roller chain if necessary.
3. Gear Boxes
Check oil level in all gearboxes and add more oil if necessary, to bring oil level to full mark.
8
DECALS
9
