OWNER’S MANUAL OM-231 313D

2007−08

Coolmate™3.5

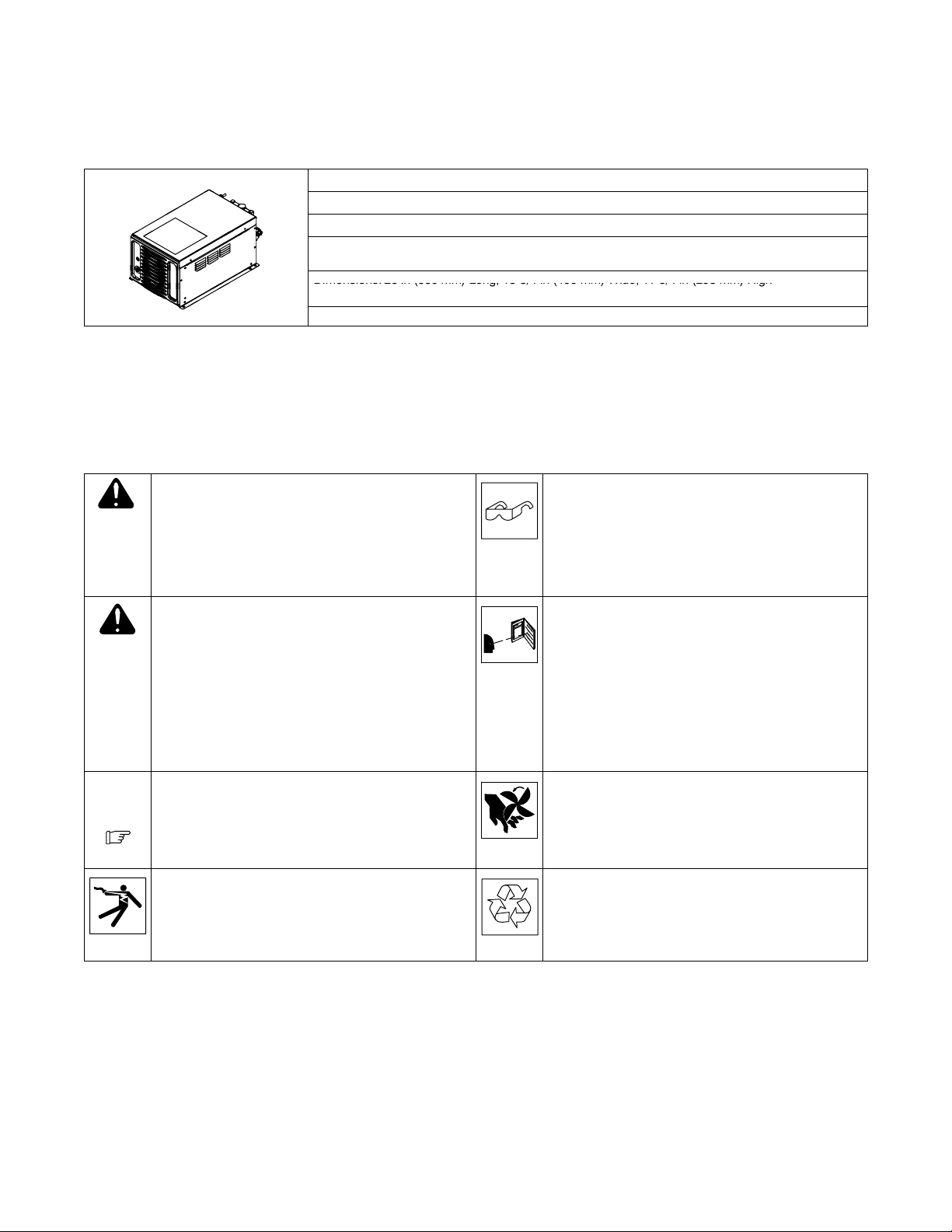

1. Specifications

Recirculating Coolant System For Water-Cooled GTAW Torches And GMAW Guns

Use With Guns/Torches Rated Up To 600 Amperes

IP Rating: 23

3-1/2 gal (13.2 L) Coolant Tank Capacity;

Maximum Cooling Capacity: 15,000 BTU/hr At 1.25 qt/min (1.3 L/min)

Dimensions: 26 in (660 mm) Long, 15-3/4 in (400 mm) Wide, 11-3/4 in (298 mm) High

804 839

Dimensions: 26 in (660 mm) Long, 15 3/4 in (400 mm) Wide, 11 3/4 in (298 mm) High

Weight: 60 lb (27 kg)

839

115 Volt Models Use 3.1 Amperes, 50/60 Hertz, Single-Phase Input Power

2. Safety Symbol Definitions

DANGER! −Indicates a hazardous situation which, if not

avoided, will result in death or serious injury. The possible

hazards are shown in the adjoining symbols or explained

in the text.

DANGER! −Indique une situation dangereuse qui si on

l’évite pas peut donner la mort ou des blessures graves.

Les dangers possibles sont montrés par les symboles

joints ou sont expliqués dans le texte.

Wear safety glasses with side shields.

Porter des lunettes de sécurité avec des protections laté-

rales.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury. The possible ha-

zards are shown in the adjoining symbols or explained in

the text.

Indique une situation dangereuse qui si on l’évite pas peut

donner la mort ou des blessures graves. Les dangers possi-

bles sont montrés par les symboles joints ou sont expliqués

dans le texte.

Have only trained and qualified persons install, operate,

or service this unit. Call your distributor if you do not un-

derstand the directions. For WELDING SAFETY and

EMF information, read owner’s manual(s).

L’installation, l’exploitation et l’entretien de cet appareil

doivent être confiés uniquement à des personnes quali-

fiées et convenablement formées. S’adresser à un distri-

buteur si l’on ne comprend pas les directives. Pour les

renseignements ayant trait à la SECURITE lors du sou-

dage et aux champs électromagnétiques, consulter les

manuels traitant les dévidoirs et les sources de courant

pour le soudage.

NOTICE Indicates statements not related to personal injury.

Indique des déclarations pas en relation avec des blessu-

res personnelles.

Indicates special instructions.

Indique des instructions spécifiques.

Beware of moving parts. Keep guards and panels in

place, covers closed, and hands away from moving parts.

Attention aux pièces mobiles. Maintenir les dispositifs de

sécurité et les panneaux en place, les couvercles fermés

et garder les mains éloignées des pièces mobiles.

Beware of electric shock from wiring. Disconnect input

power before installing this kit. Reinstall all panels and

covers.

Prendre garde aux chocs électriques dus au câblage.

Avant d’installer cet ensemble, couper l’alimentation.

Réinstaller tous les panneaux et couvercles.

Recycle or dispose of used coolant in an environmentally

safe way.

Recycler ou éliminer tout liquide de refroidissement usé

conformément aux méthodes prescrites pour assurer la

protection de l’environnement.

Declaration of Conformity for

European Community (CE) Products

.This information is provided for units with CE certification (see rating label on unit).

Manufacturer:European Contact:

Miller Electric Mg. Co. Mr. Danilo Fedolfi,

1635 W. Spencer St. Managing Director

Appleton, WI 54914 USA ITW Welding Products Italy S.r.l.

Phone: (920) 734-9821 Via Privata Iseo 6/E

20098 San Giuliano

Milanese, Italy

Phone: 39(02)98290-1

Fax: 39(02)98290203

European Contact Signature:

Declares that the product: CoolmateE3.5

conforms to the following Directives and Standards:

Directives

Low Voltage Directive: 73/23/EEC, 2006/95/EC

Electromagnetic compatibility Directives: 89/336/EEC, 92/31/EEC, 2004/108/EC

Machinery Directives: 98/37/EEC, 91/368/EEC, 92/31/EEC, 133/04, 93/68/EEC

Marking Directive: 93/68/EEC

Standards

Arc Welding Equipment −Part 2: Liquid Cooling Systems. IEC 60974-2 Ed. 1, 2202-06

Arc Welding Equipment −Part 10: Electromagnetic Compatibility (EMC) Requirements. IEC 60974-10, Ed. 1.1, 2004-10

Degrees of Protection Provided By Enclosure (IP Code): IEC 60529 Ed. 2.1, 2001-02

Insulation Coordination For Equipment Within Low-Voltage Systems −Part 1: Principles, Requirements, And Tests.

IEC 60664-1 Ed. 1.1

The product technical file is maintained by the responsible Business Unit(s) located at the manufacturing facility.

Additional Standards (Writer: Delete additional standards not applicable)

Arc Welding Equipment −Part 2: Liquid Cooling Systems. IEC 60974-2 Ed. 1, 2002-06

3. Warning Labels

OM-231 313 Page 2

4. Warning Labels Continued

S-180 663

1 2 3 4 5

67 8 9

1 Warning! Watch Out! There are

possible hazards as shown by the

symbols.

2 Electric shock from wiring can kill.

3 Disconnect input plug or power before

working on machine.

4 Moving parts, such as fans, can cut

fingers and hands and cause injury.

Keep away from moving parts.

5 Wear safety glasses with side shields.

6 Read the Owner’s Manual before

working on this machine.

7 Read the labels on the welding power

source, wire feeder, or other major

equipment for welding safety

information.

8 Recycle or dispose of used coolant in

an environmentally safe way.

9 Do not remove or paint over (cover)

the label.

S-178 910

043 810 (HF)

043 809 (AL)

100 h. std.

21 3

1 Warning! Watch Out! There are

possible hazards as shown by the

symbols.

2 Disconnect input plug or power before

working on machine.

3 Wear safety glasses with side shields.

4 Plugged filter or hoses cause

overheating and damage.

5 Read Owner’s Manual.

6 Check and clean filter every 100

hours; also check condition of hoses.

7 Use Low Conductivity Coolant No. 043

810 for High-Frequency assisted or

Gas Tungsten Arc Welding

applications. Use Aluminum Protecting

Coolant No. 043 809 where coolant

contacts aluminum parts or for Gas

Metal Arc Welding applications or

where High Frequency is not used.

OM-231 313 Page 3

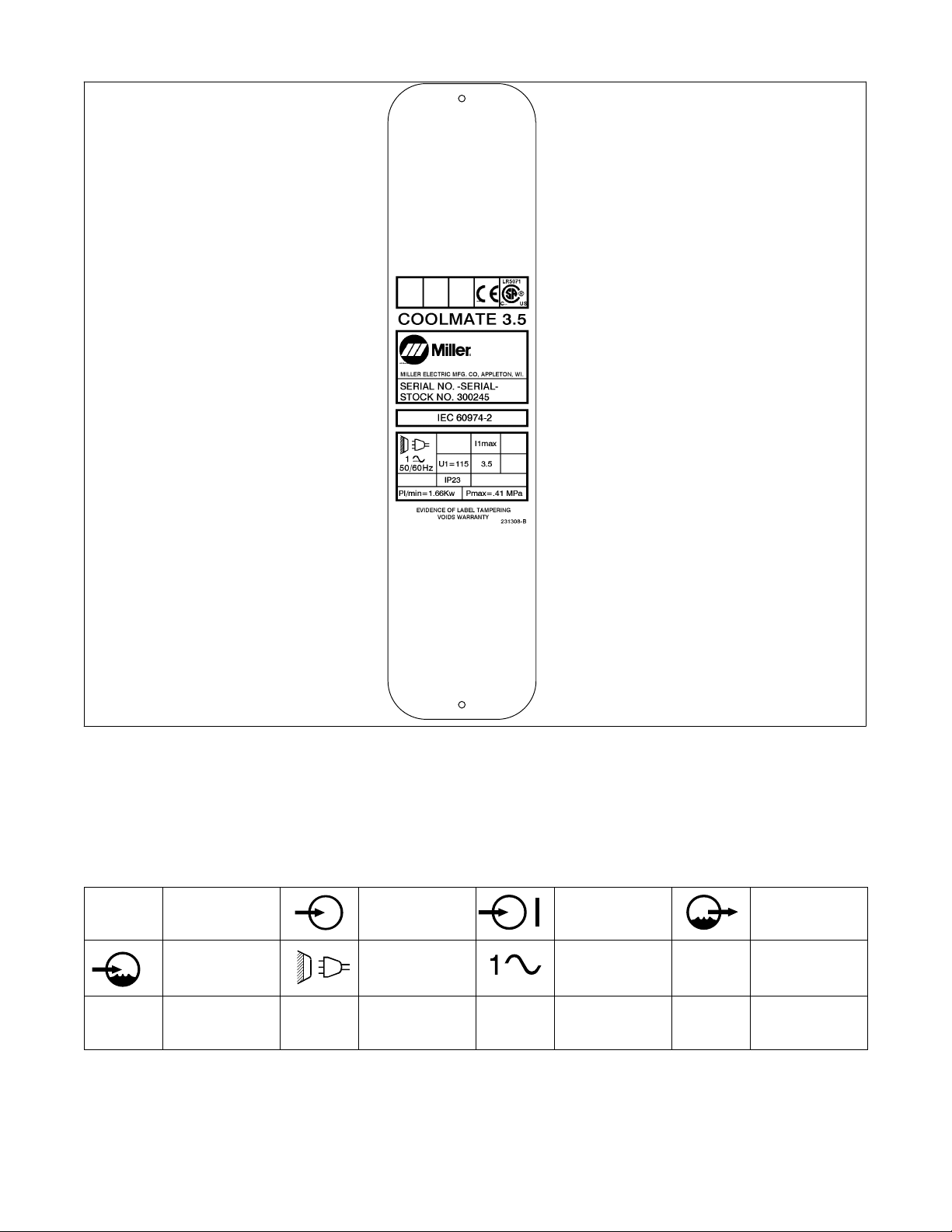

5. Rating Label

S/N: KG085472

043007

COOLMATE 3

Hz50/60

IP 23

I1=

NRTL/C

LR5071

231 308-B

6. Symbols And Definitions

Hz Hertz Input Power Power On Indicator Water (Coolant)

Output

Water (Coolant) In-

put Line Connection Single-Phase

Alternating

Current U1Primary Voltage

I1max Rated Maximum

Supply Current IP Degree Of

Protection Pmax Rated maximum

power Pl/min Power liters per

minute

OM-231 313 Page 4

7. Coolant Chart

Low Conductivity Coolant No. 300 355**; Distilled Or Deionized Water OK Above 32°F (0°C)

GTAW Or Where

HF* Is Used

Application

*HF: High Frequency Current

**Coolant 300 355, a 50/50 solution, protects to -37°F (-38°C) and resist algae growth.

Coolant

NOTICE −Use of any coolant other than that listed in the table voids the warranty on any parts that come in contact with the coolant (pump,

radiator, etc.).

Notes

OM-231 313 Page 5

8. GTAW Connections

804 846-A

Tools Needed:

5/8 in

To prevent overheating, make sure cooling

unit is positioned so airflow is not restricted.

NOTICE −If welding power source has a

water valve, do not connect hoses to water

valve. Connect hoses as shown.

1 Coolant Out Hose

2 Coolant In Hose

Fittings have 5/8-18 left-hand threads.

Connect hoses with proper fittings as

shown. Some power sources may require

a TIG block.

3 Coolant Tank Cap

4 115 Volt AC Grounded Receptacle

An individual branch circuit capable of car-

rying 15 amperes and protected by fuses

or circuit breakers is recommended. Rec-

ommended fuse or circuit breaker size is

15 amperes.

Operation:

Fill tank with proper coolant. Use table in

Section7 to select proper coolant. Maintain

coolant level at approximately 1 in (25 mm)

below top of filler neck. Connect hoses as

shown. Unit turns on when plugged in.

OM-231 313 Page 6

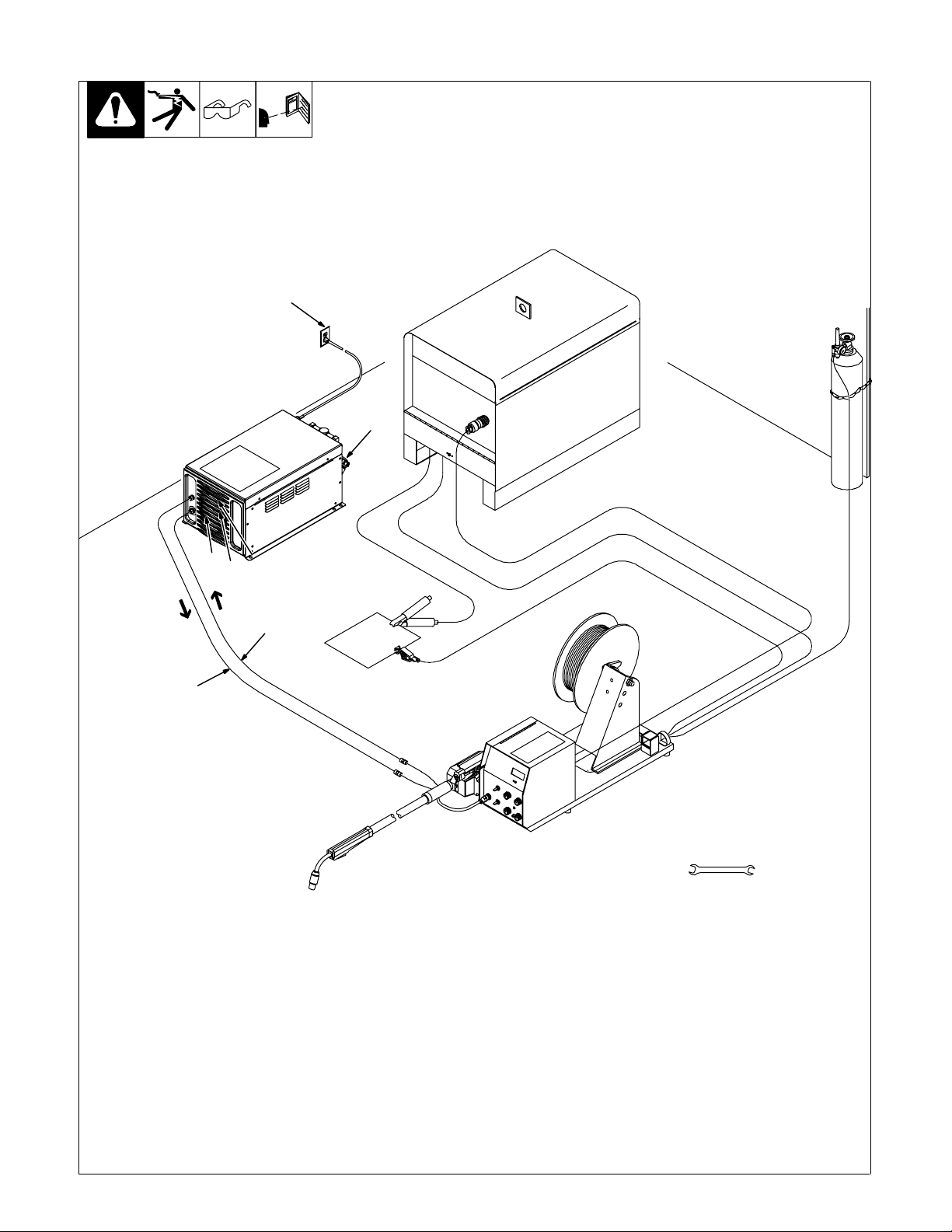

9. GMAW Connections

804 845-A

Tools Needed:

5/8 in

To prevent overheating, make sure cooling

unit is positioned so airflow is not restricted.

NOTICE −If welding power source has a

water valve, do not connect hoses to water

valve. Connect hoses as shown.

1 Coolant Out Hose

2 Coolant In Hose

Fittings have 5/8-18 left-hand threads.

Connect hoses with proper fittings as

shown.

3 Coolant Tank Cap

4 115 Volt AC Grounded Receptacle

An individual branch circuit capable of car-

rying 15 amperes and protected by fuses

or circuit breakers is recommended. Rec-

ommended fuse or circuit breaker size is

15 amperes.

Operation:

Fill tank with proper coolant. Use table in

Section7 to select proper coolant. Maintain

coolant level at approximately 1 in (25 mm)

below top of filler neck. Connect hoses as

shown. Unit turns on when plugged in.

456

OM-231 313 Page 7

10. Routine Maintenance

!Disconnect power

before maintaining.

n= Check Z= Change ~= Clean Δ = Repair l= Replace

* To be done by Factory Authorized Service Agent

Every

Months ~Coolant Strainer,

dih i

~Blow out heat exchanger fins.

nCheck coolant level. Top off with

durning heavy service,

clean more frequently.

nCheck coolant level

Top off with

distilled or deionized water if necessary.

Every

Months

Oil motor (If Motor Is

pped

nlHoses nl Labels

Equipped With Oilers)

Every

Months

ZReplace coolant.

m30 Torx

Tools Needed:

11. Coolant Maintenance And Oiling Motor

804 649-A / Ref. 801 194

!Disconnect input power be-

fore maintaining.

1 Coolant Filter

Unscrew housing to clean filter.

Changingcoolant: Drain coolant by

tipping unit to rear, or use suction

pump. Fill with clean water and run

for 10 minutes. Drain and refill with

coolant (see section 7).

2 Motor (If Motor Is Equipped

With Oilers)

Remove plugs and put about 15

drops of SAE 20 motor oil into each

oil port. Replace plugs.

.If replacing hoses, use hoses

compatible with ethylene gly-

col, such as Buna-n, Neo-

prene, or Hypalon. NOTE:

Oxy-acetylene hoses are not

compatible with any product

containing ethylene glycol.

Install cover if removed.

OM-231 313 Page 8

12. Troubleshooting

Trouble Remedy

Coolant system does not work. Be sure input power cord is plugged in to energized receptacle.

Check line fuses or circuit breaker, and replace or reset if necessary.

Motor overheated. Unit starts running when motor has cooled.

Have Factory Authorized Service Agent check Power switch S1 and motor (Mot).

Decreased or no coolant flow. Add coolant.

Check for clogged hoses or coolant filter. Clean filter or clean / replace hoses if necessary.

Disconnect pump, and check for sheared coupling. Replace coupling if necessary.

13. Circuit Diagram For Cooler

228 525-A

Inhaltsverzeichnis

Andere Miller Electric Schweißzubehör Handbücher

Miller Electric

Miller Electric MOTORIZED SLIDE MSC-2 Bedienungsanleitung

Miller Electric

Miller Electric MIGmatic M-15 Bedienungsanleitung

Miller Electric

Miller Electric DS-64M Swingarc Bedienungsanleitung

Miller Electric

Miller Electric OM-2241 Bedienungsanleitung

Miller Electric

Miller Electric XMS 44 Bedienungsanleitung

Miller Electric

Miller Electric wire feeder Bedienungsanleitung

Miller Electric

Miller Electric HF-251D-1 Bedienungsanleitung

Miller Electric

Miller Electric DB1712RDI25 Bedienungsanleitung

Miller Electric

Miller Electric cyclomatic DWF3 Bedienungsanleitung

Miller Electric

Miller Electric SuitCase X-TREME 8VS Bedienungsanleitung

Miller Electric

Miller Electric OM-1589 Bedienungsanleitung

Miller Electric

Miller Electric OM-842 Bedienungsanleitung

Miller Electric

Miller Electric XR Control Bedienungsanleitung

Miller Electric

Miller Electric OM-234 016D Bedienungsanleitung

Miller Electric

Miller Electric and DS-74DX16 Bedienungsanleitung

Miller Electric

Miller Electric Inverter Rack Bedienungsanleitung

Miller Electric

Miller Electric S-75D Bedienungsanleitung

Miller Electric

Miller Electric Insight ArcAgent ArcTimer Bedienungsanleitung

Miller Electric

Miller Electric S-74DX Bedienungsanleitung

Miller Electric

Miller Electric A.B.B. Robot Interface Gas Control Hub And... Bedienungsanleitung

Miller Electric

Miller Electric XR A Bedienungsanleitung

Miller Electric

Miller Electric Welding Gun (FCAW-SS) Bedienungsanleitung

Miller Electric

Miller Electric S-32SL Bedienungsanleitung

Miller Electric

Miller Electric Gyro Bail-15/25 Bedienungsanleitung

Beliebte Schweißzubehör Handbücher anderer Marken

Lincoln Electric

Lincoln Electric LT-7 Tractor Bedienungsanleitung

Weco

Weco Trolley R Bedienungsanleitung

Cornwell Tools

Cornwell Tools MMWC1 Bedienungsanleitung

Dohle

Dohle ExOn2A Bedienungsanleitung

Nederman

Nederman Fume Eliminator FE 840/2500/P150 Bedienungsanleitung

3M Speedglas 9100 Series Bedienungsanleitung

Miller

Miller A-200 Series Bedienungsanleitung

Abicor Binzel

Abicor Binzel ABIMIG WT Series Bedienungsanleitung

optrel

optrel lifeflip autopilot Bedienungsanleitung

Miller

Miller MIGmatic M-25 Bedienungsanleitung

Tregaskiss

Tregaskiss TOUGH GUN TT3 Reamer Bedienungsanleitung

Abicor Binzel

Abicor Binzel xFUME PRO Bedienungsanleitung

Sealey

Sealey SR20.V2 Bedienungsanleitung

iWeld

iWeld NORED EYE Bedienungsanleitung

Sthor

Sthor 74483 Bedienungsanleitung

Leister

Leister TWINNY T7 Bedienungsanleitung

Miller

Miller I-22 CE Bedienungsanleitung

LAHTI PRO

LAHTI PRO L1540400 Bedienungsanleitung
