UCJV300/150 ID Cut Guide

Congratulations on your purchase of an inkjet printer of MIMAKI (print & cut type).UCJV300/150 This " ID Cut

Guide", describes the method for ID cut by using UCJV300/150 and the supplied software. Precautions and pre-

defined settings are also described.

Note

• It is strictly prohibited to write or copy a part or whole of this document without our approval.

• This document has been carefully prepared for your easy understanding, however, please do not hesitate to

contact a distributor in your district or our office if you have any inquiry.

• Description contained in this document are subject to change without notice for improvement.

• Due to improvement or change of software, the description of this document could be partially different in

specification, for which your understanding is requested.

• With the exception of what is provided for in the warranty provisions of MIMAKI ENGINEERING CO., LTD., we

do not assume any liability against the damages (including but not limited to the loss of profit, indirect damage,

special damage or other monetary damages) arisen out of the use or failure to use of this product. The same

shall also apply to the case even if MIMAKI ENGINEERING CO., LTD. had been notified of the possibility of

arising damages in advance. As an example, we shall not be liable for any loss of the media made using this

product or indirect damages caused by the product made using this media.

• You can also download the latest operation manual from our website.

FineCut, RasterLink, RasterLink6Plus and CuttingLink are registered trademarks of MIMAKI ENGINEERING CO.,

LTD.

Adobe Illustrator is a trademark of Adobe Systems Incorporated.

CorelDRAW is a trademark of Corel Corporation.

Microsoft and Windows are registered trademarks of Microsoft Corporation of the U.S.A.

Apple and Macintosh are registered trademarks of Apple Inc. of the U.S.A. and each country.

All brand names and product names are trademarks or registered trademarks of their respective companies.

- 2 -

Note ............................................................................................................ 1

What is ID cut? .......................................................................................... 3

ID Cut Procedure ....................................................................................... 4

Preparation ................................................................................................................................... 5

Set up PC. .................................................................................................................................. 5

Printing, and ID Cutting ................................................................................................................. 8

Set the media. ............................................................................................................................ 8

Print data. ................................................................................................................................... 9

ID cut ........................................................................................................................................ 11

How to handle the following cases........................................................ 12

Troubleshooting .......................................................................................................................... 12

Changed CuttingLink - Server. ................................................................................................... 14

Back up the data of CuttingLink - Server. ................................................................................... 14

Migrate CuttingLink - Server. ...................................................................................................... 14

1. Reset initial setting on CuttingLink - Server PC before migration. ....................................... 14

2. Configure Server on CuttingLink - Server PC to be migrated. ............................................. 14

3. Register CuttingLink - Server PC on RasterLink6Plus. ........................................................ 14

When to use CuttingLink - Client? .............................................................................................. 15

How to set CuttingLink - Client ................................................................................................. 15

Data in the same place is cut twice ............................................................................................ 16

When you want to ID cut multiple types of data .......................................................................... 17

TABLE OF CONTENTS

- 3 -

What is ID cut?

It is a function that can cut automatically according to the ID information simply by detecting the ID-contained

data. You do not have to output the cut data again after printing the data. (Typically, you need to print the print

data and the cut data separately.)

• ID Cut Operation Flow

• System configuration

ID Data Print

ID Data

Adjusting the image quality

and colors, and so on.

detection.

Automatically cut

Cut Data

(Auto)

Printed

Cut Data

(Auto)

Cut data management.

UCJV300/150

2-4.Regitration of CuttingLink 1-3.Regitration of UCJV300/150

- 4 -

ID Cut Procedure

1. Software / Driver List (P.5)

2. Set the media. (P.8)

3. Print data. (P.9)

4. ID cut (P.11)

1. Connect PC and UCJV300/150 with USB. (P.5)

2. Install CuttingLink. (P.5)

3. Register UCJV300/150 with CuttingLink. (P.5)

4. Register CuttingLink with RasterLink6Plus. (P.6)

1. Set the media onto UCJV300/150. (P.8)

2. Check if the media margin is sufficient.(P. 8)

1. Start RasterLink6Plus. (P.9)

2. Read the Sample file. (P.9)

3. Add register marks and ID data. (P.9)

4. Select [RIP & Print] or [Immediate Print]. (P.10)

5. Click [Start]. (P.10)

6. Data with ID will be printed. (P.10)

1. Detect the register mark (P.11)

2. The cut data is automatically received and cut. (P.11)

- 5 -

Preparation

You need to prepare UCJV300/150 and the software/Driver before printing or ID cut.

If preparations have already been completed, go to"Printing, and ID Cutting" (P.8).

• Software / Driver List

The following software applications are required for ID cut. All software applications are provided by MIMAKI

ENGINEERING CO., LTD.

Set up PC.

1. Connect PC and UCJV300/150 with USB.

2. Install the software/driver.

(1) Install Mimaki Driver.

(2) Install RasterLink6Plus.

(3) Install CuttingLink.

3. Register UCJV300/150 with CuttingLink.

(1) Start CuttingLink from the start menu, or double-click

the CuttingLink icon created on the desktop to start

CuttingLink.

• The [Initial Setting] screen is displayed.

(2) On the [Initial Setting] screen, select [CuttingLink-Server],

and then click [OK].

• [Data Management] is displayed.

Software/Driver Description

RasterLink6Plus (Ver1.1 or later*1)

*1.When using a version earlier than the specified version, download the upgraded version of the installer

from the Mimaki website.(http://mimaki.com/)

When using the "ID Cut Output" function of FineCut, use RasterLink6Plus Ver.1.2 or higher.

Software to receive image data, edit data with various functions, and

send plot data to the printer. (supplied with the printer: CD)

Refer to the attached RasterLink6Plus Installation Guide for the

installation method.

CuttingLink

Software to manage ID cut.

Download the installer from the Mimaki website(http://mimaki.com/)

Refer to the attached "CuttingLink installation" of Raster-

Link6Plus Installation Guide for the installation method.

Mimaki Driver

Device driver for using an ink jet printer/cutting plotter from Mimaki

Engineering. (supplied with the printer: CD)

Refer to the attached Mimaki Driver Installation Guide for the

installation method.

- 6 -

(3) From the [Tool] menu, select [Cutting Device Manager].

(4) Select UCJV300/150 in [Available Devices].

(5) Enter [Name], and then click [Add].

• UCJV300/150 is added to the list.

(6) Click [Close].

4. Register CuttingLink with RasterLink6Plus.

• Make sure that CuttingLink is running.

(1) Start RasterLink6Plus.

(2) Select [Option...] from the [Environments] menu in Raster-

Link6Plus.

• CuttingLink is started automatically when PC starts.

- 7 -

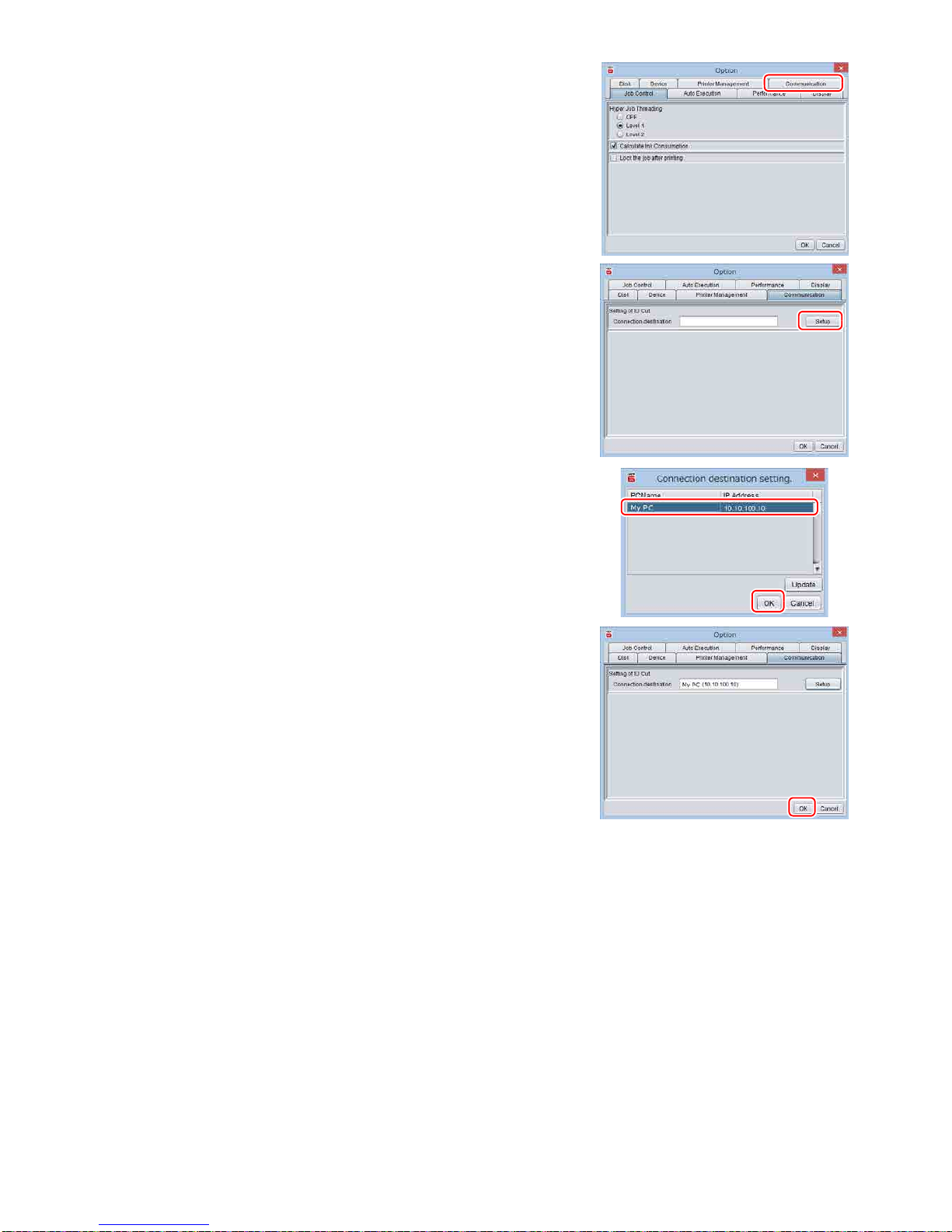

(3) Click the [Communication] tab on the [Option] screen.

(4) [Setting of ID Cut: Click [Setup] in [Connection destination].

• The [Connection destination setting] screen is displayed.

(5) On the [Connection destination setting] screen, select this

my computer, and then click [OK].

• The [Connection destination setting] screen is closed.

• On the [Option] screen, "PC name (IP address)" is dis-

played in [Connection destination].

(6) Click [OK] on the [Option] screen.

• Connects with CuttingLink.

- 8 -

Printing, and ID Cutting

The following shows you how to use and print out the sample images from the attached manual CD.

Set the media.

For detail, refer to the UCJV300/150 Operation Manual.

I you cut the media rotated by 90, 180, or 270 degrees, set the media margins to the following values at

rotated conditions.

• Front end: 110 mm or more

• Left and right ends: 15 mm or more

• Rear end: 110 mm or more

210 mm or more (When copying data with RasterLink6Plus.)

1. Set the media onto UCJV300/150.

2. Check if the print start position (the origin ) is set at 110 mm or more from the media

front end, and 15 mm or more from the media right end.

• Make sure that the width of the media is equal to or larger than [Entire image width (including the reg-

ister mark) + right 15 mm + left 15 mm].

• If any of the front / left / right margin is insufficient, the media end may be mistaken as the register

mark, which may cause the register mark detection to start earlier.

(1) Press the jog key in the local state. Move the luminous point of the LED pointer so that the print

start position is 110 mm or more from the media front end, and 15 mm or more from the right end.

(2) Press the [ENTER] key.

• The print start position is changed.

3. Check if the print end position is set at 110 mm or 210 mm (When copying data with

RasterLink6Plus.) from the media rear end.

• Make sure that the length of the media is equal to or larger than [Entire image length (including

the register mark) + 110 mm + 110 mm or 210 mm(When copying data with RasterLink6Plus.)].

• Make sure that you check P.5 "Preparation" and then print and cut.

Patterns

placeable range

Effective cut range

110 or 210 mm or

70 to 3000 mm

70 mm or more

Patterns

placeable range

Effective cut range

110 mm or 210 mm +

(half the length of the

70 to 3000 mm

70 mm or more

110 mm + (half the

length of the register

mark) or more

[Mark Shape: Type 1] [Mark Shape: Type 2]

Front

Rear

110 mm or more

15 mm or more15 mm or more 15 mm or more15 mm or more

- 9 -

Print data.

1. Start RasterLink6Plus.

2. Set the manual CD to your computer.

3. From the [File] menu, select [Open].

• The [Select file name to print] screen is displayed.

4. Read the Sample file.

(1) Select the following files on the [Select file name to print]

screen, and click [Open].

For Windows: "CD drive:\EN\English\

ID Cut_Sample data\sample_mimaki.eps"

For Macintosh: “CD drive:\Mac_English\

ID Cut_sample data\sample_mimaki.eps”

(2) The sample data is loaded.

• Sample data is created with RasterLinkTools.

For details on how to create print & cut data, refer to the

RasterLink 6Plus Reference guide "RasterLinkTools".

5. Select the read data and click the [General Print] icon in the function icon list on

the right side of the screen.

6. Add register marks and ID data.

The conditions under which ID cut is possible are as follows.

• Mark Shape: [Type 1 ] or [Type 2 ]

• Size of data: more than 70 mm in length and width

(1) Set the number of copies.

(2) Select a register mark shape.

(3) Check [ID Cut].

• Register marks and ID data are added to the data.

ID data

- 10 -

7. Click the Execution icon in the function icon list on the right side of the screen.

8. Select [RIP & Print] or [Immediate Print].

9. Click [Start].

10. Data with ID will be printed.

Andere Handbücher für UCJV300

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MIMAKI Drucker Handbücher

MIMAKI

MIMAKI ML Tiger-1800B MKII Bedienungsanleitung

MIMAKI

MIMAKI UJF-3042 MkII Bedienungsanleitung

MIMAKI

MIMAKI JV5-130S Bedienungsanleitung

MIMAKI

MIMAKI UJF-A3MkII Series Bedienungsanleitung

MIMAKI

MIMAKI UJF-605C Bedienungsanleitung

MIMAKI

MIMAKI UCJV300/150 Bedienungsanleitung

MIMAKI

MIMAKI UJV100-160 Bedienungsanleitung

MIMAKI

MIMAKI JV400-LX Bedienungsanleitung

MIMAKI

MIMAKI JFX 200-2513 Bedienungsanleitung

MIMAKI

MIMAKI JV300-130 A Bedienungsanleitung

MIMAKI

MIMAKI JV150-130 Bedienungsanleitung

MIMAKI

MIMAKI JFX500-2131 Bedienungsanleitung

MIMAKI

MIMAKI JV150-130A Wartungshandbuch

MIMAKI

MIMAKI UCJV300 Bedienungsanleitung

MIMAKI

MIMAKI UJF-7151plus Konfigurationshandbuch

MIMAKI

MIMAKI CJV150 series Technisches Handbuch

MIMAKI

MIMAKI UJF-7151 plus Bedienungsanleitung

MIMAKI

MIMAKI SWJ-320 S2 Bedienungsanleitung

MIMAKI

MIMAKI jV100-160 Bedienungsanleitung

MIMAKI

MIMAKI JV4-180 Bedienungsanleitung

MIMAKI

MIMAKI JFX 200-2513 Bedienungsanleitung

MIMAKI

MIMAKI JV33-130BS Montageanleitung

MIMAKI

MIMAKI UJF-605RII Bedienungsanleitung

MIMAKI

MIMAKI Tx300P-1800B Wartungshandbuch

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Epson

Epson ET-7750 Betriebsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Epson

Epson SC-F7100 series Bedienungsanleitung

Epson

Epson Stylus C40UX Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung
