MIMAKI UJV500 Series Bedienungsanleitung

JFX500 / UJV500 Series

If negative pressure abnormality occurs

If an error related to pressure abnormality occurs, immediately adjust the pressure with the

following procedures and return it to the normal value.

1. Select [PRESSURE ADJUST] of the maintenance menu.

(1) Press the key.

(2) Press to select [MAINTENANCE] and press the key.

(3) Press to select [PRESSURE ADJUST].

2. Press to select POSITIVE or NEGATIVE.

Adjust the throttle valve in order of “negative pressure” “positive pressure” 

“negative pressure”.

3. Press the key.

4. Remove the cover under the left maintenance cover.

(UJV500)

5. Rotate the adjustment screw of the throttle valve to

release it so that air can flow.

Loosen the fixing screws on the throttle valve, and turn the adjustment

screw until it reaches the midpoint.

<LOCAL>

NEGAT I VE PRESSURE

<LOCAL>

POS I T I VE PRESSURE

ERROR 61e

NEGAT I VE P . OVER

PRESSURE ADJUST

:NEGATIVE

Op en Th r o t t l e Va l v e

COMP L E TED [ ENT ]

Turn the adjustment

screw to this position.

200

250

160170180190210

220230240260270

100

150

203040608090

110

120130140

０３

Adjustment screw

Positive pressure

Negative Pressure

Adjustment screw

Adjustment screw for positive pressure

UJV500: JFX500:

Adjusting negative pressure / positive pressure

Negative pressure : Turn the adjustment screw clockwise to increase negative pressure.

Positive pressure : Turn the adjustment screw clockwise to increase positive pressure.

•When adjustment is complete, carefully tighten the fixing screws.

Fixing screw

Adjustment screw for negative pressure

Fixing screw

6. Press the key.

Sensor adjustment starts.

7. Rotate the adjustment screw of the throttle valve to adjust the

pressure so that it becomes the proper value

•

Proper value of negative pressure

: -5.4kPa

•Proper value of positive pressure: 15.00kPa

•As the negative pressure changes between ±0.1 and 0.2kPa, adjust so that the intermediate value may become the target pressure.

•Adjust the throttle valve in order of “negative pressure” “positive pressure” “negative pressure”.

8. Press the key.

The error is released and the negative pressure control starts.

** ADJUSTING **

PLEASE WA I T

PRESSURE

=-4.00kPa

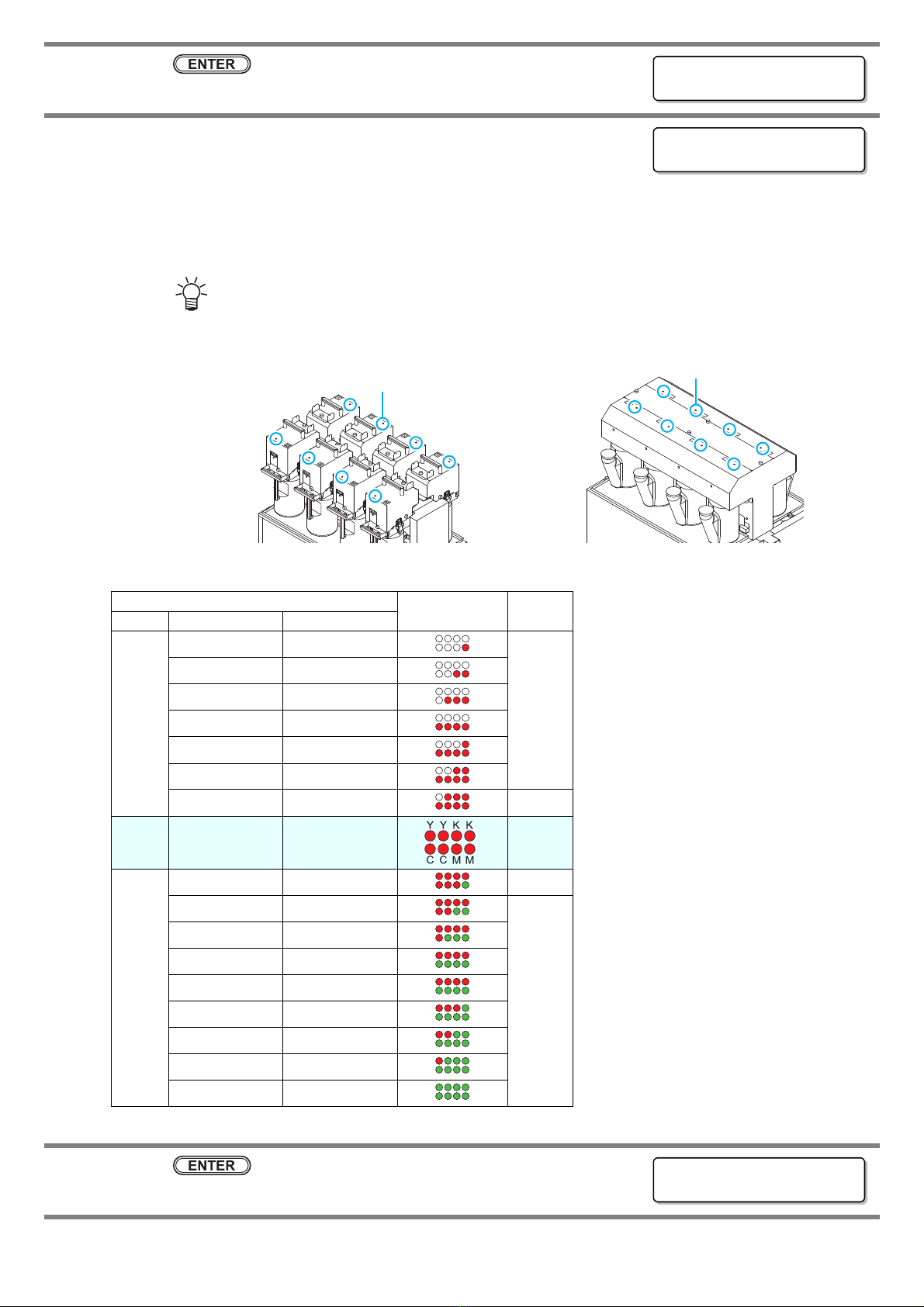

• Status of lamp and buzzer for each pressure value

Pressure Ink bottle lamp Buzzer

Positive pressure Negative pressure

High

～8.49 ～-4.75

Sounds

8.50 ～9.49 -4.76 ～-4.85

9.50 ～10.49 -4.86 ～-4.95

10.50 ～11.49 -4.96 ～-5.05

11.50 ～12.49 -5.06 ～-5.15

12.50 ～13.49 -5.16 ～-5.25

13.50 ～14.49 -5.26 ～-5.35 Stops

Proper

value 14.50 ～15.49 -5.36 ～-5.45 Stops

Low

15.50 ～16.49 -5.46 ～-5.55 Stops

16.50 ～17.49 -5.56 ～-5.65

Sounds

17.50 ～18.49 -5.66 ～-5.75

18.50 ～19.49 -5.76 ～-5.85

19.50 ～20.49 -5.86 ～-5.95

20.50 ～21.49 -5.96 ～-6.05

21.50 ～22.49 -6.06 ～-6.15

22.50 ～23.49 -6.16 ～-5.86.2

23.50 ～-6.26 ～

• Pressure is informed with the buzzer and the ink bottle lamp as well as the

screen display.

•For the negative pressure, the buzzer stops within the range of ±0.1kPa. For the

positive pressure, the buzzer stops within the range of ±1.0kPa.

Ink bottle lamp

JFX500: UJV500:

Ink bottle lamp

PLEASE WA I T
