MinkaAire Sundance Bedienungsanleitung

INSTRUCTION MANUAL WARRANTY CERTIFICATE

SUNDANCE TM

Minka-Aire®warrants to the original owner that this fan will be free from defects in material and workmanship for one

year from the date of purchase, excluding the motor. Minka-Aire®warrants to the original owner that the motor in this fan

shall be free from defects in This is a limited warranty. Minka-Aire®only obligation under this limited warranty is to replace

or repair, or refund the purchase price, in Minka-Aire®sole discretion without charge to the original owner, of the fan once Minka-Aire®confirms that

the fan has a defect covered by this limited warranty.

Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire®authorized dealer closest to your location, or

contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.

To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire®authorized dealer. The Minka-Aire®

authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to

the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire®directly for warranty service. Minka-Aire®will be

responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire®authorized dealer for product under

warranty.

You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire®along with proof of purchase, your name

and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire®will be the

original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that

proves to be defective during the warranty period to the following address:

Minka-Aire®- Warranty Service, 1151 W. Bradford Court, Corona, CA 92882

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal

of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the

fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.

This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and

Minka-Aire®shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or

limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly

complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.

Date Purchased Store Purchased Model No. F571/F572 Serial No.

CONTENTS

1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267 LISTED

SAFETY FIRST 1

PACKAGE CONTENTS 2

BEGIN INSTALLATION 3

HANGING THE FAN 4

ELECTRICAL CONNECTIONS 5

FINISHING THE INSTALLATION 6

ATTACHING THE FAN BLADES 7

INSTALLING THE SWITCH CAP 8

OPERATING YOUR FAN 9

MAINTENANCE 10

TROUBLESHOOTING 11

SPECIFICATIONS 12

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from

the floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked Acceptable for Fan Support. Secure the

box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds)

Do not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10.Turn the fan off and wait for the blades to stop completely before performing any cleaning or maintenance.

SAFETY FIRST

SUITABLE FOR USE IN

WET LOCATIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLYTO A U.L. LISTED OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN

CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF

LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN

DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

This Fan is suitable for Use In Wet Locations When Installed In A GFCI Protected Branch Circuit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

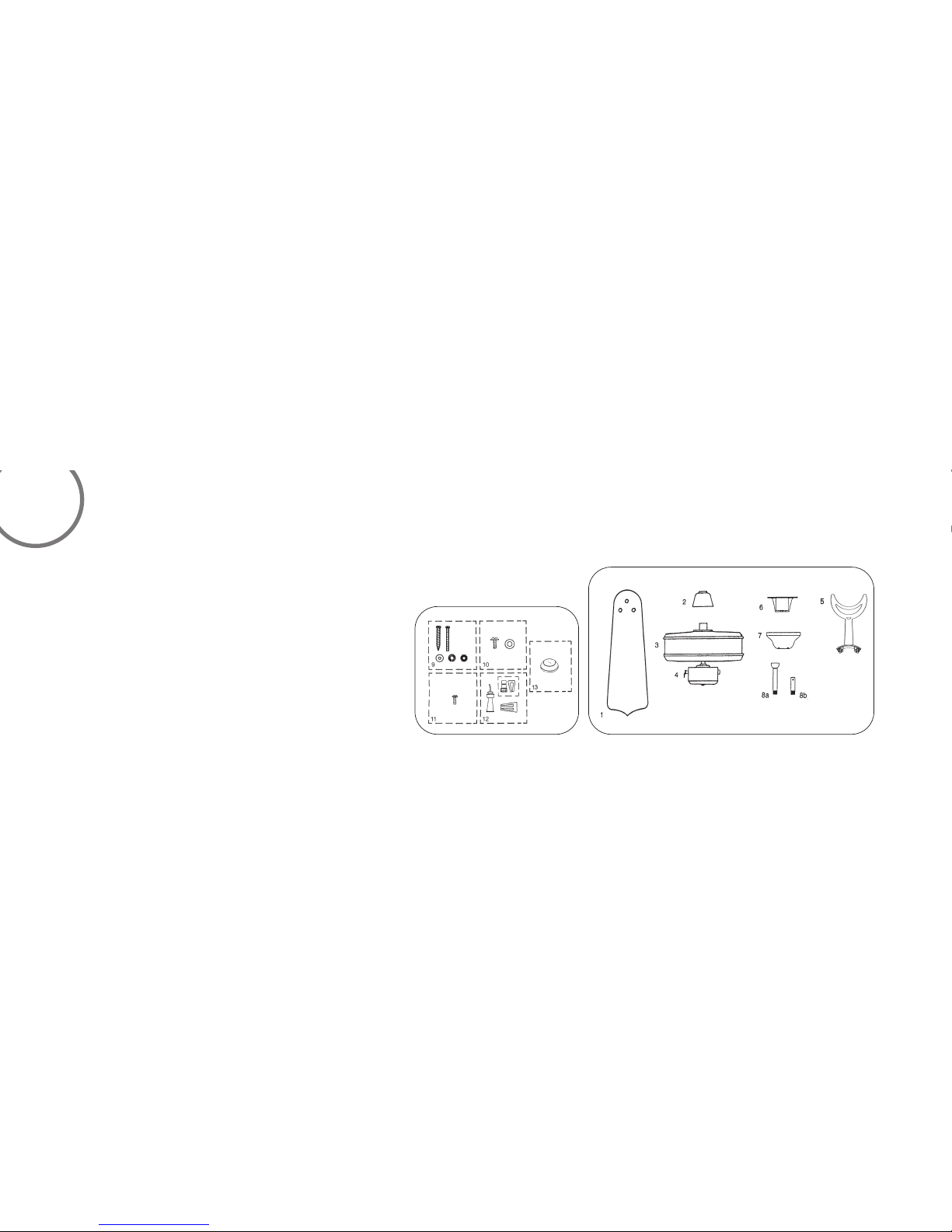

1. Fan blade

2. Coupling cover

3. Fan motor/housing ass'y

4. Switch Cup

5. Blade bracket

6. Mounting bracket with

Rubber pad attached

7. Canopy

8a. Standard downrod ass'y

with rubber cap

8b. Minimum-length

downrod (for close to

ceiling mounting only)

9. Mounting Hardware :

#8-32X38mm machine

screws (2 pcs)

#10-12X38mm wood

screws (2 pcs)

Spring washers (2 pcs)

Star washers (2 pcs)

Flat washers (2 pcs)

10. Blade Attachment Hardware:

3/16X9mm screws (16

pcs)

5X13mm rubber washers

(16 pcs)

11. Bracket Attachment

Hardware:

1/4"X11mm screws (11 pcs)

12. Switch Cup Hardware:

Pull Chain Fb (1pc.)

Wire Nuts (3 pcs.)

Balancing Kit

13. Rubber Cap (1pc.)

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

BEGIN INSTALLATION

MOUNTING OPTIONS

If there isn't an existing outlet box, then read the following instructions. Shut the

power off at the circuit breaker or fuse box.

Secure the outlet box directly to the building structure. Use appropriate fasteners and

building materials. The outlet box and its support must be able to fully support the

moving weight of the fan (at least 50 lbs.). Use a U.L. Listed metal outlet box marked

"Acceptable for ceiling fan support". Do not use a plastic outlet box.

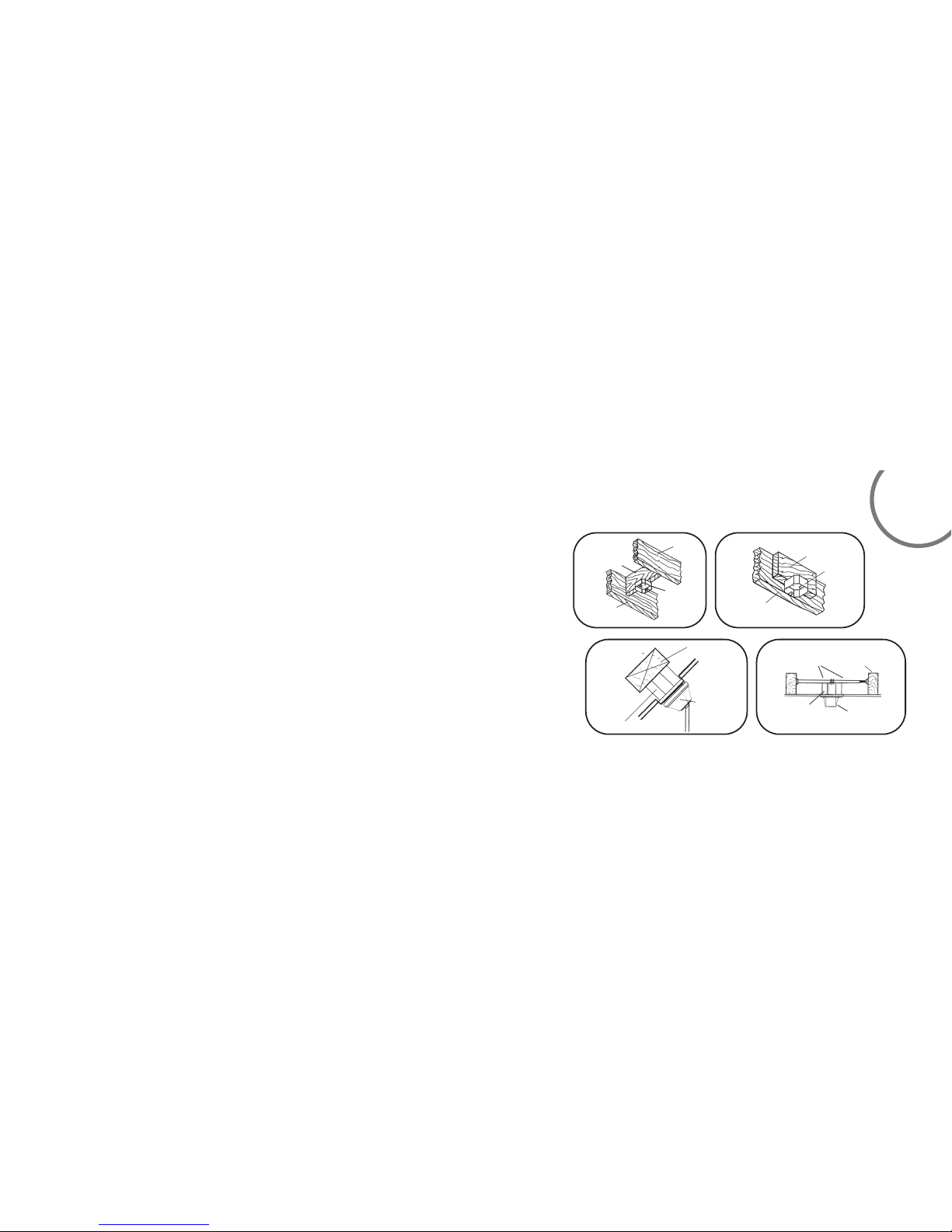

Figures 1,2 and 3 are examples of different ways to mount the outlet box.

Note:You may need a longer downrod to maintain proper blade clearance when

installing on a steep,sloped ceiling. Longer downrods are available from your Minka-

Aire®dealer.

To hang your fan where there is an existing fixture but no ceiling joist,you may need

to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).

Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. 3

CEILING JOIST

OUTLET BOX

CROSS BRACE

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

CEILING JOIST

OR CROSS BRACE

Fig.1 Fig.2

Fig.3 Fig.4

ANGLED CEILING

MAXIMUM 29

ANGLE

PROVIDE

STRONG

SUPPORT

HANGER

OPENING

MUST

BE FACING

UP-SIDE OUTLET BOX

HANGER BAR

(OPTIONAL)

CEILING

JOIST

HANGER

BRACKET

HANGING THE FAN

REMEMBER to shut the power off at the circuit breaker or fuse box.

Step 1. Secure the hanger bracket to the ceiling outlet box using screws

provided with the outlet box and flat washers included with the fan.

(Fig. 5) Note: Optional wood screws are provided for mounting of

hanger bracket directly to buliding structure.

Step 2. Loosen the two set screws in the top coupling of the top

housing assembly. (Fig. 6)

Step 3. Remove downrod hanger ball by loosening set screw, removing

the cross pin, and sliding ball off rod. Remove the hitch pin and lock

pin.(Fig. 7)

Step 4. Carefully feed fan wires up through the downrod and then

through the holes in the rubber cap on the top of the downrod. Insert

the rod into the coupling and tighten onto fan until the holes are

aligned. Next, replace lock pin and hitch pin. Tighten the set screws.(Fig.

Step 5. Slip coupling cover, and canopy onto downrod. Let canopy rest

on top of the coupling cover.Carefully reinstall hanger ball onto rod

being sure that cross pin is in correct postition, set screw on hanger ball

is tight and wires are not twisted.(Fig.8)

Step 6. Now lift motor assembly into position and place downrod ball

into hanger bracket. Rotate until the check groove has dropped into the

registration slot and seats firmly. Rod should not rotate if this is done

correctly.(Fig.9)

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety

and the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire with the fan will

void the Minka Aire Warranty.
