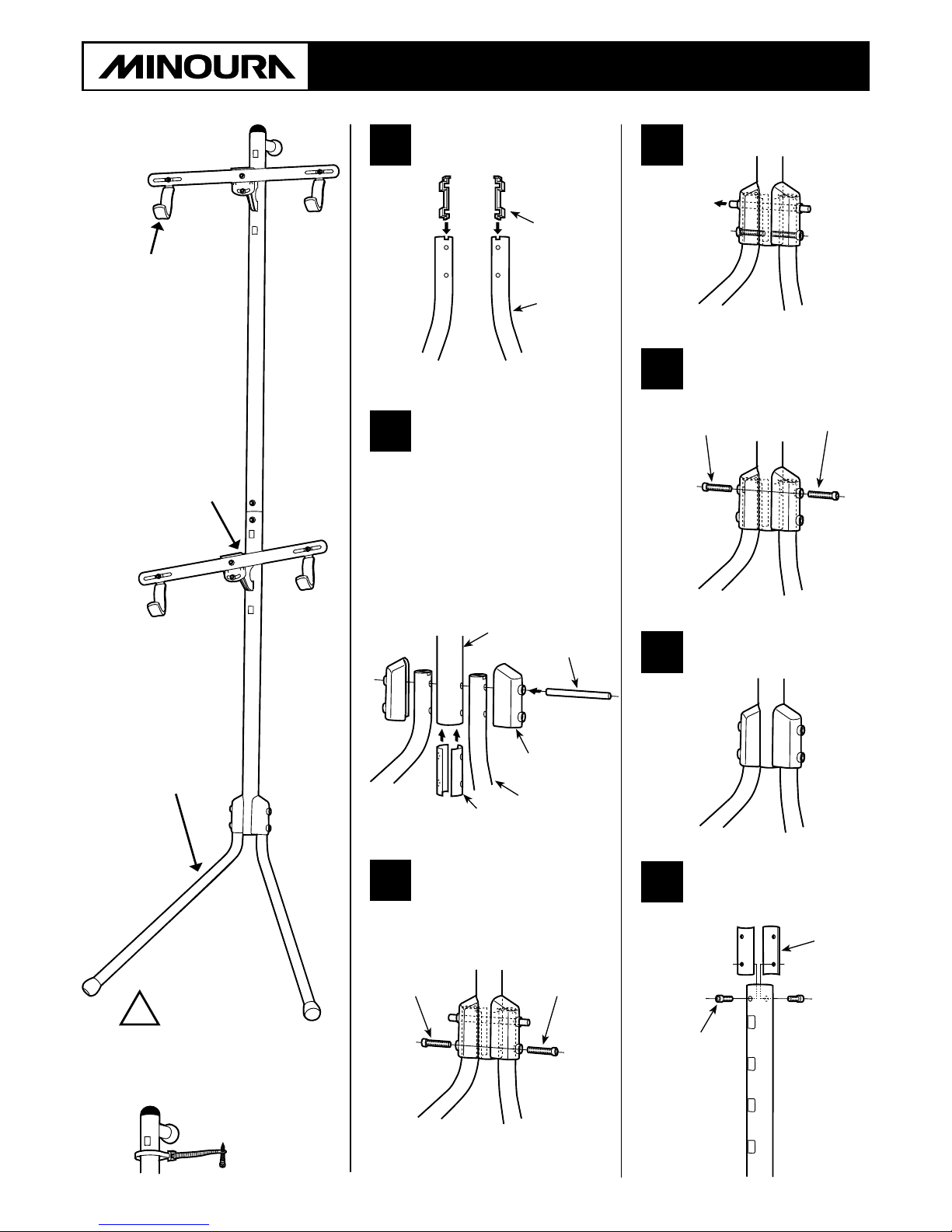

MINOURA GRAVITYSTAND 2 Bedienungsanleitung

GravityStand 2 instructions manual

1Insert Plastic Bracket into

each Leg.

Plastic Bracket

Leg

2Insert Metal Plate into

Lower Pillar, put Plastic

Cover onto each Leg, then

put through Guide Pin into

either hole for temporally

assembling.

Be sure the square holes on

Lower Pillar must face to

front side.

Lower Pillar

Guide Pin

Plastic Cover

Metal Plate

Leg

3Screw M6x40 Bolt into the

hole without Guide Pin.

(You don't need to tighten

the bolts so much now.)

M6x40 Bolt M6x40 Bolt

GravityStand is designed to keep

enough stability. But we highly

recommend you to x the stand

to the wall with the supplied strap

M3.5x15 or 25

Screw

to prevent any

accident.

Cradle Hook is

padded with soft

urethane to protect

your bike nish.

Angle & position

are adjustable.

Cradle height is

adjustable in 3

positions without

requiring any tool.

Setting up is very

easy! Just lean to

the wall.

(Pillar should be set

parallel to the wall)

Remove Guide Pin.

Remove

5Screw M6x40 Bolt to

another hole.

M6x40 Bolt M6x40 Bolt

6Tighten all M6x40 Bolts

rmly.

7Install Metal Plate to the

top holes on Lower Pillar

with M6x12 Bolt.

Metal

Plate

M6x12 Bolt

- Page 1 -

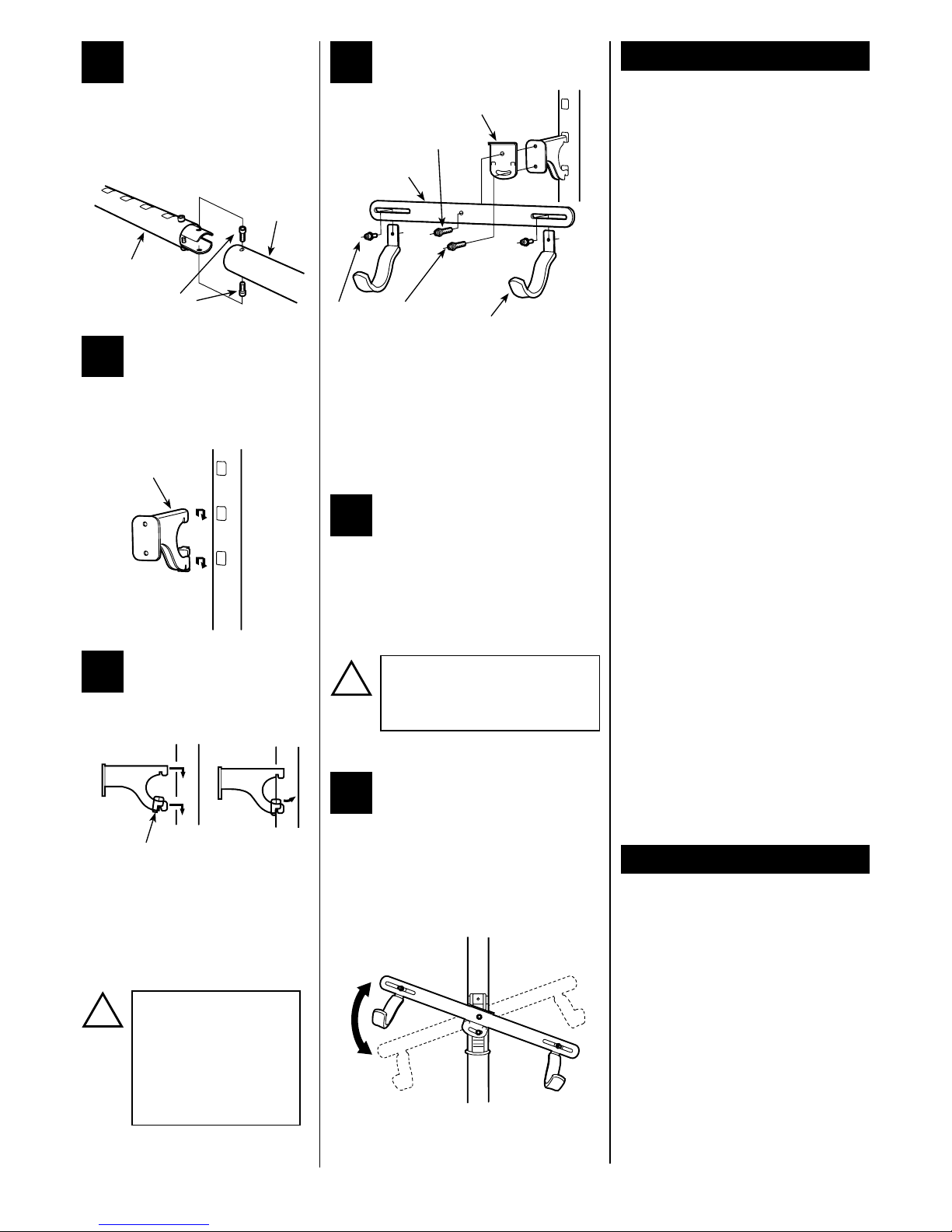

8Joint Upper Pillar to the

installed Metal Plates.

Make sure the square holes

on Upper Pillar align the

same.

Tighten M6x12 Bolt rmly.

Lower Pillar

Upper

Pillar

M6x12 Bolt

9Install Cradle Base to your

favorite hole.

Hook both ends to the

square holes then slide

down to x.

Cradle Base

Push Lock Lever toward

the pillar to lock Cradle

Base position.

To change Cradle Base

position, pull back Lock

Lever then pull out the

cradle.

Lock Lever

Use screwdriver

to release Lock

Lever. Do NOT do

with your nger,

otherwise your nail

may be damaged.

Assemble Bike Cradle.

Angle Adjust

Plate

Cradle Bar

Cradle Hook (universal)

M6x14 Bolt

M6x20 Bolt

Flat & Spring

Washers

Set Angle Adjust Plate as the long

hole is set downward.

Cradle Hook must be installed

from back of Cradle Bar to

prevent scratching problem to

your bike frame.

Bike cradle is angle adjustable to

t to your bike's top-tube angle.

Loosen the lower bolt (long hole

side) to adjust. After that tighten

the bolt rmly.

The bike should be as horizontal

as possible.

Set and lean GravityStand to the

wall.

The pillar must be set parallel to

the wall to keep best stability.

Put the top-tube of your bike on

Cradle Hooks gently.

Do NOT apply any paper

or thin plate under Legs to

prevent slippage accident.

Each position and angle of Cradle

Hook is also adjustable.

IMPORTANT NOTES

• Gravity Stand is only for normal

2-wheel bikes. Do not use for any

other purposes.

• Gravity Stand will not supported

nor xed. Be careful not to hit the

stand when you passing nearby.

• Gravity Stand is designed to keep

enough stability even having heavy

shocks. But we highly recommend

you to x the stand to the wall with

the supplied strap.

• Remove any sand and dust from

the area Leg touches to prevent

slippage problem.

• Check every bolt regularly and

tighten rmly with proper tool if you

nd any loose.

• Minoura offers 1-year limited

warranty from the date of your

purchase. Any problem caused

by manufacturer's defect and

wrong workmanship will be

covered by this program. But any

trouble caused by user's misuse,

unapproved modication, natural

calamity and every problem

happened during shipment will

NOT be covered by Minoura.

For more detail, please refer the

attached "Warranty Program

Instruction" card.

FOR MORE INFORMATION

If you have any quetion, contact the

shop where you purchased or your

local distributor rst.

MINOURA JAPAN

1197-1 Godo, Anpachi, Gifu 503-2305

Phone +81-584-27-3131

Fax +81-584-27-7505

Mail [email protected]

Web www.minoura.jp

MINOURA NORTH AMERICA

Mail [email protected]

Made in Japan

- Page 2 -
