Minuteman Enterprise Plus Series Bedienungsanleitung

User's Manual

Enterprise Plus

Series UPS

1. Introduction 2

2. Controls and Indicators 6

3. Installation 9

4. Operation 15

5. Troubleshooting 18

6. Replacing the Battery 19

7. Obtaining Service 22

8. Specifications 23

9. Configurable Parameters & Settings 25

10. Limited Product Warranty 26

A1. Declaration of Conformity 28

English

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS !

English

Thankyouforpurchasingthispowerprotectionproduct. Ithasbeendesigned

andmanufacturedtoprovidemanyyearsof trouble freeservice.

Please read this manual before installing your Enterprise Plus Series UPS,

modelsE750RM2U,E1000RM2U,E1500RM2U,E1500RMT2U,E2000RM2U,

E3000RM2U,E3000RMT2Uasitprovides importantinformationthatshouldbe

followedduring installationandmaintenance of theUPSand batteriesallowing

youtocorrectly set up your system forthemaximum safety and performance.

Includedis informationoncustomersupport and factoryserviceif it isrequired.

If you experience a problem with the UPS please refer to the Troubleshooting

guide in this manual to correct the problem or collect enough information so

that theTechnical Support Department can rapidly assist you.

Thissymbol indicates "ATTENTION"

This symbol indicates "Risk of Electrical Shock"

This symbol indicates "Alternating Current Supply"

This symbol indicates "Alternating Current Supply Phase"

WARNING: Risk of Electrical Shock. Hazardous live partsinside

these power supplies are energized from the battery even when the

AC input is disconnected.

CAUTION! Tode-energize the outputsofthe UPS:

1. IftheUPSisonpress andreleasetheOn/Off/Testbutton. NOTE:

Forthe 208V models;turntheinput circuit breaker totheoffposi-

tion.

2. Disconnect the UPS from theAC wall outlet.

3. To de-energize the UPS completely, disconnect the battery.

CAUTION! To reduce the risk of electrical shock in conditions

where the load equipment grounding cannot be verified, disconnect

theUPS fromtheACwall outletbeforeinstallingacomputer interface

cable. Reconnectthe power cordonlyafterall signaling connections

aremade.

CAUTION! Connect the UPS to a two pole, three wire grounding

ACwall outlet. The receptacle must beconnectedtotheappropriate

branch protection (circuit breaker or fuse). Connection to any other

type of receptacle may result in a shock hazard and violate local

electricalcodes. Do notuseextension cords,adapterplugs, orsurge

strips.

English

CAUTION! Toreduce the risk of electrical shock with the installa-

tion of this UPS equipment and the connected equipment, the user

must ensure that the combined sum of the AC leakage current does

not exceed 3.5mA.

This symbol indicates "Direct Current Supply"

This symbol indicates "Equipment Grounding Conductor"

WARNING: ThisUninterruptiblePowerSupplycontainspotentially

hazardousvoltages. Do not attempt todisassembletheUPS beyond

the battery replacement procedure. This UPS contains no user ser-

viceableparts. RepairsandBatteryreplacementmustbeperformed

byQUALIFIED SERVICEPERSONNELONLY.

English

AfterremovingyourUPS fromitscarton, itshouldbeinspectedfor damagethat

may have occurred in shipping. Immediately notify the carrier and place of

purchase if any damage is found. Warranty claims for damage caused by the

carrierwillnotbe honored. The packing materials that your UPS was shipped

in are carefully designed to minimize any shipping damage. In the unlikely

case that the UPS needs to be returned to the manufacturer, please use the

original packing material. Since the manufacturer is not responsible for ship-

pingdamageincurredwhenthesystemis returned, the original packing mate-

rialis inexpensive insurance. PLEASE SAVE THE PACKING MATERIALS!

Receiving Inspection

NOTICE: Thisequipment has been tested and found to comply with the limits

for a Class B computing device in accordance with the specifications in Sub-

partJof Part 15 of FCC Rules and theClassB limits for radio noise emissions

fromdigital apparatussetoutintheRadioInterferenceoftheCanadianDepart-

ment of Communications. These limits are designed to provide reasonable

protection against such interference in a residential installation. This equip-

mentgeneratesandusesradiofrequencyandifnotinstalledand usedproperly,

that is, in strict accordance with the manufacturer's instructions, this equip-

ment may cause interference to radio and television reception. If this equip-

ment does cause interference to radio or television reception, which can be

determinedbyturningtheequipmentoff andon,theuseris encouragedto tryto

correcttheinterferencebyoneormoreofthefollowingmeasures:

Re-orientthereceivingantenna.

Relocatethecomputerwithrespect to the receiver.

Movethe computerawayfromthe receiver.

Plugthecomputerintoadifferent outlet so that the computer and receiver

areondifferent branch circuits.

Shieldedcommunications interface cables mustbeusedwith this product.

WARNING: Changes or modifications to this unit not expressly ap-

proved by the party responsible for compliance could void the user's

authoritytooperatetheequipment.

NOTE: TheseUPSsareshippedwiththebatteriesdisconnected. Thebatter-

ies must be connected before putting these UPSs into service. Refer to Sec-

tion 3 "Installation" for connecting the batteries.

English

Life Support Policy

Asa general policy, wedonotrecommendtheuseofany of our productsin life

supportapplications where failureormalfunction of theproductcanbe reason-

ablyexpected to cause failure of thelifesupportdeviceor to significantly affect

its safety or effectiveness. We do not recommend the use of any of our prod-

ucts in direct patient care. We will not knowingly sell our products for use in

such applications unless it receives in writing assurances satisfactory to us

that (a) the risks of injury or damage have been minimized, (b) the customer

assumes all such risks, and (c) our liability is adequately protected under the

circumstances.

Examplesofdevicesconsidered tobelife supportdevicesare neonataloxygen

analyzers,nerve stimulators (whether used for anesthesia, pain relief,orother

purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia

detectorsandalarms,pacemakers,hemodialysissystems,peritonealdialysis

systems,neonatal ventilator incubators, ventilators for both adultsandinfants,

anesthesiaventilators, and infusion pumpsaswellasany other devices desig-

nated as “critical” by the United States FDA.

Hospitalgrade wiring devices and leakage current may be ordered as options

onmanyof our UPS systems. We do not claim that units with this modification

arecertified orlistedasHospital Grade byusor any otherorganization. There-

fore, these units do not meet the requirements for use in direct patient care.

English

TheAC normal (green) LED illuminates in a steady state when the

UPS is on and operating in the AC normal mode. TheAC normal

LED will extinguish when operating in the Battery mode.

TheOn-Battery(green) LED illuminates in a steady state whenthe

UPS is operating in the Battery mode. The On-Battery LED will

extinguishwhenoperatinginthe ACnormal,BoostandBuckmodes.

The Boost (yellow) LED illuminates in a blinking state when the

UPSis operating in the Boostmode. TheBoostLEDwill extinguish

when operating in theAC normal, Buck and Battery modes.

TheBuck (yellow) LED illuminates inablinkingstatewhen the UPS

isoperating in the Buck mode. TheBuck LED will extinguish when

operating in theAC normal, Boost and Battery modes.

The Fault (red) LED illuminates in a steady state when the UPS

detects an internal fault. The Fault LED is extinguished when the

UPSisoperatingproperly.

TheWeak/Bad Battery(red)LEDilluminates in asteadystate when

the UPS detects a weak battery, bad battery or if the battery is

disconnected. The Weak/Bad Battery LED is extinguished when

the battery's condition is good.

TheSiteWiringFault(red)LED(120Vmodels)illuminatesinasteady

statewhen the UPSdetectsasite wiring problem. TheSWFLEDis

extinguished when the UPS is connected to proper site wiring.

CONTROL PANEL

English

TheLoad Level Bar Graph (AC modeonly)operatesasfollows:

LED#10:>10% load (green/red/yellow) LED will be green and illu-

minated when there is at least 10% of the rated capacity.

LED #30: >30% load (green/yellow) LED will be green and illumi-

nated when there is at least 30% of the rated capacity.

LED #50: >50% load (green/yellow) LED will be green and illumi-

nated when there is at least 50% of the rated capacity.

LED #70: >70% load (green/yellow) LED will be green and illumi-

nated when there is at least 70% of the rated capacity.

LED #90: >90% to approximately 109% load (red/yellow) LED will

be yellow and illuminated when there is approximately 90% of the

rated capacity to indicate that unit is near full capacity. The LED

will turn red at 110% load capacity to indicate an Overload condi-

tion.

The Battery Capacity Bar Graph (Battery mode only) operates as

follows:

LED #90: >90% battery capacity (red/yellow) LED will be yellow

and illuminated until the battery’s capacity drops below 80% ca-

pacity and then it will extinguish.

LED#70:>70% battery capacity (green/yellow) LED will be yellow

and illuminated until the battery’s capacity drops below 60% ca-

pacity and then it will extinguish.

LED#50:>50% battery capacity (green/yellow) LED will be yellow

and illuminated until the battery’s capacity drops below 40% ca-

pacity and then it will extinguish.

LED#30:>30% battery capacity (green/yellow) LED will be yellow

and illuminated until the battery’s capacity drops below 30% ca-

pacity and then it will extinguish.

LED#10: >30% batterycapacity(green/red/yellow) LEDwillbe yel-

low and illuminated until the unit issues a Low Battery Warning

Alarm and then it will turn red to indicate a Low Battery Warning.

TheMulti-FunctionOn/Off/Test Button functions as follows:

When the UPS is Off, press and release the On/Off/Test button

after one beep to turn the UPS On. NOTE: The input circuit

breaker MUST be in the on position for the 208V models.

When the UPS is On, press and release the On/Off/Test Button

after one beep to turn the UPS Off. NOTE: Turn the input circuit

breakerto the off position forthe 208V models.

Whenthe UPSisOn,press and holdtheOn/Off/Testbuttonfor four

beeps, then release the button. The UPS will perform a 5-second

SelfTest.

English

REAR PANEL

1. TheRS232CommunicationsInterfacePortisforUPSmonitoringand control.

2. TheUSBCommunicationsInterfacePortisforUPSmonitoringand control.

3. TheRJ11 REPO(RemoteEmergencyPowerOff)PortisforUPScontrol.

4. Theoptionslot is foroptioncards.

5. TheExternalBatteryConnectoris forconnecting ExternalBatteryPacks.

6. Theoutputcircuit breakerwilltrip intheevent the loadexceedsthe UPS’spowerrating.

7. TheBatteryBackup outputpowerreceptacles. The outputreceptaclesareelectrically

wiredintotwosegmentsto supportthe"LoadSheddingFunction". The lockingreceptacle

doesnotsupporttheLoad SheddingFunction. NOTE:Thelockingrecptacleisnot onall

models.

8. Theinputcircuit breakerwilltrip intheevent the loadexceedsthe UPS’spowerrating.

9. Theinputpowercord(120V models). TheACPowerInletIEC320(208V models).

10. Thedipswitchis for settingtheInverter (On-Battery)outputvoltage.

11. The ExternalGroundStudisforconnecting anexternalground wire.

12. TheR-J11/R-J45modularconnectorsareused for10/100 Base-TNetwork/singleline

Phone/Fax/Modemprotection.

Output Power Receptacles

E750RM2U NEMA5-15P

Model#

E1500RM2U

E2000RM2U

E1000RM2U

E3000RM2U

E1500RMT2U

E3000RMT2U

NEMA5-15P

NEMA5-20P

NEMAL5-30P

NEMAL6-30P

NEMA6-15P

6-NEMA5-15R

6-NEMA6-15R

6-NEMA5-15/20R

1-NEMAL5-20R

6-NEMA5-15/20R

1-NEMAL5-30R

6-NEMA6-15/20R

1-NEMAL6-30R

Input Power Plug

(All power cords are 10ft)

English

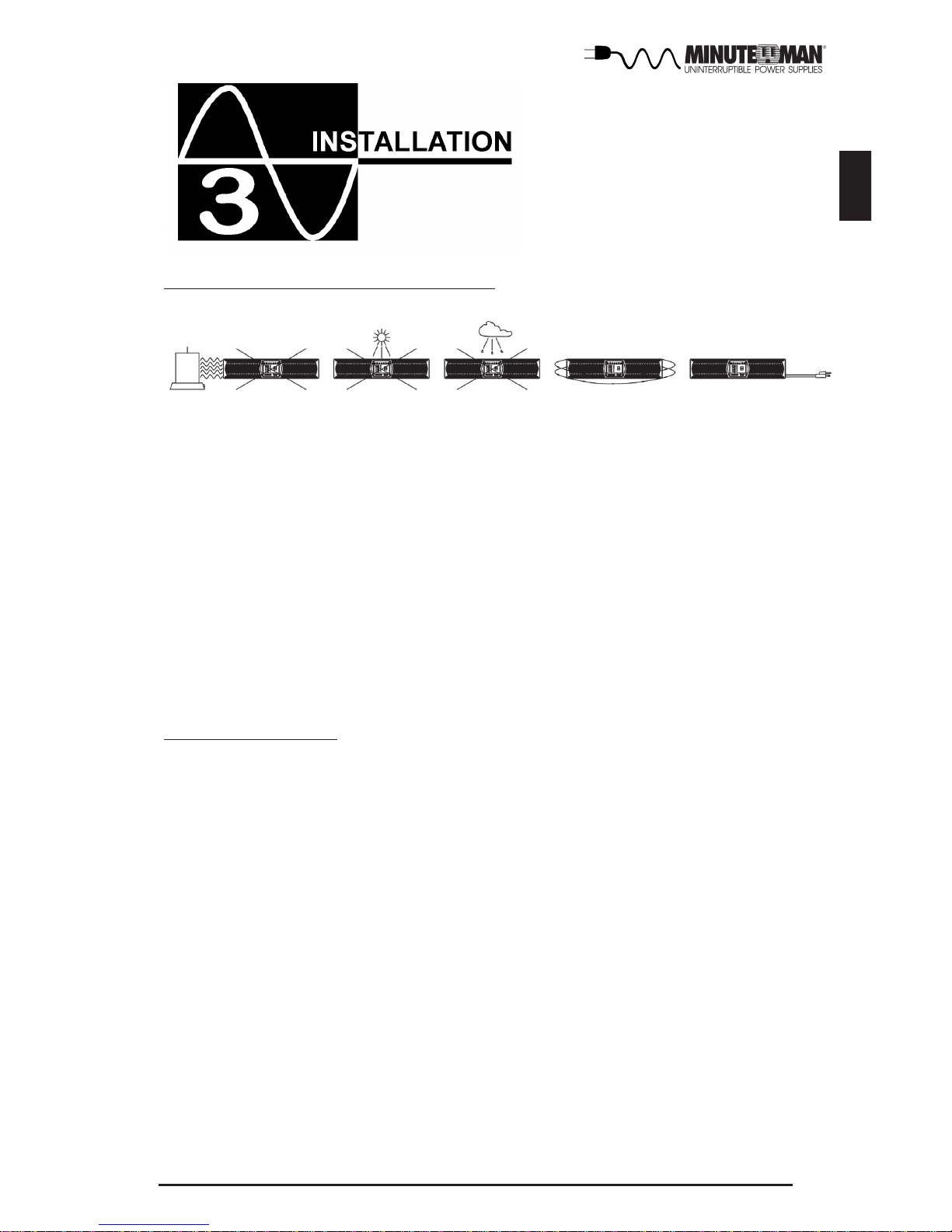

INSTALLATION PLACEMENT

This UPS series is intended to be install in a temperature controlled environ-

ment that is free of conductive contaminants. Select a location which will

providegood air circulation for the UPS at all times. Avoidlocationsnearheat-

ingdevices, waterorexcessive humidity, orwheretheUPS isexposedto direct

sunlight. Route power cords so they cannot be walked on or damaged.

OperatingTemperature(Maximum): 0to40degrees C(+32 to+104degreesF)

OperatingElevation: 0 to 3,000m (0 to +10,000 ft)

Operatingand Storage Relative Humidity: 95%,non-condensing

StorageTemperature: -15 to +45 degrees C (+5 to +113 degrees F)

Storage Elevation: 0 to 15,000m (0 to +50,000 ft)

INSTALLATION

Besureto read the installation placement and all the cautions before installing

the UPS. Place the UPS in the final desired location and complete the rest of

theinstallationprocedure. These UPSs are shipped with the internal batteries

disconnected. The batteries must be connected before putting these UPSs

intoservice. See the connecting the batteriesproceduretoconnectthe batter-

iesand see the RackmountConfigurationtoinstallthe UPS into therack. USE

CAUTION: TheUPSisheavy. Use theappropriatenumber ofpersonnelwhen

installing the UPS.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Minuteman UPS Handbücher

Minuteman

Minuteman CPE 1000 On-Line Series Gebrauchsanweisung

Minuteman

Minuteman MBK 300YYY Bedienungsanleitung

Minuteman

Minuteman Enterprise Plus LCD RTXL UPS Series Bedienungsanleitung

Minuteman

Minuteman Entrust-LG Series Bedienungsanleitung

Minuteman

Minuteman AT1200 Bedienungsanleitung

Minuteman

Minuteman MN 325/MN 525 Bedienungsanleitung

Minuteman

Minuteman 6-10KVA Tower Bedienungsanleitung

Minuteman

Minuteman Smart Up Series Bedienungsanleitung

Minuteman

Minuteman PRO1100E Bedienungsanleitung

Minuteman

Minuteman Endeavor ED1000RTXL2U Bedienungsanleitung

Minuteman

Minuteman AT300 Bedienungsanleitung

Minuteman

Minuteman Pro 2200r Bedienungsanleitung

Minuteman

Minuteman EN750 Bedienungsanleitung

Minuteman

Minuteman SentryII UPS Bedienungsanleitung

Minuteman

Minuteman MN 325 Bedienungsanleitung

Minuteman

Minuteman Enterprise Series Bedienungsanleitung

Minuteman

Minuteman XRT Series Bedienungsanleitung

Minuteman

Minuteman PARASHIELD 1224 Bedienungsanleitung

Minuteman

Minuteman CPE 1000 On-Line Series Bedienungsanleitung

Minuteman

Minuteman ETR550LCD Bedienungsanleitung

Minuteman

Minuteman CP Series Bedienungsanleitung

Minuteman

Minuteman E750RM2U Bedienungsanleitung

Minuteman

Minuteman Endeavor ED6000T Bedienungsanleitung

Minuteman

Minuteman Endeavor RTXL Series Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

Eaton

Eaton 3S Montageanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung
