Mio GPS Car Kit Bedienungsanleitung
1
Welcome
Thank you for using GPS Car Kit. This Quick Start Guide
guides you through a successful setup.
WARNING: Always press the release button whenever
adjusting the retaining arm.
For more information on the GPS Car Kit, go to
www.mio.com
Status LED
Volume
Control
Adjustment
Block. Back
Support
Adjustment
Switch on back.
Retaining Arm
Release
Button
Audio Aux
Output
Power
(USB)
Speake
r
Multifunction switch on back
2
Installation
Please do not place your iPhone® or iPod touch® into
the GPS Car Kit until instructed to do so.

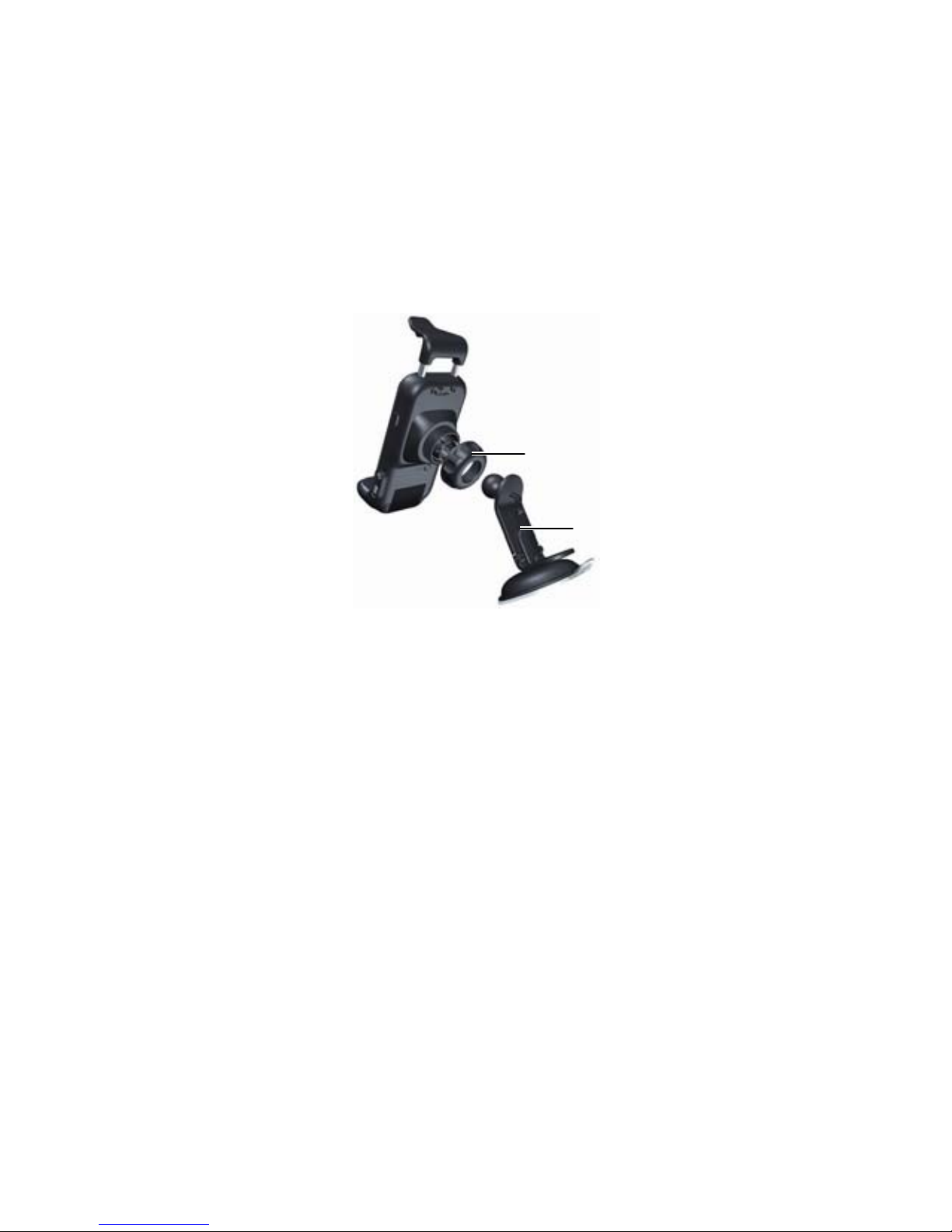

Assembling
Assemble the GPS Car Kit as shown. Do not tighten the
retaining ring.
Press the unlock button and raise the retaining arm all
the way to the top.
Inserting your iPhone into the GPS Car Kit
Slide your iPhone or iPod touch into the connector on
the bottom of the GPS Car Kit and then gently push
your iPhone or iPod touch towards the GPS Car Kit.
Press the release button and push down on the
retaining arm to lock your iPhone or iPod touch in
place.
Checking for an uneven gap
The gap between the iPhone or iPod touch and the GPS
Car Kit should be even. If it is uneven, you can slide the
adjustment switch on the back to push out the
adjustment block until the gap at the top is the same as
the gap at the bottom.
Retaining Ring
Cradle Holde
r
3
(Please note that if it is still uneven, you will need to
remove your device. Then pull out the adjustment
block, rotate it 180º and place it back in the GPS Car
Kit. This will increase the thickness of the adjustment
block.)
Mounting the GPS Car Kit in your vehicle
Before mounting the GPS Car Kit you should remove
your iPhone or iPod touch by lifting the front tab on the
retaining arm and rotating your iPhone slightly forward.
When mounting the GPS Car Kit in your vehicle please
keep these important guidelines in mind...
Check local vehicle laws regarding mounting
devices on windshields.
Make sure not to mount the GPS Car Kit where it
could be dislodged should your airbags deploy.
Likewise, make sure that the power cable would
not be dislodged should the airbags deploy.
Clean the area where the GPS Car Kit will be placed.
Dry the area thoroughly before continuing.
Press the GPS Car Kit base firmly against the windshield
or dash surface.
Push the suction cup arm down, locking the GPS Car Kit
to the surface.
4
Applying power
Connect the USB end of the power cable to the GPS
Car Kit. Connect the other end of the cable to a vehicle
power receptacle.
Reinstall your iPhone into the GPS Car Kit and adjust
for proper viewing.
When making viewing adjustments, always hold the
assembly by the GPS Car Kit and not your iPhone.
Make any final adjustments for proper viewing and
tighten the retaining ring.
Bluetooth®pairing
When the GPS Car Kit is first powered on, Bluetooth is
automatically set to discovery mode and ready to pair
with a new device.
1. Connect the GPS Car Kit to power.
2. In the iPhone Settings Menu, turn on BlueTooth.
3. Under Devices, select “Mio GPS Car Kit.”
4. When prompted to pair with the GPS Car Kit, press
Yes.
5. GPS Car Kit will connect with your iPhone.
6. Pairing is now complete.
Once paired, the GPS Car Kit will automatically connect
with the iPhone when it is in range.
Declaration of Conformity
For regulatory identification purposes, GPS Car
Kit is assigned a model number of N269.
Hereby, Mio Technology declares that this N269 is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Visit Mio website (mio.com) for the full text of the declaration
for your device.
All brand and product names are trademarks or registered
trademarks of their respective companies.
