INTRODUCTION
The B-24-G is a VHF band high power linear amplifier
designed for the 144 MHz band. It has a maximum output power
of 50W.
With a combination of built-in low noise GaAsFET
receive pre-amp, the B-24-G enables you to enjoy a more
comfortable VHF DX QSO.
FEATURES
1. High output power of 50W.
50W average is achieved with 1~5W input power.
2. Aluminum heat sink.
Aluminum heat sink combined with the case is designed
or an excellent heat dissipation effect.
-- --2
SPECIFICATION
FREQUENCY : 144 MHz
MODE :F3(FM)
INPUT POWER : 1-5W
D.C. OUTPUT POWER : 50W
DC POWER SUPPLY : DC 13.8V
OUTPUT CONSUMPTION : 8A (MAX.)
INPUT/OUTPUT IMPEDANCE : 50 Ohm
INPUT/OUTPUT CONNECTOR : BNC/M TYPE
RX GAIN : 18 dB
ACCESSORY CIRCUIT : COX (Carrier Operated
T/R switch, RX pre-amp)
ACCESSORIES : Mobile mounting bracket,
FUSE (8A), Instruction
Manual, docking adaptor.
DIMENSIONS : 3.4(W)*6.0(H)*3.4(D)in
WEIGHT : approx. 1.5 lbs.
-- --3
EXPLANATION OF FEATURES
-- --4
1. PWR INDICATOR
The PWR Indicator LED indicates the amplifier is
transmitting or on air.
2. PRE-AMP INDICATOR
When the PRE-AMP Indicator LED is on, it indicates the
amplifier is in the RX mode and boosts the signal
received.
3. TX INDICATOR
The TX Indicator LED indicates the amplifier is ON and
in Stand-By mode. The amplifier is now ready to
transmit.
4. PRE-AMP/OFF SWITCH
When this switch is ON (upper position), the pre-amp
unit boosts the signal received.
5. TX/OFF SWITCH
ON (upper position): The amplifier is ready to transmit.
(Max. 50W)
OFF (lower position): The amplifier is on receive mode
only.
6. DC INPUT (13.8V)
This port has two wires. Connect it to a stable DC power
supply (13.8V) or battery. The red wire has a fuse holder
and is the positive lead. The black wire is the negative
lead. (FUSE holder is on the positive DC lead.)
-- --5
7. ANT
The Antenna can be connected directly here.
8. TX (RF INPUT)
This is a BNC connector that should be connected
directly to the handy-transceiver.
9. DOCKING ADAPTOR
There are various adaptors suitable for different models
of handy-transceivers.
10. MOUNTING BRACKET
The mounting bracket allows easy attachment of your
B-24-G to your car.
11. ADAPTER POWER SWITCH
The adaptor power can be turned OFF (middle position)
when the amplifier is not in use. You can select the
adaptor to be 10.8V (left position) for new HT models or
13.8V (right position) for older models depending on
your HT.
-- --6

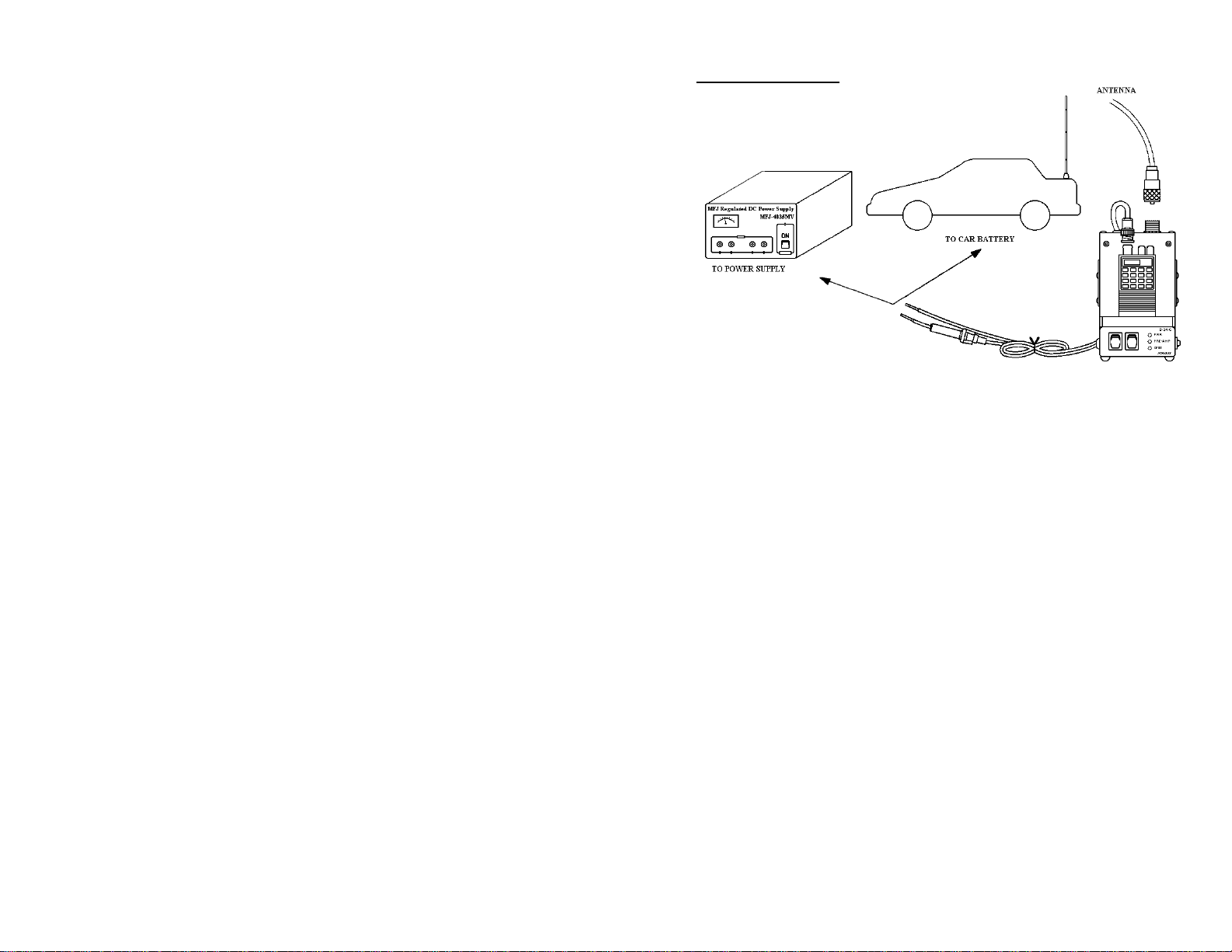

INSTALLATION
-- --7
DIAGRAM OF RX GAIN
-- --8

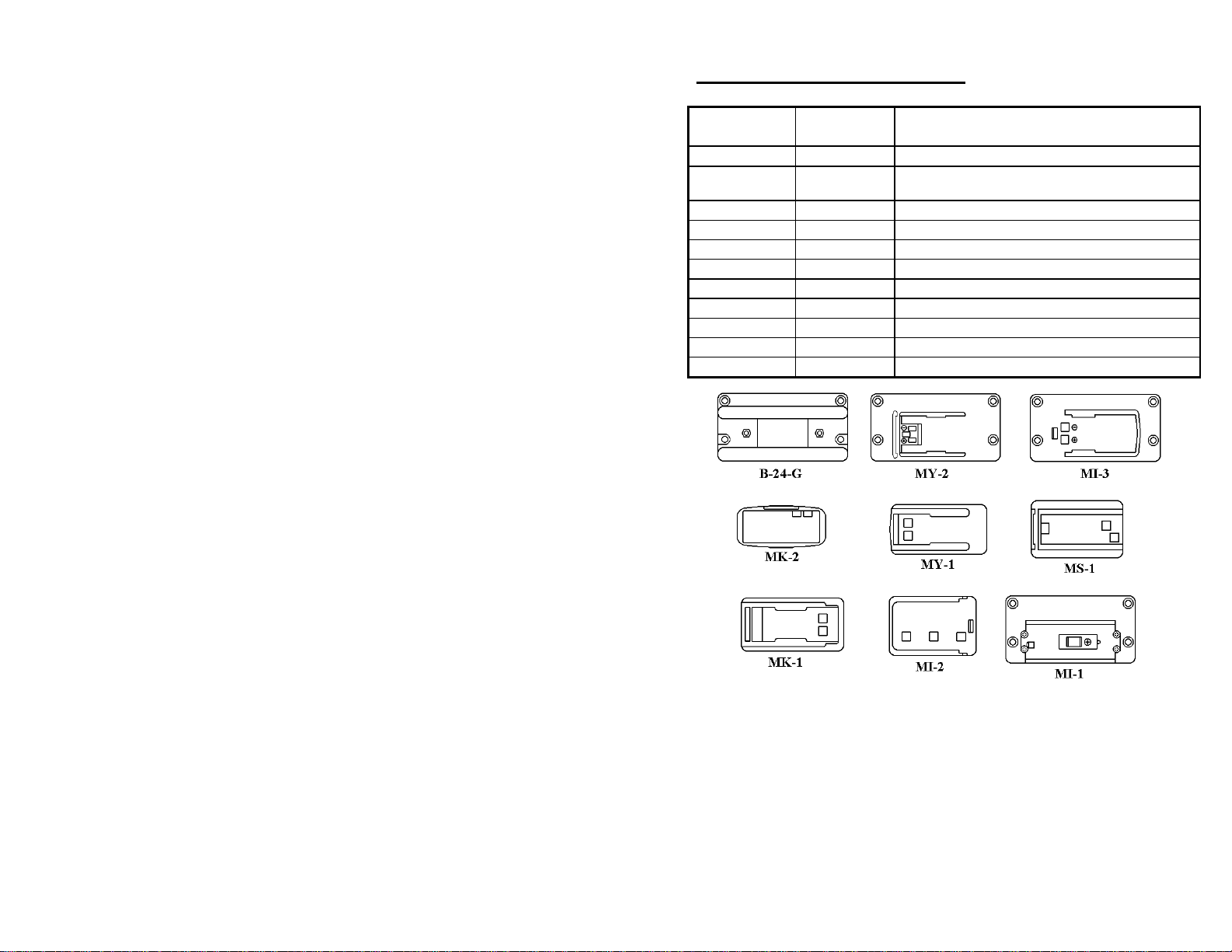

B-24-G OPTIONAL ADAPTORS
HAM RADIO
MAKER ADAPTOR
MODEL COMPATIBLE TRANSCEIVER MODEL
NO.
ICOM MI-1 IC-2N, 02N, 3N, 03N, 12N, 2G, 3G, 12G, 23, etc.
ICOM MI-2 IC-2S, 2SAT, 2SR, 3S, 3SAT, 3SR, 24, W2, X2,
etc.
ICOM MI-3 IC-W21, X21, W21T, X21T etc.
ICOM MI-4 IC-T22, T42
YAESU MY-1 FT-23, 204, 73, 704, 104, 728, etc.
YAESU MY-2 FT-24, 74, 205, 705, 305, 805, 729, etc.
YAESU MY-3 FT-11
YAESU MY-4 FT-50
KENWOOD MK-1 TH-25, 25G, 45, 45G, 55, 75,77, etc.
KENWOOD MK-2 TH-22A, 22AT, 42A, 42AT, 59, 79, 79E, etc.
STANDARD MS-1 C150, C450, C520, C550, 620, etc.
-- --9
ADAPTORS and ADAPTOR POWER SETTING
HAM RADIO
MAKER ADAPTOR
MODEL ADAPTOR POWER
SETTING
ICOM MI-1 13.8
ICOM MI-2 13.8
ICOM MI-3 13.8
ICOM MI-4 10.8
YAESU MY-1 10.8
YAESU MY-2 13.8
YAESU MY-3 10.8
YAESU MY-4 10.8
KENWOOD MK-1 10.8
KENWOOD MK-2 10.8
STANDARD MS-1 13.8
