SERVICE MANUAL

CONTENTS

1. TECHNICAL CHANGES ····································2

2. PART NAMES AND FUNCTIONS······················2

3. INDOOR/OUTDOOR

CORRESPONDENCE TABLE ···························3

4. INDOOR UNITS COMBINATION ·······················4

5. SPECIFICATION·················································8

6. NOISE CRITERIA CURVES ······························ 9

7. OUTLINES AND DIMENSIONS ······················ 10

8. WIRING DIAGRAM···········································11

9. REFRIGERANT SYSTEM DIAGRAM ··············12

10. PERFORMANCE CURVES ······························13

11. MICROPROCESSOR CONTROL·····················19

12. TROUBLESHOOTING······································25

13. DISASSEMBLY INSTRUCTIONS·····················37

14. PARTS LIST······················································40

15. OPTIONAL PARTS···········································43

Models

MXZ-32SV -

MXZ-32SV - E2

No. OB254

REVISED EDITION-C

This manual describes technical data of outdoor unit.

For indoor unit, refer to the service manuals No. OB229, OB227, OB252, OB212, OB239 and OC165.

SPLIT-TYPE AIR CONDITIONERS Please void OB254 REVISED EDITION-B.

Revision C:

• Service part of thermistor set for MXZ-32SV -

has been added.

OUTDOOR UNIT

OB254C-1new.qxp 10.5.31 11:30 AM Page 1

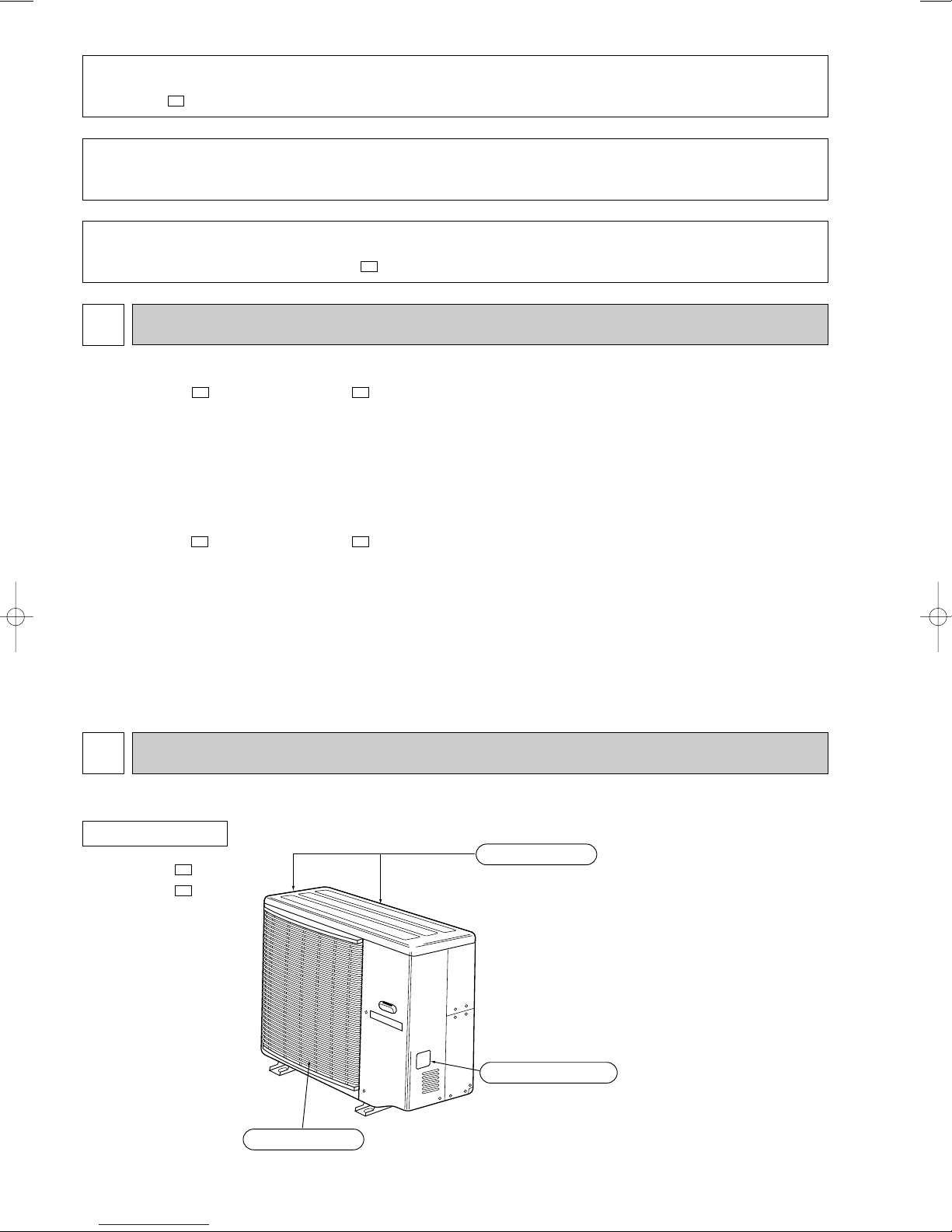

PART NAMES AND FUNCTIONS

OUTDOOR UNIT

Air inlet

Air outlet

(back and side)

Model indication

MXZ-32SV-

MXZ-32SV- E2

TECHNICAL CHANGES

MXZ-32RV - ➔MXZ-32SV -

1. The combination pattern of the indoor unit has been increased.

2. Crankcase heater has been disused.

3. Refrigerant circuit has been changed.

•Disuse of 2-way valve.

•Disuse of capillary tube [3 o[2 o500.

•Disuse of low pressure switch.

•Disuse of suction pipe temperature thermistor.

MXZ-32SV - ➔MXZ-32SV -

1. Combinations of the connectable indoor units have been increased.

2. Noise filter P.C. board has been changed to improve the capacity for protecting the inverter-controlled circuit when the

voltage higher than the rated one is supplied with the inverter-controlled circuit.

3. Noise filter P.C. board for “E1”and “E2”are not interchangeable.

4. Service parts have been changed as follows according to above change;

•The value of R(resistor) has been changed. 10Ω➔20Ω

•TB6(terminal block) has been removed.

E2E1

E1E1

Revision A:

•MXZ-32SV - has been added.

Revision B:

•“Check of HPS”and PARTS LIST have been corrected.

Revision C:

•Service part of thermistor set for MXZ-32SV - has been added.

OB254C-1new.qxp 10.5.31 11:30 AM Page 2

3INDOOR / OUTDOOR CORRESPONDENCE TABLE

❈There is no combination other than this table.

MXZ-32SV- E1 , MXZ-32SV- E2

OUTDOOR UNIT

Combination of the connectable indoor units

07+07

07+09

07+12

07+18

09+09

09+12

09+18

12+12

12+18

18+18

07+07+07

07+07+09

07+07+12

07+07+18

07+09+09

07+09+12

07+09+18

07+12+12

07+12+18

07+18+18

09+09+09

09+09+12

09+09+18

09+12+12

09+12+18

09+18+18

12+12+12

12+12+18

07+07+07+07

07+07+07+09

07+07+07+12

07+07+07+18

07+07+09+09

07+07+09+12

07+07+09+18

07+07+12+12

07+07+12+18

07+09+09+09

07+09+09+12

07+09+09+18

07+09+12+12

09+09+09+09

09+09+09+12

09+09+09+18

09+09+12+12

NOTE: SLH-1AR is equivalent to class 09 (9000BTU).

MCFH-13NV, SEH-1.6AR, SLH-1.6AR is equivalent to class 12 (12000BTU).

MCFH-18NV, SEH-2AR,SLH-2AR is equivalent to class 18 (18000BTU).

OB254C-1new.qxp 10.5.27 3:19 PM Page 3

07+07

07+09

07+12

07+18

09+09

09+12

09+18

12+12

12+18

18+18

07+07+07

07+07+09

07+07+12

07+07+18

07+09+09

07+09+12

07+09+18

07+12+12

07+12+18

07+18+18

3.47

4.17

6.67

10.65

7.13

7.50

10.56

14.31

8.80

12.64

17.31

18.33

10.19

11.25

13.80

12.96

13.80

3.79

4.55

7.27

11.62

7.78

8.18

11.52

15.61

9.60

13.79

18.89

20.00

11.11

12.27

15.05

14.14

15.05

2.2

(0.9-2.7)

2.8

(0.9-3.2)

4.0

(0.9-4.5)

5.0

(0.9-5.4)

4.4

(1.8-5.4)

5.0

(1.8-5.8)

6.2

(1.8-6.6)

7.2

(1.8-7.7)

5.6

(1.8-6.2)

6.8

(1.8-7.3)

7.8

(1.8-8.5)

8.0

(1.8-8.8)

8.0

(1.8-8.8)

8.0

(1.8-8.8)

6.6

(2.4-8.1)

7.2

(2.4-8.6)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

7.8

(2.4-8.9)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

0.75

(0.26-0.93)

0.90

(0.26-1.04)

1.44

(0.26-1.70)

2.30

(0.26-2.98)

1.54

(0.58-1.96)

1.62

(0.58-2.05)

2.28

(0.58-2.51)

3.09

(0.58-3.65)

1.90

(0.58-2.18)

2.73

(0.58-3.22)

3.74

(0.58-4.56)

3.96

(0.58-4.90)

3.96

(0.58-4.90)

3.96

(0.58-4.90)

2.20

(0.70-3.65)

2.43

(0.70-4.11)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.80

(0.70-4.23)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.2

2.8

3.8

4.2

2.8

3.6

4.0

3.1

3.6

3.25

2.2

2.8

4.0

5.0

2.8

4.0

5.0

4.0

4.5

4.0

2.2

2.1

1.9

2.8

2.5

2.3

3.1

2.8

3.25

2.2

2.8

4.0

5.0

2.2

2.8

4.0

3.5

4.0

2.2

2.1

1.9

2.2

1.9

1.7

1.8

1.6

1.5

Indoor units

combination Unit A Unit B Unit C Unit D

Cooling capacity (kW)

Total

Outdoor unit

power consumption

(kW)

Current

(A)

Power

factor

(%)

220V 240V

NOTE: Electrical data is for outdoor unit only.

MXZ-32SV - E1 , MXZ-32SV - E2

INDOOR UNITS COMBINATION

NOTE: SLH-1AR is equivalent to class 09 (9000BTU).

MCFH-13NV, SEH-1.6AR, SLH-1.6AR is equivalent to class 12 (12000BTU).

MCFH-18NV, SEH-2AR,SLH-2AR is equivalent to class 18 (18000BTU).

OB254C-1new.qxp 10.5.27 3:19 PM Page 4

Indoor units

combination Unit A Unit B Unit C Unit D

Cooling capacity (kW)

Total

Outdoor unit

power consumption

(kW)

Current

(A)

Power

factor

(%)

220V 240V

13.80

13.08

15.05

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.4-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

8.0

(2.8-9.0)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.70-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.98

(0.80-4.27)

2.0

2.4

2.9

3.5

2.2

2.8

3.2

2.6

3.0

2.1

2.7

3.1

2.45

2.0

2.6

3.0

2.35

2.67

3.4

3.8

3.0

3.4

3.1

2.67

3.1

2.0

1.87

1.7

1.5

2.2

2.0

1.8

2.6

2.4

2.1

1.9

1.75

2.45

2.0

1.8

1.67

2.35

2.67

2.3

2.1

2.0

1.9

1.8

2.67

2.45

2.0

1.87

1.7

1.5

1.8

1.6

1.5

1.4

1.3

1.7

1.5

1.4

1.35

2.0

1.8

1.67

1.65

2.67

2.3

2.1

3.0

2.7

3.1

2.67

2.45

2.0

1.87

1.7

1.5

1.8

1.6

1.5

1.4

1.3

2.1

1.9

1.75

2.0

1.8

1.67

1.65

09+09+09

09+09+12

09+09+18

09+12+12

09+12+18

09+18+18

12+12+12

12+12+18

07+07+07+07

07+07+07+09

07+07+07+12

07+07+07+18

07+07+09+09

07+07+09+12

07+07+09+18

07+07+12+12

07+07+12+18

07+09+09+09

07+09+09+12

07+09+09+18

07+09+12+12

09+09+09+09

09+09+09+12

09+09+09+18

09+09+12+12

NOTE: Electrical data is for outdoor unit only.

NOTE: SLH-1AR is equivalent to class 09 (9000BTU).

MCFH-13NV, SEH-1.6AR, SLH-1.6AR is equivalent to class 12 (12000BTU).

MCFH-18NV, SEH-2AR,SLH-2AR is equivalent to class 18 (18000BTU).

OB254C-1new.qxp 10.5.27 3:19 PM Page 5

NOTE: Electrical data is for outdoor unit only.

07+07

07+09

07+12

07+18

09+09

09+12

09+18

12+12

12+18

18+18

07+07+07

07+07+09

07+07+12

07+07+18

07+09+09

07+09+12

07+09+18

07+12+12

07+12+18

07+18+18

5.23

6.11

8.84

10.65

8.94

9.49

11.81

12.41

10.88

12.13

12.87

11.20

11.57

12.87

5.71

6.67

9.65

11.62

9.75

10.35

12.88

13.54

11.87

13.23

14.04

12.22

12.63

14.04

3.2

(0.9-4.1)

4.0

(0.9-4.8)

6.0

(0.9-7.2)

7.1

(0.9-7.8)

6.4

(1.8-7.2)

7.2

(1.8-8.7)

8.6

(1.8-10.6)

9.0

(1.8-10.9)

8.0

(1.8-10.1)

8.8

(1.8-10.8)

9.3

(1.8-11.2)

9.3

(1.8-11.2)

9.3

(1.8-11.2)

9.3

(1.8-11.2)

8.6

(2.1-10.6)

9.0

(2.1-11.1)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

1.13

(0.27-1.60)

1.32

(0.27-1.70)

1.91

(0.27-2.57)

2.30

(0.27-2.83)

1.93

(0.48-2.30)

2.05

(0.48-2.68)

2.55

(0.48-3.80)

2.68

(0.48-3.89)

2.35

(0.48-3.56)

2.62

(0.48-3.86)

2.78

(0.48-3.98)

2.78

(0.48-3.98)

2.78

(0.48-3.98)

2.78

(0.48-3.98)

2.42

(0.52-3.00)

2.50

(0.52-3.30)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.87

3.5

4.5

4.9

3.3

4.25

4.6

3.65

4.05

3.8

3.2

4.0

5.4

6.2

4.0

5.3

5.95

4.65

5.0

4.65

2.87

2.75

2.4

2.2

3.3

2.8

2.6

3.65

3.4

3.8

3.2

4.0

6.0

7.1

3.2

2.8

4.0

3.5

3.35

4.65

4.3

4.65

2.87

2.75

2.4

2.2

2.7

2.25

2.1

2.0

1.85

1.7

Indoor units

combination Unit A Unit B Unit C Unit D

Heating capacity (kW)

Total

Outdoor unit

power consumption

(kW)

Current

(A)

Power

factor

(%)

220V 240V

NOTE: SLH-1AR is equivalent to class 09 (9000BTU).

MCFH-13NV, SEH-1.6AR, SLH-1.6AR is equivalent to class 12 (12000BTU).

MCFH-18NV, SEH-2AR,SLH-2AR is equivalent to class 18 (18000BTU).

OB254C-1new.qxp 10.5.27 3:19 PM Page 6

Indoor units

combination Unit A Unit B Unit C Unit D

Heating capacity (kW)

Total

Outdoor unit

power consumption

(kW)

Current

(A)

Power

factor

(%)

220V 240V

12.87

14.04

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.1-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

9.3

(2.8-11.6)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.52-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.78

(0.60-3.50)

2.32

2.7

3.6

3.9

2.55

3.4

3.75

3.05

3.3

2.45

3.25

3.65

2.9

2.32

3.15

3.45

2.8

3.1

4.0

4.4

3.5

3.8

3.65

3.1

3.5

2.32

2.2

1.9

1.8

2.55

2.3

2.15

3.05

2.8

2.45

2.15

2.0

2.9

2.32

2.05

1.95

2.8

3.1

2.65

2.45

3.5

3.3

3.65

3.1

2.9

2.32

2.2

1.9

1.8

2.1

1.8

1.7

1.6

2.45

2.15

2.0

1.95

2.32

2.05

1.95

1.85

3.1

2.65

2.45

2.3

2.2

2.0

3.1

2.9

2.32

2.2

1.9

1.8

2.1

1.8

1.7

1.6

1.95

1.75

1.65

1.55

2.32

2.05

1.95

1.85

09+09+09

09+09+12

09+09+18

09+12+12

09+12+18

09+18+18

12+12+12

12+12+18

07+07+07+07

07+07+07+09

07+07+07+12

07+07+07+18

07+07+09+09

07+07+09+12

07+07+09+18

07+07+12+12

07+07+12+18

07+09+09+09

07+09+09+12

07+09+09+18

07+09+12+12

09+09+09+09

09+09+09+12

09+09+09+18

09+09+12+12

NOTE: Electrical data is for outdoor unit only.

NOTE: SLH-1AR is equivalent to class 09 (9000BTU).

MCFH-13NV, SEH-1.6AR, SLH-1.6AR is equivalent to class 12 (12000BTU).

MCFH-18NV, SEH-2AR,SLH-2AR is equivalent to class 18 (18000BTU).

OB254C-1new.qxp 10.5.27 3:19 PM Page 7

5SPECIFICATION

Outdoor model

Indoor units number

Indoor units total capacity (Connectable)

indoor units total capacity (Simultaneous operation)

Piping total length

Connecting pipe length

Height difference (Indoor ~ Outdoor)

Height difference (Indoor ~ Indoor)

Function

Capacity

Dehumidification

Outdoor air flow

Power outlet

Running current

Power input

Auxiliary heater

Crankcase heater

Power factor

Starting current

Compressor motor current

Fan motor current

Model

Output

Winding

resistance(at20:)

Model

Winding

resistance(at20:)

Dimensions WOHOD

Weight

Sound level (Hi)

Fan speed (Hi)

Fan speed regulator

Refrigerant filling

capacity(R-22)

Refrigerating oil (Model)

Thermistor RT61

Thermistor RT62

Thermistor RT63

Thermistor RT65

Thermistor RT66,67

Thermistor RT68,69

R/h

K/h

A(kW)

rpm

Compressor Electrical

data

Fan

motor

Special

remarks

Capacity System

Coefficient of performance(C.O.P)

Outdoor unit power supply

MXZ-32SV - E1 , MXZ-32SV - E2

Single phase

220-240V,50Hz

2 to 4

Total model name 42

Max. 60

Max. 25

2400-2640

—

90.0

15.05-13.80

0.6

THV-247FBA (ROTARY)

2100

U-V 0.61

V-W 0.61 W-U 0.61

RA6V60-BA

WHT-BLK 78.7 BLK-YLW 26.9

YLW-BLU 11.7 BLU-RED 83.6

900o900o320 (+35)

630-675

3.9

870 (MS-56)

13.4 (at 100:)

10.0 (at 25:)

17.0 (at 50:)

10.0 (at 25:)

Cooling

8.0 (0.9~9.0)

—

15.05-13.80

2980(260~4270)

15.71-14.35

2.68

45-47

Heating

9.3 (0.9~11.6)

—

14.04-12.87

2780(270~3500)

13.44-12.27

3.35

46-48

TEST CONDITIONS COOLING INDOOR DB27.0°C WB19.0°C

OUTDOOR DB35.0°C WB24.0°C

HEATING INDOOR DB20.0°C

OUTDOOR DB 7.0°C WB 6.0°C

✽1 Electrical data is for only outdoor unit.

OB254C-1new.qxp 10.5.27 3:19 PM Page 8

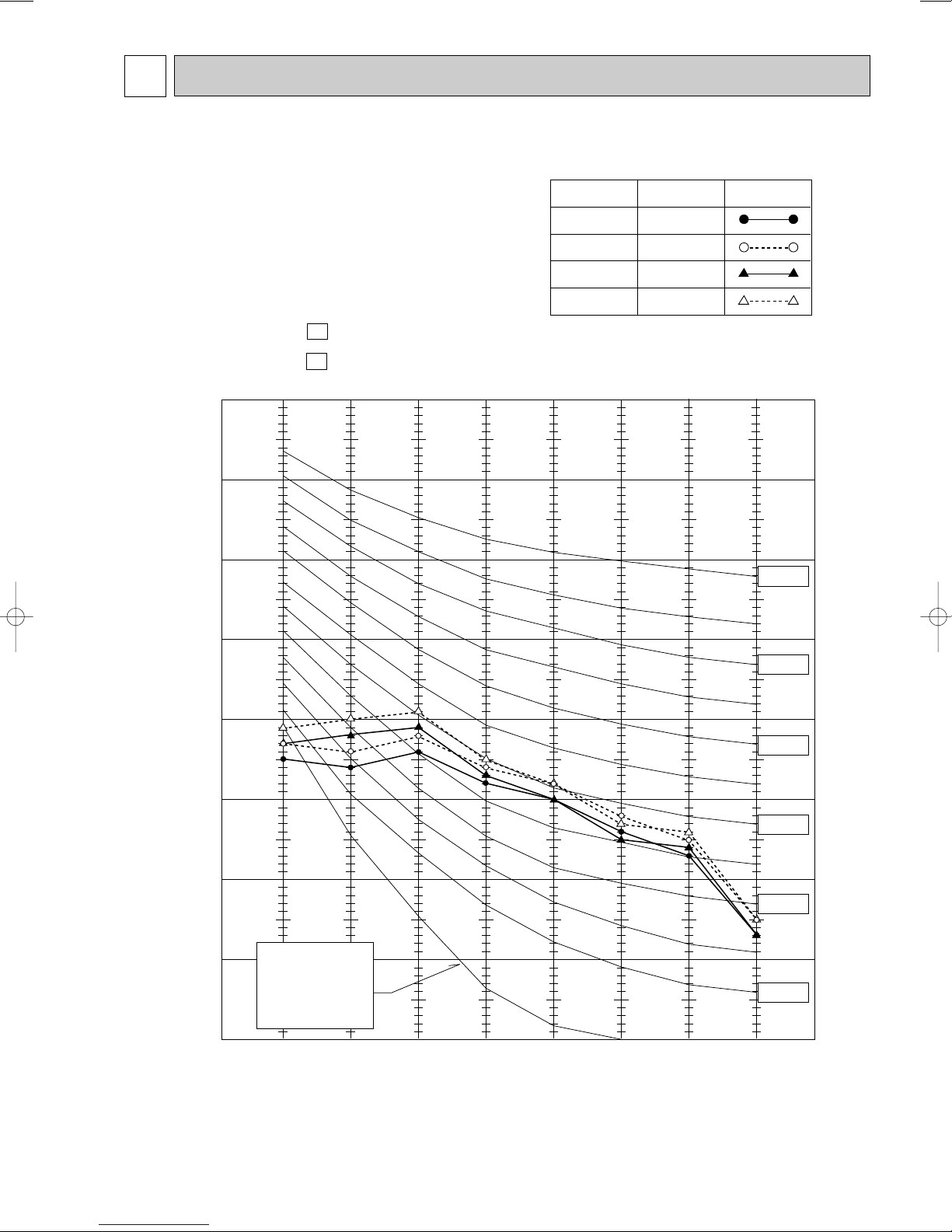

NOISE CRITERIA CURVES6

63 125 250 500 1000 2000 4000 8000

APPROXIMATE

THRESHOLD OF

HEARING FOR

CONTINUOUS

NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, 0dB = 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

Test conditions.

Cooling :DB35:WB24:

Heating :DB 7:WB 6:

COOL(220V)

NOTCH

COOL(240V)

HEAT(220V)

HEAT(240V)

SPL(dB(A))

LINE

MXZ-32SV - E1

MXZ-32SV - E2

OB254C-1new.qxp 10.5.27 3:19 PM Page 9

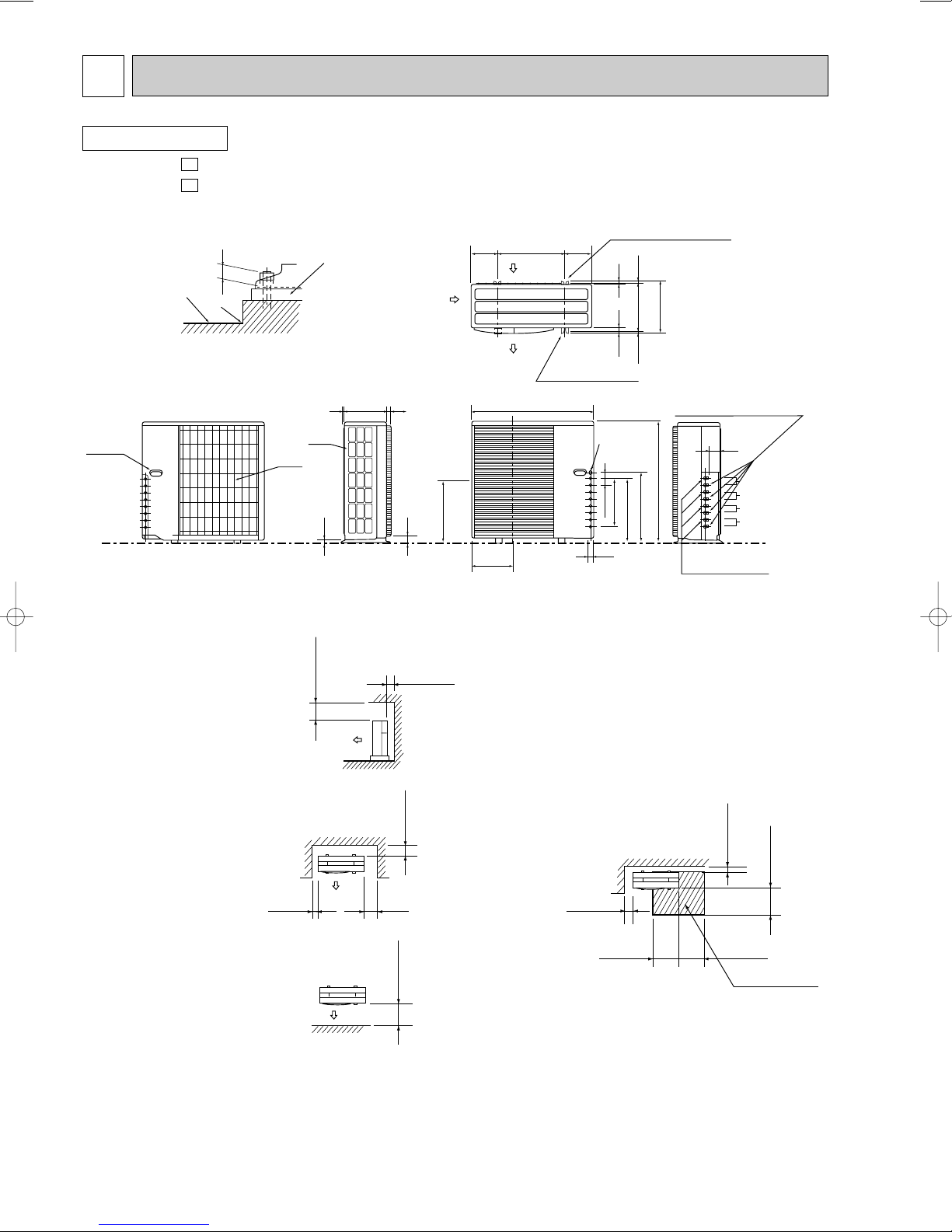

OUTLINES AND DIMENSIONS

MXZ-32SV -

MXZ-32SV -E2

Unit: mm

OUTDOOR UNIT

10 35320 900

460

900

350.0

480.8

531.3

317 23

Handle for

moving

Air in

Indoor and

outdoor

connect wiring

23✕45 hole

Air in

D unit connection

C unit connection

B unit connection

A unit connection

6.35 (flared) 1/4

Liquid pipe

12.7 (flared) 1/2 (A , B unit)

9.52 (flared) 3/8 (C , D unit)

[

1.Installation space

2.Service space

More than

100

More than

200

More than

100

More than

500

More than

500

More than

100

More than

100

More than

350

Base bolt length

Less than

More than

350

More than

350

Service space

Air in

2-U-shape notched holes

(Base bolt M10)

Air in

Air out

200 200

387

355

27 40

(16) (16)

500

Veranda

Base

Rubber cushion

More than

500

Note : Leave front and both sides

clearance fully.

Note : Obstacles on front and rear side only

The unit can be used by attaching an optional

outdoor outlet guide (MAC-855SG)

(but both sides and the top are open).

Note : Leave front and overhead

clearance fully.

Note : Leave front, overhead and

both clearance fully.

2-12 ✕ 36 Oval hole

OB254C-1new.qxp 10.5.27 3:19 PM Page 10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Klimaanlage Handbücher

Mitsubishi Electric

Mitsubishi Electric PKH18FK Betriebsanleitung

Mitsubishi Electric

Mitsubishi Electric MUZ-GL09NA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSZ-D30NA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PUG18AK Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric R410A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PKFY-WL NKMU-E Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MS-GD80VB-E1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PCA-RP2GA Betriebsanleitung

Mitsubishi Electric

Mitsubishi Electric MSZ-GB35VA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKA-M KAL Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PUMY-SP80 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PKA-M-HA(L) Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSB-20EXML35-501 Referenzhandbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-HA24NHA1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PCH-3AG/PUH-3G6 Betriebsanleitung

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PLFY-M-VEM Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PCA-RP GA Produkthandbuch

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PUHZ-FRP71VHA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSZ-D30NA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MXZ-4F80VGD Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSZ-HC35VA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSH-07RV Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-FA31MA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric SUZ-KA24NAHZ Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
