Mitsubishi Electric AE-200A Bedienungsanleitung

Air Conditioning Control System

Centralized Controller

AE-200A/AE-50A/EW-50A

AE-200E/AE-50E/EW-50E

Before using the controller, please read this Instruction Book carefully to ensure proper operation.

Retain this manual for future reference.

Instruction Book

–Web Browser for Remote Monitoring User–

1. Introduction...........................................................................2

1-1. Terms Used in This Manual ........................................................2

1-2. PC Requirements .......................................................................2

2. Setting the Operating Environment ......................................3

2-1. Setting the IP Address of the PC ................................................3

2-2. Setting the Web Browser............................................................5

3. Logging in to the Web Browser for Remote Monitoring

User......................................................................................8

4. Maintenance.......................................................................10

4-1. Operation Data Display ............................................................10

4-2. Operation Data Acquisition Mode .............................................12

5. Malfunction Log ..................................................................14

5-1. Unit Error ..................................................................................14

6. User Settings......................................................................15

6-1. User Settings ............................................................................15

Contents

WT07324X02 2

1. Introduction

This Instruction Book explains how to monitor the units connected to the AE-200/AE-50/EW-50 using a Web

browser.

To use the functions described in this manual, registration of the license for “Data Storage for Maintenance”

(optional function) is required. (Refer to chapter 3 for details.)

For initial settings and function settings, refer to the Instruction Book (Web Browser for Initial Settings).

1-1. Terms Used in This Manual

- “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200.”

- “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50.”

- “Centralized Controller EW-50A/EW-50E” is referred to as “EW-50.”

- Screen images used in this manual are from Windows 7®and Internet Explorer 9.0.

Note: Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other

countries.

1-2. PC Requirements

Table 1-1 PC Requirements

Item Requirement

CPU 1 GHz or faster

Memory 512 MB or more

Screen resolution 1024 x 768 or higher recommended

Browser

Microsoft®Internet Explorer 8.0

Microsoft®Internet Explorer 9.0

Microsoft®Internet Explorer 10.0

Microsoft®Internet Explorer 11.0

* Java execution environment is required.

(Oracle®Java Plug-in Ver. 1.8.0_60)

* Install Oracle®Java Plug-in that is appropriate for your operating system. When

using a 64-bit Internet Explorer, install a 64-bit Java Plug-in.

* The version of the Oracle®Java Plug-in can be verified by clicking [Java] in the

Control Panel.

On-board LAN port or LAN card 100 BASE-TX

Pointing device e.g., mouse

Note: Microsoft is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Oracle and Java are trademarks or registered trademarks of Oracle Inc. in the United States and/or other countries.

WT07324X02 3

2. Setting the Operating Environment

This chapter explains how to make PC settings and Web browser settings to monitor the air conditioning units.

2-1. Setting the IP Address of the PC

Follow the instructions below to set the PC’s IP address for the Web browser to recognize the AE-200 unit.

The PC’s IP address must have the same network address as the AE-200/AE-50’s IP address.

(i.e., AE-200’s IP address: [192.168.1.1], PC’s IP address: [192.168.1.101])

When connecting an AE-200/AE-50/EW-50 to an existing LAN, consult the system administrator to decide the IP

addresses.

Note: When using an AE-200/AE-50/EW-50-dedicated LAN, it is recommended that the AE-200 unit be assigned an IP address

between the range [192.168.1.1] and [192.168.1.40], the AE-50/EW-50 unit be assigned an IP address between the

range [192.168.1.211] and [192.168.1.249], and that the PC connected to the AE-200/AE-50/EW-50 be assigned an IP

address between the range [192.168.1.101] and [192.168.1.150].

(1) Click [Control Panel] in the Start menu.

(2) Click [Network and Sharing Center]>[Local Area Setting].

In the [Local Area Connection Status] window, click [Properties].

(3) Click [Internet Protocol Version 4 (TCP/IPv4)] to select it, and click

[Properties].

WT07324X02 4

(4) In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window,

check the radio button next to [Use the following IP address].

Enter the PC’s IP address (e.g., [192.168.1.101]) in the [IP address]

field, and enter the subnet mask [255.255.255.0] (unless otherwise

specified) in the [Subnet mask] field.

In the [Default gateway] field, enter the gateway address as

necessary.

Note: Consult the system administrator to decide the IP, subnet

mask, and gateway addresses.

(5) Keep clicking [OK] or [Close] to close all windows.

WT07324X02 5

2-2. Setting the Web Browser

Web browser setting varies with the Internet connection type. See the sections below for how to make Web

browser settings for different types of Internet connection.

To prevent unauthorized access, always use a security device such as a VPN router when

connecting the AE-200/AE-50/EW-50 to the Internet.

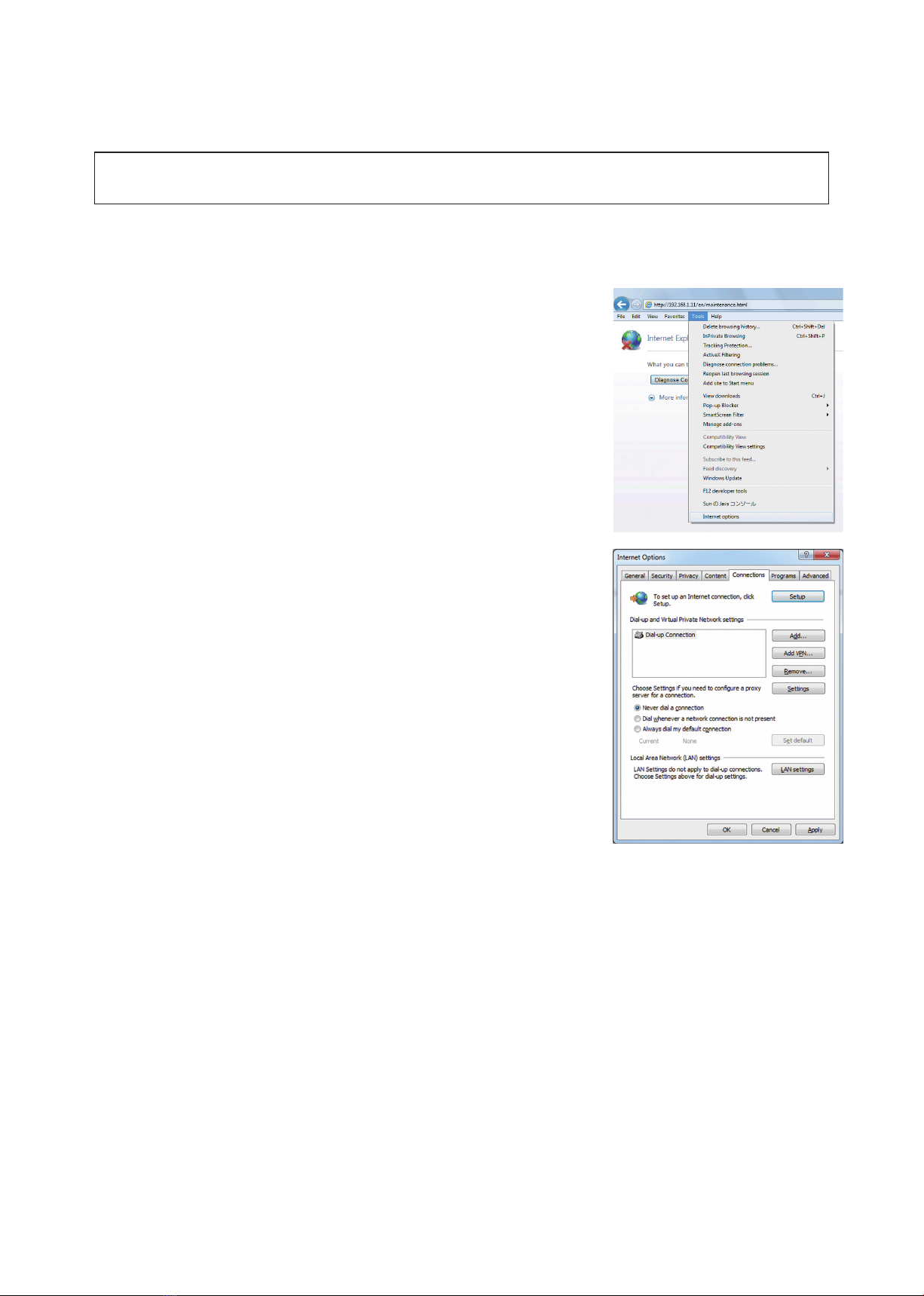

2-2-1. No Internet connection

To monitor and operate the air conditioning units from a PC with no Internet connection, follow the instructions

below to set the environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

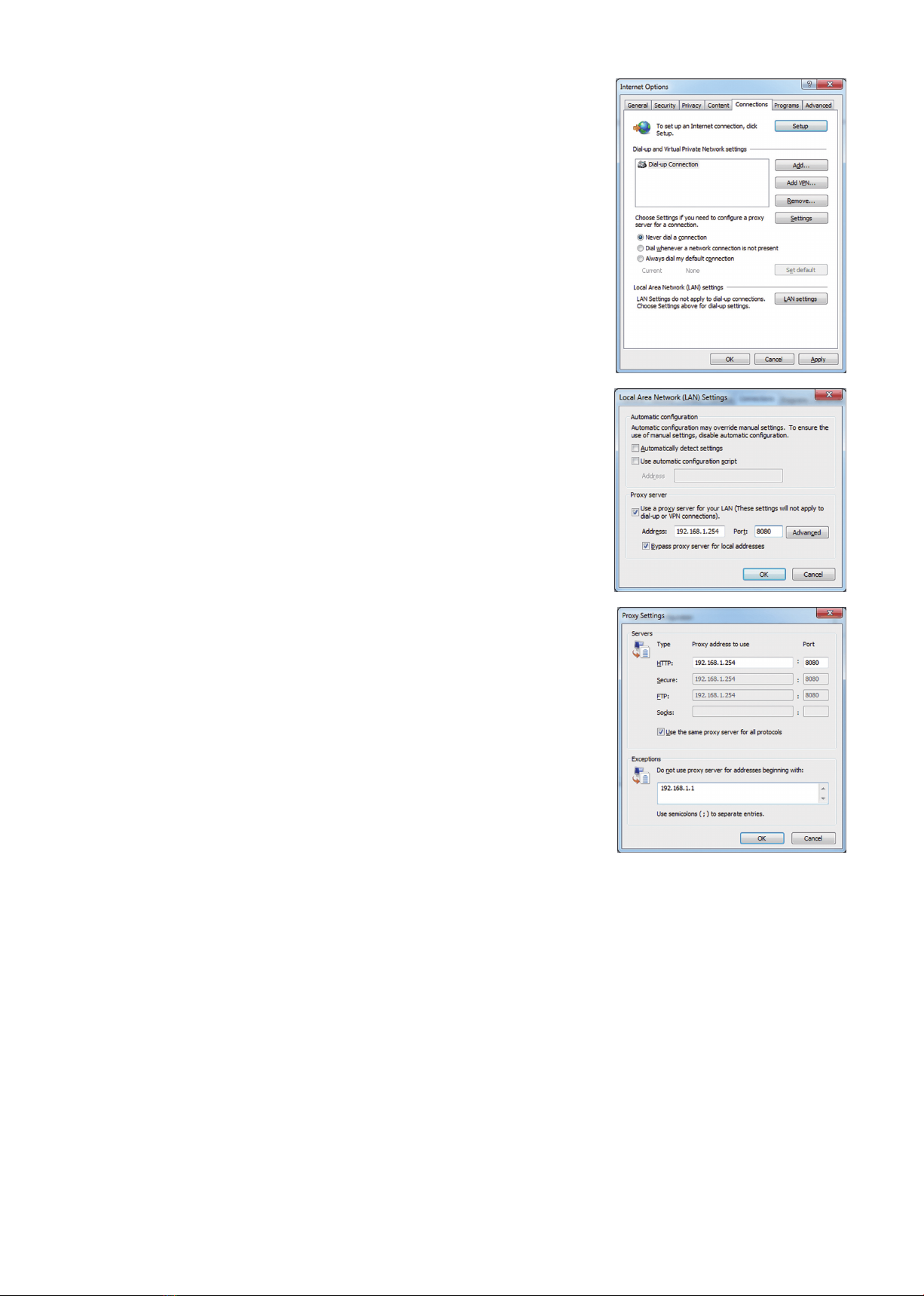

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Never dial a connection] in the middle

of the window, and click [OK] to close the window.

WT07324X02 6

2-2-2. Dial-up Internet connection

To monitor and operate the air conditioning units from a PC that connects to the Internet through a dial-up

connection, follow the instructions below to set the environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Dial whenever a network connection

is not present] in the middle of the window, and click [OK] to close the

window.

By making these settings, a message will appear asking whether

or not to use a dial-up connection when an Internet connection is

necessary. Follow the message to connect to the Internet.

2-2-3. Connecting to the Internet via proxy server using an existing LAN

To monitor and operate the air conditioning units from a PC that connects to the Internet through a proxy server

by connecting to an existing LAN, such as a LAN within your company, follow the instructions below to set the

environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

WT07324X02 7

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Never dial a connection] in the middle

of the window.

(4) Click [LAN settings] under [Local Area Network (LAN) settings].

(5) In the [Local Area Network (LAN) Settings] window, check [Bypass

proxy server for local addresses], and click [Advanced].

(6) In the [Proxy Settings] window, enter the AE-200/AE-50/EW-50’s

IP address (e.g., 192.168.1.1) in the [Exceptions] field. Then, keep

clicking [OK] or [Close] to close all windows.

If connecting multiple AE-200/AE-50/EW-50 units, enter their

addresses (e.g., [192.168.1.1; 192.168.1.2]). It is also possible to use

an asterisk as a wildcard (e.g., [192.168.1.*]).

WT07324X02 8

3. Logging in to the Web Browser for Remote

Monitoring User

(1) Enter the web page address in the address field of the Web browser as follows:

http:// [IP address of each AE-200/AE-50/EW-50]/en/maintenance.html

Press the [Enter] key. A login screen will appear.

Note: If the IP address of the AE-200/AE-50/EW-50 is [192.168.1.1],

the web page address is [http://192.168.1.1/en/maintenance.

html].

Note: Default IP address of AE-200/AE-50/EW-50 is [192.168.1.1].

When one or more AE-50/EW-50 controllers are

connected, none of their IP addresses should overlap. The

recommended IP address ranges are as follows.

AE-200: Between [192.168.1.1] and [192.168.1.40]

AE-50/EW-50: Between [192.168.1.211] and [192.168.1.249]

Note: Log in to the AE-200/AE-50/EW-50 Web browser

respectively to monitor the units that are under the control of

AE-200/AE-50/EW-50. The Web browser cannot be switched

between the AE-200/AE-50/EW-50.

Note: If the login screen does not appear then take the steps below

to delete the temporary files.

1. Click [Tools] in the menu bar, then click [Internet options].

2. On the [General] tab, click [Delete] in the middle of the

window.

3. In the [Delete Browsing History] window, click [Delete].

<Java>

1. Click [Control Panel] from the Start menu.

2. Click the [Java] icon to launch the Java Control Panel.

3. On the [General] tab, click [Settings] in the [Temporary

Internet Files] section.

4. Click [Delete Files].

5. In the [Delete Files and Applications] window, click [OK].

Note: This web page can only be displayed in English.

Note: You can add the web page address to your Favorites for easy access in the future.

(2) Enter the user name and the password in the login screen, and click [Login]. A setting screen will appear.

The table below shows the default user name, password, and functions that are available for remote

monitoring users.

User Default

user name Default password Available functions

Remote

monitoring

user

remotemonitor rm + Serial No. *1

Maintenance Operation Data Display

Operation Data Acquisition Mode

Malfunction Log Unit Error

User Settings User Settings

Note: It is recommended to change the default user name and password so that the users other than the remote monitoring users will

not be able to change the settings.

*1 If the Serial No. is “15A13-701,” the default password is “rm15A13701.”

WT07324X02 9

Encrypting the communication data and logging in to the Web browser

(HTTPS connection)

AE-200/AE-50/EW-50 can encrypt communication data using HTTPS (SSL).

When connecting the AE-200/AE-50/EW-50 to the LAN that is accessible to the general public, it is

recommended that the following settings be made so that the units are monitored and controlled on the

encrypted web page.

Note: Depending on the operating system or the Java version, HTTPS encrypted communication may not be enabled

properly. If this happens, use an HTTP connection as explained in the previous page.

(1) Prefix the web address with [https], enter the rest of the address, and

press the [Enter] key.

https://[IP Address of each AE-200/AE-50/EW-50]/en/maintenance.html

Note: If the IP address of the AE-200/AE-50/EW-50 is [192.168.1.1], the web page

address is [https://192.168.1.1/en/maintenance.html].

The encrypted data communication will begin, and the Login screen

will appear.

If a security certificate error page appears instead of the Login

screen, go to step (2) below.

(2) If the security certificate is invalid, a security certificate error page (as

shown at right) will appear.

Click [Continue to this website (not recommended)].

(3) If the connection is successfully made, the Login screen will appear.

Note: Although the address bar will turn red and a message “Certificate

error” will appear, you can still access the Web browser.

WT07324X02 10

4. Maintenance

4-1. Operation Data Display

This screen displays the operation data that is acquired from the connected units by the AE-200/AE-50/EW-50

at regular intervals. Click [Maintenance] in the menu bar, and then click [Operation Data Display] to access the

Operation Data Display screen.

Note: To display the operation data on this screen, the settings for “Operation Data Acquisition Mode” need to be set.

Make the settings according to the instructions detailed in section 4-2.

Note: The operation data displayed on this screen will vary, depending on the unit model.

Refer to the Service Handbook that came with the unit.

Address

Start date/time

End time

Data display field

Update

Click to display the latest

operation data of the

selected unit.

Display start time data

Display operation data

Export as CSV

Click to export operation

data in the CSV file format.

Item Description

Address Select the address of the unit to display its operation data.

Start date/time Enter the start date/time for the time period for which operation data will be displayed.

End time

Enter the end time for the time period for which operation data will be displayed.

Note: Up to 24 hours worth of data can be displayed at once.

If the start time is after the end time, the start time and end time will be regarded as the

other way around, and the operation data between the end time and the start time for the

specified date will be displayed.

Update Click to display the latest operation data of the selected unit.

Display start time data

Click to display the operation data of the selected unit at the specified start time.

Note: If the Operation Data Acquisition Mode is set to [Normal], data for odd minutes will not be

displayed. (See section 4-2.)

Display operation data

Click to display the operation data of the selected unit in a specified time range.

Note: Regardless of the Operation Data Acquisition Mode setting, operation data will be

displayed at 2-minute intervals. (See section 4-2.)

Note: If 40 or more indoor units are connected, data acquisition interval may be stretched by

multiples of two minutes.

Data display field Operation data of the selected unit will be displayed in this field.

Export as CSV

Click to export the operation data that are displayed in the Data display field in the CSV

file format. Only the operation data that are displayed when [Display operation data] is

clicked can be exported. (An empty CSV file will be output for the operation data that are

displayed when [Update] or [Display start time data] is clicked.)

Andere Handbücher für AE-200A

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Controller Handbücher

Mitsubishi Electric

Mitsubishi Electric FX3U-1PG Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J5 MR-J5-G Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Artisan MELSEC-Q Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric ME1PB1-L Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-52SF-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric par-u02meda Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX2N-1HC Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PZ-61DR-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Central Controller G-50A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX2NC-1HC Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric A800 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PZ-61DR-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3GC Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric EW-50A Kurzanleitung

Mitsubishi Electric

Mitsubishi Electric QD70D4 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CC-Link-AnyWire Bitty Bridge Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric RJ72GF15-T2 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Melsec A Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX3U-232ADP-MB Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J2S-S061 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Betriebsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
