Mitsubishi Electric Central Controller G-50A Bedienungsanleitung

Mitsubishi Electric Building Air-conditioner Control System

Central Controller

G-50A/GB-50A Web Browser Operation Manual (For User)

Contents

1 Introduction............................................................................1

1-1 Conventions Used in this Manual..............................................1

1-2 Computer Requirements ...........................................................1

2 Setting the Operating Environment ........................................2

2-1 Setting the PC IP Address.........................................................2

2-2 Setting the Web Browser...........................................................4

3 Performing Operations...........................................................6

3-1 Entering the User Name and the Password, and Connecting to

the G-50A...................................................................................6

3-2 Checking the Operation Condition of the Air Conditioner .........7

3-3 Performing Air Conditioner Operations .....................................9

Before using the web browser to monitor and operate the G-50A controller, please read

this operation manual carefully to ensure correct operation.

Store this operation manual in a location that is easy to find.

1 Introduction

A special feature of Mitsubishi Electric Corporation’s “Central Controller G-50A” and "Central Controller

GB-50A" are that a PC connected to a LAN can be used to monitor the operation condition of air conditioners

and perform air conditioner operations.

In this manual, the procedures to monitor the status of and to operate the central controller G-50A and GB-50A

on the Web browser are described.

Hereinafter, the central controller G-50A and GB-50A, unless otherwise specified, will be called "G-50A".

Note: License of "Personal Web" is necessary to operate or monitor the air conditioners. Register the

license on the registration screen.

1-1 Conventions Used in this Manual

- “Click” refers to the action of positioning the mouse cursor on the object (such as button or folder) and

pressing down and releasing the left mouse button once.

- Unless otherwise specified, the example screen images used in this manual are Windows®XP and Internet

Explorer 6.0 screen images.

Note: Windows is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.

- The K transmission converter (PAC-SC25KAA) and OA processing unit (LOSSNAY) are not included in

systems shipped to North America (USA & Canada).

1-2 Computer Requirements

In order to monitor and operate air conditioners by web browser, your computer must meet the following

requirements. Table 1-1 Computer Requirements

Item Requirement

CPU Pentium 133MHz or faster (300MHz or faster recommended)

Memory 64M Bytes or more (128M Bytes or more recommended)

Screen resolution 1024 x 768 or higher recommended

Windows

Microsoft® Internet Explorer 5.0 or later

Note: You must have a Java execution environment.

(Microsoft VM Ver5.0 or later or Sun Microsystems Java

Plug-in Ver.1.4.2 or later).

Note: You can check the Microsoft VM version by entering “jview” in a

command prompt.

Note: You can check the Sun Microsystems Java Plug-in version in

“Java Plug-in” in a control panel.

Compatible browser

Macintosh

Safari (with Mac OS X)

Note: You must have a Java execution environment.

(Sun Microsystems Java Plug-in Ver.1.4.2 or later).

You can download from Apple Computer's homepage.

Note: You can check the Sun Microsystems Java Plug-in version at

the [Help]-[Installed Plug-ins] on the Safari browser.

On-board LAN port or LAN card One connector (10BASE-T)

Other Pointing device such as a mouse

Note: Microsoft is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.

2 Setting the Operating Environment

Given below is an explanation of the PC settings and web browser settings that are required for using a web

browser to monitor air conditioner units and perform operations.

2-1 Setting the PC IP Address

You need to set an IP address on the PC that will enable you to connect to the G-50A using a web browser.

For instance, if the G-50A IP address is [192.168.1.1], the PC IP address will need to belong to the same

system (for example [192.168.1.101]).

If the G-50A is connected to an existing LAN, ask the LAN administrator to decide what PC IP address to use.

Note: When using a G-50A dedicated LAN, we recommend the G-50A main unit be given an IP address within the

range [192.168.1.1] — [192.168.1.40] and the PCs that will be connected to the G-50A be given an IP address

within the range [192.168.1.101] — [192.168.1.150]

(1) Click on [Control Panel] under [Start] to open the Control Panel.

(2) In the Control Panel window, double click [Network and Dial-up

Connections] and the Network and Dial-up Connections window will

open. Double click on [Local Area Setting] and the [Local Area

Connection Status] dialog will open. Click [Properties].

(3) In the [Local Area Connection Properties] dialog, click [Internet

Protocol] to select it and click the [Properties] button.

(4) In the [Internet Protocol (TCP/IP) Properties] dialog, click [Use the

following IP address] and enter the IP address (for example,

“192.168.1.101”) that you want to set in the IP address field.

You normally set [255.255.255.0] as the subnet mask.

Note: Ask your LAN administrator to provide the IP addresses and subnet

mask.

(5) Click the [OK] button to close this dialog, and then close the other

open dialogs to complete the network setting.

2-2 Setting the Web Browser

Perform the necessary web browser settings to enable the web browser to connect to the G-50A.

Note: The settings and screen images used as examples in this manual are based on Internet Explorer 6.0.

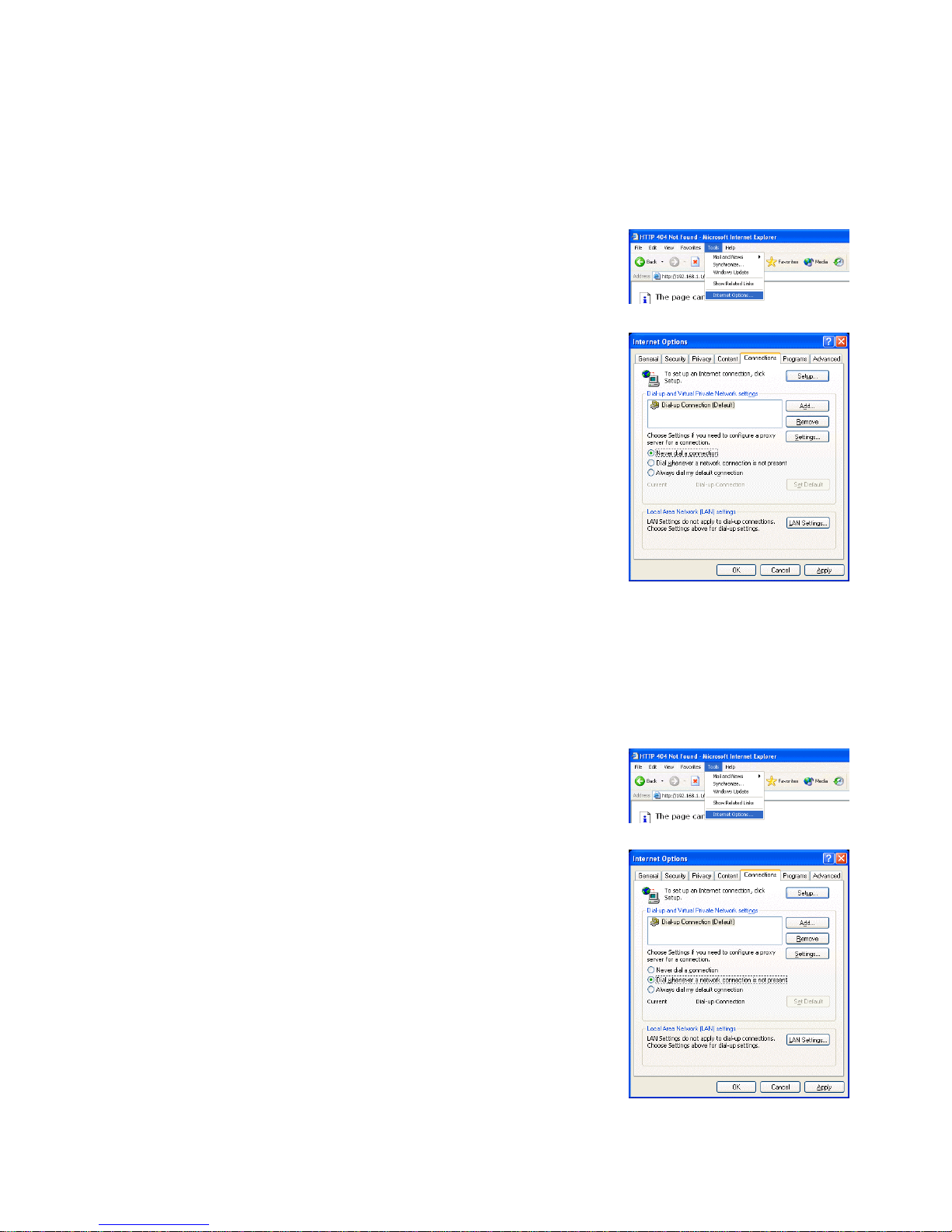

2-2-1 Not connecting to the Internet

If the PC you use for monitoring air conditioners and performing operations is not going to be connected to the

Internet, use the procedure given below to set the web browser environment settings.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Never dial a connection] in the Dial-up settings section and

click the [OK] button to close the dialog.

2-2-2 Connecting to the Internet using a dial-up connection

If the PC you use for monitoring air conditioners and performing operations is going to connect to the Internet

via a dial-up connection, use the procedure given below to set the web browser environment settings.

By performing these settings, a message will appear asking whether or not to use a dial-up connection when

an Internet connection is necessary. In the case when you want to connect to the Internet, connect to the

Internet by following the directions of this message.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Dial whenever a network connection is not present] in the

Dial-up settings section and click the [OK] button to close the dialog.

2-2-3 Connecting to the Internet using a proxy server (Using an existing LAN)

If the PC you use for monitoring air conditioners and performing operations is going to access the Internet via

proxy server by connecting to an existing LAN such as a LAN within your company, use the procedure given

below to set the web browser environment settings.

By performing these settings, your PC will connect to a proxy server only when connecting to the Internet.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Never dial a connection] in the Dial-up setting section.

(4) Click the [LAN Setting . . .] button in the Local Area Network (LAN)

settings section to display the Local Area Network (LAN) Settings

dialog.

(5) In the Local Area Network (LAN) Settings dialog, check [Bypass proxy

server for local addresses] and click the [Advanced...] button.

(6) Enter the IP address for the G-50A (e.g. 192.168.1.1) in the

Exceptions field of the Proxy Setting dialog and click the [OK] button to

close the dialog and then close the other open dialogs to complete the

setting.

Note: If connecting to more than one G-50A, you can specify multiple IP addresses

like [192.168.1.1; 192.168.1.2], however, it is also possible to use the

asterisk (*) and specify [192.168.1*].

3 Performing Operations

Given below is an explanation of how to connect to the G-50A and how to monitor and adjust the operation

condition of air conditioners. Follow the directions given here when performing operations.

Note: If the G-50A is restarted due to circumstances like a power interruption, wait until the screen on the G-50A main unit

displays the normal operation screen (it takes several minutes before the normal operation screen is displayed) before

using a web browser to access the G-50A. If access is attempted while the G-50A is still starting up, the most recent data

might not be displayed or communication errors could occur.

Note: Default IP address of G-50A (GB-50A) is "192.168.1.1". (Factory setting)

3-1 Entering the User Name and the Password, and Connecting to

the G-50A

(1) Enter the web page address in the address field of the web

browser as follows and press the [Enter] key on the keyboard. A

screen appears for login.

http://[IP address of the G-50A]/index.html

Note: For example, type “http://192.168.1.1/administrator.html” if the G-50A IP

address is [192.168.1.1].

(2) To make it easier to connect the next time, click the web browser

menu item [Favorites] and click [Add to Favorites] to select that

option and add the address to your Favorites folder. Once this

address is added to your Favorites folder, it is not necessary to

input the address of (1). You can simply select it from your

Favorites folder and the G-50A page will appear.

(3) Enter the user name and the password in the login screen, and click the [Login] button. The screen for

monitoring the operation condition will appear. An explanation on how to perform operations in the normal

operation screen begins from the next page.

Note: Consult your administrator for your user name and password.

Note: The Web page is displayed in the same language as the computer uses and it is also possible to display the Web page in

other languages by entering the following Web page addresses.

English : Http://[IP address of G-50]/en/index.html

German : Http://[IP address of G-50]/de/index.html

French : Http://[IP address of G-50]/fr/index.html

Spanish : Http://[IP address of G-50]/es/index.html

Italian : Http://[IP address of G-50]/it/index.html

Russian : Http://[IP address of G-50]/ru/index.html

Chinese : Http://[IP address of G-50]/zh/index.html

Japanese : Http://[IP address of G-50]/ja/index.html

3-2 Checking the Operation Condition of the Air Conditioner

When you login correctly using the Login Screen, the screen used to monitor the operation conditions of air

conditioner and general equipment groups will appear. If you wish to operate an air conditioner or general

equipment, click the group icon to switch to the operation screen.

Note: The operation condition display will not update automatically. If you wish to view the very latest condition, click [Update] on

each screen.

Item Description

Update to most recent

condition Click [Update] to ensure the displayed items reflect the most recent operation condition.

Batch Operation Click [Batch Operation] if you want to perform an operation on all groups at once.

Group icon

The operation condition is indicated by the icon that is displayed. When you point to a group

icon with the mouse cursor, the group name is displayed. To switch to the operation screen,

click on the icon. The icons used to indicate the operation condition are shown below.

(1) Air conditioner group operation condition

(2) Ventilator (Lossnay) group operation condition

ON OFF Error Filter sign

Interlocked

ventilator ON Interlocked

ventilator OFF Schedule set Energy saving

Note: Other than 4-aiflow icons, 2-airflow or ceiling-suspended icons are also available.

Select the icon type on Initial Setting Web.

ON OFF Error Filter sign

Schedule set Energy saving

Batch operation

Click to perform an operation

on all groups at once.

Update to most recent

condition

Click to update the screen so

that the most recent condition is

shown.

Group icons

These icons are used to

indicate the operation condition

of an air conditioner or a

general equipment group.

Switch to the operation screen

by clicking the icon.

Set temperature display

The set temperature is

displayed here.

Room temperature display

The temperature of the

indoor unit’s intake is

displayed here.

Operation mode display

The operation mode is

displayed here.

Item Description

Group icon

(3) General equipment group operation condition

Operation mode display The operation mode is displayed here.

Set temperature display The set temperature is displayed here.

Room temperature

display

The temperature of the indoor unit’s intake is displayed here.

Note: Because the temperature displayed here is of the indoor unit’s intake, it could be

different from the actual room temperature.

Note: The temperature display can be in either Celsius (°C) or Fahrenheit (°F) depending

on the setting.

ON OFF Error Schedule set

Note: Other than lighting icons, pump or card key icons are also available.

3-3 Performing Air Conditioner Operations

Given below is an explanation of how to perform air conditioner or general equipment operations.

3-3-1 Performing air conditioner operations that target one group

When you click on a group icon in the operation condition monitoring screen, the operation screen for that

group will appear. The items shown in this screen are the current operation conditions. Modify the items you

want to change and click [OK] to confirm the operation details. Click [Cancel] to return to the previous screen

without making any changes.

Item Description

ON/OFF Click [ON] or [OFF] to switch to ON or OFF.

Operation mode

Click [Cool], [Dry], [Fan], [Heat] or [Auto] to switch the operation mode.

If it is a ventilator group, select [Bypass], [Heat Recovery] or [Auto].

Note: Some unit models do not support certain operation modes. Unsupported operation modes are not

displayed.

Note: For K control models, all modes are displayed, however, choose only the modes that can be

operated.

Set temperature

Click to adjust the set temperature.

For [Cool] and [Dry], the setting range is 19 ~ 30°C/67 ~ 87°F, for [Heat] it is 17 ~ 28°C/63 ~

83°F, and for [Auto] it is 19 ~ 28°C/67 ~ 83°F.

Note: The temperature setting range varies depending on the unit model.

Note: If the setting range for set temperature is restricted, the temperature setting range will be smaller.

Note: If it is a ventilator model, this item is not displayed.

Air direction

Click to adjust the air direction.

Note: If it is a model that does not support air direction adjustment, this item is not displayed.

Note: If it is a model that does not support the swing feature, the swing option is not displayed.

Note: The temperature display can be set to display in either Celsius (°C) or Fahrenheit (°F).

Fan speed

Click to adjust the fan speed.

Note: If it is a model that does not support fan speed adjustment, this item is not displayed.

Note: The number of available fan speeds will be 2 settings, 3 settings or 4 settings, depending on the

number of fan speeds supported by the model.

Filter sign Click [Reset] to specify whether to reset the filter sign. It is set to reset when a green indicator is

displayed on the left of Reset ([ Reset]).

Note: If filter signs are not triggered in the group, then this item is not displayed.

Interlocked ventilator

ON/OFF Click [ON] or [OFF] to switch interlocked ventilator ON or OFF.

Note: For groups that are not connected to an interlocked ventilator, the items related to interlocked

ventilators are not displayed.

Fan speed of interlocked

ventilator

Click to adjust the fan speed of the interlocked ventilator.

Note: For groups that are not connected to an interlocked ventilator, the items related to interlocked

ventilators are not displayed.

Operation Prohibition

mark

When air conditioners are centrally controlled, the central control mark will be displayed, and if

the prohibit setting has been set for any operations, the operation prohibition mark [ ] will be

displayed next to those operation items.

If the prohibit setting has been set for an item, it is not possible to operate that item.

Fan speed of

interlocked ventilator

Click to adjust the fan speed

of the interlocked ventilator.

Interlocked ventilator

ON/OFF

Click to switch interlocked

ventilator ON or OFF.

Group name

The name of the group is

displayed here.

Fan speed

Click to adjust the fan speed.

OK button

Click to confirm the operation

details. You must press the O

button for the operation to take

effect.

Central control mark

This is displayed when the

units are centrally controlled.

ON/OFF

Click to switch to ON or OFF.

Set temperature

Click to adjust the set

temperature.

Operation mode

Click to switch the operation

mode.

Air direction

Click to adjust the air direction.

Filter sign

Click to reset the filter sign.

Cancel button

Click to cancel all operations.

Block name

The name of the block is

displayed here.

Operation prohibition

mark

If the prohibit setting has been

set for an operation, the

prohibition mark will be

displayed.

Andere Handbücher für Central Controller G-50A

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Controller Handbücher

Mitsubishi Electric

Mitsubishi Electric AG-150A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MEHITS CH Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PAC-AH001-1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MR-J5-G Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R-R00CPU Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R C Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-U01MEDU Smart ME Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-ZC40L-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R C Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric NZ2GN2B1-32D Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3G-1DA-BD Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric QD77MS Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PAC-AH001-1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric EW-50A Kurzanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-4DA-ADP Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Stücklistenhandbuch

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Melsec A Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC FX3U-485ADP Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
