Controller Kit Installation Manual

MIFH1, MRCH1, MCCH1, MOS1

69-2426-01

Installation guide for:

• WirelessReceiverandCable(MIFH1)

• RemoteController(MRCH1)

• PortableCentralController(MCCH1)

• OutdoorAirSensor(MOS1)

DISCONNECT POWER BEFORE BEGINNING INSTALLATION.Can cause

electrical shock or equipment damage.

Must be installed by a trained, experienced technician. Read these

instructionscarefully.Failuretofollowtheseinstructionscandamagetheproductor

cause a hazardous condition.

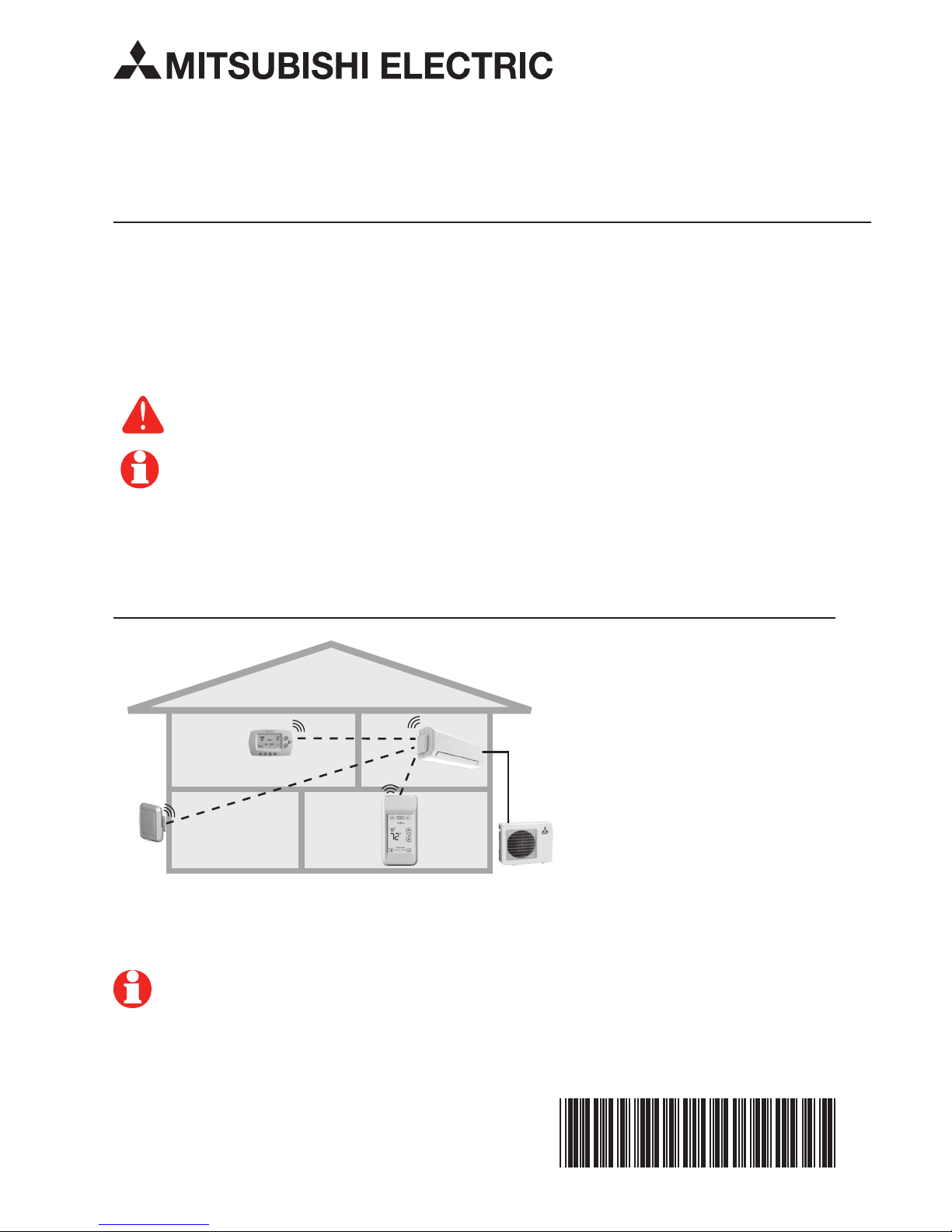

Installation at a glance

This document covers linking and

installation procedures for the

Mitsubishi Split-Zoning Ductless

and Ducted Systems' RedLINK™

control devices and accessories.

Before you begin, you must attach the cable to the CN105 connector on the indoor unit

control board, then follow the steps in this document.

Remote controllers are linked to specific indoor units. Each indoor unit must have a

dedicated remote controller and wireless receiver.

Wireless receiver

Wireless

outdoor

air sensor

Portable

central

controller

M32309

Remote controller

Wireless System Installation Guide

69-2426—01 2

M28474

1Install batteries in wireless devices

Installbatteriesinalldevices.Makesurebatteriesareinsertedproperly(seepolaritymarks

onthedevices).

2Install cable and receiver

M28472A

Remote Controller

Portable Central Controller (optional): Install 3 fresh AA batteries

Outdoor air sensor (optional): Install 2 fresh AA lithium batteries

Install 2 fresh AA batteries

Install quick reference card

1Before mounting indoor unit, connect cable to

the 5-pin CN105 connector on the control board

in the indoor unit.

2Mount indoor unit. Route cable to preferred

location of the wireless receiver.

3Route cable through hole in base of wireless

receiver and attach to 5 pin connector on

receiver board.

4 Pushtheexcesscablebackthroughtheindoor

unit or behind the wireless receiver. Do not cut

or modify the cable. Use zip tie connections on

back of receiver if needed.

5 Mountwirelessreceivernexttotheindoorunit

(seebelow)orinaremotelocation.

Mount in the orientations shown. Do not block vents.

MCR31400

OR OR

3 69-2426—01

3Link all devices to wireless network

1Remove cover from wireless receiver.

2 VerifyPOWERlightissolidgreen.

3 PressandreleasetheCONNECT button.

4 IfCONNECTlightdoesnotflash,another

receiver or RedLINK wireless adapter may be in

wirelesssetupmode.Exitwirelesssetupatthe

other device.

M28925

Wireless Setup

M32308

Connect

Back

Wireless Setup

M32307

Done

Connected

Wireless Setup

Link remote controller to wireless network

Zone name

Presssor tto change the name or location of this zone,

then press NEXT.

Example:67=MeetingRoom

See complete zone list on page 8.

PressCONNECT to establish a link to the wireless network.

If E0 or E1 appears, see error codes on page 10.

After a brief pause, the confirmation screen at left should

be displayed to verify that the wireless connection has been

established.

PressDONE to display the home screen.

POWER LED

Solid Green:Poweredandcommunication

is established.

Slow Flashing Green (1 flash/

second): Receiver is powered.

Waitapproximately30secondsfor

communication to be established

between the wireless receiver and the

indoor unit. Check cable connection if

flashing does not stop after 30 seconds.

Fast Flashing Green (5 flashes/second):

Error in communication between

wireless receiver and the indoor unit.

Check cable connection.

CONNECT LED

Flashing Green: In wireless setup

mode.

Solid Green: RedLINK communication

is established.

Yellow:Pleasewait.

Red: RedLINK device is not

communicating.

Flashingstatuslighttimesout

after15minutesofinactivity.Press

CONNECT again if necessary.

Wireless System Installation Guide

69-2426—01 4

Link Portable Central Controller to RedLINK™ network (optional)

Link outdoor sensor to RedLINK™ network (optional)

CONNECT

WIRELESS SETUP

M28481

M28483

NOYES

CONNECT MORE?

M28482

1 MakesuretheCONNECTlightonthe

wireless receiver is flashing.

2 PressCONNECTatthePortableCentral

Controller. There will be a short delay as the

PortableCentralControllerseeksasignal

from the wireless network.

3 Whenthescreendisplays"Connected,"

press DONE.

4 PressNOatthenextscreentosaveandexit.

(OrpressYES and repeat steps 1-4 to link

anotherreceiver.)

1 MakesuretheCONNECTlightonthe

wireless receiver is flashing.

2 PressandreleasetheCONNECT button on the

back of the sensor.

3Check remote controller to verify that the

outdoor sensor is working. After about

15 seconds, the remote controller should

display outdoor temperature and humidity.

Presstolink

another receiver

Presstosave

andexit

If E1 appears, see error codes on page 10.

The linking procedure may time out if there is

no keypress within 15 minutes. To begin again,

press and holdtheblankspace(orarrow,if

present)inthelowerrightcornerofthescreen

untilthedisplaychanges(about3seconds).

Pressandrelease

5 69-2426—01

Exit wireless setup

4Customize remote controller (installer setup)

PressandreleasetheCONNECTbuttonatthewirelessreceivertoexitwirelesssetup(light

shouldstopflashingandremainsolid).Replacecoveronwirelessreceiver.

Followthestepsbelowtobegininstallersetup.Ateachfunctionscreen,presssor tto

change the setting as desired, then press NEXTtoadvancetothenextfunctionscreen.

Seetablesonpages6-8foradescriptionofoptionsforeachfunction.

Presssor tto change

setting(seetablesonpages

6-8).

PressNEXTtodisplaynext

function screen.

Note:Thewirelessreceiverwillautomaticallyexitwirelesssetupafter15minutes

of inactivity.

Note:Ifinstallingmorethanonereceiver,youmustexitwirelesssetupbefore

installing remote controller and additional receiver.

To begin, press and hold the FAN and s

buttonsuntilthedisplaychanges."WAIT"

will be displayed for up to 40 seconds.

Function

PressDONEtosave&exit.

Setting

M28927

Back

Done

M28488A

M289871

Fan

Wireless System Installation Guide

69-2426—01 6

Installer setup tables

Setup function Settings & options (factory default in bold)

101 Unit automatically

restarts after power

outage

1OFF

2ON

3 Not Supported

103 Ventilation Air 1 Not Supported

2IDUdoesnotintakeoutdoorairthroughLOSSNAY

3IDUdoesintakeoutdoorairthroughLOSSNAY

104 Power Voltage 1 230V

2 208V

3 Not Supported

105 Auto energy-savings

operation

1ON

2OFF

3 Not Supported

107 Change Filter Duration 1100Hours

22500Hours

3OFF

108 Auto Fan (speed setting) 1 Quiet

2 Standard

3HighCeiling

109 No. of Air Outlets (PLA

only)

1 4 directions

2 3 directions

3 2 directions

110 High Performance Filter

Installed

1NO

2YES

3 Not Supported

111 Airflow Direction

Settings

1NoVanes(orVane#3forPLA)

2Vane#1Setting(typicallykeptatthedefaultsetting)

3Vane#2Setting(typicallykeptatthedefaultsetting)

115 Indoor Unit Coil Frost

Prevention Temperature

136°F(2°C)

237°F(3°C)

3 Not Supported

117 Defrost Control 1 Standard

2HighHumidity

3 Not Supported

123 Airflow Oscillate Mode 1 Not Available

2 Available

3 Not Supported

124 Heating Mode

Temperature Offset

1ON

2OFF

3 Not Supported

125 Thermal Off Fan

Operation (Heat Mode)

1ExtraLow

2 Stop

3SelectableFanSpeed

127 Thermal Off Fan

Operation (Cool Mode)

1SelectableFanSpeed

2 Stop

3 Not Supported

128 Display System Error 1ON

2OFF

3 Not Supported

DefaultsettingsforSetupfunctions101-128areautomaticallydeterminedbytheHVAC

equipment.Itmaytakeupto40secondstoentersetup,and30secondstoexitsetup.

7 69-2426—01

Installer setup tables

Setup function Settings & options (factory default in bold)

134 Central Controller

(AG-150 or similar)

Present

0 Not Installed

1 Installed

136 Residential/Commercial 1 Commercial

0 Residential

138 Permanent Hold Lock

(Non-programmable)

0 OFF (Programmable)

1ON(Non-programmable)

139 Fahrenheit/Celsius

Display

0 Fahrenheit

1 Celsius

140 Commercial Override

Duration

3 3 Hours

0OFF

1–12 1–12Hours

142 System Type 0 Heat & Cool (Heat Pump)

1CoolOnly

144 System Changeover 1 System Changeover (Auto, Heat, Off, Cool)

0ManualChangeover(Heat,Off,Cool)

2SystemChangeoverOnly(AutoOnly)

3 System Changeover Single Setpoint - only with AG-150 or

similar(Auto,Heat,Off,Cool)

145 System Changeover

Deadband Value

3 3 °F (2 °C)

2–8 2–8°F(1.5–4.5°C)

146 Drying Mode 0 OFF

1ON

148 Schedule Format 0 5-2

1 5-1-1

150 Optimal Start 1 ON

0OFF

152 Scheduled Off 0 Not Shown *See page 9 for feature information

1 Shown

154 Power Off Timer

("Sleep Timer")

0 Not Shown

1Resumeoperationatnextscheduledperiod

2PermanentlyOffuntiluserchangesSystemmode

160 Full Lockout 0 No

1Yes

162 Lockout On/Off 0 No

1Yes

164 Lockout System Mode

(Heat, Cool, Auto,

Drying)

0 No

1Yes

165 Lockout Fan Mode 0 No

1Yes

166 Lockout Setpoint 0 No

1Yes

168 Lockout Set Clock/Day/

Schedule

0 No

1Yes

170 Max Heat Setpoint 90 90 °F (32 °C) * Subject to

40–89 40to89°F(4.5to31.5°C) HVAC Equipment

172 Min Cool Setpoint 50 50 °F (10 °C) * Subject to

51–99 51to99°F(10.5to37°C) HVAC Equipment

173 Sensing Location 1 Sense at Remote Controller

0 Sense at Indoor Unit

174 Indoor Temperature

Display Offset

0 0 °F (0 °C)

-3to3°F(-1.5to1.5°C)

Wireless System Installation Guide

69-2426—01 8

Installer setup tables

Setup function Settings & options (factory default in bold)

176 Outdoor Temperature

Display Offset

0 0 °F (0 °C)

-5to5°F(-2.5to2.5°C)

178 Outdoor Humidity

Display Offset

3 0%

0 -15%

1 -10%

2 -5%

4 5%

5 10%

615%

192 Zone Name 52 THERMOSTAT 34 MASTER BED

1 BASEMENT 35 MEDIAROOM

2BATHROOM 36 MUSICROOM

3BATHROOM1 37 NURSERY

4BATHROOM2 38 OFFICE

5BATHROOM3 39 OFFICE1

6 BEDROOM 40 OFFICE2

7 BEDROOM1 41 PANTRY

8BEDROOM2 42 PLAYROOM

9BEDROOM3 43 POOLROOM

10 BEDROOM4 44 PORCH

11 BOATHOUSE 45 RECROOM

12 BONUSROOM 46 SEWINGROOM

13 COMPUTERROOM 47 SPA

14 DEN 48 STORAGEROOM

15 DININGROOM 49 STUDIO

16 EXERCISEROOM 50 SUNROOM

17 FAMILYROOM 51 THEATER

18 FIREPLACE 52 THERMOSTAT

19 FOYER 53 UPPERLEVEL

20 GAMEROOM 54 UTILITYROOM

21 GARAGE 55 WALKINCLOSET

22 GREATROOM 56 WINECELLAR

23 GUESTROOM 57 WORKSHOP

24 GYM Commercial Names

25 KID’SROOM 64 CONFERENCERM

26 KITCHEN 65 DRESSINGROOM

27 KITCHEN1 66 MACHINEROOM

28 KITCHEN2 67 MEETINGROOM

29 LAUNDRYROOM 68 OPENAREA1

30 LIBRARY 69 OPENAREA2

31 LIVINGROOM 70 SERVER 1

32 LOWERLEVEL 71 SERVER 2

33 MASTERBATH 72 STOCKROOM

194 Wireless Setup 1 Remote controller is connected to wireless system

0 Disconnect Remote controller from wireless system

198 Reset Schedule to

Factory Defaults

0 No

1Yes

199 Reset Installer Setup to

Factory Defaults

0 No

1Yes

9 69-2426—01

Special functions

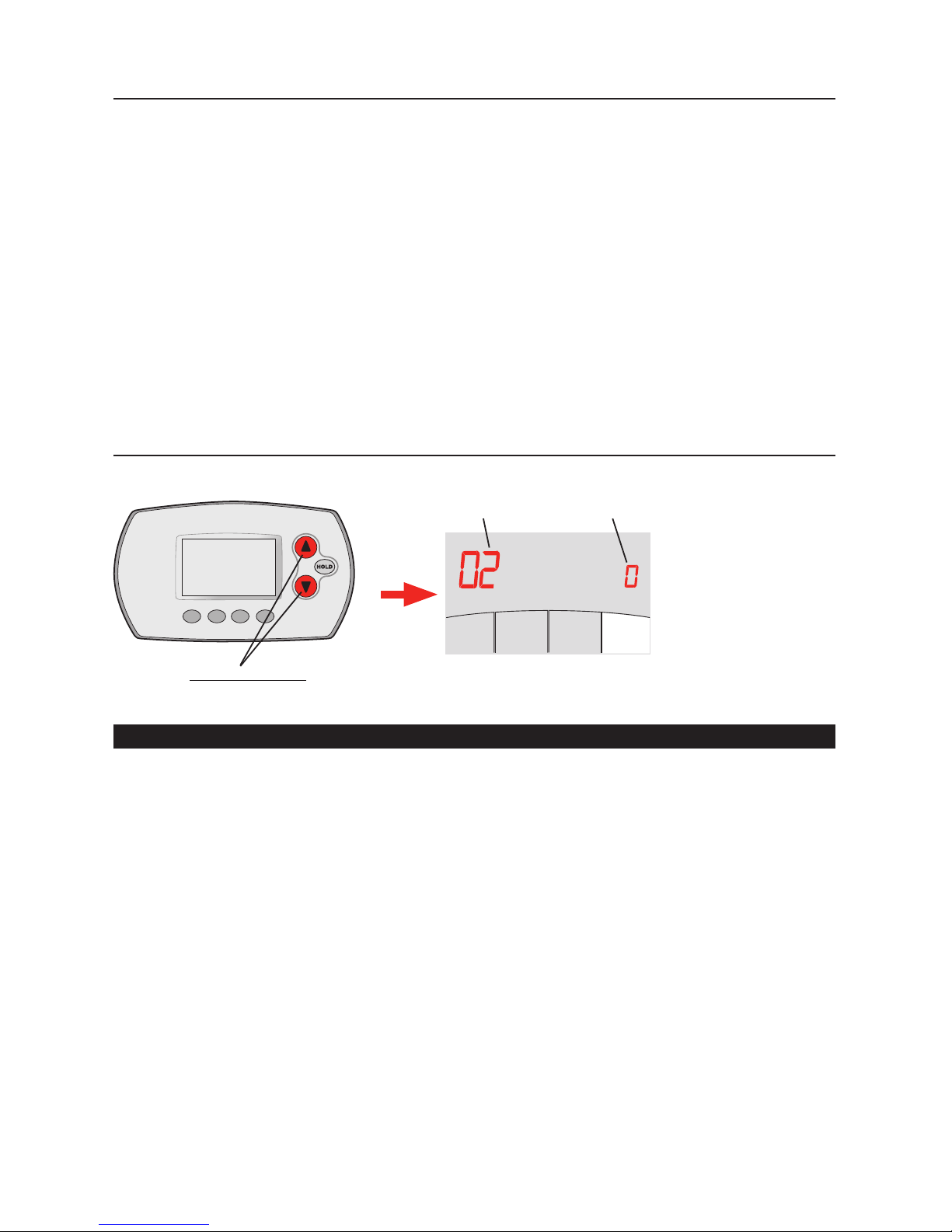

Installer test

Followtheprocedurebelowtotestforproperoperation.

M28488A

To begin, press and hold the sand tbuttons

untilthedisplaychanges(about3seconds).

Presssor tto

check system status

PressNEXT to

advancetonexttest

PressDONE to

terminate system test

M32306

Back

Done

System test number System status

System test System status

02 Wireless test 0 Off

1 Testradiosignal(afterabriefpause,screendisplays5-10toshow

signalstrength;5orhigherrecommended)

50 Cool/Heat test 0 Off

1 Cool

2 Heat

70 Configuration Data 1

(remotecontroller)

71 Softwarerevisionnumber(majorrevisions)

72 Softwarerevisionnumber(minorrevisions)

73 Configurationidentificationcode(major)

74 Configurationidentificationcode(minor)

75 Productionconfigurationdatecode(week)

76 Productionconfigurationdatecode(year)

80 Configuration Data 2

(remotecontroller)

81 Softwarerevisionnumber(majorrevisions)

82 Softwarerevisionnumber(minorrevisions)

83 Softwarerevisionnumber(buildrevisions)

90 Configuration Data 1

(wirelessreceiver)

91 Softwarerevisionnumber(majorrevisions)

92 Softwarerevisionnumber(minorrevisions)

93 Softwarerevisionnumber(buildrevisions)

95 Configuration Data 2

(wirelessreceiver)

95 Softwarerevisionnumber(majorrevisions)

96 Softwarerevisionnumber(minorrevisions)

97 Softwarerevisionnumber(buildrevisions)

Commercial Override (SetupFunction140):Allowsanemployeeduringanunoccupiedperiod

to temporarily activate an occupied temperature. Each press of HOLDextendstheoccupied

temperatureout1hour(orasinstalled).

Optimal Start (SetupFunction150):Allowstheremotecontrollerto“learn”howlongthe

equipment will take to reach programmed temperature settings, so the temperature is reached at

the scheduled time.

Scheduled Off (SetupFunction152):Allowstheusertoscheduleaperiodwherethesplit-zoning

systemiscompletelyoffandresumesoperationatthenextscheduledperiod.

Power Off Timer (SetupFunction154):Allowsusertoscheduleindoorunitcompletelyoffforone

instance:

FollowScheduleOption:indoorunitwillresumeoperationatthenextscheduledperiod.

PermanentlyOffOption:indoorunitwillremainoffindefinitelyuntiltheuserchangesthesystem

mode.

Wireless System Installation Guide

69-2426—01 10

Outdoor sensor (optional)

5Mount remote controller & outdoor sensor

1Separate the wallplate from the remote controller.

2Mount the wallplate using the included screws and anchors 5 feet from the floor on

an interior wall. If the remote controller is configured to sense indoor temperature,

mount in the same room as the indoor unit.

 Drill3/16"holesfordrywall.

Drill7/32"holesforplaster.

3Snap the remote controller to the wallplate on the wall.

M28491

M28492

Mountthesensoronaverticalexteriorwall,atleast6inchesbelowany

overhang. Choose a location protected from direct sunlight.

Placesensorsecurely

in bracket, facing

away from wall.

RedLINK™ error codes

E0 27 Verify device temperature is within operating range. If within range for at least 30

minutes and problem persists, replace Remote Controller.

E0 91 Communication was established between wireless receiver and the indoor unit,

but communication has been lost for 10 minutes. Check cable connection. Try

replacing the cable.

E1 29 Attempting to connect incompatible wireless devices.

E1 34 Low signal strength. Move wireless device to a different location and try again.

E1 38 Make sure Connect light on wireless receiver is flashing and you are 2+ feet away

from wireless receiver.

E1 54 Indoor unit does not support wireless receiver.

Forfulllistoferrorcodes,pleaserefertoyourequipment'stechnicalservicemanual.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Controller Handbücher

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-CAN Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Stücklistenhandbuch

Mitsubishi Electric

Mitsubishi Electric AG-150A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC Q Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric City Multi PAC-LV11M-J Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MR-J2S B Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Betriebsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-QS Series Benutzerhandbuch

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX0N-3A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC FX3U-4DA-ADP Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric EZMOTION MR-E Super MR-E-10A-QW003 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MR-MQ100 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-FX5 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX-USB-AW Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CR800-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-L LJ72GF15-T2-U-HW-C Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-QD75MH1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MR-J5-G Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-L Series LD40PD01 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC FX-2DA Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
