Mitsubishi Electric DT1151 Bedienungsanleitung

DT1151

Installation Manual

MA00856B 2009-01 English

MITSUBISHI ELECTR

Cover_MA00856B.fm Page 1 Friday, January 23, 2009 3:08 PM

Foreword

Mitsubishi Electric, MA00856B

DT1151 Installation Manual

Foreword

The DT1151 industrial monitor is a TFT-LCD touch screen monitor, designed

to be mounted in a cabinet and connected to an industrial PC.

The monitor is optimized for a maximum resolution of 1024 x 768 pixels when

the full display area of the module is used.

This manual explains how to install the monitor.

The information in this document is subject to change without notice and is provided as available at the time

of printing. The manufacturer reserves the right to change any information without updating this publica-

tion.

The manufacturer assumes no responsibility for any errors that may appear in this document.

Read the entire installation manual prior to installing and using this equipment.

Only qualified personnel may install, operate or repair this equipment. The manufacturer is not responsible

for modified, altered or renovated equipment.

Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use

the equipment properly in their specific applications.

Persons responsible for the application and the equipment must themselves ensure that each application is in

compliance with all relevant requirements, standards and legislation in respect to configuration and safety.

Only parts and accessories manufactured according to specifications set by the manufacturer may be used.

THE MANUFACTURER SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE INSTALLA-

TION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT, CONTRACT, OR

OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR, REPLACEMENT, OR REFUND

OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICABLE REMEDY SHALL BE AT THE

SOLE DISCRETION OF THE MANUFACTURER.

Contents

Mitsubishi Electric, MA00856B

Contents

1 Safety Precautions................................................................................... 5

1.1 General ........................................................................................5

1.2 During Use ..................................................................................6

1.3 Service and Maintenance..............................................................6

1.4 Dismantling and Scrapping..........................................................6

2 Installation.............................................................................................. 7

2.1 Space Requirements .....................................................................7

2.2 Installation Process.......................................................................7

3 Technical Data...................................................................................... 11

3.1 The On Screen Display Menu....................................................12

3.2 Operation Messages ...................................................................15

3.3 Video Input Timing...................................................................15

3.4 Audio Support ...........................................................................15

3.5 Calibrate the Touch Screen ........................................................16

4 Chemical Resistance ............................................................................. 17

4.1 Metal Casing..............................................................................17

4.2 Touch Screen and Overlay .........................................................18

5 Drawings .............................................................................................. 21

5.1 DT1151 Outline .......................................................................21

Contents

Mitsubishi Electric, MA00856B

Safety Precautions

Mitsubishi Electric, MA00856B 5

1 Safety Precautions

Both the installer, owner, and operator of the monitor must read and understand

this installation manual.

1.1 General

– Only qualified personnel may install or operate the monitor.

– The monitor must be installed according to the installation instructions.

– The monitor is designed for stationary installation on a plane surface, where

the following conditions are fulfilled:

no high explosive risks

no strong magnetic fields

no direct sunlight

no large, sudden temperature changes

– Never allow fluids, metal filings or wiring debris to enter any openings in the

monitor. This may cause fire or electrical shock.

– The monitor fulfills the requirements of EMC directive 2004/108/EC.

– Storing the monitor where the temperature is lower or higher than recom-

mended in this manual can cause the LCD display liquid to congeal or be-

come isotopic.

– The LCD display liquid contains a powerful irritant. In case of skin contact,

wash immediately with plenty of water. In case of eye contact, hold the eye

open, flush with plenty of water and get medical attention.

– The supplier is not responsible for modified, altered or reconstructed equip-

ment.

– Use only parts and accessories manufactured according to specifications of the

supplier.

– Peripheral equipment must be appropriate for the application and location.

– The figures in this manual serves an illustrative purpose. Because of the many

variables associated with any particular installation, the supplier cannot as-

sume responsibility for actual use based on the figures.

– The supplier neither guarantees that the monitor is suitable for your particu-

lar application, nor assumes responsibility for your product design, installa-

tion or operation.

Safety Precautions

6Mitsubishi Electric, MA00856B

1.2 During Use

– Keep the monitor clean.

– Emergency stop and other critical safety functions may never be controlled

from the monitor.

– Do not use force or sharp objects on the display surface.

1.3 Service and Maintenance

– Only qualified personnel should carry out repairs.

– The agreed warranty applies.

– Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.

– Clean the display and surrounding front cover with a soft cloth and mild de-

tergent.

1.4 Dismantling and Scrapping

– The monitor or parts thereof shall be recycled according to local regulations.

– The following components contain substances that might be hazardous to

health and the environment: electrolytic capacitor and display.

Installation

Mitsubishi Electric, MA00856B 7

2Installation

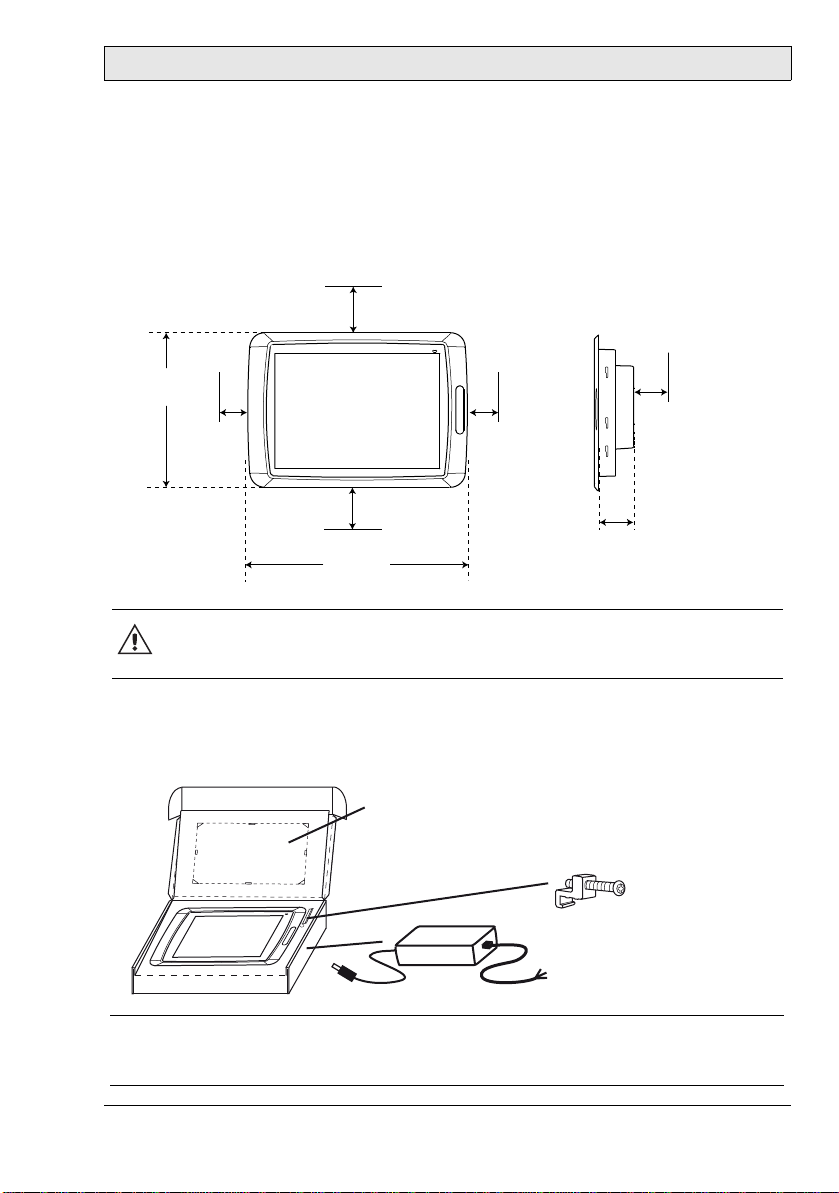

2.1 Space Requirements

Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)

Space requirements when installing DT1151:

2.2 Installation Process

1. Unpack and check the delivery. If anything is damaged, notify the supplier.

Caution:

The openings on the enclosure are for air convection.

Do not cover these openings.

Note:

Place the monitor on a stable surface during installation. Dropping it or letting it

fall may cause damage.

25 mm

45 mm

50 mm

304 mm

398 mm

50 mm

(2.0 inch)

50 mm

(2.0 inch)

(1.77 inch)

(1.0 inch)

25 mm

(1.0 inch)

(11.97 inch)

(15.67 inch)

(1.97 inch)

o(+

GXe\cZlkflk*,,%,o)./%,dd

(+%'o('%0-`eZ_

o(

8:&;:

Installation

8Mitsubishi Electric, MA00856B

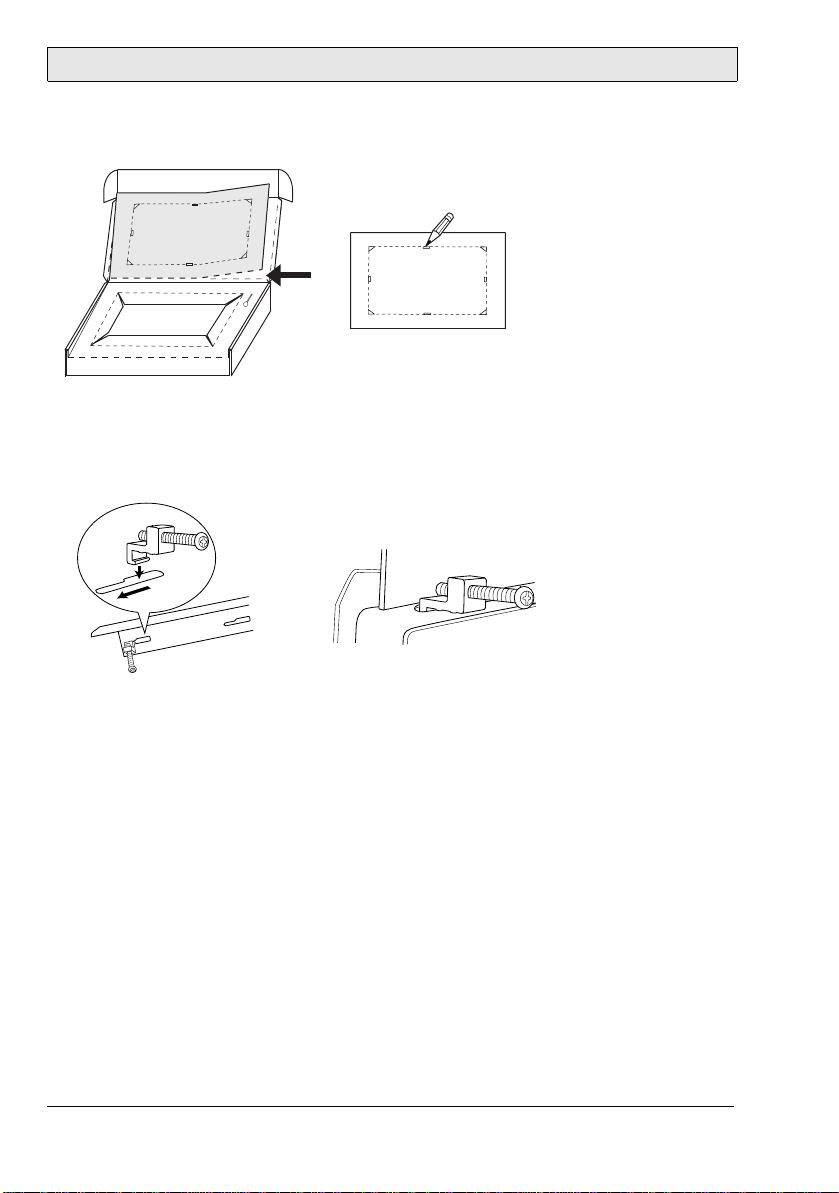

2. Place the panel cut out where the monitor is to be situated, draw along the

outer sides of the holes and cut according to the markings.

3. Secure the monitor in position, using all the fastening holes and the pro-

vided brackets and screws:

x14

0.5 - 1.0 Nm

Installation

Mitsubishi Electric, MA00856B 9

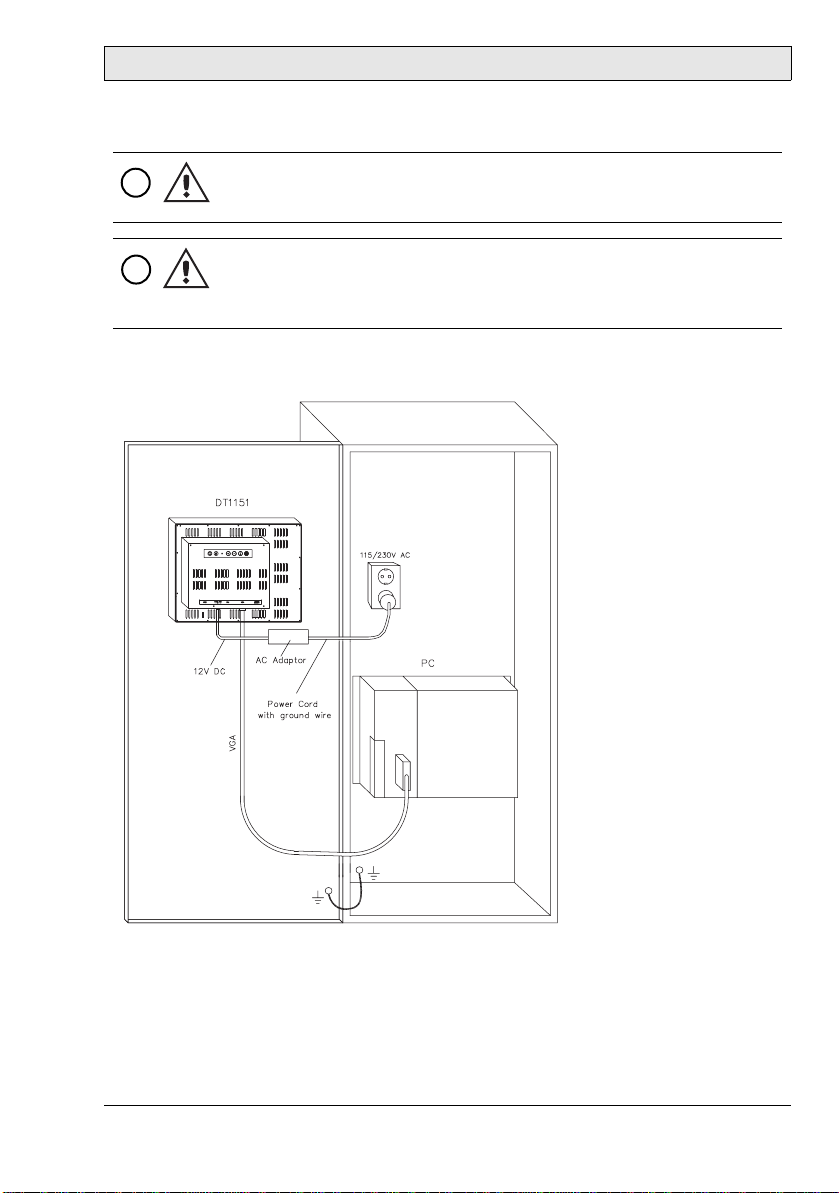

4. Connect the cables in the specified order.

5. Carefully remove the laminated film over the monitor display, to avoid

static electricity that could damage the monitor.

Caution

Use only shielded signal cables.

Separate high voltage cables from signal and supply cables.

Caution:

The monitor must be brought to ambient temperature before it is

started up. If condensation forms, ensure that the monitor is dry be-

fore connecting it to the power outlet.

Installation

10 Mitsubishi Electric, MA00856B
