MJ LED LIGHTNING MJ-1029A Bedienungsanleitung

Zoom LED Moving Head Light

MJ-1029A

User Manual

======PROFESSIONAL LED LIGHTING ========

Thank you for choosing our LED zoom moving head light. For the sake of your safety, Please

read and follow these instructions carefully and keep this manual in a safe place for future

reference.

Catalogue

Chapter Page

Safe Usage Of The Product -----------------------------------------------------------------------------------------3

Install The Equipment ------------------------------------------------------------------------------------------------4

Power Code Connection ---------------------------------------------------------------------------------------------4

DMX Connection ------------------------------------------------------------------------------------------------------4

DMX Terminator -------------------------------------------------------------------------------------------------------5

Function Set --------------------------------------------------------------------------------------------------------------5

Operation Menu ---------------------------------------------------------------------------------------------------------6

Control panel of LED display information ----------------------------------------------------------------------9

Maintenance --------------------------------------------------------------------------------------------------------------9

Keeping The Product Clean ------------------------------------------------------------------------------------------9

Trouble Shooting--------------------------------------------------------------------------------------------------------10

Equipment and Appendix---------------------------------------------------------------------------------------------10

Channel List --------------------------------------------------------------------------------------------------------------10

Technical Parameters---------------------------------------------------------------------------------------------------12

☆Important notice:

·In this instruction for use contains about the installment and the use aspect important information of the LED moving

head. When installing and using, you need to look this usage instruction strictly.

·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the

separation condition.

·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are

in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer

and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.

Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet

carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters

concerned. Our company retains when the product improvement changes the related specification the authority. This

instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot

the related consequence which causes regarding these information be responsible.

SAFE USAGE OF THE PRODUCT

When unpacking and before disposing of the carton, check there is no transportation damage before

using the product. Should there be any damage caused by transportation, consult your dealer and do

not use the apparatus.

The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain

and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other

liquids.

The product is not designed or intended to be mounted directly on to inflammable surfaces

The product is only intended for installation, operation and maintenance by professional person.

The product must be installed in a location with adequate ventilation, at least 50cm from adjacent

wall surfaces. Be sure that no ventilation slots are blocked.

Do not product the beam onto inflammable surfaces, minimum distance is 5m.

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power

requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all

relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the

power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull

out the plug by tugging the power-cord.

Keep the optical system clean. Do not touch the LED lens with bare hands.

The product should always be installed with a secondary safety fixing. On the projector base brink,

there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”

section.

LED lens shall be changed if they have become visibly damaged to such an extent that their

effectiveness is impaired, for example by cracks or deep scratches.

Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is

achieved 50°C.

There is no user serviceable parts inside the projector, do not open the housing and never operate the

product with the covers removed.

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

★Always disconnect from the mains, when the device is not in use or before cleaning it or

before attempting any maintenance work !

Install The Equipment:

Use 2pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the

packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure

and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm

the light which you fixed is strong enough for hanging the light. Base on safety reason, please

according to the above picture using safety wire cross the light to make it strong enough again.

Warning!

1．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.

2．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp

through Insurance hole for auxiliary hanging.

3．Don't use the handle of the moving head light to fixed or lift!

Power Code Connection:

Connect the power cord as follows:

L (live) =brown

E (earth) =yellow/green

N (neutral) =blue

Use the plug provided to connect the mains power to the projector paying attention to the voltage and

frequency marked on the panel of the projector. It is recommended that each projector be supplied

separately so that they may be individually switched on and off.

★It is essential that each projector is correctly earthed and the electrical installation conforms

to all relevant standards.

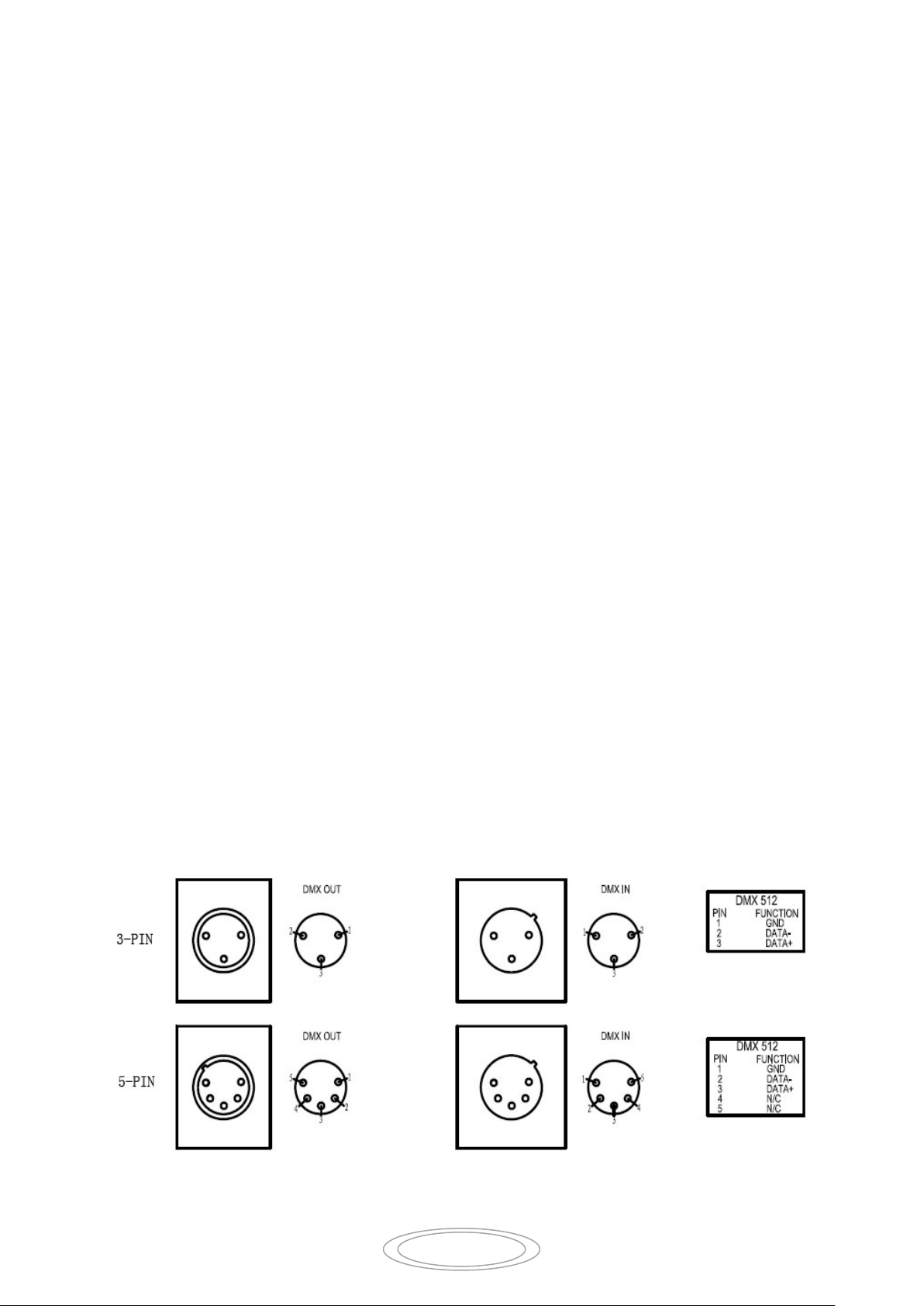

DMX Connection:

Connection between the controller and a projector and between one projector and another must be

made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to

and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and

sockets. The XLR's are connected as shown in the figure above.

Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each

other. The body of the plug is not connected in any way. The XLED 590 accepts digital control

signals in protocol DMX512 (1990).

Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the

second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last

fixture’s output to a DMX terminator.

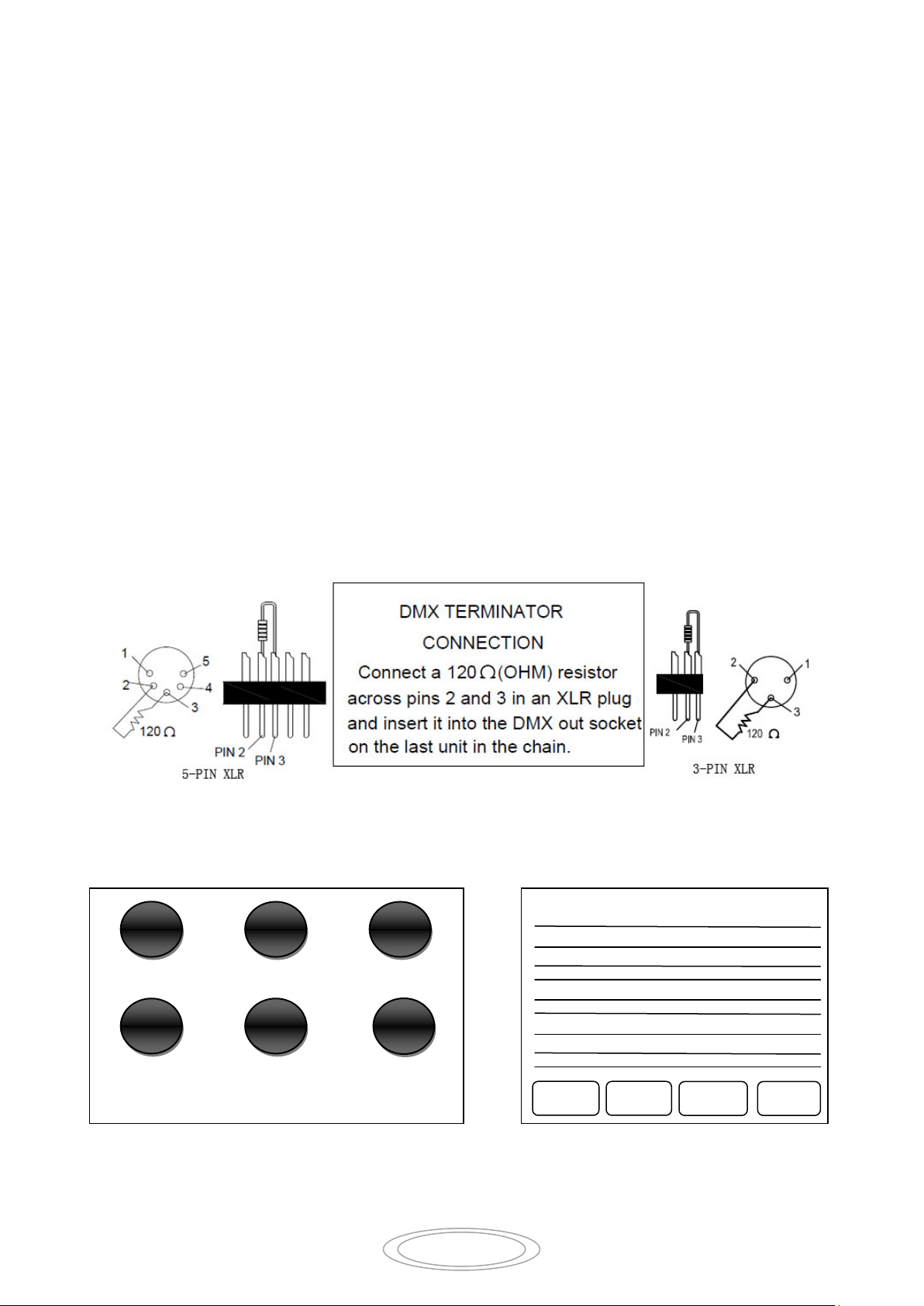

DMX Terminator:

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a

DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control

signals.

The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins

2 and 3, which is then plugged into the output socket on the last projector in the chain. The

connections are illustrated below.

Function Set:

Picture 1 picture 2

Down

Enter

Run Mode

Address Set Language

Set Up Test Mode

Sys Info

Press MENU into the main menu, when the LCD is off.

When the LCD display the main menu,Press the menu into sub menu.(as picture 1)

Use button switch and LCD display, can set the address code and function code easily.

Check or modify lighting function settings, Press the MENU display panel. LCD display panel will

display function menu of lighting. Function operation menu all have corresponding submenu(as

picture 2) . Each menu all represent the specific functions of lamps, specific see below "operation

menu" section.

Set or browse function setting of lamp, Press UP or DOWN key.

Press ENTER key to save your changes or to ENTER submenu, Touch UP or DOWN can change

value(Plus or reduce number).

According to the Return key to return to the last menu.

Operation Menu:

Menu Structure chart

Main Menu Sub Menu

DMX Address Set(001-512)

Address

Test Mode

Pan test

Tilt

Green

Red

White

Blue

Focus

－

255

－

255

－

255

－

255

－

255

－

255

－

255

Run Mode

DMX Mode

Auto Mode

Sound Mode

14/22CH

Auto1

－

Auto8

Language

Chinese

English

Set Up

ID Code

Pan Reverse

Tilt Reverse

Pan Calibration

Tilt Calibration

Temp Switch Set

Reset

Screen Protect

LOGO

Factory Set

Red Current

On Time

（

The time of now

）

Sys Info

Run Time

（

Total time of using

）

Soft ver

Running Mode

Dmx Address

Temperature Set

Temperature(Display current temperature）

－

ON/OFF

－

255

－

255

ON/OFF

50°C - 85°C

Green Current

Handspike Delay

ON/OFF

Blue Current

ON/OFF

200(20-255)

XF03

**H**M**S

*****H**M

Signal Link

ON/OFF

Focus Calibration

－

255

Code Wheel

ON/OFF

Screen Rot

ON/OFF

White Current

200(20-255)

Main Menu

Touch the menu to into setting.

Sub Menu

Sub menu include address, run mode, test mode, language , Setup and sys info. Press the main menu to do each

setting.

Run mode, “√” is mean to the currently run mode. At the same time, only running one mode. When you

select DMX mode and auto mode, Press “ ENTER”, also can choose different DMX mode and auto mode.

DMX mode,When the light in the DMX mode, then also can be slave mode. If the light connect to

the DMX control signal, then it is DMX mode. If you connect the light is Master signal, then it is

running slave mode.

Auto mode, auto mode also can be master mode.

Sound mode,When the light in sound mode, it can’t be master mode.

Address setting,after you finished the setting, then you need to press “ ENTER” button to keep the address

code and return to main menu.

Language,menu language can choose Chinese or English.

Setup mode,

Pan reverse set

Tilt reverse set

Pan Calibration

Tilt Calibration

Focus Calibration

Code wheel: If off, ID code will failure in reset and running mode, can’t record correct position of

pan and tilt. Will recover from wrong running operation. Reset can be max travel reset from code

wheel reset.

Signal link:When turn on signal link, cut off control signal will be remain disconnected before the

control signals

Handspike delay, when switch on handspike delay, the controller handspike can achieve soft

dimming effect. Handspike delay can be chosen ON/OFF on the controller.

ID code, ID code is using for DMX mode in the channel16th,when the value of channel 16th over

number 9,only ID code corresponding to the front two value which in 16th channel, then other

channel value are available now.(This model have no this function)

Temperature: Protect temperature, when start temp protect function, if test temperature over protect

temperature, then brightness will be reduce a half.

Temp Switch: Temperature protect switch.

Screen protect: It can be set turn off,mode1 and mode 2.When it’s OFF, then won’t enter screen

protect condition. When in mode 1,it will clear the screen. When in mode 2,after you into screen

protection, big letter display current address code. Touch the screen, you can exit screen protect

condition, and return main menu.

Screen Rot: this menu can let the screen inversion 180 degree.

Logo: if display logo

Reset: reset function

Red Current: Red current adjust

Green Current: Green current adjust

Blue Current: Blue current adjust

White Current: White current adjust

Factory set: you can set all parameters to factory set.

Test mode,test mode is a special mode, only can be used when it is in test mode interface, exit interface,

then return to previous running mode. In the test mode, you can adjust Pan, tilt and focus motor’s

position, also can adjust intensity of RGBW color. The RGBW color of test mode can be used by the 6th

channel in the DMX mode.

Sys info : display related information on system

DMX address

Running mode: System running mode currently

ON time: The current time when you power on it

Run time: Total time of using this light

Temperature: Display current temperature

Ver: current verson of software

Control panel of LED display information:

Green

DMX signal ok

Off

No DMX signal

Flash

DMX signal error

Red

Err

Maintenance:

To prolong the life of the projector, some maintenance work has to be done to ensure the LED

optical system in good condition. If the projector does not function, check the fuses on the power

socket of the projector, they should only be replaced by fuses of the same specification. Should

these be damaged, call a qualified technician before replacement. The projector has thermal

protection device that will switch off the projector in case of overheating. Should either of these

operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the

projector again. Check that the fans are operational, if not, call a qualified technician.

☆Any maintenance work should only be carried out by qualified technicians.

Keeping The Product Clean:

To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans

should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum

light output.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or

particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. A soft cloth

and typical glass cleaning products should be used for cleaning. It is recommended to clean the

external optics at least once every 15 days.

☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.

Trouble Shooting:

Problem

Answer

The LED moving head light doesn’t switch

on.

Check the fuse the power socket

Although shines, but the LED moving head

lamp doesn’t accept the instruction of the

controller.

Check the digital start address and

also check the connection situation of

the communication control line

LED moving head lamp only can work

intermittently.

Inspect the power supply and voltage

is whether normal.

Do not receive the DMX512 signal.

Whether the signal lines do contact

well or broken.

The light beam appears gloomily.

Check that the heat dissipation

system is running normally or Inspect

the optics part is whether clean.

☆Other maintain work should by the specialist which has the experience to carry on.

Equipment and Appendix:

The packing list of this light as follows:

☆Led zoom moving head light 1pcs

☆Power Cable 1pcs

☆XLR connector 1unit

☆Light Hook 2pcs

☆The Product of Instruction 1pcs

Channel List:

STAN

(22CH)

SMAL

(14CH)

DMX

Value

Function

1 1 0－255 Pan moving

2 2 0－255 Tilt moving

3 3 0－255 Zoom moving

4 4 0－255 Pan fine(16Bit)

5 5 0－255 Tilt fine(16Bit)

6 6 0－255 XY motor speed from quick to slow

7 7 0－255 Main dimming

8 8 0 Strobe from slow to quick

1-255

Inhaltsverzeichnis

Andere MJ LED LIGHTNING Beleuchtungsausrüstung Handbücher

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3192A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3114 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3372 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1034A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MATRIX BAR 910 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3615E Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3112A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING WIRELESS BATTERY PAR 910 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3004 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3001B-6IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3325C-200W26D Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3200 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2020 3W25DRGBW Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3400-W Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3118B Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3432A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3046 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005-4IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3915 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2410 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1044-6IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2006A Series Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
