INSTALLATION & MAINTENANCE MANUAL

T8BLED15EM1 / T8BLED16EM1

T8BLED25EM1 / T8BLED26EM1

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following products:

T8BLED15EM1 / T8BLED16EM1 / T8BLED25EM1 / T8BLED26EM1

GENERAL INSTRUCTIONS

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)

and current Building Regulations. If in any doubt, consult a qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed the rating of the

circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

• This product is for indoor use only

• This product is Class I and must be earthed

• This product is IP20 rated

SAFETY

INSTALLATION

Note - If this product is being used in conjunction with an external PIR or sensor, please conﬁrm with the

manufacturer of the sensors that they are compatible with LED luminaires.

• Provide power to the required point of installation

• Remove the two end caps with the aid of a ﬂat-head screwdriver

• Single luminaire: squeeze the sides of the ﬁtting together to separate the LED plate from the housing

• Twin luminaire: remove the two screws (see Fig. 1) and slide the LED plate away from the housing

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference

and maintenance.

These instructions should be used to aid installation of the following products:

T8BLED15EM1 / T8BLED16EM1 / T8BLED25EM1 / T8BLED26EM1

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of

the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

•This product is for indoor use only

•This product is Class I and must be earthed

•This product is IP20 rated

INSTALLATION

Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the

manufacturer of the sensors that they are compatible with LED luminaires.

•Provide power to the required point of installation

•Remove the two end caps with the aid of a flat screwdriver

•Single luminaire: squeeze the sides of the fitting together to separate the LED plate from the housing

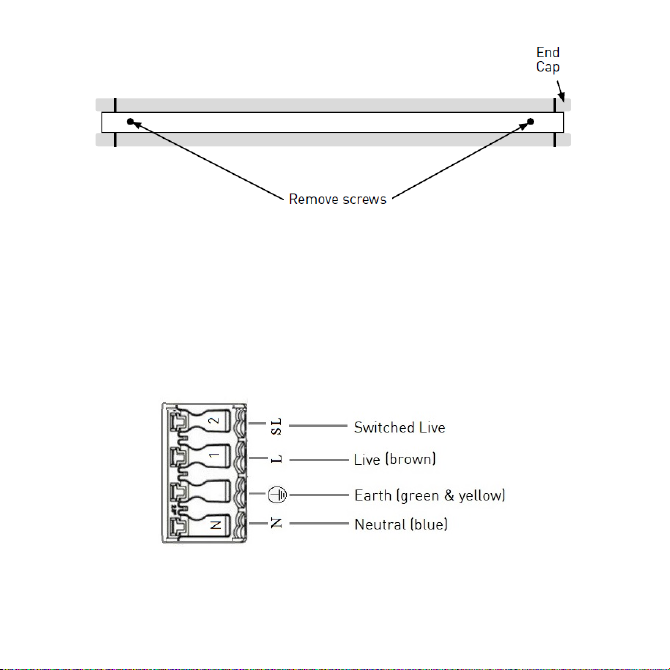

•Twin luminaire: remove the two screws (see Fig. 1) and slide the LED plate away from the housing

Fig. 1

•Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas / water

pipes or electrical cables. The fitting can also be mounted over conduit boxes, the distance between

fixing centres is 60cm

•Feed the mains cable into the luminaire either through the rear, or by drilling the end cap and using a

20mm compression gland (not included)

•Secure the luminaire to the surface

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 2

• Mark the location of the ﬁxing holes and drill the holes ensuring not to infringe with any gas / water pipes or

electrical cables. The ﬁtting can also be mounted over conduit boxes, the distance between ﬁxing centres is

60cm

• Feed the mains cable into the luminaire either through the rear, or by drilling the end cap and using a 20mm

compression gland (not included)

• Secure the luminaire to the surface

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 1

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference

and maintenance.

These instructions should be used to aid installation of the following products:

T8BLED15EM1 / T8BLED16EM1 / T8BLED25EM1 / T8BLED26EM1

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of

the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

•This product is for indoor use only

•This product is Class I and must be earthed

•This product is IP20 rated

INSTALLATION

Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the

manufacturer of the sensors that they are compatible with LED luminaires.

•Provide power to the required point of installation

•Remove the two end caps with the aid of a flat screwdriver

•Single luminaire: squeeze the sides of the fitting together to separate the LED plate from the housing

•Twin luminaire: remove the two screws (see Fig. 1) and slide the LED plate away from the housing

Fig. 1

•Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas / water

pipes or electrical cables. The fitting can also be mounted over conduit boxes, the distance between

fixing centres is 60cm

•Feed the mains cable into the luminaire either through the rear, or by drilling the end cap and using a

20mm compression gland (not included)

•Secure the luminaire to the surface

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 2

GENERAL

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance

testing. Irreparable damage will occur if this instruction is not followed.

This product contains a light source of energy efﬁciency class D (T8BLED15EM1, T8BLED25EM1,

T8BLED26EM1) / E ( T8BLED16EM1) to Regulation (EU) No. 2019/2015

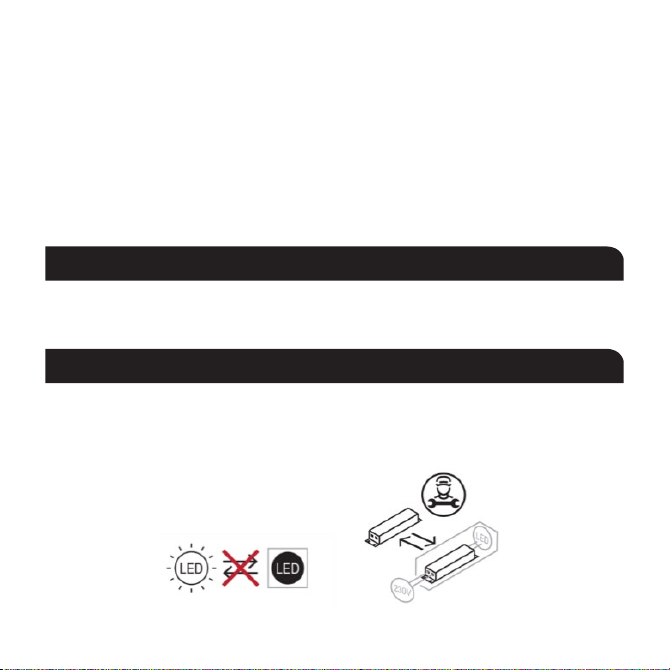

This product contains a non-replaceable LED light source and a control gear which can be replaced by a

professional.

• Check the earth tab connection is in place and reconnect if required

• Ensure the battery is connected via the plug and socket

• Refasten the cover

• Switch on and check for correct operation, ensuring the green indicator LED is illuminated

• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying

out an emergency duration test

Note: this ﬁtting shuts off power to the Lithium Ion battery periodically to prevent overcharging. Therefore, the

green LED indicator has been set up to indicate that the emergency inverter is in good condition, not to indicate

that the battery is charging. The installer must ensure the battery is connected.

•Check the earth tab connection is in place and reconnect if required

•Ensure the battery is connected via the plug and socket

•Refasten the cover

•Switch on and check for correct operation, ensuring the green indicator LED is illuminated

•We recommend, on commissioning the installation, a minimum charge period of 24 hours before

carrying out an emergency duration test

Note: this fitting shuts off power to the Lithium Ion battery periodically to prevent overcharging. Therefore, the

green LED indicator has been set up to indicate that the emergency inverter is in good condition, not to indicate

that the battery is charging. The installer must ensure that the battery is connected.

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance

testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class TBC to Regulation (EU) No. 2019/2015

This product contains a non-replaceable LED light source and a control gear which can be replaced by a

professional.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please see website for

dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities

for where facilities exist.

The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local

authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 5 years (excluding battery) from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the

batch code will invalidate the warranty. If this product should fail within its warranty period, it should be returned

to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for

any installation costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266

•Daily check – check LED charge indicator is illuminated

•Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch

or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is

illuminated

•Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation

of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge

indicator is illuminated

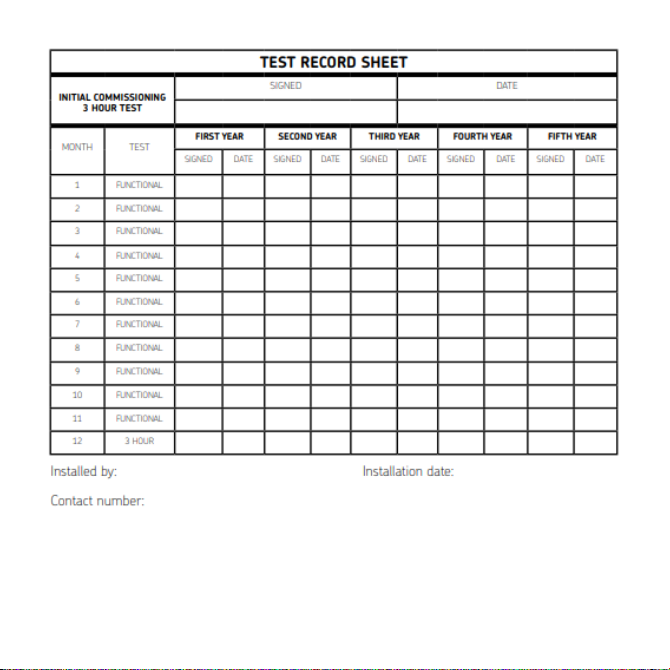

•If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record

sheet

WARRANTY

This product has a warranty of 5 years (excluding battery) from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal

of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should

be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept

responsibility for any installation costs associated with the replacement product. Your statutory rights are not

affected. ML Accessories reserve the right to alter product speciﬁcation without prior notice.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please see website for

dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities

for where facilities exist.

The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local

authorities for the disposal of this toxic waste.

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch

or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is

illuminated

• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation

of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge

indicator is illuminated

• If the luminaire fails any of the above tests, please contact a qualiﬁed electrician. See below for test record

sheet

TESTING FOR EMERGENCY LUMINAIRES

230V 50Hz, IP20, Class 1, Non-Dim, house

DCxxx21_V6

DCAUG21_V6

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk
