SERIAL NUMBER:________________________________________
Sedona Pro Multi
SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT
WORLD INSTALLATION/OWNERS MANUAL
CE RATED FOR 220-240VAC 50/60HZ INSTALLATIONS
REV 20210127
2
USER INSTRUCTIONS
SEDONA PRO MULTI
SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT
SAFETY INFORMATION AND OPERATIONS MANUAL
Read these instructions completely before beginning installation. Failure to follow them could
cause a heater malfunction resulting in serious injury and/or property damage.
WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in
areas where gasoline, paint or ammable liquids are or are stored.
This replace meets the construction and safety standards of H.U.D. for application in
manufactured homes when installed according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
PAGE 8 PAGE 7 PAGE 8
PAGE 9
3
USER INSTRUCTIONS
TABLE OF CONTENTS
When using electrical heaters, basic
precautions should always be followed to
reduce the risk of re, electric shock and injury
to persons, including the following:
1. Read all instructions before installing or
using this heater.
2. This heater is hot when in use. To avoid
burns, do not let bare skin touch hot
surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m)
from the front of the heater and keep them
away from the sides and rear.
3. Extreme caution is necessary when any
heater is used by or near children or
disabled people and whenever the heater is
left operating and unattended.
4. Do not operate any heater after it
malfunctions, has been dropped, or
damaged in any manner. Disconnect power
at service panel and have heater inspected
by an authorized technician or a reputable
electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to off
and turn off power to heater circuit at main
disconnect panel.
7. Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or re, or
damage the heater.
8. To prevent a possible re, do not block air
intakes or exhaust in any manner.
9. A heater has hot, arcing or sparking parts
inside. Do not use in areas where gasoline,
paint or ammable vapors or liquids are
used or stored.
10.Use this heater only as described in this
manual. Any other use not recommended
by the manufacturer may cause re,
electric shock or injury to persons.
11. SAVE THESE INSTRUCTIONS
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information,
consult a qualied installer.
CAUTION: Do not expose the heater to the
elements (such as rain, etc).
Do not place clothing or other ammable
material on or near rebox. Never place
any objects on the replace.
Carefully supervise young children when
they are in the room with replace.
Fireplace becomes very hot when running.
Keep children and adults away from
hot surfaces to avoid burns or clothing
ignition. Fireplace will remain hot for a
time after shutdown. Allow surfaces to
cool before touching.
CAUTION: In order to avoid
overheating, do not cover the
heater.
IMPORTANT INSTRUCTIONS
Important Instructions 3
Power Data 4
Product Guide 4
Box Contents 5
Installation 6
Operation 12
Service Parts 13
Troubleshooting 15
Frequently Asked Questions 16
Cleaning and Maintenance Instructions 17
Wiring Diagram 17
4
USER INSTRUCTIONS
POWER DATA
PRODUCT GUIDE
SPM-2426/INT SPM-3026/INT SPM-3626/INT SPM-4226/INT
Volts/HZ
Amps
AC 220-240V
50/60Hz 9 Amps
AC 220-240V
50/60Hz 9 Amps
AC 220-240V
50/60Hz 9 Amps
AC 220-240V
50/60Hz 9 Amps
Heater AC 220-240V
2000W
AC 220-240V
2000W
AC 220-240V
2000W
AC 220-240V
2000W
Lamps LED 12V LED 12V LED 12V LED 12V
Rotor Motor
AC 220-240V
50/60Hz
4.5W 15/18RPM
CCW
AC 220-240V
50/60Hz
4.5W 15/18RPM
CCW
AC 220-240V
50/60Hz
4.5W 15/18RPM
CCW
AC 220-240V
50/60Hz
4.5W 15/18RPM
CCW
Model Viewing Area Firebox Dimensions Framing Dimensions
SPM-2426/INT
23-7/8"W X 26" H
(606mm W x 660mm H)
24"W X 35"H x 12-1/2" D
(
610mm W x 889mm H x 318mm D)
24-1/4"W X 35-3/8"H x 13" D
(
616mm W x 899mm H x 330mm D)
SPM-3026/INT
29-7/8"W X 26" H
(759mm W x 660mm H)
30"W X 35"H x 12-1/2" D
(
762mm W x 889mm H x 318mm D)
30-1/4"W X 35-3/8"H x 13" D
(
768mm W x 899mm H x 330mm D)
SPM-3626/INT
35-7/8"W X 26" H
(911mm W x 660mm H)
36"W X 35"H x 12-1/2" D
(
914mm W x 889mm H x 318mm D)
36-1/4"W X 35-3/8"H x 13" D
(
920mm W x 899mm H x 330mm D)
SPM-4226/INT
41-7/8"W X 26" H
(
1064mm W x 660mm H)
42"W X 35"H x 12-1/2" D
(
1067mm W x 889mm H x 318mm )
42-1/4"W X 35-3/8"H x 13" D
(1073mm W x 899mm H x 330mm D)
889mm
(all models)
Width varies (see chart below) 13" (330mm)
all models
Drywall stops Drywall stops
5
INSTALLATION
BOX CONTENTS
(A) 1 Fire Unit (B) 1 Remote
(C) L-Metal Mounting
Brackets
(E) 2 Side Glass
Pieces
(D) 2 Side Covers
(F) 1 Front Glass
(H) Smoke Acrylic
Crystals
(J) 1 Owner's Manual
(G) 2 Suction Cups
(I) Log Set
6
INSTALLATION
This replace has a number of installation options. It can be installed fully recessed, half recessed, wall
mounted with a oating cabinet or with a simple slide-in cabinet. In addition, to the partial recessed
option, the replace can be installed fully recessed for a singled sided install, a 3 sided install, or left and
right corner.

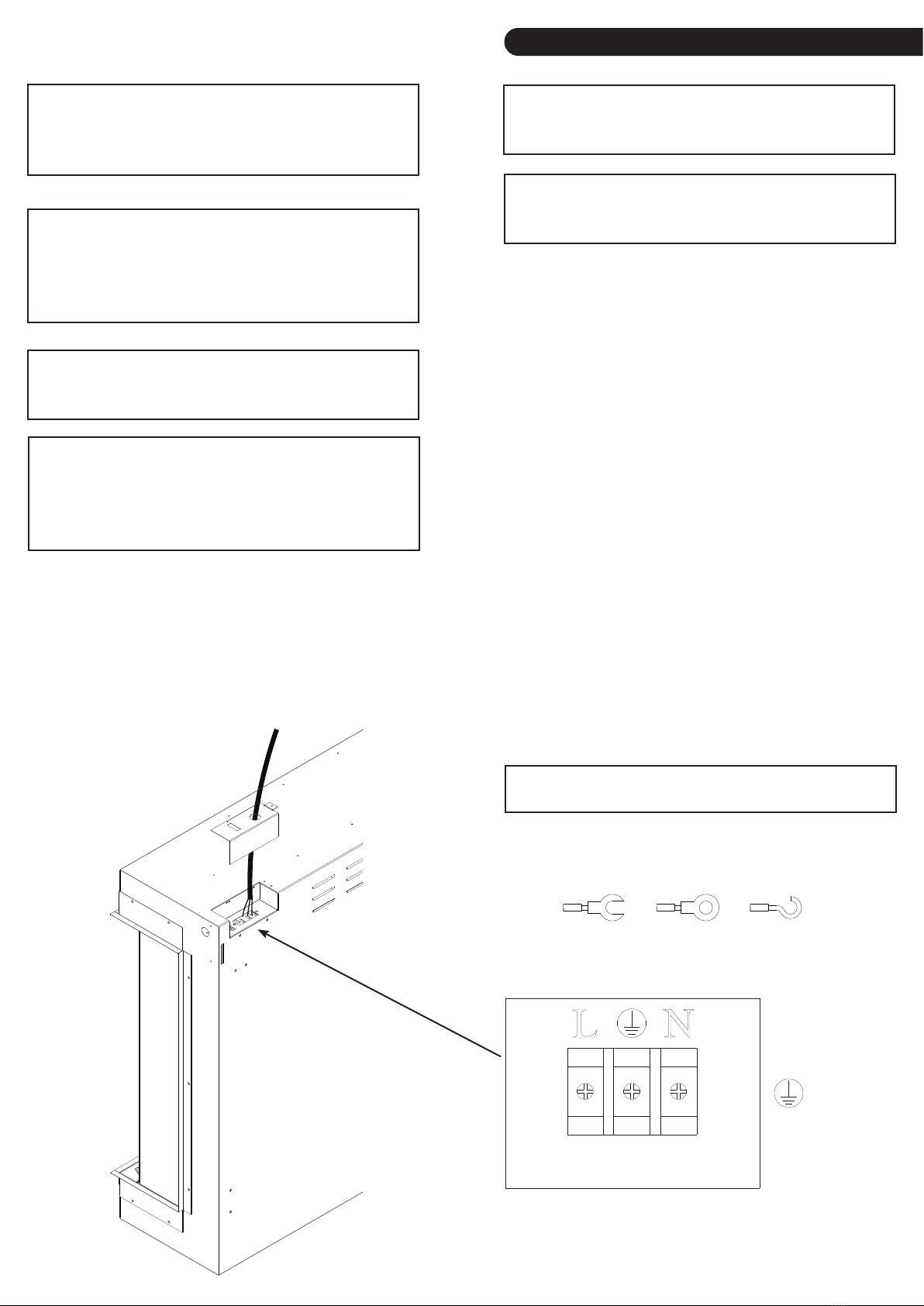

To prepare for installation, connect the hard wire to the terminal block located on top back right of
replace according to the diagram below. Choose any connector type according to local building code.
To be performed by a qualied electrician
according to local building codes.
L - Line (Hot)
- Ground
N - Neutral
INSTALLATION
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or death.
WARNING - RISK OF FIRE!
To prevent a possible re, do not block air
intake or exhaust in any manner. Do not
use on soft surfaces where openings may
become blocked.
WARNING - RISK OF FIRE!
Do not blow or place insulation against the
rebox.
To reduce the risk of re do not store or
use gasoline or other ammable vapors in
the vicinity of this or any other heater.
CAUTION: Keep combustible materials,
such as furniture, pillows, bedding,
papers, clothes and curtains at least 3
feet (0.9m) from the front of the heater and
keep them away from the sides and rear.
CAUTION: Wear gloves and safety glasses
for protection during installation and
maintenance.
Installing replace
Select a suitable location that is not susceptible
to moisture and is a safe distance from drapes,
furniture and high trafc areas. A 13 amp
(EU) or 10 amp (AU/NZ) circuit is required. A
dedicated circuit is preferred but not essential
in all cases. A dedicated circuit will be required
if after installation, the circuit breaker trips
on a regular basis when heater is operating.
Additional appliances on the same circuit may
exceed the current rating of the circuit breaker.
Note: Follow all national and local electrical
codes.
7
INSTALLATION
Framing Dimensions
Model WHD
SPM-2426/INT 24-1/4" (616mm) 35-3/8" (899mm) 13" (330mm)
SPM-3026/INT 30-1/4" (768mm) 35-3/8" (899mm) 13" (330mm)
SPM-3626/INT 36-1/4" (920mm) 35-3/8" (899mm) 13" (330mm)
SPM-4226/INT 42-1/4" (1073mm) 35-3/8" (899mm) 13" (330mm)
1. Prepare the framed opening according from the
dimension chart above. Provide a 13 amp (EU) or
10 amp (AU/NZ) circuit for hard wire install at the
top right of the framed opening.
2. Install L Metal Mounting Brackets (C) to the
top and bottom of the re unit.
3. Install the re unit in the framed opening with a
minimum 1-1/4" (32mm) drywall screws to secure
the unit.
4. Mask the exposed re unit during the drywall
process. Install drywall to the drywall stops on the
perimeter of the re box.
For more information on the drywall stops
see page 4.
5. Install log set and glacier crystals, see page 10.
6. Install the side and front glass pieces according to
installation diagram on Page 11.
3-SIDED INSTALLATION (BAY)
8
INSTALLATION
4. Install the replace in the framed opening with a
minimum 1-1/4" (32mm) drywall screws to secure
the unit.
5. Mask the exposed re unit during the drywall
process. Install drywall to the drywall stops on the
perimeter of the re box. For more information on
the drywall stops see page 4.
6. Install log set and glacier crystals, see page 10.
7. Install the remaining side glass and front glass
according to installation diagram on Page 11.

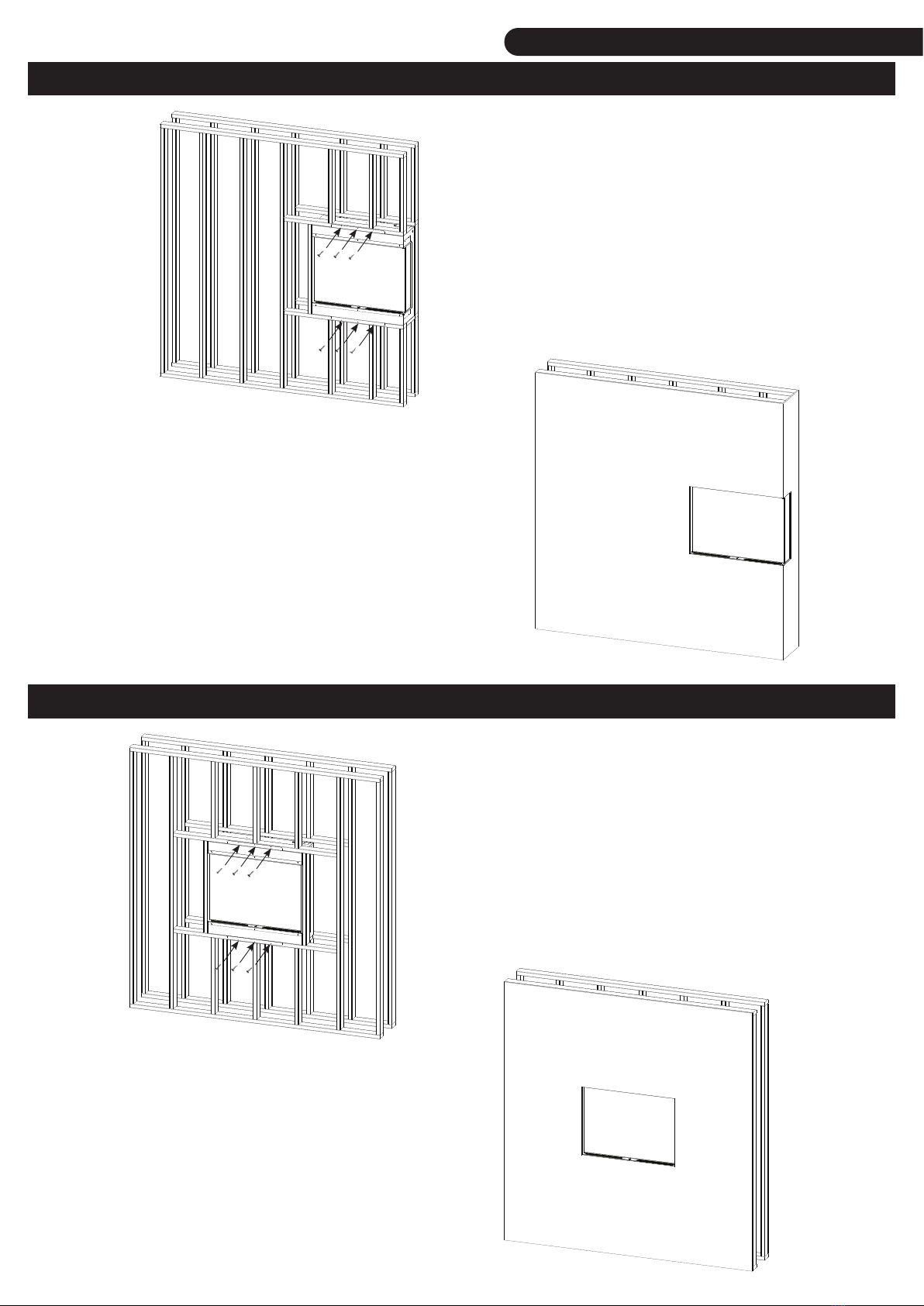

1. Follow steps 1 & 2 from the 3 sided installation
instructions.
2. Remove the drywall stops on both sides of the replace.
3. Install the side glass then side covers on both sides of
the replace (the side glass must be installed before
the metal side cover. See installation diagram on
Page 11.)
4. Install the replace in the framed opening with a
minimum 1-1/4" (32mm) drywall screws to secure the
unit.
5. Mask the exposed replace during the drywall
process. Install drywall to the drywall stops on the
perimeter of the replace. For more information on
the drywall stops see page 4.
6. Install log set and glacier crystals, see page 10.
7. Install the front glass according to installation
diagram on Page 11.
1. Follow steps 1 & 2 from the 3 sided installation
instructions.
2. Remove the corresponding drywall stops according
to your installation (in the example, the drywall
stops on the left end would be removed.)
3. Install the side glass then the corresponding side
cover according to your installation (the side glass
must be installed before the metal side cover.
See installation diagram on Page 11.)
FULLY RECESSED INSTALLATION (LEFT/RIGHT CORNER)
FULLY RECESSED INSTALLATION (SINGLE SIDED)
9
INSTALLATION

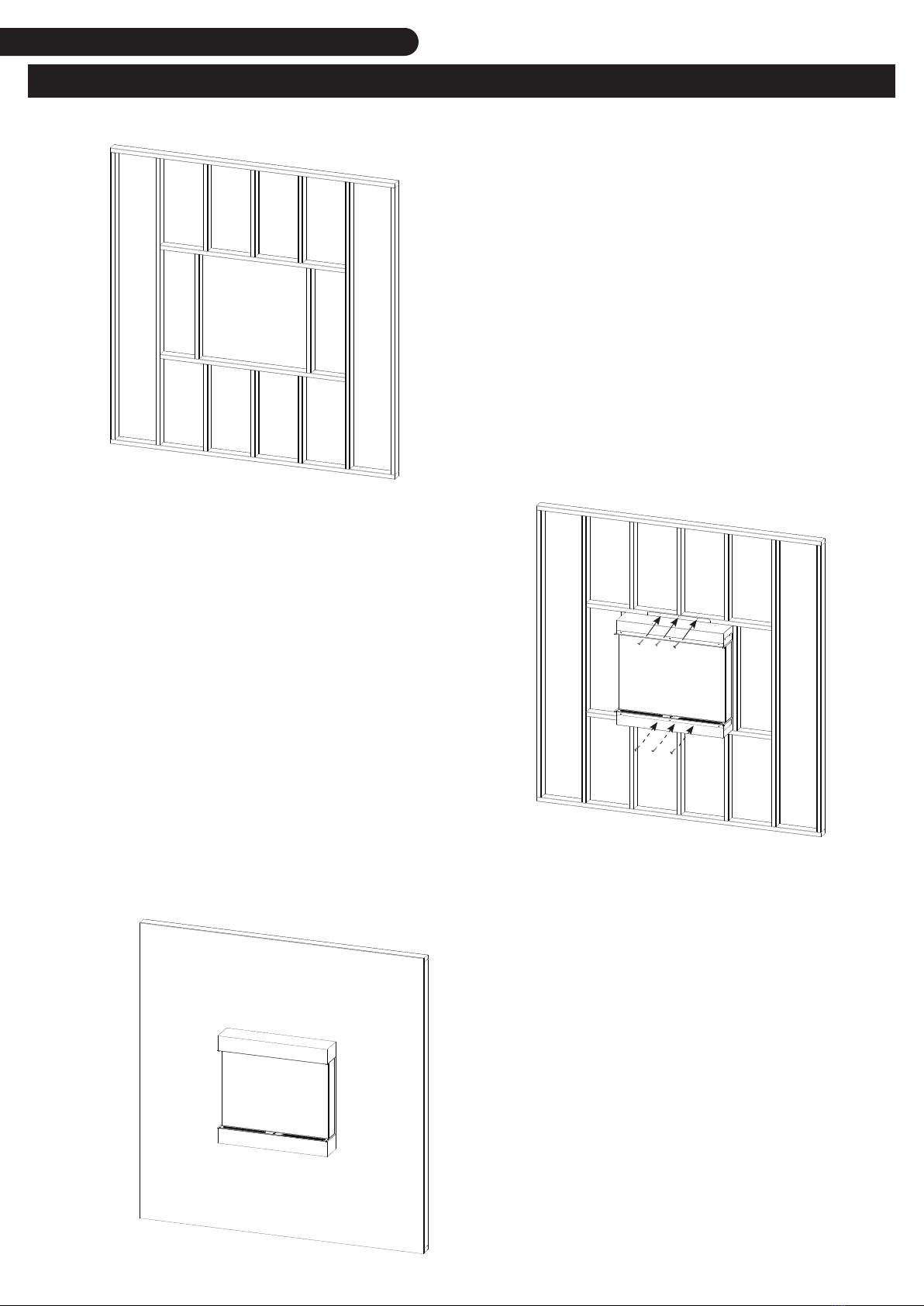

1. This installation is optimized for a 2"x6" (51mm X
152mm) framed wall. Prepare the framed opening
according to the height and width of the chart on
page 7. Provide a 13 amp (EU) or 10 amp (AU/
NZ) circuit for hard wire install at the top right of the
framed opening.
2. Install L Metal Mounting Brackets to the top and
bottom of the replace. Mounting holes located
approximately 8-3/4" (223mm) from front surface.
3. Install the re unit in the framed opening with a
minimum 1-1/4" (32mm) drywall screws to secure
the replace.
4. Mask the exposed replace during this process.
Install drywall, tile or material of your choice to the
drywall stops on the perimeter of the replace. For
more information on the drywall stops see page 4.
5. Install log set and glacier crystals, see page 10.
6. Install the side and front glass pieces according to
installation diagram on Page 11.
PARTIAL RECESSED INSTALLATION
10
INSTALLATION
1. Before installing the front glass, connect the logset
to the electrical connection below the ember bed
plastic screen. The electrical connection can be
routed through the hole on the back side of the
ember bed.
2. Evenly spread glacier crystals along the
ember bed.
3. Place the logset on top of the acrylic crystals.
4. The front glass can now be installed.
INSTALLING LOG SET & GLACIER CRYSTALS
Electrical connection
Ember bed
plastic screen
Dieses Handbuch passt für folgende Modelle
4
Inhaltsverzeichnis
Andere Modern Flames Kamin im Innenbereich Handbücher
Modern Flames
Modern Flames SPECTRUM SLIMLINE SPS-50B-EU Bedienungsanleitung
Modern Flames
Modern Flames HF900CBI Montage- und Wartungsanleitung
Modern Flames
Modern Flames LPM-9616/INT Betriebsanleitung
Modern Flames
Modern Flames OR52-MUTLI Bedienungsanleitung
Modern Flames
Modern Flames SPM-2426V2 Bedienungsanleitung
Modern Flames
Modern Flames INSERT FIRE 3824 Originalbetriebsanleitung
Modern Flames
Modern Flames Sedona Pro multi Series Betriebsanleitung
Modern Flames
Modern Flames OR52-SLIM Bedienungsanleitung
Modern Flames
Modern Flames Ambiance CLX Electric AL40CLX Betriebsanleitung
Modern Flames
Modern Flames Landscape Pro Multi Bedienungsanleitung
Modern Flames
Modern Flames SPS-50B-AU Bedienungsanleitung
Modern Flames
Modern Flames Landscape Pro Multiview Series Montageanleitung
Modern Flames
Modern Flames FusionFire 60 Bedienungsanleitung
Modern Flames
Modern Flames Landscape Pro Multiview Series Bedienungsanleitung
Modern Flames
Modern Flames LFV2-40/15-SH Montage- und Wartungsanleitung
Modern Flames
Modern Flames AFWS Series Kurzanleitung
Modern Flames
Modern Flames WMC LPM Series Bedienungsanleitung
Modern Flames
Modern Flames LFV100015-SH Montage- und Wartungsanleitung
Modern Flames
Modern Flames AL 95 Bedienungsanleitung
Modern Flames
Modern Flames CEF-50B Bedienungsanleitung
