Modern Forms Wynd 42 Bedienungsanleitung
Wynd
Installation Instructions
works with the
Google Assistant
FR-W1801
Wynd Instructions2
Please read and
save these instructions
before installation
DO NOT RETURN TO STORE
FR-W1801 Wynd Instructions 3
For all questions about your ceiling fan please read all included
instructions, installation procedures, troubleshooting guidelines
and warranty information before starting installation.
For missing parts or general inquiries call our trained technical staff at:
1-866-810-6615 option 0
MON-FRI 8AM-8PM EST
Email: customerservice@modernforms.com
Or live chat at modernforms.com
For fast service have the following information below when you call:
1. Model Name and Number
2. Part Number and Part Description
3. Date Of Purchase and Purchase Location
1-866-810-6615 option 1
MON-FRI 8AM-8PM EST
Email: fansupport@modernforms.com
General Inquiries
Fan Support
FR-W1801
Wynd Instructions4
For operation, maintenance, and troubleshooting information,
visit http://modernforms.com/fan-support/
To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker
before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA
70” and local electrical codes. Electrical installation should be performed by a licensed electrician.
The fan must be mounted with a minimum of 7 ft. (2.1m) clearance from the trailing edge of
the fan blades to the floor and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls. Never place objects in the path of the fan blades. To avoid personal injury or
damage to the fan and other items, please be cautious when working around or cleaning the fan.
To avoid electrical shock or damage to the motor or finish, do not use water or chemicals
when cleaning the fan or fan blades. A dry cloth or lightly dampened cloth will be suitable
for most cleaning.
After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into the outlet box. The wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor
on the other side of the outlet box.
All set screws must be checked and re-tightened
where necessary before installation.
Safety Rules
FR-W1801 Wynd Instructions 5
WARNING:Do not install or use your fan if any part(s) is/are damaged or missing. This product
is designed for use only with the supplied parts and/or accessories designated for use with this
product by Modern Forms. Substitution of parts or accessories not designated for use with this
product by Modern Forms could result in personal injury or property damage and will void the
warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
WARNING:To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from the Modern Forms app
or Wi-Fi Touch Panel Wall Control (not included).
WARNING:Do not use power tools to assemble or install your fan. Using power tools can result in
improper assembly which can lead to noise or fan damage,personal injury or property damage.
WARNING:To reduce the risk of personal injury, do not bend the blade arms when installing the
brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING:Do not operate fan unless fan blades are in place. Noise and fan damage can occur
WARNING:This appliance is not intended for use by young children without supervision.
WARNING: To reduce the risk of fire, electric shock, personal injury or damage to the fan or other
items, the outlet box and support structure must be securely mounted and capable of reliably
supporting a minimum of 35 Ibs (15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN
SUPPORT.” Use only the screws and washers provided with the outlet box.
CAUTION:Before assembling your fan, refer to the “Making the Electrical Connections“
section. If you feel you do not have enough wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE:Before servicing or cleaning the fan, switch power off at the circuit breaker.
FR-W1801
Wynd Instructions6
Get Smart...
Integrates
seamlessly with:
devices you already own
works with the
Google Assistant
Premium smart
features:
Accessories:
DC
MOTOR
complement high quality materials
personalize your experience
Quiet, reliable, and up to 70%
more ecient than AC fans
Wi-Fi and Bluetooth enabled
for exible control
Bluetooth Wall Control
Dims light to 1% | ON/OFF
6 fan speeds | Sold separately
F-WCBT-WT White
Bluetooth Remote Control
Dims light to 1% | ON/OFF
6 fan speeds
F-RCBT-WT White
Wet Location-listed to the strictest
UL/cUL safety regulations. Finished
and rated for interior and exterior use
FR-W1801 Wynd Instructions 7
Contents
Tools Required
1. Mounting Options 10
2. Installing the Mounting Bracket 12
3. Attaching the Fan Blade 12
4. Assembling the Fan 14
5. Hanging the Fan 16
6. Making the Electrical Connections 18
7. Installing the Optional Wall Control 20
8. Finishing the Installation 22
9. Controlling the Fan 24
10. Reset 26
11. Breeze Mode 26
12. Application 26
13. Accessories 28
14. Troubleshooting 30-32
FR-W1801
Wynd Instructions8
Package Contents
7. Luminaire Module
F4IN-120V-R1-30
8. Luminaire Cover
RPL-F1801-COVER-**
9. Acrylic Shade
RPL-F1801-GLA
10. Receiver w/Hardware (***)
F-R3-1801-0**
11. Remote w/Wall Cradle
F-RCBT-WT
Hardware Bag
RPL-F1801-**-PARTS
1. Blade Set of 5
(42” / 52” / 60”)
RPL-F1801-**-BD-**
2. Mounting Bracket
Downrod Assembly
RPL-HGR-ASM-**
3. Coupling Cover
RPL-COU-CVR-**
4. Canopy & Canopy Ring
RPL-CAN-CYL-**
5. Motor Housing
6. Adapter Plate ** denotes finish code of fan
Before discarding packaging materials be certain all parts have been removed.
Place the parts from the hardware bag into a small container to keep them from being lost.

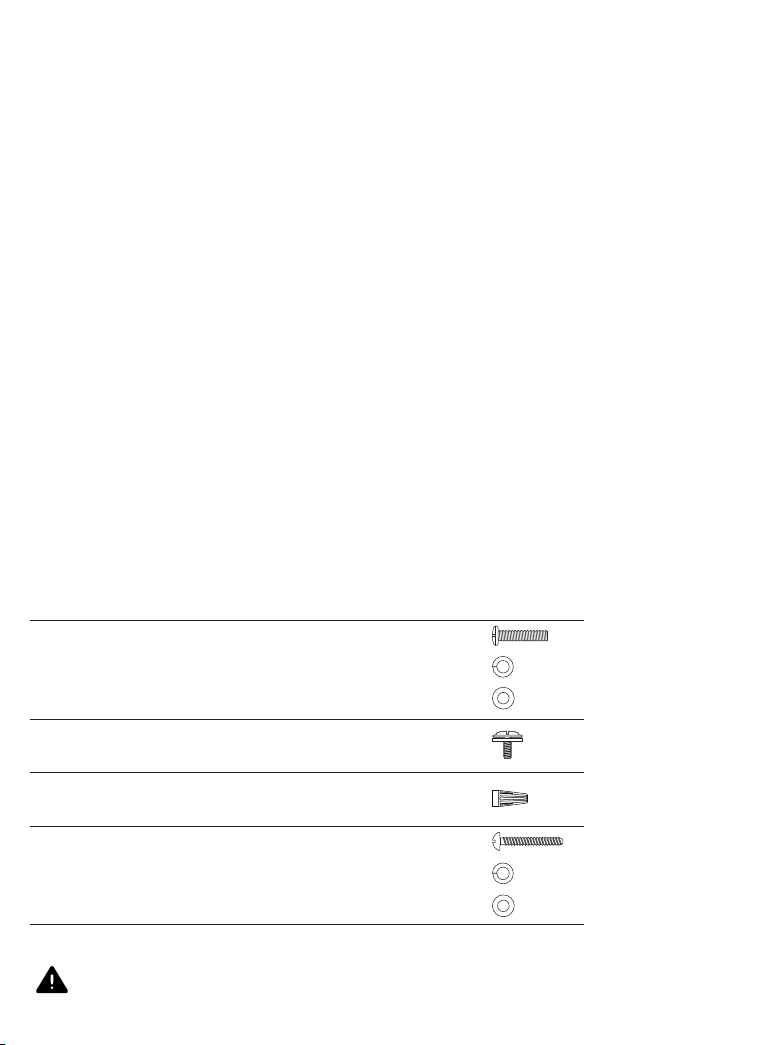

AOutlet Box Machine Screws (2)
Spring Washers (2)
Flat Washers (2)
BBlades Screw with Fiber Washers (16)
CElectrical
Connections Wire Nuts (8)
DSafety Cable Wood Screw (1)
Spring Washer (1)
Flat Washer (1)
FR-W1801 Wynd Instructions 9
IMPORTANT: Please make note of
the MAC ID on the receiver and
keep it in a safe place.
MACID
11
1
3
7
8
9
10
4
5
6
2
Hanging Weight: 20 lbs
FR-W1801
Wynd Instructions10
1. Mounting Options
CAUTION: To prevent electrical shock, ensure electricity has been
turned off at the circuit breaker before beginning.
If there isn’t an existing UL/cUL listed outlet box, please refer to the
following instructions. Secure the outlet box directly to the building
structure. Use appropriate fasteners and building materials. The
outlet box and support structure must be able to fully support the
moving weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic
outlet boxes. Use only UL/cUL listed outlet boxes marked
“FOR FAN SUPPORT.”
Secure the outlet box directly to the building structure.
Figures 1-1C are examples of different ways to mount the
outlet box.
NOTE: To hang your fan where there is an existing fixture but no
ceiling joist, you may need an installation hanger bar.
NOTE: Downrod fans can be suspended up to a maximum
recommended length of 72” using additional downrods
(sold separately) and the included 80” lead wire.
NOTE: The sloped ceiling kit (sold separately) is required for sloped
ceiling applications, and will accommodate slopes up to 45° (Fig. 1B).
NOTE: You may need a longer downrod to maintain proper blade
clearance when installing on a steep, sloped ceiling (Fig. 1B).
