Moen CRITICAL 7930 Bedienungsanleitung

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

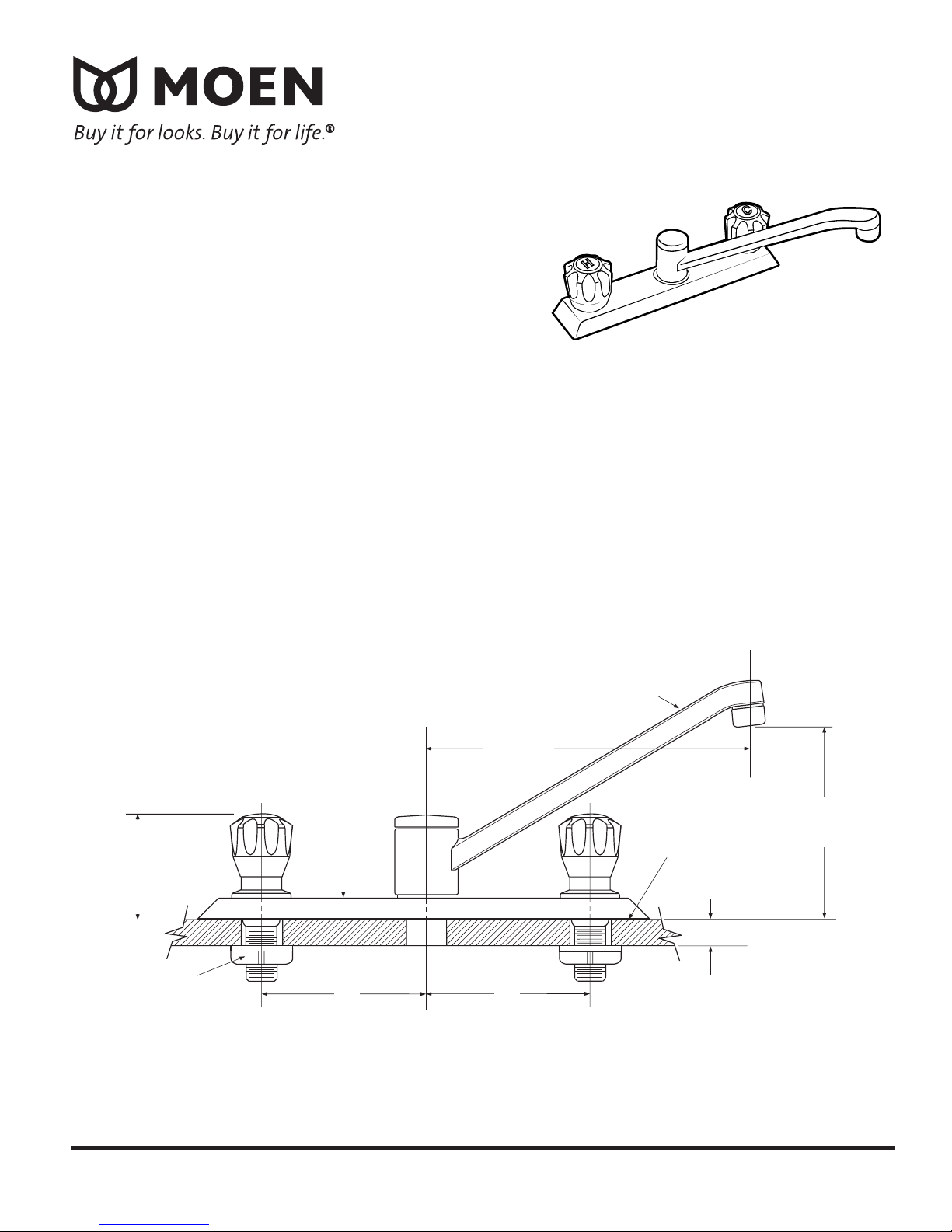

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FAUCET DESCRIPTION

•Metal construction with chrome plated finish

•1/2" IPS connections will accept standard ball nose

connection for 3/8" tubing

OPERATION

•Chrome plated knob style handles with hot and

cold color indicators

•Rotate either handle counterclockwise to open

and clockwise to close

FLOW

•Aerator is limited to 2.2 gpm max (8.3 L/min)

CARTRIDGE

•1224 cartridge design

•Nonmetallic and stainless steel material

STANDARDS

•Third party certified to meet CSA B-125, ASME A112.18.1M

and all applicable requirements referenced therein.

•Certified to ANSI/NSF 61/9

•Complies with California Proposition 65 and with

the Federal Safe Water Drinking Act

WARRANTY

•Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

CHATEAU®

Two-Handle Kitchen Faucet

Model: 7930

NOTE: Designed to be installed through

3 holes - 1" min. dia. and on 4” centers

6-1/2"

(164mm)

(102mm)

3-1/16"

(78mm)

15/16"

(25mm)

Max Deck

Thickness

5-1/8"

(130mm)

9-1/4"

(234mm)

10-1/4"

(260mm)

2-1/2"

(64mm)

Rev. 9/05

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FAUCET DESCRIPTION

•Chrome plated metal construction

•1/2" IPS connections will accept standard ball nose

connection for 3/8" tubing

OPERATION

•Knob style chrome handles

•Operate the faucet by rotating either handle in a

counterclockwise manner to open, and clockwise

to close.

FLOW

•Aerator is limited to 2.2 gpm max (8.3 L/min)

CARTRIDGE

•1224 cartridge design

•Nonmetallic and stainless steel material

STANDARDS

•Third party certified by CSA to meet CSA B-125,

ASME A112.18.1M and all applicable requirements

referenced therein.

•Certified to ANSI/NSF 61/9

•Complies with California Proposition 65 and with

the Federal Safe Water Drinking Act

WARRANTY

•Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

CHATEAU®

Two-Handle Knob Style Kitchen Faucet

Model: 7930

NOTE: This faucet is designed to be

installed through 3 holes 1" Min. Dia.

ESCUTCHEON

10-1/2" (267mm) X 2-1/8" (54mm)

MOUNTING

NUT

DECK

GASKET

8"-3/4

(222mm)

(127mm)

SPOUT

(102mm)

3-1/8"

(79mm)

15/16" (25mm) MAX.

DECK THICKNESS

Rev. 7/02
