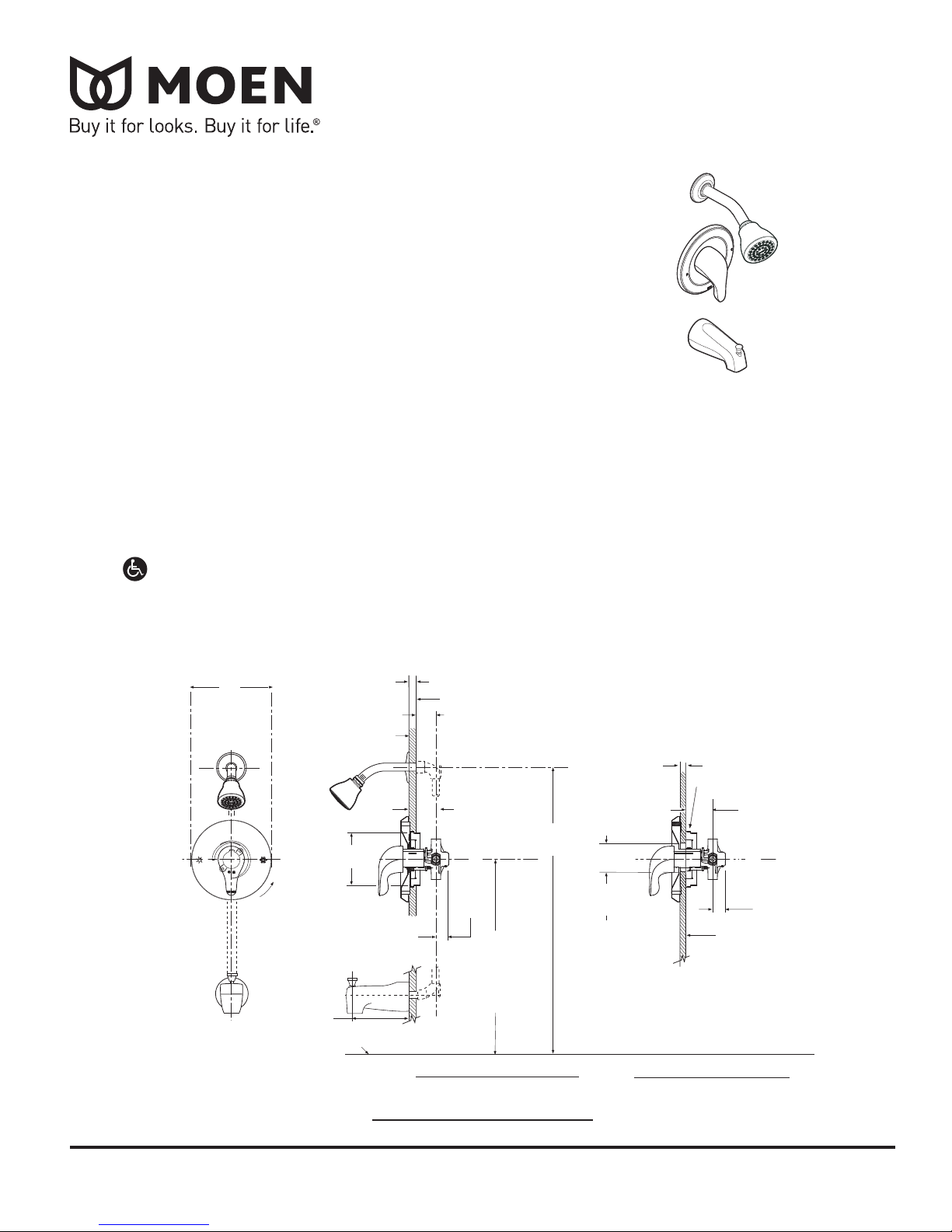

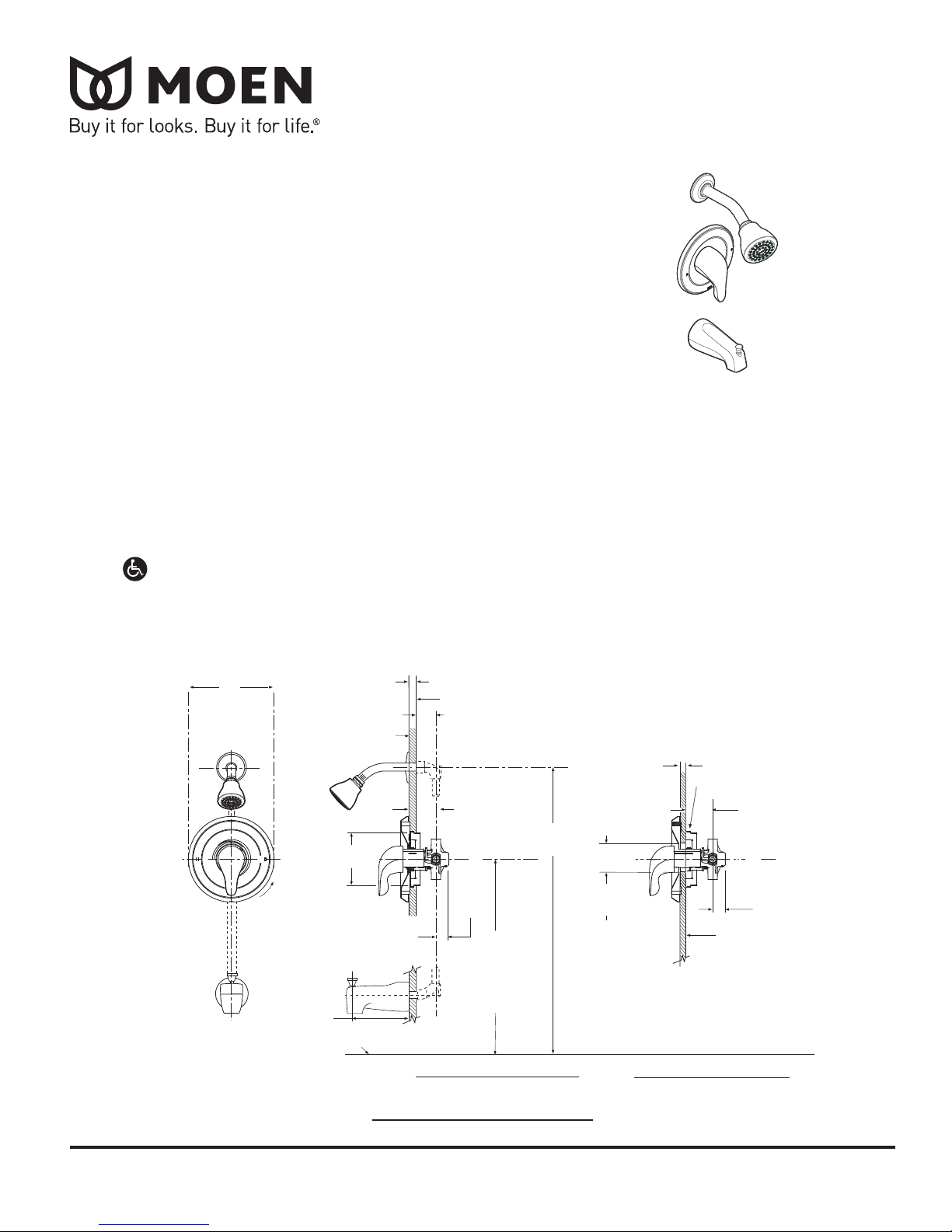

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

• Metal Construction with chrome plated finish

• Pressure balancing cycle valve design with an adjustable temperature

limit stop

• 1/2" CC connections

• Includes showerhead, arm, flange and diverter tub spout

OPERATION

• Lever style Handle

• Handle operates counterclockwise through a 270° arc with off at

6 o’clock and maximum hot at the 9 o’clock position. Shut off in

clockwise direction

• Adjustable temperature limit stop to control maximum hot water

temperature

• Pressure balancing mechanism maintains selected discharge

temperature to ± 3°

FLOW

• Showerhead is limited to 2.5 gpm (9.5 L/min) Max

CARTRIDGE

• 1222 cartridge design

• Nonmetallic/nonferrous and stainless steel materials

• Accommodates back to back installations

STANDARDS

• Third party certified to meet CSA B125.1, ASSE 1016, ASME A112.18.1,

ANSI A117.1 and all applicable requirements referenced therein

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to the

original consumer purchaser

• 5 year warranty if used in commercial installations

CHATEAU® POSI-TEMP®

Single-Handle Tub/Shower Valve

Model: L2353

Model: L2363 (with 1/4 Turn Stops)

THICK WALL APPLICATION THIN WALL APPLICATION

Rev. 2/11

FLOOR LINE

SHOWER

45" (1143mm)/

48" (1219mm)

32" (813mm)

TUB/SHOWER

AND TUB ONLY

6'-6" (1981mm)

NOMINAL

FINISHED WALL LINE

FACE OF STUD

DIRECTION

OF HANDLE

ROTATION

6.5"

(165mm)

ESC. DIAM.

4-1/2"

(114mm)

2" CC (51mm)

1 7/8" IPS (48mm)

MAX WALL

2 1/2" MAX. (63mm)

1/2" MIN. CC (13mm)

5/8" MIN IPS (16mm)

1 3/8"

(35mm) 1 3/8"

(35mm)

1-1/2"

(38mm)

3/16"(typ) (5mm)

PLASTER GROUND

3-1/2" (89mm) MAX.

2-1/4" (57mm) MIN.

DIAMETER

WALL

OPENING

PLASTIC

TUB/SHOWER

SURROUND

4-1/2"

(114mm)

There is more than 1 version of this model.

Page down to identify the version you have.

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

• Metal Construction with chrome plated finish

• Pressure balancing cycle valve design with an adjustable temperature

limit stop

• 1/2" CC connections

• Includes showerhead, arm, flange and diverter tub spout

OPERATION

• Lever style Handle

• Handle operates counterclockwise through a 270° arc with off at

6 o’clock and maximum hot at the 9 o’clock position. Shut off in

clockwise direction

• Adjustable temperature limit stop to control maximum hot water

temperature

• Pressure balancing mechanism maintains selected discharge

temperature to ± 3°

FLOW

• Showerhead is limited to 2.5 gpm (9.5 L/min) Max

CARTRIDGE

• 1222 cartridge design

• Nonmetallic/nonferrous and stainless steel materials

• Accommodates back to back installations

STANDARDS

• Third party certified to meet CSA B125.1, ASSE 1016, ASME A112.18.1,

ANSI A117.1 and all applicable requirements referenced therein

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to the

original consumer purchaser

• 5 year warranty if used in commercial installations

CHATEAU® POSI-TEMP®

Single-Handle Tub/Shower Valve

Model: L2353

Model: L2363 (with 1/4 Turn Stops)

THICK WALL APPLICATION THIN WALL APPLICATION

Rev. 9/05

FLOOR LINE

SHOWER

45" (1143mm)/

48" (1219mm)

32" (813mm)

TUB/SHOWER

AND TUB ONLY

6'-6" (1981mm)

NOMINAL

FINISHED WALL LINE

FACE OF STUD

DIRECTION

OF HANDLE

ROTATION

(178mm)

ESC. DIAM.

4-1/2"

(114mm)

2" CC (51mm)

1 7/8" IPS (48mm)

MAX WALL

2 1/2" MAX. (63mm)

1/2" MIN. CC (13mm)

5/8" MIN IPS (16mm)

1 3/8"

(35mm) 1 3/8"

(35mm)

1-1/2"

(38mm)

3/16"(typ) (5mm)

PLASTER GROUND

3-1/2" (89mm) MAX.

2-1/4" (57mm) MIN.

DIAMETER

WALL

OPENING

PLASTIC

TUB/SHOWER

SURROUND

4-1/2"

(114mm)
