Mojowater Chill MCT12B Benutzerhandbuch

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

Countertop BottleLess Water Cooler

Set Up Manual

Model: MCT12B

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not let cord hang over edge of table or counter, or touch hot surfaces.

3. To protect against electric shock, do not immerse cord, plug, or dispenser body in water or any other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning.

6. Do not operate any appliances with a damaged cord, plug or after the appliances malfunction, or has been

damaged in any manner. Return appliance to nearest authorized service facility for examination, repair or adjustment

7. The use of accessory attachments not recommended by the manufacturer may cause injuries.

8. Do not use in outdoors.

9. Allow at least 2” (5cm) of space between the back of the dispenser and the wall to allow for proper air circulation.

10. Install water dispenser on a level counter or table. Do not install where it will be subject to direct sunlight or heat.

11. Do not install the water dispenser where the temperature will go below 59°F (15°C) or above 100°F (38°C).

12. Do not plug in the power cord or turn on the power switch when the water dispenser is empty.

13. To disconnect the power cord, turn the switch to “off “, then remove plug from wall outlet.

14. Always wash and dry your hands thoroughly before touching the water dispenser.

15. Extreme caution must be used when moving an appliance that contains hot liquid.

16. Do not use this dispenser to dispense anything other than water.

17. Do not use with water that is micro biologically unsafe or of unknown quality.

SAVE THESE INSTRUCTIONS

18. This appliance must be grounded. In the event of electrical short circuit, grounding reduces risk of electric shock.

19. This appliance has a power cord having a grounding wire with a grounding plug. The plug must be plugged into

an outlet that is properly installed and grounded. The water dispenser is intended to be plugged into a receptacle of

the ground fault circuit interrupting type (GFCI) for water dispenser installations in North America.

20. Consult a qualiﬁed electrician if the grounding instructions are not completely understood, or if doubt exists as to

whether the appliance is properly grounded.

21. If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced

with a properly grounded 3-prong wall outlet.

22. Do not under any circumstances cut or remove the third (ground) prong from the power cord.

23. Do not use an adapter plug with this appliance.

24. Do not use an extension cord with this appliance. If the power cord is too short, have a qualiﬁed electrician install

an outlet near the appliance.

25. Never place your ﬁngers or any sharp metal object inside the water dispenser, as doing so may damage the

cooler, and also increase the risk of electric shock.

26. Do not immerse the appliance in the water to clean.

27. The appliance should not be exposed to rain.

28. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualiﬁed

persons in order to avoid a hazard

IMPORTANT

DO NOT TURN ON THE HOT TANK SWITCH ON THE BACK

OF COOLER UNTIL WATER CAN BE DISPENSED FROM

BOTH THE COLD AND HOT FAUCETS. OTHERWISE, YOU

CAN BURN OUT THE HEATING ELEMENT.

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

GETTING TO KNOW YOUR COOLER

1. Removable Lid. Remove this lid to get

access to the Float Kit (see below).

2. Child Resistant Hot Water Faucet

3. Cold Water Faucet

4. Dishwasher-Safe Drip Tray

5. Drip Tray Grill

1. Hot Water On/Off Switch. Please Do Not

Turn On Until Water Can Be Dispensed

From Hot Water Faucet Or Heating

Element Can Burn Out

2. Cold Water Thermostat. Turn With A

Screwdriver - Clockwise is Colder.

3. 1/4” Inch Water Inlet. Push Waterway Into

This Inlet.

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

1. Hot Water Drain. The only way to remove the

water from the internal hot tank is to pull out the

drain plug and let the water drain into a sink or

bucket. Please use caution when removing the

hot water drain plug. Before you remove the drain

plug, please turn off the hot water switch and let

the cooler sit for at least 8 hours to allow the

temperature to decrease.

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

MOJO Cooler SET-UP VIDEOS & MORE INFO

Please visit www.mojowater.com/set-up for updated

installation manuals and videos. Thank you.

FLOAT KIT INFORMATION: IMPORTANT

If water does not dispense

from your cooler once it is set

up, the backup safety shut off

mechanism has been

tripped.

If the backup ﬂoat (round) is

tripped, it shuts off all water

to the cooler. This can

happen in transportation and

can happen if the cooler gets

bumped (after it is installed).

To reset, just push the red

button. Push the reset button

now to be sure it’s not

tripped. .

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

Pre-Installation - Part 1

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

EXTERNAL LID

FLOAT KIT

3. CHECK FLOATS

Look under the Float Kit. You will

see 2 air-ﬁlled “ﬂoats” - a main

“ﬂoat” (square) that shuts oﬀthe

water ﬂow when reservoir is full,

and a round backup safety ﬂoat if

the ﬁrst ﬂoat were to fail.

Occasionally, ﬂoats come loose in

transportation. If either ﬂoat is not

attached, click it back into place.

Make sure that both ﬂoats can

freely move up and down.

2. LIFT OUT FLOAT KIT

When you remove the External Lid

(previous step), you’ll see the blue

Float Kit that seals the cold water

reservoir (and holds the 2 ﬂoats).

You need to remove that lid so

that you can check everything

inside the reservoir to be sure that

nothing has come oﬀin shipping. "

Just grab the two handles on the

sides and pull straight up (see

diagram on previous page).

1. REMOVE EXTERNAL LID

Remove the lid on the Chill cooler

to expose the top of the Float Kit

(it is blue and covers the

reservoir). There is a small,

rounded “cut out” in the back of

the lid to help you remove it.

PRIMARY FLOAT

BACKUP FLOAT

6. REPLACE LID

Replace the external lid. You’re

now ready to proceed with set up.

BAFFLE

4. CHECK BAFFLE

a) Inside the stainless steel

reservoir, you’ll ﬁnd a 2-piece

baﬄe. Sometimes, this can come

loose in transportation. Push the

baﬄe straight down to make sure

that it is secure. (If it is loose, it

can rise up and trip the safety

ﬂoats.) If the baﬄe is dislodged,

push it into the center hole in the

bottom of reservoir.

5. PRESS RESET BUTTON

a) Push the Float Kit back into the

reservoir to seal it. "

b) Then, press red reset button. If

the round Backup Float (from Step

3) is tripped, it shuts oﬀall water

to the cooler as a safety

precaution. This can also happen

in transportation or if cooler gets

bumped (after it is installed). "

In the future, if water does not

dispense, pushing the red button

usually ﬁxes the issue.

RESERVOIR

FILTER SET UP - Part 2

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

3. turn on Cold & Hot

Water

Turn on the sink’s cold water and

and hot water - let them run for

30-60 seconds.

2. PREPARE FILTER

Open the included MOJO Water

ﬁlter and remove the cap. "

Write the date on the front of the

ﬁlter so you know when you

installed/replaced the ﬁlter. "

Your Chill cooler uses model

M1000 ﬁlters that are always

available on MOJO Water's

website or on Amazon.

1. GENERAL Overview

The set up will show you how to

insert a T-style valve (called Angle

Stop) onto the cold water pipe

under a sink. Then, a 1/4”

waterway bring the water to the

ﬁlter inlet. Water will also continue

to feed the cold water side of the

sink. The puriﬁed water will leave

from the outlet of the ﬁlter and

then will be run through a small

hole in the countertop - and then

to the back of the Chill.

6. Remove Cold Water

Pipe Above Shut-off

Remove the line that connects the

cold water faucet line to the shut

off valve. Some water may spill

out.

5. Turn Off Cold Shut-

Off Valve

Shut-oﬀvalves come in all kinds

of shapes and sizes - but they all

basically work the same way.

Rotate until the valve stops. The

water should now be oﬀ. Go up to

the sink and turn on only the cold

water. If nothing comes out, your

valve works and you’ve shut oﬀ

water to the sink.

WRITE DATE

HERE

4. Feel Temperature Of

Pipes

Under the sink, you should see 2

pipes. The overwhelming majority of

sink’s in the USA have cold water

on the right and hot water on the

left. To be sure, feel the temp of the

pipes to determine which is hot and

which is cold. You will be installing

the waterway onto the cold water

pipe.

CHILL

FILTER

FILTER SET UP - Part 2

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

9. Cut 3-Ft. Section Of

Waterway

Use a straight edge razor to cut a

3-foot section of waterway. (You

can also use sharp scissors.)

Make sure that you cut the

waterway at a 90 degree angle. If

it’s cut on a slant, it can leak. This

waterway will bring the water from

the Angle Stop Valve to the ﬁlter.

8. Turn Angle Valve

Water Off

Turn the water OFF on the Angle

Stop Valve. It should be

perpendicular to the part of the

valve that it’s attached to. "

You can also turn the water ON at

the Shut OﬀValve (that feeds the

sink).

7. Attach ANGLE VALVE

to shut off valve

First, hand tighten the angle stop

valve adapter onto the cold water

valve. Then, ﬁnish tightening 1/2

turn with adjustable wrench. Be

careful not to over-tighten or

cross-thread as damage to

threads can occur. Some valve

threads may be exposed when

adapter is fully seated.

12. Look For Arrow On

Top Of Filter Head

You are now going to mount the

ﬁlter head to the inside of the sink

cabinet. The water can only ﬂow

one way through the ﬁlter head so

it’s important to make note of

which way the arrow is pointing.

Water ﬂows in that direction only.

11. TIGHTEN NUT

Tighten the nut which will lock the

waterway into place. Be careful

not to over-tighten or cross-thread

as damage to threads can occur.

Some valve threads may be

exposed when adapter is fully

seated.

OFF

POSITION -

FACING UP

OR DOWN

TIGHTEN NUT

10. Push Waterway Into

Angle Stop

Remove the nut from the angle stop

valve (may require a wrench). Then,

slide the nut onto the waterway. You

will then will push the waterway all

the way onto the Angle Stop Valve -

and then screw the nut back into

place. This will allow the waterway

to bring water to your new Chill

cooler - and also provide water to

your sink.

SHUT OFF

VALVE

ANGLE

VALVE

ON POSITION

NUT

PUSH

WATERWAY ON

HERE

FILTER SET UP - Part 2

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

15. Push In Waterway

Push the waterway coming from

the wall into the Water Inlet

(marked Water In). You will feel a

slight resistance when you ﬁrst

push the waterway into the Water

Inlet. Push the waterway past that

initial slight resistance (all the way

in). The waterway locks/seals

automatically. No tools are

needed. Pull gently on the

waterway to insure that it’s locked

into place.

14. Waterway: from

Angle Stop To Filter

You are now going to attach the

waterway to the INLET of the ﬁlter

head. Remember the direction of

the arrow? You have to attach the

waterway so that the water will run

in the same direction as the arrow.

13. Attach Filter Head

to Wall Of Cabinet

Using a screwdriver, attach the

ﬁlter head to the wall inside of

your kitchen cabinet (under the

sink).

18. Attach Waterway

To Filter Outlet &

Attach Filter

Pull the waterway through the

underside of the hole and push it

into the ﬁlter OUTLET. Push

waterway past the initial slight

resistance (all the way in). Pull

gently on the waterway to insure

that it’s locked into place. Attach

ﬁlter to ﬁlter head making sure that

the 2 guides are lined up.

17. Feed Waterway

Through Hole

Cut another piece of waterway

that is long enough to bring the

water from the OUTLET of the

ﬁlter to the back of the cooler.

Extra waterway is perfectly ﬁne.

Push the waterway through the

hole so that it goes through to the

inside of the cabinet under the

sink.

16. Drill Small Hole In

Counter

The waterway that will bring the

water from the ﬁlter is 1/4” wide.

Drill a hole in the counter using a

drill bit larger than 1/4”. Make sure

that you line up the hole so that it

goes through to the cabinet under

the sink. There are many types of

counters and the scope of drilling

through all of those variations are

too large to be covered in this

manual.

FILTER

ATTACHED

TO CABINET

Cooler Set-Up - Part 3

MOJO Pure Water, LLC 1-800-990-9775 www.mojowater.com

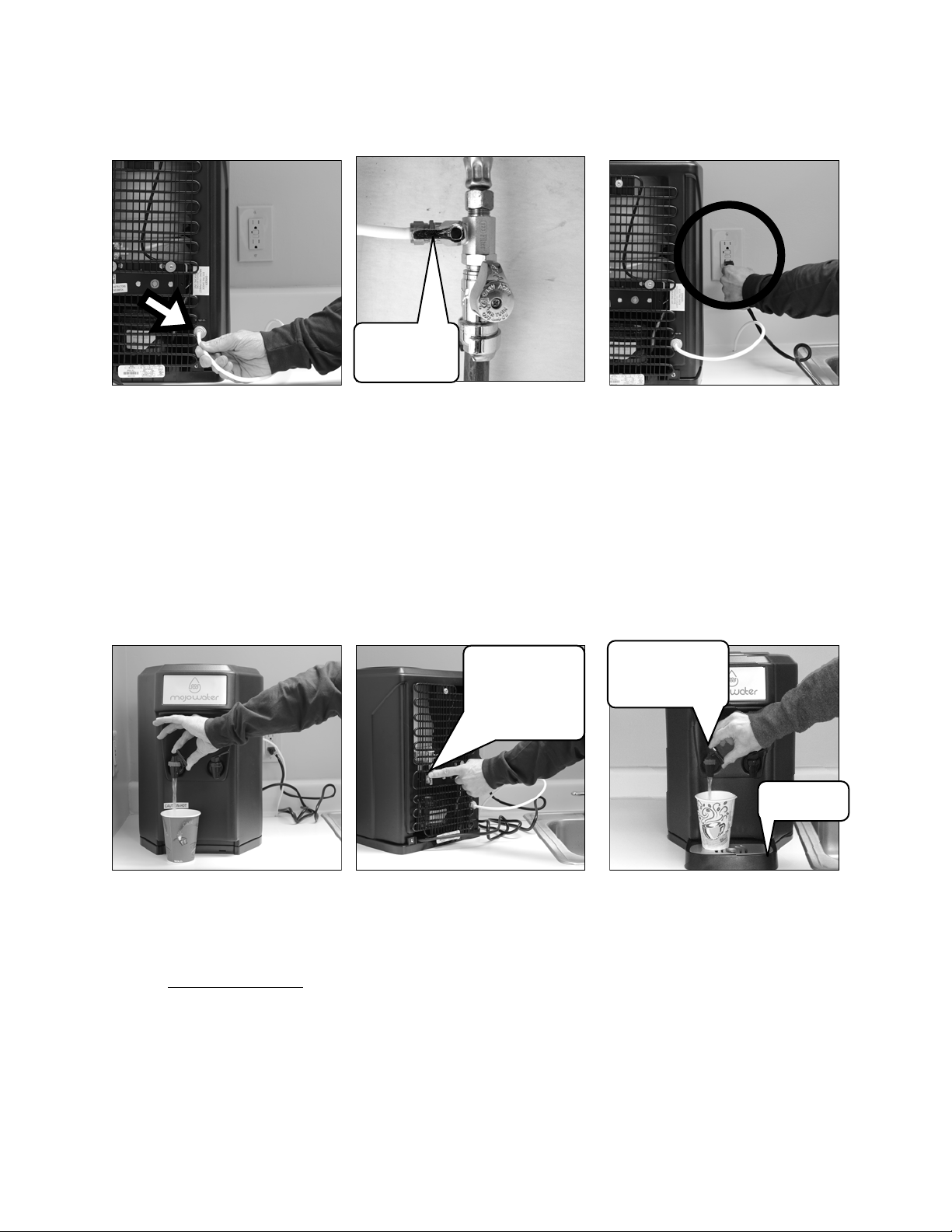

3. PLUG INTO Electrical

OUTLET

Plug Chill cooler into standard 3-

prong electrical outlet. You do not

need to wait for the cooler to ﬁll

completely from the previous step.

2. TURN WATER ON

Turn the water on by turning the

valve so that it is parallel with the

waterway. (Water is oﬀwhen it is

perpendicular.) "

You will hear the water start to ﬁll

the internal cold water reservoir.

1. PUSH IN WATERWAY

Push the waterway coming from

the wall into the Water Inlet

(marked Water In). You will feel a

slight resistance when you ﬁrst

push the waterway into the Water

Inlet. Push the waterway past that

initial slight resistance (all the way

in). The waterway locks/seals

automatically. No tools are

needed. "

Do NOT turn on hot water switch.

5. TURN ON HOT SWITCH

After water comes out of hot

faucet (previous step), remove

label and turn on hot tank switch. "

TIPS: If you do not want hot water

to be dispensed from your cooler,

leave this switch oﬀ. Please note

that the red switch will light up

when the water heater is

activated. Once hot water

reaches desired temperature,

heater turns oﬀand switch does

not illuminate.

WATER ON

POSITION

HOT SWITCH:

DO NOT TURN

ON UNTIL YOU

COMPLETE

PREVIOUS STEP

6. FLUSH FILTER

a) Place a cup or bucket under the

dispensing area. "

B)Dispense about one gallon of

water from either cold or hot side.

Pour this water into the sink. It

may be a little bit oﬀcolor. That’s

OK - it is from settlement that can

occur in the ﬁlter during shipping. "

Put drip tray under faucets. "

Wait up to 30 minutes for initial

cooling and heating of your water. "

Enjoy!

FLUSH FILTER

THROUGH

EITHER FAUCET

4. FILL HOT TANK

a) Place a cup or other container

under the red hot water faucet. "

b) Squeeze hot water handle

together and then push down. "

c) Hold it until water comes out of

the faucet (may take 3+ minutes).

Once a steady stream of water

comes out, release button and let

cooler reﬁll. Water must come out of

cooler before moving to next step.

DRIP TRAY

Inhaltsverzeichnis

Andere Mojowater Wasserspender Handbücher

Mojowater

Mojowater M1-CT12 Benutzerhandbuch

Beliebte Wasserspender Handbücher anderer Marken

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Bedienungsanleitung

Haier

Haier HLM-109B Bedienungsanleitung

abc

abc Fleck 5600SXT Bedienungsanleitung

GE GXOF18G Betriebsanleitung

Kenmore

Kenmore 625.385560 UltraFilter 650 Bedienungsanleitung

Innova

Innova CEV+ Kurzanleitung

Aries

Aries Hydra DI Handbuch

GE GNCF02H Bedienungsanleitung

ProFlo

ProFlo PFB Series Bedienungsanleitung

Hydrotech

Hydrotech 89DF HIM Bedienungsanleitung

A.O. Smith

A.O. Smith FREZYA 300S Bedienungsanleitung

Frakco

Frakco Travelsoft RV 2400HD Bedienungsanleitung

GE GXSF30V Betriebsanleitung

Avanti

Avanti WD31EC Bedienungsanleitung

Avanti

Avanti WD360 Bedienungsanleitung

BRIO

BRIO CLCTTL520 Benutzerhandbuch

3M HCD-1 Bedienungsanleitung

Elkay

Elkay EFHFA8_2CJO Installationshandbuch

Mojowater chill MCT12B Benutzerhandbuch

Beliebte Wasserspender Handbücher anderer Marken
