Monacor AXC-3557PTZ HYBRID Bedienungsanleitung

2.1 Device Ports

Device Structure

Open Package Examination

POWER

VIDEO

备注

218.3

139.3

Ø140

Ø146.6

Open the package, check the appearance of product for no obvious

damage, and confirm the item for t 1-1 is consistent.list able

Table 1-1 Packing list

Component Quantity Remark

Mini High Speed Dome Camera

Power adapter

Instruction

Quick Setup Guide

Different device may have different , please refer to the

multi-head cable

actual product

NOTE

Figure 2-1 Multi-head cable

2.2 Camera Dimensions

Figure 2-2 （Unit:mm）Dimensions

Different device may have different dimensions, please refer to the

actual

product

NOTE

BNC Video

Sends an analog video signal. You

can connect the camera to a TV

monitor through this port to view the

analog video.

RS485+ Connects an external Pan Tilt Zoom

(PTZ).

RS485-

Power port DC 12V power supply wire

Yellow

Red

Core Description Remark

Talbe 2-1 Multi-head cable Description

Device Installation

The Mini PTZ supports wall mounting , and

mounting.

Pendant mounting ceiling

3.1 Installation Modes

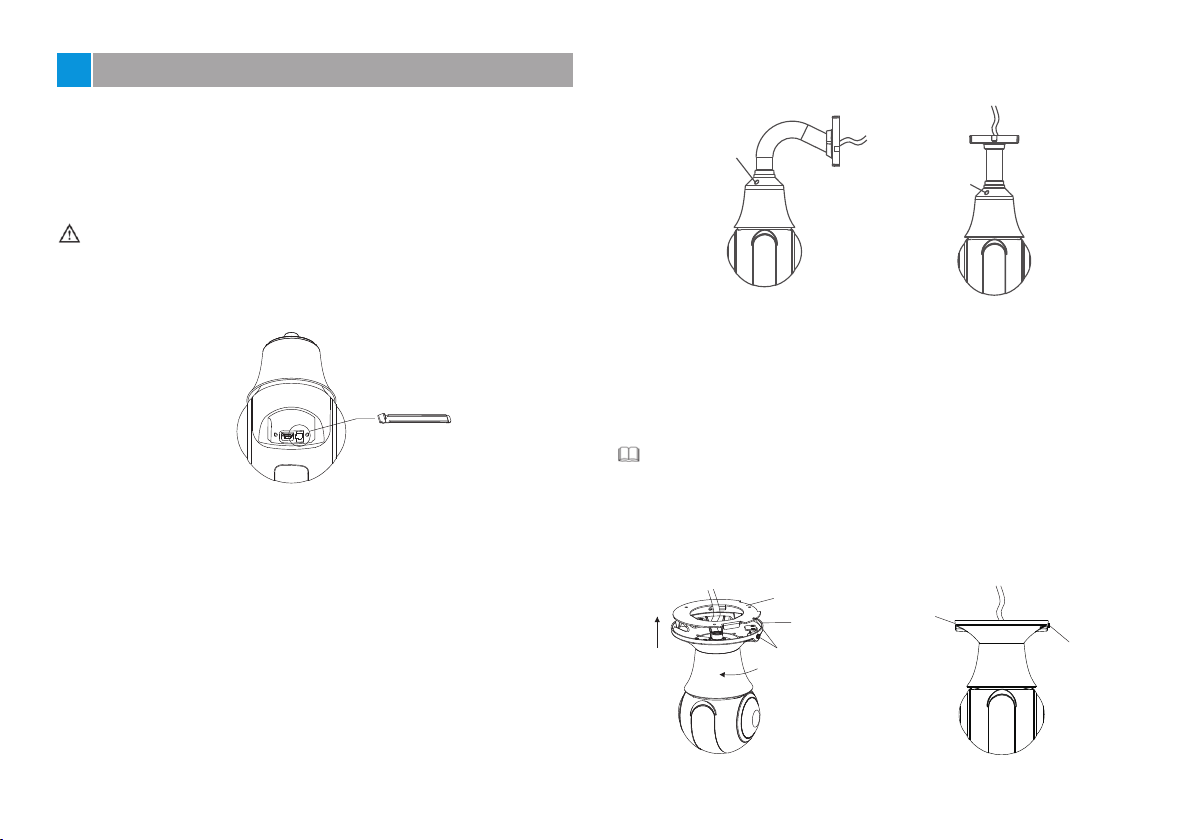

3.2 Installation Steps

Step1 Open the cover in the bottom of the PTZ, remove the shake-proof

metal block, and then fasten the cover, as shown in figure 3-1.

Metal block

Figure 3-1 Removing the shake-proof metal block

Please reserve the metal block. I to prevent the damage

for PTZ model when transport again.

nsert the metal block

CAUTIO N

Step2 Stick the Installation location sticker on the Installation surface, Drill

three holes based on the marks on the sticker. Drive the swell plastic

buttons into the holes.

Step3 Install the mini high speed dome.

3.1 Wall mounting and Pendant mounting:

 Thread the multi-head cable through the bracket；

 Attach the PTZ camera to the bracket and tighten the three screws to fix

the bracket and camera,as shown in figure 3-2;

 Mount the PTZ dome camera to the mounting surface, tighten the four

screws on the bracket completely.

Figure 3-2 Wall mounting and Pendant mounting

Wall-mounted Pendant mounting

Tighten the

screws

Tighten the

screws

3.2 Ceiling Mounting:

 Fix the bracket to the camera using screw in the accessories package；

 Match the base board to location sticker, and fit it to ceiling using screws ;

 Align the gap of base board and the screw of bracket;

 Put the bracket to match the base board and rotate according to the arrow

direction until it's locked as shown in figure 3-3.

 Tighen the screw to fix the bracket.

Figure 3-3 Ceiling Mounting

Outlet

Base board

Bracket

you can route cables from the top or from aside. If you use the top routing

method, drill a hole in the installation surface first. If you use the aside routing

method, please cut the outlet, as shown in figure 3-3, and route the multi-head

cable out from the side gap.

NOTE

Align the gap of

base board

Tighten the

screws
