Mongoose VT404 Bedienungsanleitung

VT404

GPS VEHICLE TRACKER

User Manual

The VT404 GPS Vehicle Tracker is a compact vehicle remote positioning device with

built-in GPS positioning and GSM/GPRS data and limited 1 or 2 way voice

communication.

This product can be used with all mobile phones but best performance is when used

with phones that can display photographic images or preferably those which utilise

Google maps with built-in GPS.

The tracker is also capable of sending its GPS location data via a data GPRS

connection to our M-TRAK web-server, allowing real-time monitoring, tracking and

historical play-back and reporting.

Examples shown in this manual are taken from an iPhone 4.

Please read this manual carefully before using this product.

Mongoose Australia PTY Limited

www.mongoose.com.au

Mongoose (New Zealand) Limited

www.mongoose.co.nz

Revised November 2014

Contents

Quick & Easy start-up / Signal Strength--------------- 3

Pairing your mobile / Password-------------------------- 4

Requesting location------------------------------------------ 5/6/7

Automatic tracking-------------------------------------------- 8

SOS--------------------------------------------------------------- 8

Geo-Fence / Telephone alert----------------------------- 9

2 way communication –surveillance------------------- 9

Car alarm alert------------------------------------------------- 10

Tow alarm------------------------------------------------------- 10

Engine start alert---------------------------------------------- 10

Immobilise the engine--------------------------------------- 11

Adjusting the time--------------------------------------------- 12

Power saver ---------------------------------------------------- 12

Vibration sensor------------------------------------------------ 12

Power cut /low battery / back-up battery--------------- 13

SMS/GPRS modes------------------------------------------- 13

Mileage recording---------------------------------------------- 14

GPRS-------------------------------------------------------------- 15

Cautions / LED meanings---------------------------------- 16

Installation--------------------------------------------------------- 17/18

Specifications----------------------------------------------------- 19

NOTES:

Use of this product or certain features may infringe the rights or invade the privacy of

others. Please be aware of civil law.

The use of mobile GSM transmitting/receiving devices, such as this GPS tracker, may

be restricted in certain locations, especially aircraft or hospitals. It is your responsibility

to ensure correct and permitted usage.

Mongoose is not responsible for the non-operation of this product should GPS or GSM

signals not be available.

3QUICK & EASY START-UP STEPS (after installation and outdoors)

1. To pair your mobile phone number to the tracker send the following text command

from your mobile phone to the SIM number of the tracker;

Text must bein this format:-

your mobile number

password

user number

(default password is 0000 –include the stars)

eg:

yourmobilenumber

0000

Tracker replies with

‘SET USER NUMBER 1 OK’

2. To confirm SMS text operation send thistextcommand 7000000

Tracker replies with ‘SET MODE OK.CURRENT MODE: SMS P2P’

3. To confirm GPS operation, send the text command 6660000(location request)

The tracker will reply by text message with the information shown in the text

message below to confirm correctoperation.

SIGNAL STRENGTH –GSM & GPS

This GPS tracker should only be used outdoors to enable it to receive GPS transmissions

from multiple space satellites.

Operation inside warehouses, workshops, garages, parking buildings, etc, or

any other shielded location will result in non-operation or inaccurate information.

Heavy overcast weather will affect GPS signals and accuracy.

This tracker requires connection to the GSM network to enable 2 way

communication with your mobile phone.

PAIRING THE USER PHONE NUMBERS (maximum 3)

Up to 3‘users’can be ‘paired’ to this GPS tracker.

The ‘user number’ sets priority. ‘1’ is the main user.

The other 2 ‘users’ are programmed by the main user.

If the SOS / car alarm function is used, the priority of contact is 1, 2 then 3 – so set the

‘users’ carefully in the order you require.

IMPORTANT:

Do not hide the ‘identity’ of the mobile phones as the tracker

needs to identify the caller

If ID is hidden, calls will automatically divert to the cellular answering service.

The format is:- *phone number*password* user number**

Omit country code. Do not uses spaces or letters.

USER

Example

1 *0211234567*0000*1** CONFIG OK

2 *0279994321*0000*2** CHANGE OK

3 *0212223322*0000*3** CHANGE OK

To change one of the users, simply re-send the command for the user being

changed.

PASSWORD

A password is used in all text commands and is composed of 4 numbers.

The factory default password is “

0000

”.

The password may be changed to prevent others from using the tracker.

Feature

Format of text command

Example

Change

password

777 + New Password +

Old Password 77712340000 CHANGE

The old password is now replaced –recordit, especially in your mobile phone.

All text commands now use your password, not‘0000’.

DO NOT CHANGE THE PASSWORD IF THE GPRS MODE IS USED.

MAPS

No mapping software is supplied or required as maps are freely available on the

internet on websites such as Google Maps.

REQUESTING LOCATION

There are 4 ways to find the trackers location from your mobile phone depending on

what information you want and the type of mobile phone you are using.

a. Phone call

b. Basic SMS

c. Screenshot SMS

d. Google maps SMS

a. Phone call –‘Users’ only –Do not hide your phones identity

Any‘user’can make a normal phone callto the tracker torequest its location.

Dialthe phone number of the tracker –hang up after 3~4 rings (nolonger).

The tracker will reply by text message with its location details as shown below ’A’.

b. Basic SMS –any person

Any person can request the trackers location via SMS providing they know the SIM

card numbertogether with the trackers command code and your password.

For security, only submit these details to persons of your choice or those of the

emergency servicesif summoning assistance.

Format oftext command

Actual text

666 + Password

6660000

See below‘B’

‘A’ phone call request ‘B’ Text request

By using Google maps on any computer, smartphone or similar devices, simply type in

the latitude andlongitude in this format; It is important to include the ‘

’ and the ‘

’ –

leave a space between co-ordinates.

36.831546S 174.745789E

The GPS location is then displayed

‘STATE’ is always thereason for the text message

c. Screenshot SMS

(mobile phone type and ability dependant)

The text information received contains location data similar to a normal SMS request,

but if you tap the message (on compatible phones), a screen opens on your phone

displaying a map screen-shot of where the tracker is located.

This is not a live map, just a still image, so scrolling or trying to view outside the

displayed map area is not possible..

Format oftext command

Actual text

668 + Password

6680000

See photos

Displayed map size:

The default size of the map can be adjusted for your preference and your

mobile phones display by adding size parameters to your location request. We

suggest you experiment with different map sizes to suit the map detail required.

For instance, too wide and street names disappear.

6680000,www,hhh ( www = width of map, hhh = height of map )

Values must be less than 999.

Example shown in photo above : 6680000,850,850

This parameter gives a good wide view without losing detail but with a global

view of location.

Google Maps SMS

(mobile phone type and ability dependant)

This is the ultimate in portable GPS tracking –live on your phones maps.

Tap the reply message and your mobile phone should open your phones maps and

display the trackers location highlighting the nearest street address*.

If you mobile phone has its own GPS map application, the map may also show your

location in relation to the tracker.

Depending on the capabilities and software of your mobile phone, you may have the

options of;

•

Map, satellite or hybrid views

•

The location of your mobile phone in relation to thetracker

•

Directions to get from your phonelocation to the trackers location

•

Copy and paste data etc

Note: Please be aware that internet usage by a mobile phone may incur charges

depending on the type of account you have with your mobile provider.

Format oftext command

Actual text

669 + Password

6690000

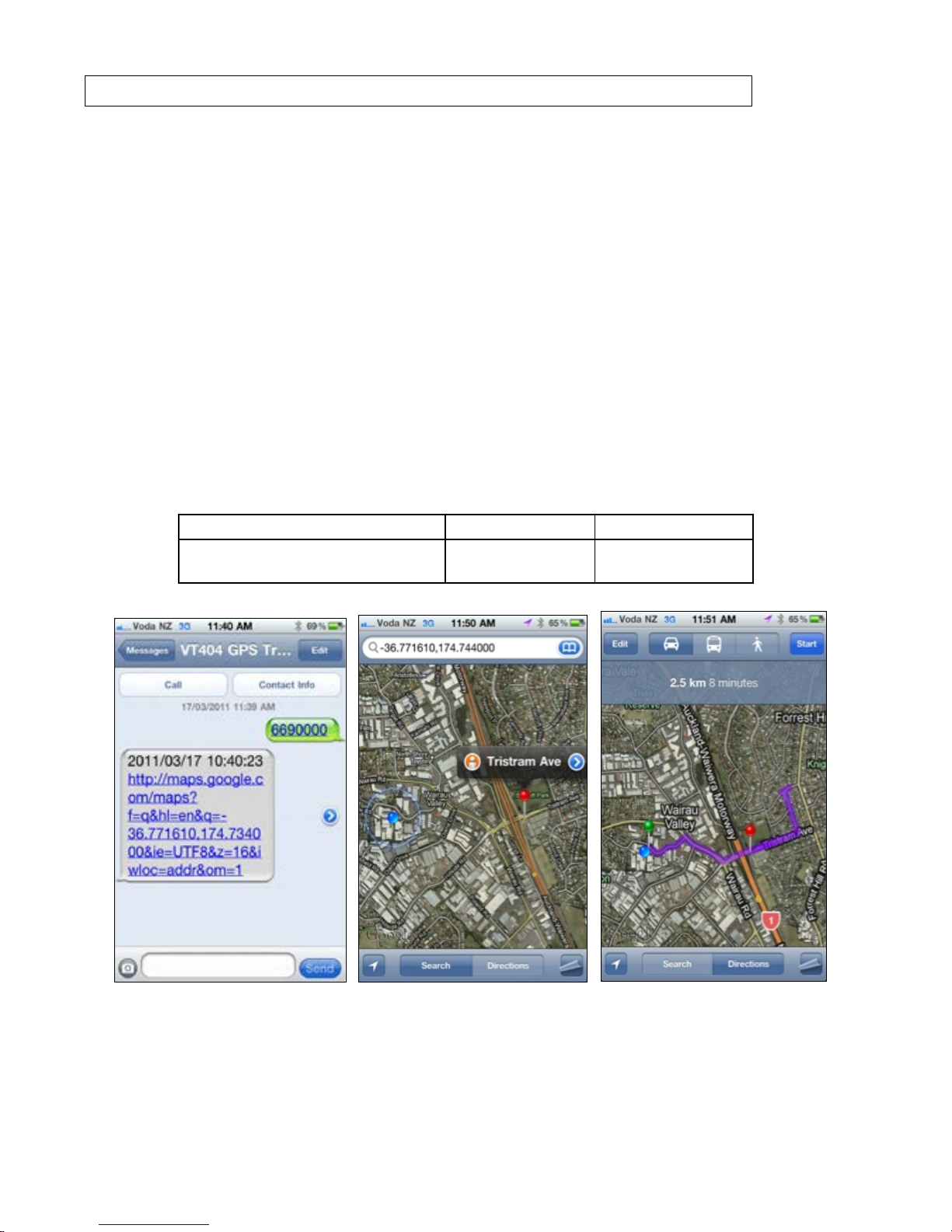

See photos

Due to software variances, some models may not show the street address, so send

the following SMS to update the software in your VT404;

6690000,1,1,http://maps.google.com/maps?f=q&hl=en&q=%s,%s&ie=UTF8&z=16&iwloc=addr&om=1

Street address may not be displayedin rural areas.

AUTOMATIC TRACKING

LOCATION REPORTING AT PROGRAMMED TIME INTERVALS

You can programme the tracker to automatically report its position attime intervals of

your choice. Reporting timeis in minutes.

Automatic tracking is only possible via the basic SMS data reply and not available for

Screen-shot or Google Maps.

If live tracking is required, please see the GPRS section of this manual.

Minutetime range is 01-99 (00 = OFF)

To Cancel Automatic Tracking

Automatic tracking will continue until thetracker receives the ‘cancel’ command.

Please be awarethat text messages from the trackerincur SIM card costs.

Format oftext command

Example

400 + Password

4000000 TIMER STOP

SOS –HELP -from the tracker to the ‘users’

•

Press the SOS button for more than 10 seconds.

(This timing is to prevent accidental operation of the SOS button)

•

The tracker will make a telephone call alert* to the first user telephone

number –this is an audible alert only, no voice communication is

possible.

•

The tracker will then send itslocation via SMS stating ‘SOS’, to all users.

Note:

If the ‘telephone call alert’ is off, it will not make a telephone call and only send

text alert messages.

* The tracker cannot be used as a telephone asit does not contain a microphone

or speaker. The telephone ring is an alert only.

Format of text command

Example

4xx + Password

(xx = time in minutes)

4300000

(every 30 mins)

4010000

(every 1 minute)

TIMER START,

REPEAT

INTERVAL:

XX MINUTES

GEO-FENCE –restricting area of travel

You can restrict travel to within a certain area by setting a ‘geo-fence’.

A geo-fence is defined bya base-point (where it currently is) with a permitted radius of travel

from thatlocation.This can be from 1 kilometreto 1000 kilometres (999.9).

If the tracker moves outside this permitted area, it makesa telephone call as an alert to the

mobile phone that set the geo-fence. It will also send a text alert with its location and

includes ‘STATE: OS’ to show the geo-fence area has been exceeded.

The tracker will also alert you when it re-enters the geo-fenced area with

“STATE: RS”.

To use geo-fence;

Set the geo-fence area –then turn the geo-fence ON or OFF

Feature

Format of text command

Example

Set

Geo-fence 005+Password+Radius 0050000R20.0

(20km)

Contains co-

ordinates of

centre point

Turn

211 + Password 2110000

GEO-FENCE

Turn

OFF

210 + Password 2100000

GEO-FENCE

OFF

(Radius is from the minimum of 1.0km [R1.0} to 999.9km)

TELEPHONE ALERTS

Telephone call alerts referred to in this manual can be programmed off but SMS text

alerts will still be sent.

Feature

Format of text command

Example

OFF 150+Password 1500000

SETVOICE

CALL:OFF

ON(default) 151+Password 1510000

SETVOICE

CALL:ON

CAR ALARM ACTIVATION ALERT (

OPTIONAL

)

The tracker can be connected to a vehicles car security systems siren to provide a

warning if the alarm is activated.

Any sounding of the alarms siren longer than 10 seconds will activate the SOS

function -the alert message is the same as SOS.

Normal chirps for the alarms arm, disarm and pre-intrusion should not cause an alert

unless longer than 10 seconds.

NOTE:

Please advise all‘users’ the meaning of the SOS alert as it may be an alarm activation

or a call for help.

TELEPHONE THE TRACKER –2 way communication or surveillance

If you wish to utilise this feature, the supplied corded microphone and earphones plugs

into the tracker module. An extension cord may be required depending on where the

tracker is located in relationto the driver.

2 way conversation:

Calling the tracker:

Only paired ‘users’can make a telephone voice call to the tracker.

This does require the driver to wear the earphones whilst driving as the ringing sound

is only produced by the earphones.

The driver can answer by pressing the mic’ button and then carry out a normal

conversation.

The tracker calling a‘user’:

The driver presses the ‘SOS button for 10 seconds. The tracker rings the first paired

‘user’. If not answered, itthen rings the other paired ‘users’.

Surveillance:

If the mic’ button is not pressed, or the earphones are not being worn, the tracker will

automatically answer after 10 rings. The ‘user’ can then listen to the microphone.

Note: Privacy laws must be obeyed.

TOW ALARM

This feature can be programmed on and left on and monitors if the vehicle is moved

without the engine being started. No need to keep programing it as 5minutes after the

engine is turned off, the tracker records its current location. The command below sets

the limit of travel, say 1.0km which is the minimum.

“STATE: ACCOS”

This message is received If the vehicle is moved more than set

distance.

“STATE: ACCRS”

This message is received if the vehicle returns to the parked

location.

NOTE: 1km is the minimum which allows for satellite variances in accuracy – usually

caused by heavy weather or obstructions from buildings which may result in false

alerts.Lesser distances will cause false alerts.

Feature

Format of text command

Example

Turn on 008 + Password + Radius

0080000R1.0

(1km)

SET MOVE

RADIUS OK

Turn off 009+ Password

0090000

MOVE

DEFENCE OFF

Inhaltsverzeichnis

Andere Mongoose GPS Handbücher

Mongoose

Mongoose PT800 Bedienungsanleitung

Mongoose

Mongoose LT600 Bedienungsanleitung

Mongoose

Mongoose PT301 Bedienungsanleitung

Mongoose

Mongoose VT904 Bedienungsanleitung

Mongoose

Mongoose PT890 Bedienungsanleitung

Mongoose

Mongoose SP904 Gebrauchsanweisung

Mongoose

Mongoose LT2400 Bedienungsanleitung

Mongoose

Mongoose VT401 Bedienungsanleitung

Mongoose

Mongoose PT101 Bedienungsanleitung

Mongoose

Mongoose LT604 Bedienungsanleitung

Mongoose

Mongoose VT900 Montage- und Bedienungsanleitung

Mongoose

Mongoose LT300 Bedienungsanleitung

Mongoose

Mongoose VT604 Bedienungsanleitung

Mongoose

Mongoose PT880 Bedienungsanleitung

Mongoose

Mongoose VT904 Bedienungsanleitung

Mongoose

Mongoose PT890 Montage- und Bedienungsanleitung

Mongoose

Mongoose PT890 Bedienungsanleitung

Mongoose

Mongoose PT800 Bedienungsanleitung

Mongoose

Mongoose LT604 Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
