Owners Manual

GS10, GS20 & GS60

Page

Introduction 1

Safety Instructions 2

Gold GS10 3

Gold GS20 4

Gold GS60 5

Plinth Fixing (GS20, GS60 only) 6

Spike Foot Fixing 7

Levelling Your loudspeakers 8

Connecting Your Loudspeakers 9/10

Guarantee and Service 11

Data Protection 12

Owner Information 13

Warranty Card – Fold out section in back cover

Contents

Introduction

Thank you for purchasing Monitor Audio Gold Signature loudspeakers.

The new Gold Signature series has been designed with improvements in every area,

building on the strength and ethos of the original award winning Gold Reference.

Although there are some visual similarities, major improvements have been made

in the construction and quality of materials used with a ‘no expense spared’

approach. All metal parts are made from die-cast alloys and in the case of the

driver chassis and chassis clamp system, a combination of cast aluminium and Zinc are

used alternately to provide a structure that has different resonance properties, thus

providing a high degree of resonance cancellation and damping. The cabinet is more

rigid with traditional tongue and groove construction and better internal bracing. New

die-cast alloy terminal panels are now located low down on the GS20 and GS60 to

provide neat access and avoid unsightly trailing cables. The plinth is also now made

from a rigid cast alloy with a discreet aerofoil proﬁle. New alloy composite feet and

spikes round off this highly accomplished package.

The new RST®2 cone proﬁle has been reﬁned to provide better control of break up.

A new C-CAM® gold dome tweeter has been developed to propel high frequency

performance to beyond 40KHz. Extensive development has also resulted in another

unique feature; the HiVe2 port design. This new port technology uses a straight riﬂed

construction to aid air ﬂow and reduce turbulence.

Your Gold GS loudspeakers come complete with grilles, port bungs (all products),

plinths, spikes, and tool box (GS20 and GS60 only). The tool box contains; hex keys

for adjusting the spikes and attaching the plinth, a cleaning cloth, and the spikes for

the spike assembly.

The GS10 is a rear ported cabinet design. Because of this design, we recommend

that when ﬁxing the loudspeakers to a wall the port bungs are used. This may also

apply when any of the ported loudspeakers are positioned very close to a rear/side

wall.

The GS20 and GS60 are both designed with two port tubes (per loudspeaker). One is

on the front of the cabinet; the other is on the rear. These ports should not need to be

blocked if you are using your loudspeaker in a room greater than about 9m2. However,

if you cannot implement the ‘ideal’ speaker positioning, then experiment using the

port bungs. First start by ﬁtting them in the rear port, then the front, and then both to

see which conﬁguration is best suited to your personal tastes and room constraints.

The port bungs are another way of ﬁne-tuning the loudspeaker to ﬁt in sonically with

your home environment.

WARNING: Care must be taken not to insert the port bungs too far into the

port as this may result in the foam bung being lost inside the cabinet.

1. © Monitor Audio Ltd 2005

Please retain this manual for future reference. Safety Instructions

1. Read Instructions

Please read and follow all of the instructions in this manual before enjoying

your loudspeakers.

Any instructions preceded by this warning triangle MUST be followed.

Failure to do so may cause personal injury or damage to the speakers

2. Water & Moisture

The loudspeakers should not be used near water - for example, bathtub,

washbowl, kitchen sink, washing machine, in a wet basement or near a

swimming pool. Under no circumstance should plants or ﬁsh bowls be placed

on the products.

3. Heat

The speaker/s should not be placed near any heat source such as radiators,

open ﬁres, stoves, direct sunlight and any other appliance that produces heat.

These speakers are designed for use within the home environment.

Exposure to extreme temperatures & humidity when placed on patios or open

conditions could adversely affect the wooden cabinet.

4. Cleaning

Great care and attention has gone into the materials chosen to

produce the Gold GS loudspeakers. It is our intention that they should provide

a lifetime of musical pleasure. A gentle wipe with a dry, clean cloth is all that is

required to remove any dust. On high lacquer ﬁnishes please ensure the duster

is free of any foreign objects to avoid scratching the surface. Treat them as you

would a ﬁne piece of furniture because that is how they have been designed.

Avoid touching the loudspeaker’s drive units whilst cleaning, as any damage

will impair their performance.

5. Re-cycling

When it is time to replace this product please help us protect the environment

by disposing of it in an appropriate and responsible manner. Further details

are available from www.monitoraudio.co.uk

6. Natural wood veneers

Monitor Audio takes great pride in providing a high quality product.

We use only hand selected natural wood veneers, which are

carefully matched and hand ﬁnished to the highest standard possible.

The unique nature of each veneer may result in natural colour variation

and grain from samples you may have seen in photos or at the dealer’s

show room. This is what makes the product a special piece of furniture.

If your speaker is ﬁnished in a Cherry veneer please be aware that it will

naturally darken with age, more so than other types of wood veneer.

Your Gold GS10

With its advanced, low-resonance drivers, rigid build and contoured cabinet

edges, GS10 redeﬁnes accurate, low-colouration sound in a compact, stylish

stand-mount speaker. Using the new, low distortion 6-inch RST®2 bass-mid driver

and gold C-CAM® tweeter developed specially for the GS series, the GS10 is capable

of true 3-D imaging and tonal accuracy to rival the best reference studio monitors.

Frequency

Response

Sensitivity

(1W@1m)

Nominal

Impedance

(ohms)

Power

Handling

(W) RMS

Recommended

Ampliﬁer

power output.

(W) RMS

40Hz –

43kHz

88dB 100 40 – 100

Drive Unit

Complement

External

Dimensions -

Excluding plinth

H x W x D

mm (inch)

Weight Kg (lb)

1 x 6” RST®2

Bass/

mid-range.

1 x 25mm Gold

Dome

C-CAM®

tweeter.

360 x 206

x 270

(14 3/16 x

8 1/8

x 11)

8.5 / (18.7)

Maximum

SPL (Per pair in

room). dBA

108

External

Dimensions -

Including plinth

mm (inch)

N/A

Bass

Crossover

Frequency

N/A

Bass

Alignment

Rear ported,

bass reﬂex

Tweeter

crossover

frequency

KHz

2.7

Tweeter

crossover

frequency

KHz

To remove the grilles, carefully prize it away from the cabinet using your ﬁngers. The grille

locates in the elongated holes around the outside of the driver chassis clamp plate.

To replace it, line the peg ﬁxings (in the grille) up with the elongated holes and gently

press into place.

3. © Monitor Audio Ltd 2005

Your Gold GS20

Over its nearest rivals the GS20, pulls decisively ahead in performance,

value, good looks and shear desirability. Its two and a half way, three-driver

conﬁguration is built around unique dual-cavity cabinet design: 6-inch RST® 2 bass

and mid-bass drivers work into separate enclosures, tuned to differential frequency

points and different impedances to increase power handling and virtually eliminate

distortion. The gold C-CAM® tweeter ensures a smooth, detailed response all the way

up to 40 KHz and beyond, exploiting the full potential of the latest wide-bandwidth

digital formats.

To remove the grilles, carefully prize it away from the cabinet using your ﬁngers. The grille

locates in the elongated holes around the outside of the driver chassis clamp plate.

To replace it, line the peg ﬁxings (in the grille) up with the elongated holes and gently

press into place.

Frequency

Response

Sensitivity

(1W@1m)

Nominal

Impedance

(ohms)

Power

Handling

(W) RMS

Recommended

Ampliﬁer

power output.

(W) RMS

32Hz –

43KHz

89dB 150 40 – 150

Drive Unit

Complement

External

Dimensions -

Excluding plinth

H x W x D

mm (inch)

Weight Kg (lb)

1 x 6” RST®2

Bass driver

1 x 6”RST®2 bass

/mid driver 1x

Gold Dome

C-CAM®

tweeter.

924 x 206

x 280

(36 3/8 x

8 1/8

x 11)

20.6 / (45.3)

Maximum

SPL (Per pair in

room). dBA

111

External

Dimensions -

Including plinth

H x W x D

mm (inch)

Bass

Crossover

Frequency

100

Bass

Alignment

Dual Chamber

Bass Reﬂex

with Diffrential

Tuning (HiVe2

Technology)

Tweeter

crossover

frequency

KHz

2.7 934 x 322

x 363 D

(36 3/4 x

12 11/16 x

14 5/16 )

Your Gold GS60

The elegantly proportioned, three-way GS60 currently represents the state of

Monitor Audio’s art. Its performance really is “as close as it gets” to the master recording.

Developing the discrete cavity technology of the GS20, the four-driver GS60

recreates the deep bass and authentic scale of a performance, bringing lifelike power,

dynamics and realism to music and ﬁlm. Yet its tall, slender appearance is anything but

overpowering. Like all models in the Gold Signature range, the ﬂagship GS60 is a

monument to the cabinet-maker’s art: immaculate real wood or piano gloss

ﬁnishes are blended with modern industrial design and superb attention to detail.

To remove the grilles, carefully prize it away from the cabinet using your ﬁngers. The grille

locates in the elongated holes around the outside of the driver chassis clamp plate.

To replace it, line the peg ﬁxings (in the grille) up with the elongated holes and gently

press into place.

Frequency

Response

Sensitivity

(1W@1m)

Nominal

Impedance

(ohms)

Power

Handling

RMS (W)

Recommended

Ampliﬁer

power output.

(W) RMS

28Hz –

43KHz

90dB 200 60 – 200

Drive Unit

Complement

External

Dimensions -

Excluding plinth

H x W x D

mm (inch)

Weight kg (lb)

2 x 6” RST®2

Bass driver

1 x 6”RST®2 bass

/mid driver 1x

Gold Dome

C-CAM®

tweeter.

1060 x 206

x 330

(41 3/4 x

8 1/8

x 11)

27.1 / (59.7)

Maximum

SPL (Per pair in

room). dBA

112.5

External

Dimensions -

Including plinth

H x W x D

mm (inch)

Bass

Crossover

Frequency

200

Bass

Alignment

Sealed Mid-

Range

Enclosure.

Dual Chamber

with Diffrential

Tuning (HiVe2

Technology)

Tweeter

crossover

frequency

kHz

2.7

1070 x 322

x 403

(42 1/8 x

12 11/16 x

15 7/8)

5. © Monitor Audio Ltd 2005

Plinth Fixing.

(

GS20 & 60 only)

With the cabinet upside-down (it will be this way straight out of the box), carefully

place the plinth on the cabinet. The plinth is clearly marked with directions as to the

orentation of the plinth - please see the illustration below.

The ‘Monitor Audio’ text should be at the back of the plinth. The ‘M’ logo at the front.

Use the bolts and hex key provided in the tool box to secure the plinth in place.

Please refer to page 7 for spike ﬁxing.

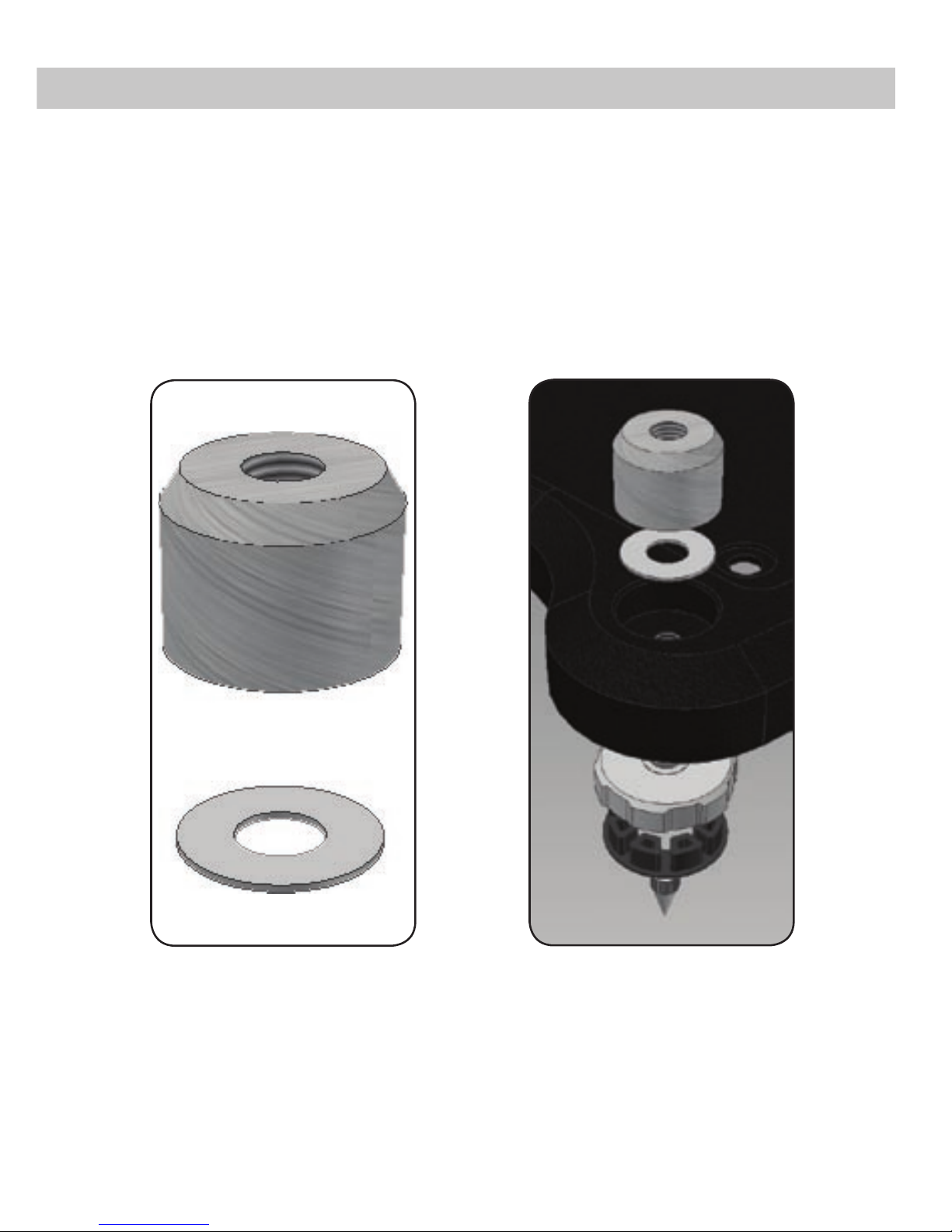

Spiked Foot Fixing

(Gold GS20, GS60 only)

The composite Gold GS spiked foot incorporates a spike for use on carpeted ﬂoors and

also, a soft polymer pad for use on wooden or tiled ﬂoors. The foot assembly is found

in the packing end cap, and the spike in the Monitor Audio Tool Box. Fig. 1. For more

technical information regarding the acoustic beneﬁts of the spikes please go to:

www.monitoraudio.co.uk/gettingthebestfromyourspeakers

Please ensure there are no hidden wires under the carpet that could be

damaged by the spikes.

The foot assemblies come ready for use on solid ﬂoors or where spikes are

inappropriate. With the cabinet upside-down, rotate the spikes clockwise into the

outer most holes until they reach a stop. Fig. 2.

If you are using your loudspeakers where you can use spikes, follow the instructions

above and then take the spikes out of you Monitor Audio Tool Box, and screw them into

the threaded hole in the centre of the foot assembly. Fig. 3.

Fig. 1. Fig. 2. Fig. 3.

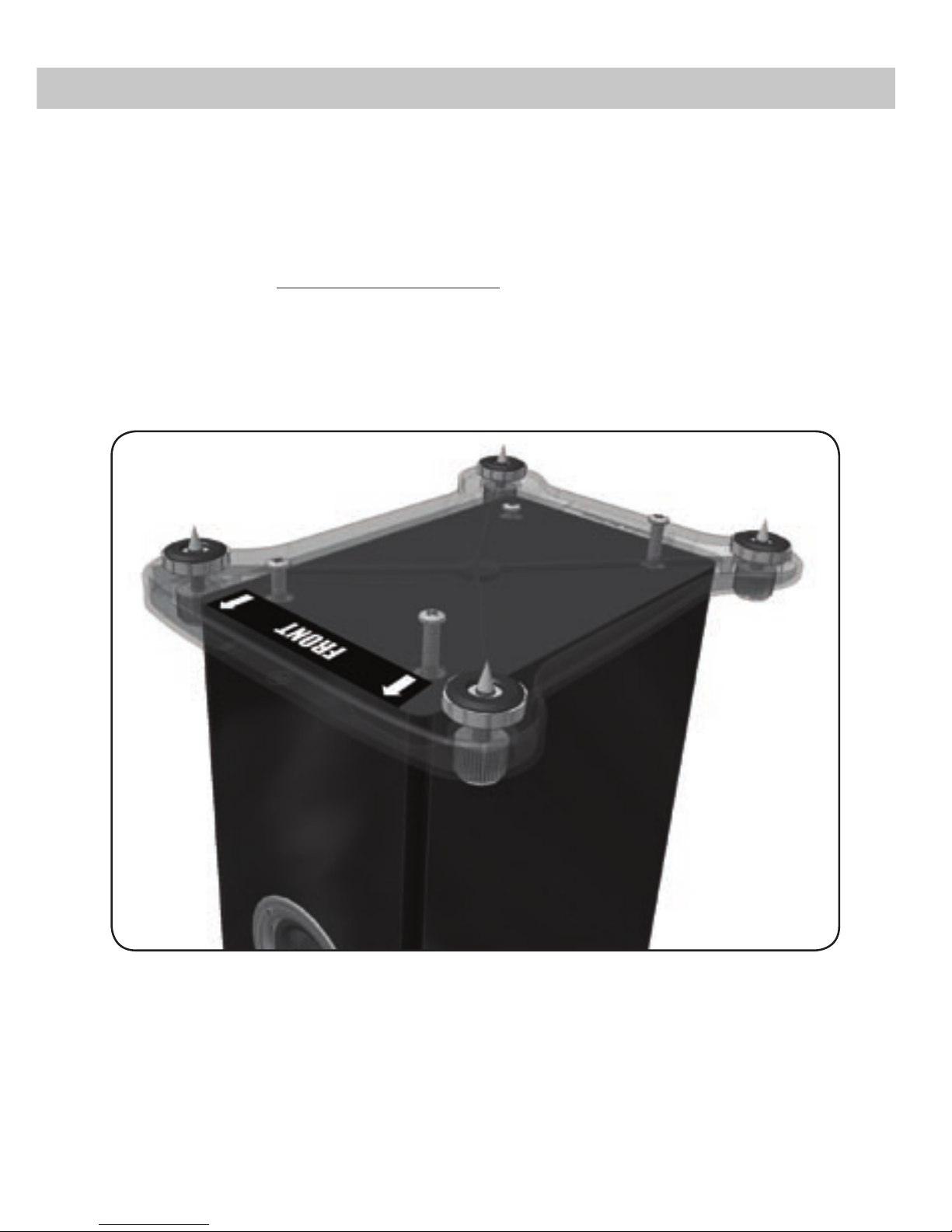

Levelling your Loudspeakers

Carefully turn your loudspeakers over and position them in your desired locations.

Take the nylon washer and large locking nut (found in the packing end cap) (Fig. 4) and

place the washer over the threaded body of the foot assembly, followed by the locking

nut. Fig. 5. Do not tighten it all the way up just yet.

Place the spirit level (found in the Monitor Audio Tool Box) on top of your loudspeaker

to see if it is level. Adjustment (if required) is achieved using the Allen (hex) key to

change the height of the foot assembly until the loudspeakers are level. When you are

satisﬁed, tighten the locking nut.

Fig. 4. Fig. 5.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Monitor Audio Sprecher Handbücher

Monitor Audio

Monitor Audio M1 Bedienungsanleitung

Monitor Audio

Monitor Audio Monitor Reference Series Bedienungsanleitung

Monitor Audio

Monitor Audio 200 series Bedienungsanleitung

Monitor Audio

Monitor Audio Airstream s300 Bedienungsanleitung

Monitor Audio

Monitor Audio AWC265 Bedienungsanleitung

Monitor Audio

Monitor Audio CT265 Bedienungsanleitung

Monitor Audio

Monitor Audio M1 Bedienungsanleitung

Monitor Audio

Monitor Audio Airstream S200 Bedienungsanleitung

Monitor Audio

Monitor Audio Silver 50 Bedienungsanleitung

Monitor Audio

Monitor Audio CSS230 Bedienungsanleitung

Monitor Audio

Monitor Audio SB2 Bedienungsanleitung

Monitor Audio

Monitor Audio Gold Reference GR20 Bedienungsanleitung

Monitor Audio

Monitor Audio C380-IDC Bedienungsanleitung

Monitor Audio

Monitor Audio Loudspeaker Radius Bedienungsanleitung

Monitor Audio

Monitor Audio CLIMATE GARDEN Series Bedienungsanleitung

Monitor Audio

Monitor Audio GOLD SERIES Bedienungsanleitung

Monitor Audio

Monitor Audio CLG140 Bedienungsanleitung

Monitor Audio

Monitor Audio 100 series Bedienungsanleitung

Monitor Audio

Monitor Audio Radius R225 Bedienungsanleitung

Monitor Audio

Monitor Audio soundframe 1 i-w Service-Handbuch

Monitor Audio

Monitor Audio 100 series Installations- und Betriebshandbuch

Monitor Audio

Monitor Audio Silver RX series Bedienungsanleitung

Monitor Audio

Monitor Audio Controlled Performance series Bedienungsanleitung

Monitor Audio

Monitor Audio Controlled Performance series Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
