Thank You for your Purchase

Congratulations on purchasing Monitor Audio’s Airstream S200. Welcome to the latest way to “Free Your Music” anywhere in your home

wirelessly from an AirPlay compatible device or iTunes on your PC or Mac. Added options of DLNA compatibility and the option for

Bluetooth streaming on top of this means its never been easier!

The S200 is the latest instalment of the Airstream range, taking you on the amazing journey of wireless multi room music entertainment

and enjoyment.

Register your product now!!!! For extra peace of mind, news and the opportunity to win products from Monitor Audio, don’t forget to

The Airstream S200 will provide many years of listening pleasure.

FOR FURTHER INFORMATION ON MONITOR AUDIO PLEASE GO TO WWW.MONITORAUDIO.COM

Contents: 1

Thank You for your Purchase 1

Introduction 2

S200 Capabilities 2

What’s in the box 2

AirPlay Compatibility 2

USB Compatibility 2

The S200 3

Getting Ready to Free Your Music 4

Connecting the Power 4

Turning on for the First Time 4

Airstream Direct 4

Airstream Direct to AirPlay 5

Connecting to a Wi-Fi Network 5

What is required? 5

Option 1: 5

Option 2: 6

Via iOS-Device 7

Via Laptop/ PC/ Mac 8

Wall Mounting 9

FREE YOUR MUSIC 10

Use Airplay from your iOS-device 10

Using AirPlay from iTunes 10

Playing via Bluetooth 11

Playing and Charging via the USB 11

Play Another Device Using the 3.5mm Aux Input 12

Play Another Device Via DLNA 12

Firmware Update 13

AutomaticNoticationofFirmwareUpdate 13

USB Firmware Update 13

Web Browser Firmware Update 14

Checking Firmware Version 15

LED Colour Matrix 16

LED Flashing Patterns 16

Specs 17

Trouble Shooting 18

Unable to Connect to the Wireless Network 18

No Sound 18

The S200 is Nonresponsive 18

No Sound through Bluetooth 18

Occasional Breaking up of AirPlay Music Playback 18

No AirPlay Icon on my iTunes Host Device 18

AirPlay Connection Failed with Mac or PC 18

Factory Reset 19

Owner Information 19

Introduction

AirPlay is now an integral part of Apple’s iOS. Monitor Audio

have used 40 years of knowledge to produce a TRUE hi, AirPlay

enabled speaker system. Whether using Airstream Direct,

streaming via a wireless router or playing your music collection

from PC or MAC, the S200 is the way to “Free Your Music”.

S200 Capabilities

• Stream audio from an iOS-device using Airstream Direct

without the need of a wireless router.

• Stream audio from an iOS-device via Wi-Fi to the S200

connected to the same network.

• Choose which AirPlay device you want to stream to from

your iOS-device when there are multiple Airstream devices

on your network.

• Stream audio by Wi-Fi from any PC or Mac using iTunes

(version 10 or later) connected to the same wireless network

as the S200.

• Stream audio from any PC or Mac to multiple Airstream

devices using iTunes by Wi-Fi.

• Stream audio from a DLNA compatible device or App.

• Stream audio from any paired Bluetooth devices.

What’s in the box

• S200

• Mains lead (region specic)

• Quick Start Guide

• Safety Instructions

AirPlay Compatibility

To stream wirelessly to the S200 using AirPlay (not Airstream

Direct), you will need the following:

• A Wi-Fi certied router (Wireless 802.11 b/g class only)

• A host for your music (iPhone/ iPad/ iPod Touch running iOS

4.3 or later, or a PC/ Mac with iTunes 10 or later)

Compatible AirPlay devices are listed below:

• iPad Mini

• iPad Air

• iPad 4

• iPad 3

• iPad 2

• iPad

• iPhone 5S

• iPhone 5C

• iPhone 5

• iPhone 4S

• iPhone 4

• iPhone 3GS

• Ipod Touch 5th Generation

• iPod Touch 4th Generation

• iPod Touch 3rd Generation

• iPod Touch 2nd Generation

USB Compatibility

Below is a list of devices that will play music back via the USB.

Each will charge while connected to the S200 (when not in

standby mode) with the exception of the iPad models.

• All devices listed previously in the ‘AirPlay Compatibility’ list

(excluding iPads)

• iPhone 3G

• iPod Touch

• iPod Classic

• iPod Nano 5th Generation

• iPod Nano 4th Generation

• iPod Nano 3rd Generation

• iPod Nano 2nd Generation

• iPod Nano

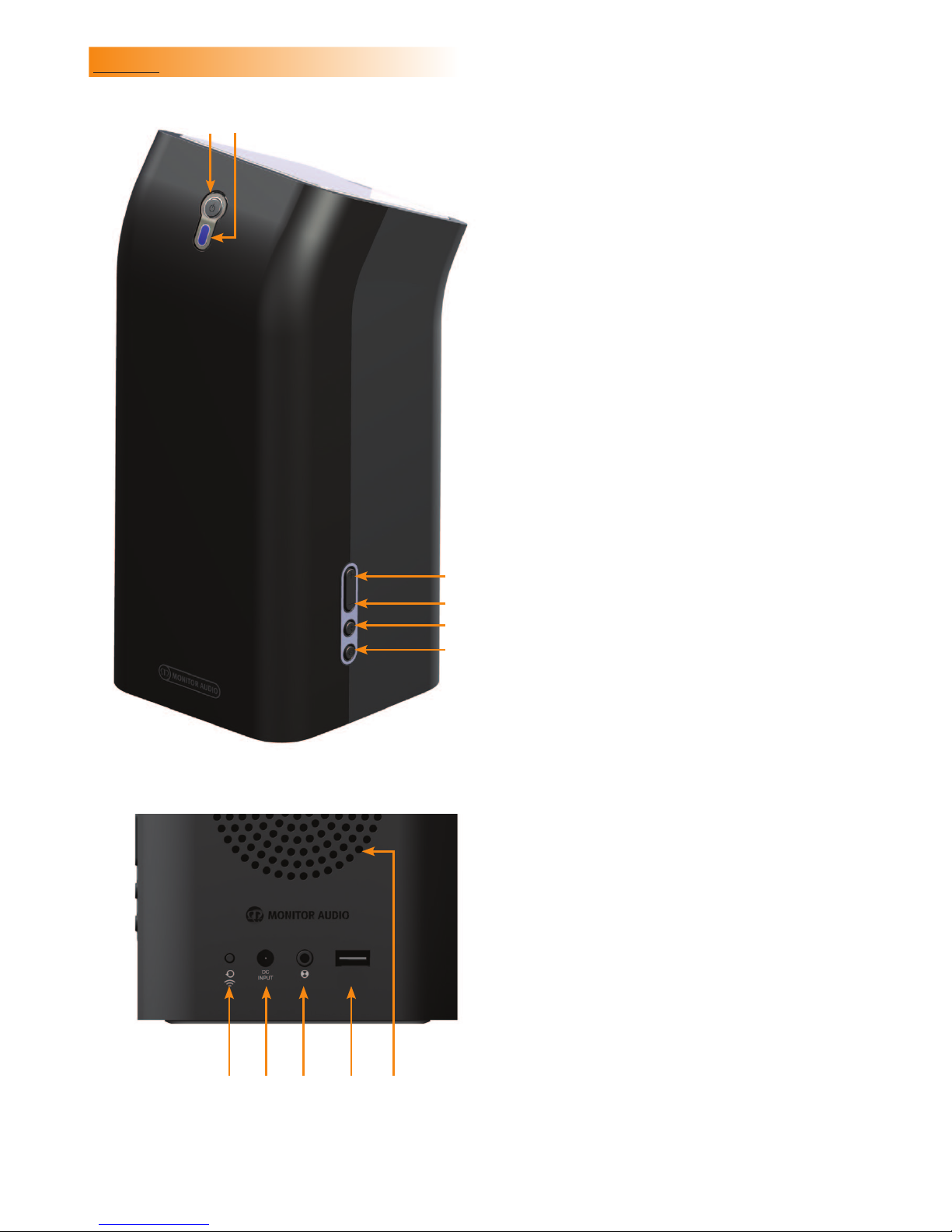

1. Standby. Either puts the S200 into standby or wakes it

from standby. When woken from standby it will start in the

previously selected input.

2. Informative LED. Will illuminate dierent colours and ash

in varius sequences to identify the current state of the S200

(refer to page 16 for the key and explanations behind each

of these).

3. Volume up. Increases the volume level of playback.

4. Volume down. Decreases the volume level of playback.

5. Wi-Fi input. Switches between Airplay/ DLNA and Airstream

Direct modes. A long press will enter Airstream Connect

mode.

6. Input toggle. Scrolls through the available inputs in the

order of Airplay/ DLNA Source > Bluetooth > Aux.

The S200

78910 11

1 2

7. Wi-Fi Sharing/ Factory Reset button. This button also

serves two purposes: A short press is required when

connecting the S200 to a wireless network via the USB

method. Press and hold for 12 seconds to perform a factory

reset.

8. Mains power input. Connect the supplied mains lead here.

9. Auxiliary input. This is used to connect an additional device

via a 3.5mm stereo jack lead (not supplied).

10. USB input. Connect an iPod, iPhone, iPad via the Apple USB

cable (not supplied) for music playback of devices that are

not AirPlay enabled. Also used for connecting the S200 to

a wireless network, refer to page 5. Devices can also be

charged via the USB, but the S200 needs to be out of standby

mode.

11. ABR. Auxiallary Bass Radiator.

Getting Ready to Free Your Music

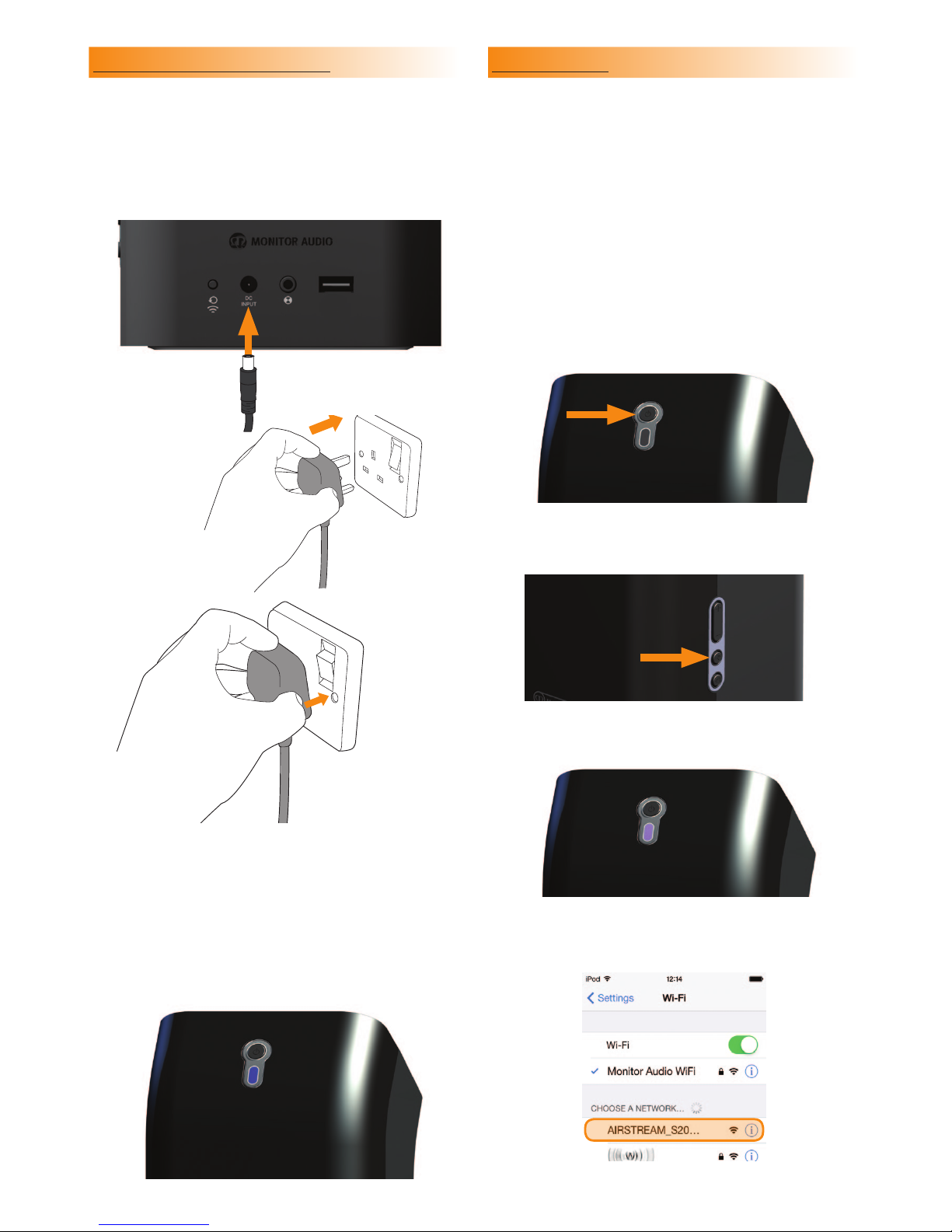

Connecting the Power

IMPORTANT: Please follow the following instructions in sequence.

Connect the mains lead to the back of the S200, connect to wall

socket and where applicable turn on

Turning on for the First Time

When turning on from standby for the rst time (or after an

update), the S200 will go through an initial boot up procedure.

whereas the LED will ash blue rapidly and, because it is not

connected to a network yet, it will go into Aux mode by default.

Airstream Direct

To “Free Your Music” before even connecting the S200 to a

wireless network, or if you don’t have a wireless router then

use the S200 in Airstream Direct mode to enjoy the freedom of

wireless music right out of the box.

Airstream Direct means you can stream from your compatible iOS

Device, PC or Mac straight to the S200 without the need for a

wireless network/ router. To Free Your Music and activate this

mode creating a wireless network solely between the S200 and

the iOS-device, follow the steps below:

1. Turn on the S200 on from standby.

2. When the S200 has booted up, press the Wi-Fi input button

on the side of the S200 (item 5 on page 3).

3. The LED on the front of the unit will ash purple and then

solid purple.

4. On the iOS device go to the ‘Settings’ app and then into

‘Wireless’. Here you will be able to see ‘AIRSTREAM_S20...’

listen under the available wireless networks, select this.

5. A tick will appear next to the Wi Network on the iOS display

and your ready to free your music! To use Airstream Direct

from a PC or Mac, please refer to page 8 for instruction on

connecting to the S200.

Airstream Direct to AirPlay

1. To switch between Airstream and Airstream Direct Modes

press the Wi-Fi input button on the side of the S200 (item

5 on page 3).

2. The LED will then ash blue as it is trying to connect to a

wireless network. When connected it will turn solid blue. If

this hasn’t been set up yet, it will change from ash pattern

#2 to ash pattern #1. Refer to page 5 for instruction

on connecting it to the Wi-Fi network and to page 16 for

information on the ash patterns.

Freeing Your Music

Connecting to a Wi-Fi Network

There are a couple of dierent ways you can register the S200

onto the Wi-Fi network. One method connects the iPhone or iPod

Touch directly to the S200 using the Apple supplied USB lead,

while the second uses the S200’s web portal via a PC, Mac or

iOS-device.

What is required?

To connect the S200 to a Wi-Fi network you will need to have the

following:

• A Wireless router.

• For Option 1, either an iPod Touch or iPhone and the Apple

supplied USB lead.

• For option 2, either a PC,Mac, iPod Touch or iPhone connected

wirelessly to the network. The PC/ Mac must be connected

wirelessly.

• Airstream S200

Option 1:

This is the easier of the two processes. It uses the wireless

network security information stored on the iOS device to connect

to and gain access to the network. All you need is a compatible

iPod Touch or iPhone running iOS5 or above. A list of compatible

devices for this method of connection can be found below:

• iPhone 5S

• iPhone 5

• iPhone 4S

• iPhone 4

• iPhone 3GS

• Ipod Touch 5th Generation

• iPod Touch 4th Generation

• iPod Touch 3rd Generation

• iPod Touch 2nd Generation

If the Airstream S200 isn’t one of the listed networks,

press the home button and try again. It sometimes

takes a few seconds for the network to become

visible.

HINT

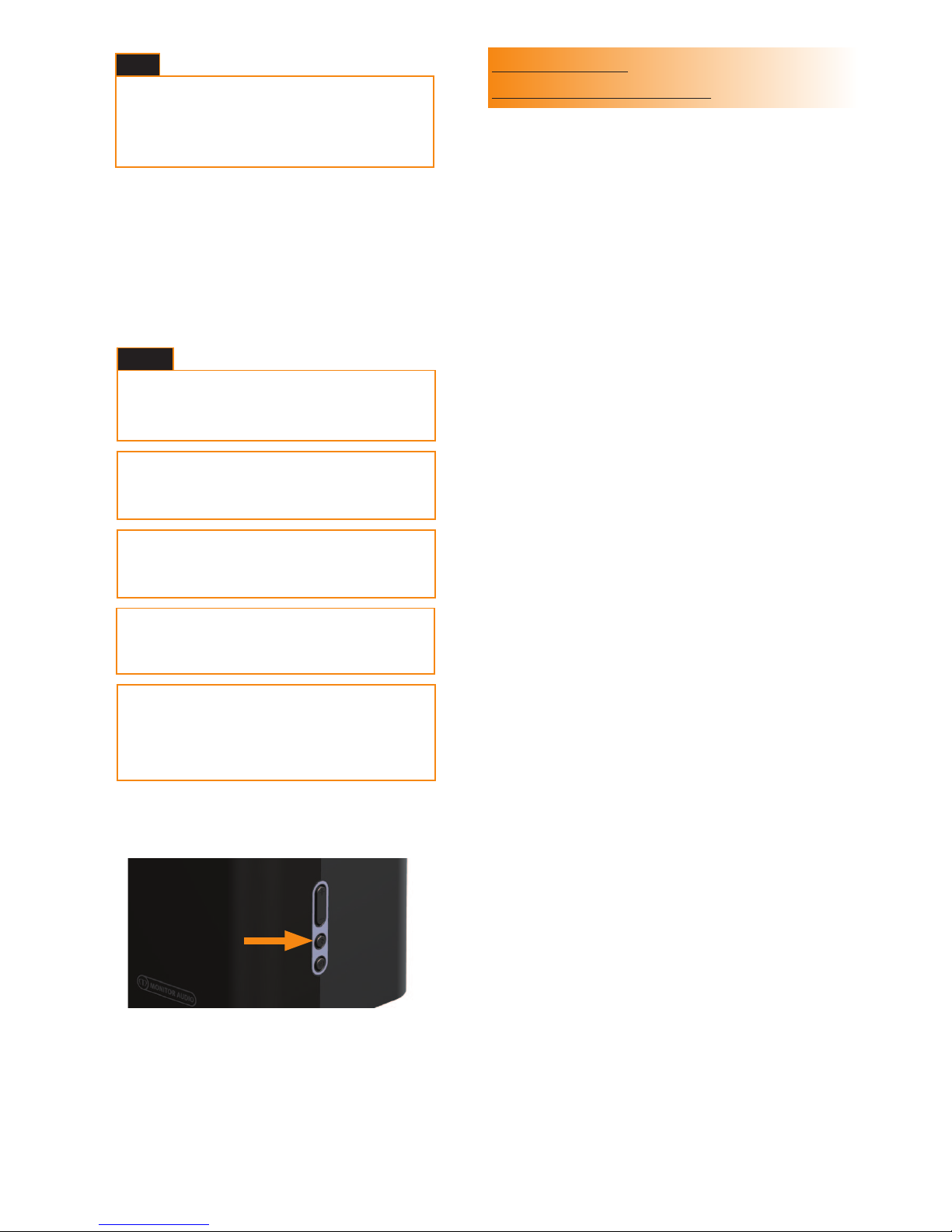

It is possible to toggle between Airstream Direct and

conventional AirPlay simply by pressing the Wi-Fi

input button on the side of the S200 (refer to page 3).

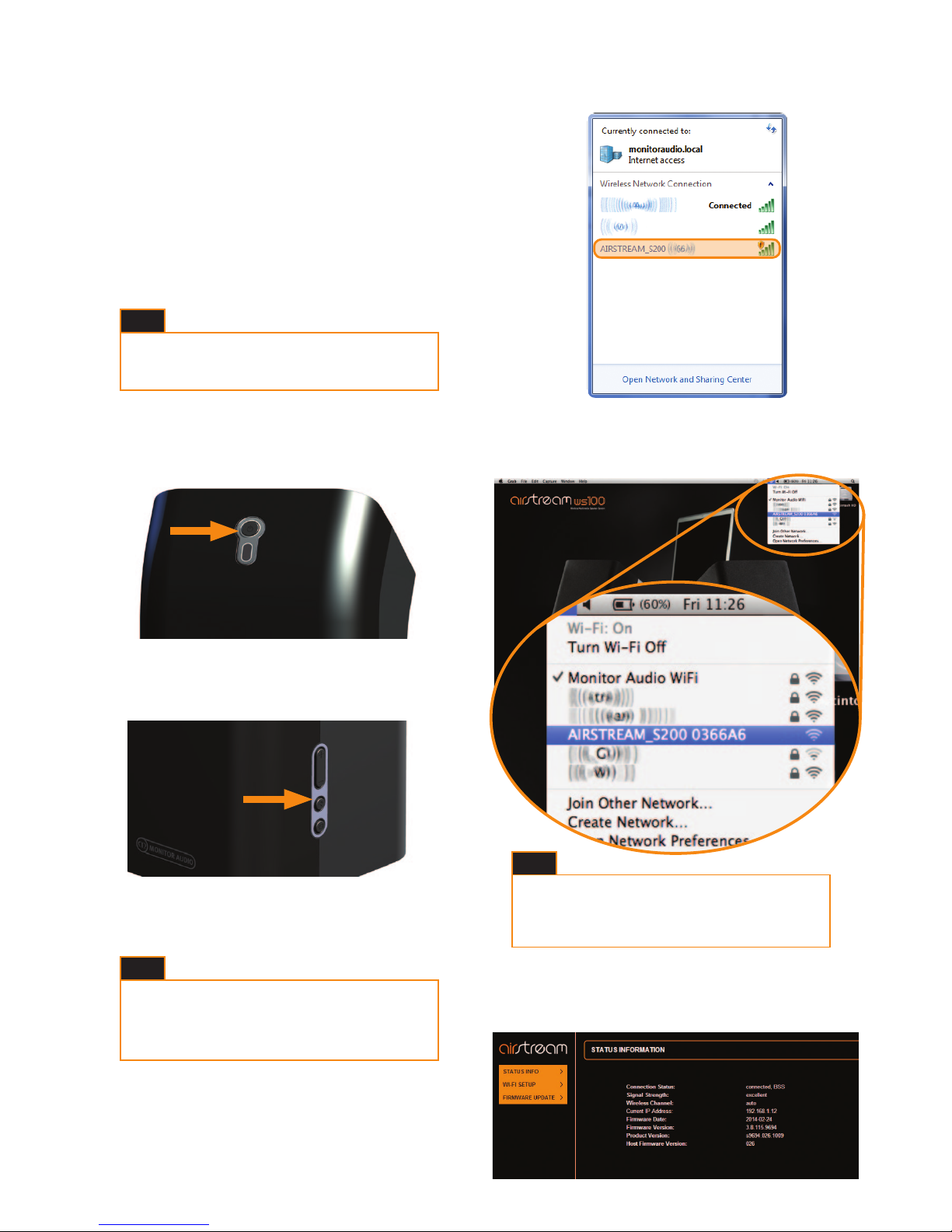

It is possible to connect a Wi-Fi enabled PC or Mac

to the S200 via Airstream Direct. You do this in the

same way as connecting an iOS device except you use

the PC/ Mac’s Wi-Fi network selection tool.

While in Airstream Direct mode, cellular data will not

function. So, iMessage, emails and mobile internet

will not function simultaneously.

More than one device can be connected in Airstream

Direct mode, but only one device can play music at a

given time.

If a telephone call is received while in Airstream

Direct mode, music will pause and restart when the

call is ended.

HINTS

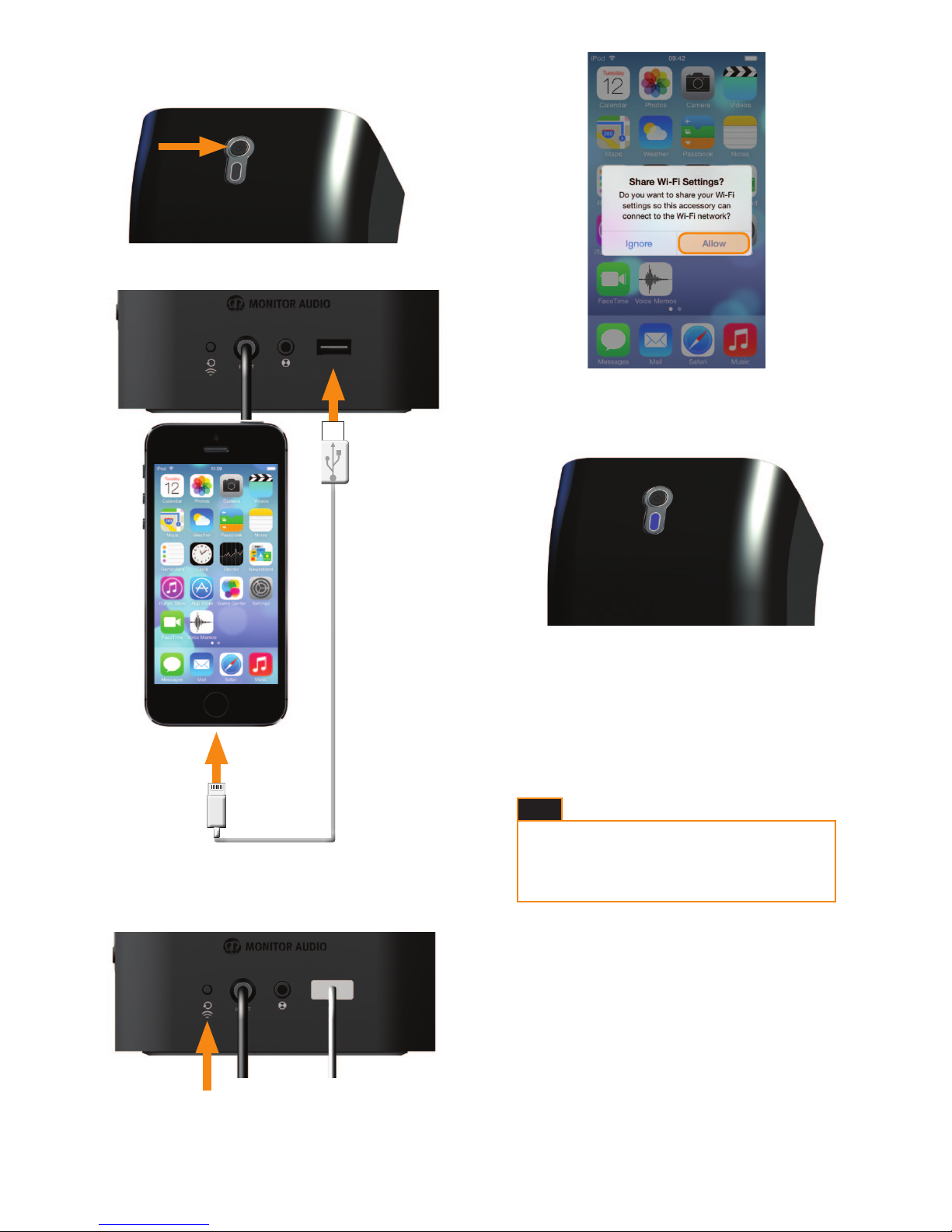

1. Turn on the S200 from standby. The LED on the front will ash

blue, rstly in pattern 2 then change to red, pattern 1.

2. Connect the iOS device via USB lead to the S200.

3. Press the Wi-Fi sharing button on the back of the S200 (item

7 on page 3).

4. A prompt will appear on the screen of the iOS-device. This

is just asking if you want to allow the device to share the

security data with the S200. Press “Allow”.

5. The LED will then start to ash blue as per Pattern #2 and

turn solid blue when connected to the Wi-Fi network.

6. When the LED is solid blue, remove the USB lead from the

device and the S200. You are now able to start playing music

via AirPlay.

You will not be able to play music wirelessly via AirPlay with

the USB lead still connecting the iOS Device and the S200.

7. Refer to page 10 for instruction on playing music via AirPlay.

Option 2:

Using this method of connection you need either a wireless

enabled PC/ Mac or an iPod Touch or iPhone running iOS5 or later.

This method of connectivity involves manually entering the

wireless network name (SSID) and security information (WEP

Key) into the S200’s web portal from either the computer or iOS-

device via a temporary wireless network.

If you face problems connecting the S200 using this

method, try using the web portal via the PC/ Mac or the

iOS device.

HINT

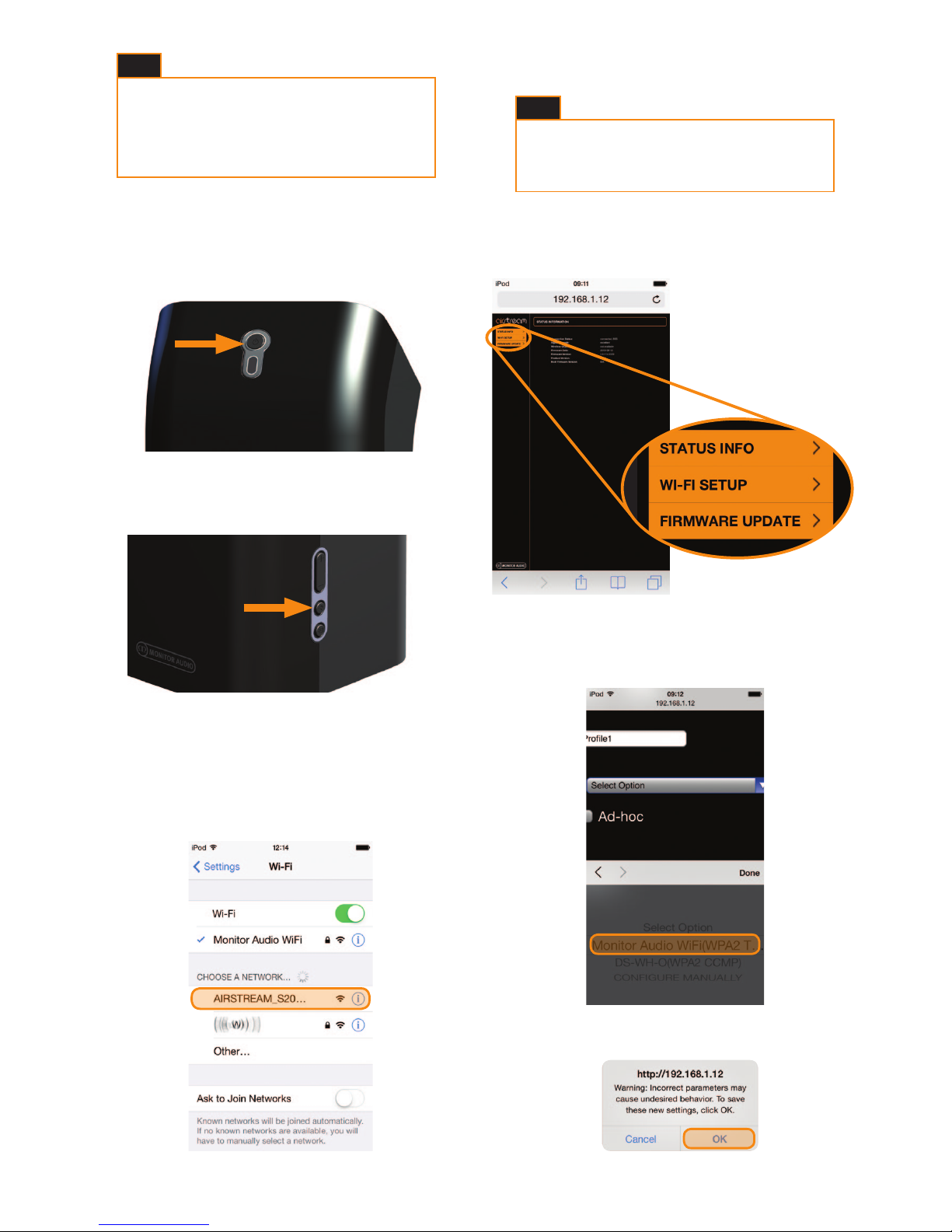

Via iOS-Device

1. Turn the S200 on from standby mode. The LED on the front

will ash blue, rstly in pattern #2 then change to solid green

(Auxiliary input).

2. Press the Wi input button (item 5 on Page 3) for aproximately

12 seconds. The LED on the front ashes white (Pattern #3).

3. On the device, go to Settings, then Wi-Fi.

4. In the list of available networks you will see Airstream

Connect. Select this. When it has been ticked, press the

home button.

5. Now open up Safari on your Device. Enter the IP address

192.168.1.12 into your address bar.

6. The S200’s portal page will now be displayed. Select WiFi

Setup from the list on the left hand side.

7. Select the SSID (wireless network) you wish to connect to

and enter the appropriate security details, press save and

then press the home button.

8. There will be a warning pop up appear, just press OK.

Make a note of the name of the wireless network

(SSID) that you are connecting to and also the security

information (WEP, WPA or WPA2) to ensure the seamless

connection of the S200 to the wireless network.

HINT

If the IP address 192.168.1.12 doesn’t work, restart

the S200 and press the home button on the device

and then retry steps 4 & 5.

HINT

Return your device to the original Wi-Fi network so that you can

stream your music.

1. Go to Settings, then Wi-Fi.

2. Select your Wi-Fi network.

3. When the tick appears next to your network, press the Home

button.

4. To start playing music via AirPlay please refer to page 11.

Via Laptop/ PC/ Mac

1. Turn the S200 on from standby mode. The LED on the front

will ash blue, rstly in pattern #2 then change to solid

green (Auxiliary input).

2. Press and hold the Wi-Fi input button (item 5 on Page 3) for

approximately 12 seconds until the LED on the front ashes

white (Pattern #3).

3. On the Laptop/ PC, go to the Wireless network selection

tool. For Windows Operating System go to step 4, for Mac

Operating System go to step 6.

4. In the list will be your network (probably with “Connected”

next to it), and any other wireless networks within range.

One of them will be AIRSTREAM_S200****** (where the 6 *’s

are the last 6 digits of the S200’s unique Mac Address).

5. Click on AirstreamConnect, and then the Connect button.

After a few seconds, you will be connected to the Airstream

Connect wireless network.

Continue to step 7.

6. On a Mac, click on the wireless network signal strength

indicator located in the bar at the top of the desktop.

7. On the computer, open your web browser and in the address

bar at the top of the page, type in the following address to

load the Airstream web portal: 192.168.1.12.

The Laptop, PC or Mac must be wireless enabled with

wireless turned on.

HINT

On a Windows 7 Machine, click on the Wi-Fi strength

indicator in the bottom right hand corner. If it is

hidden, click on the little up arrow.

HINT

With both Windows and Mac OS’s, if AIRSTREAM_S200

isn’t displayed, come out of the selection window and

then try again after a few seconds.

HINT

Andere Handbücher für Airstream S200

Inhaltsverzeichnis

Andere Monitor Audio Sprecher Handbücher

Monitor Audio

Monitor Audio ASB-2 Bedienungsanleitung

Monitor Audio

Monitor Audio Monitor Reference Series Bedienungsanleitung

Monitor Audio

Monitor Audio Radius 45 Bedienungsanleitung

Monitor Audio

Monitor Audio Creator Series Bedienungsanleitung

Monitor Audio

Monitor Audio GOLD SERIES Bedienungsanleitung

Monitor Audio

Monitor Audio ASB-10 Bedienungsanleitung

Monitor Audio

Monitor Audio GSW12 Bedienungsanleitung

Monitor Audio

Monitor Audio M1 Bedienungsanleitung

Monitor Audio

Monitor Audio AWC265 Bedienungsanleitung

Monitor Audio

Monitor Audio Platinum In-Wall II Bedienungsanleitung

Monitor Audio

Monitor Audio SB2 Bedienungsanleitung

Monitor Audio

Monitor Audio CLG140 Bedienungsanleitung

Monitor Audio

Monitor Audio EN 50020 Bedienungsanleitung

Monitor Audio

Monitor Audio CS160 Bedienungsanleitung

Monitor Audio

Monitor Audio CPWT380 Bedienungsanleitung

Monitor Audio

Monitor Audio GS10 Bedienungsanleitung

Monitor Audio

Monitor Audio 300 series Bedienungsanleitung

Monitor Audio

Monitor Audio STUDIO Bedienungsanleitung

Monitor Audio

Monitor Audio Silver RS Bedienungsanleitung

Monitor Audio

Monitor Audio apex 10 Handbuch

Monitor Audio

Monitor Audio airstream WS100 Bedienungsanleitung

Monitor Audio

Monitor Audio PL IN-WALL II Bedienungsanleitung

Monitor Audio

Monitor Audio Platinum 3G Series Bedienungsanleitung

Monitor Audio

Monitor Audio Bronze BX Series Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
