User Manual

GSW12

Contents

Important Safety Instructions 2-3

Recycling & RoHS Declaration of Conformity 3

Unpacking 4

Foot/Spike Fixing 4

Introduction 5

GSW12 Features 5

Amp & Control Panel 6-7

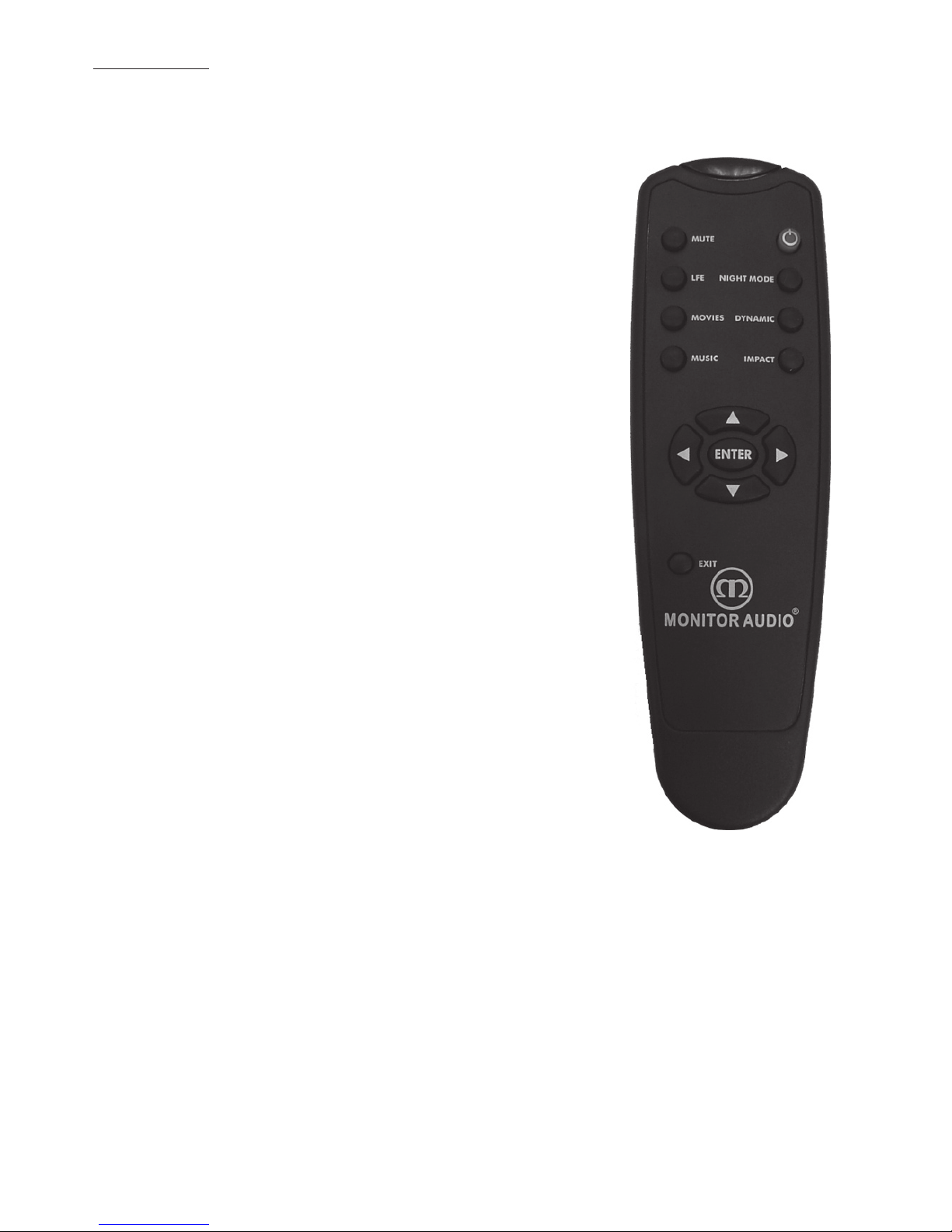

Remote Control Functions 8

Positioning 9

Set Up 9-10

Speciﬁcation 11

Trouble Shooting 12

Guarantee and Service 13

Claims under this guarantee 13

Data Protection 13

EC Declaration of Conformity 14

Owner Information 15

Important Safety Instructions

10.

11.

12.

13.

14.

15.

16.

17.

Read these instructions. All the safety and operating instructions should be read before this product is operated.

Keep these instructions. The safety and operating instructions should be retained for future reference.

Heed all warnings. All warnings on the appliance and in the operating instructions should be adhered to.

Follow all instructions. All operating and use instructions should be followed.

Do not use this apparatus with water. The appliance should not be used near water or moisture. For example; in a wet

basement or near a swimming pool.

Clean only with a dry cloth. Great care and attention has gone into the materials chosen to produce the Gold

Signature loudspeakers. A gentle wipe with a dry, clean cloth is all that is required to remove any dust. Treat them as

you would a ﬁne piece of furniture because that is how they have been designed.

Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

Do not install near any heat source, such as radiators, heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

Do not defeat the purpose of the polarised or grounding type plug. A polarised plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the

third prong are provided for your safety. If the provided plug does not ﬁt your outlet, consult an electrician for

replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

Only use attachments/ accessories specied by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms, or when unused for long periods of time.

Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen onto the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

This apparatus shall not be exposed to dripping or splashing water and that no object ﬁlled with liquids such as vases

shall be placed on the apparatus.

This exclamation point within an equilateral triangle is intended to alert the user to presence of important

maintenance (servicing) instructions in the literature accompanying the appliance.

Natural Wood Veneers. Monitor Audio takes great pride in providing a high quality product. We use only hand

selected natural wood veneers, which are carefully matched and hand ﬁnished to the highest standard possible.

The unique nature of each veneer may result in natural colour and grain variation from samples you may have

seen in photos or at the dealer’s show room. This is what makes the product a special piece of furniture. If your speaker

is ﬁnished in a Cherry veneer please be aware that it will naturally darken with age more so than other types of wood

veneer.

Monitor Audio 2007 GSW12 Rev 1

WARNING!

• THE MAINS PLUG IS USED AS A DISCONNECT DEVICE, THE DISCONNECT DEVICE SHALL REMAIN READILY OPERABLE.

• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT FULLY INSERT.

Re-cycling

Correct Disposal of Waste Electrical and Electronic Equipment (WEEE) by User in Private

Households in the EU

This symbol on the product or accessories indicates that they must not be disposed

of with your household wastes throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, recycle it responsibly

to promote the sustainable reuse of material resources. Instead it is your responsibility

to dispose of your waste equipment by handing it over to a designated collection point

for recycling WEEE. The separate collection and recycling of your waste equipment will

help conserve natural resources and ensure that it is recycled in a manner that protects

human health and the environment.

RoHS Declaration of Conformity

Directive 2002/95/EC of the European Parliament and of the Council on the

reduction of the use of certain hazardous substances in electrical and electronic

equipment, January 2003.

This lightening ﬂash with an arrow head symbol, within an equilateral triangle,

is intended to alert the user to the presence of un-insulated “dangerous voltage”

within the products enclosure that may be of sufﬁcient magnitude to constitute a

risk of electric shock to the persons.

Warning: To reduce the risk of electric shock, do not remove cover (or back). No

user-serviceable parts inside. Refer servicing to qualiﬁed service personnel.

This exclamation point within an equilateral triangle is intended to alert the user

to presence of important maintenance (servicing) instructions in the literature

accompanying the appliance.

This is a “Class II”, “double insulated apparatus”.

This apparatus must NOT have a safety connection to Earth.

monitoraudio.co.uk

For more speciﬁc information about where you can take your equipment for recycling please contact your local city/council

ofﬁce, your local waste disposal service or the outlet where you purchased your GSW12 product.

Background

The RoHS directive restricts the use of Lead (Pb), Cadmium (Cd), Mercury (Hg), hexavalent Chromium (CrVI), polybrominated

biphenyl (PBB) compounds, and polybrominated diphenyl ether (PBDE) compounds in electrical and electronic equipment

sold in the European Union.

Unpacking

Care must be taken at all times when handling the GSW12 due to the extreme weight of the product. We

recommend a two-person lift wherever appropriate.

The feet/spike assemblies and mains power cord/s are contained within the packaging and should be removed.

Please select the power cord appropriate to your Country/location. Mains voltage selection for 100-120 Vac or 220-240 Vac

operation is electronically auto selected.

To remove the GSW12 from its carton, place some protective material on the ﬂoor and having removed any items of packing

from the top of the pack carefully invert the carton. (Also see icons on the carton). Gradually pull the carton upwards to expose

the subwoofer, which will be presented with its base uppermost. Remove ﬁxing tape from the bag and expose the base of

the cabinet to allow ﬁtting of the spiked feet into the M10 threaded inserts as described below.

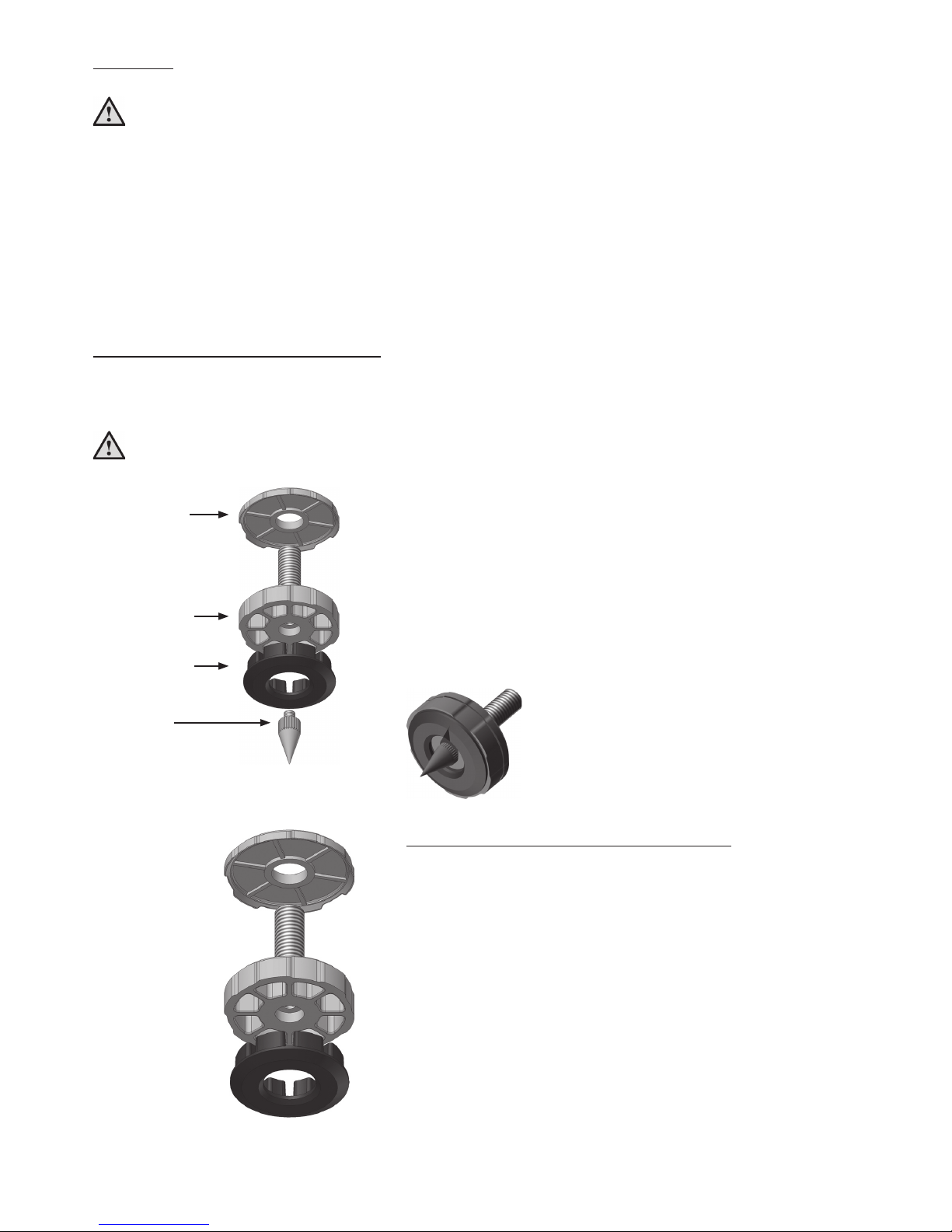

Spiked Foot Fixing For Carpeted Floors

The spiked foot assembly incorporates a spike for use on carpeted ﬂoors and also, a soft polymer pad (for use on wooden or

tiled ﬂoors).

Please ensure there are no hidden wires under the carpet, or trailing mains leads that could be damaged by the

spikes.

The foot comes fully assembled for use on carpeted ﬂoors. All that is

required is ﬁxing into the cabinet. This is achieved by simply screwing

the feet fully into the 4-threaded inserts in the underside of the cabinet.

If your carpet has a very thick pile, remove the soft polymer pad from the

foot to ensure the spike goes right through the carpet onto the ﬂoor. With

great care turn your cabinet the right way up. Place the cabinet in your

desired location, and check that it is level on all sides. If it is slightly off

level, unscrew the spike at the lowest point and check again. Continue this

process until the cabinet is fully level. Use the locking nut on the foot to ﬁx

the foot in place and to stop any unwanted vibrations.

Spiked Foot Fixing For Wooden/Hard Floors

For use on solid ﬂoors or where spikes are inappropriate, it is possible

to use the foot without the spike insert. To use the foot in this manner

carefully grip the knurled portion of the spike and rotate anti clockwise to

unscrew the spike fully.

You may ﬁnd it easier to ﬁrst remove the polymer pad to gain more

purchase on the spike.

The pad should be replaced before carrying out the levelling operation

previously described.

Locking Nut

Main Threaded

Assembly

Soft Polymer

Pad

Spike

Monitor Audio 2007 GSW12 Rev 1

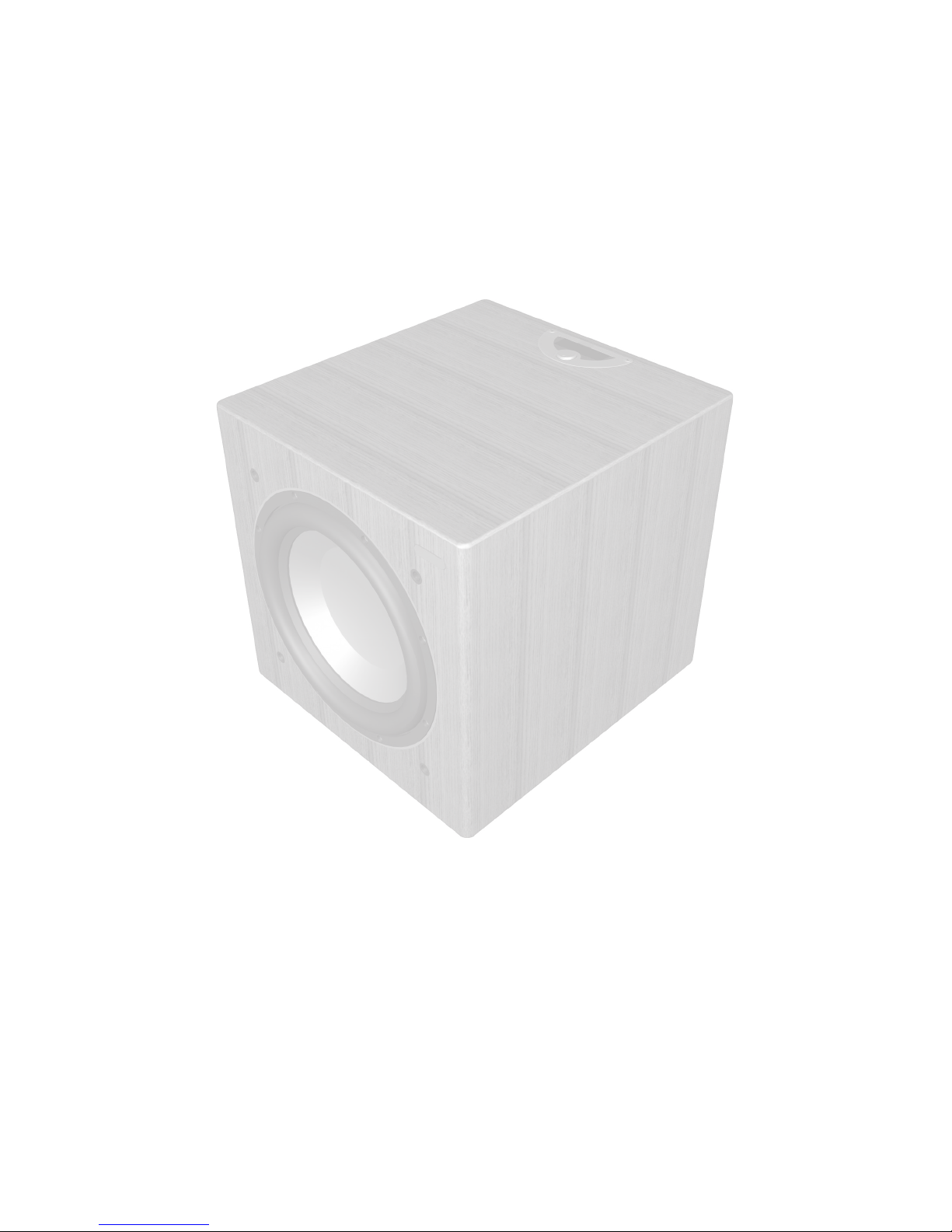

Introduction

Thank you for your purchase of Monitor Audio GSW12 subwoofer, which has been designed and constructed using quality

systems and materials to provide years of enjoyment, reliability and pride of ownership.

This product, as with all the Gold Signature range, is hand crafted from top to bottom using traditional woodworking skills for

our sumptuous cabinets, married with the state of the art technology of our renowned drive units.

Music is and should be a natural enhancement of life. It stimulates the imagination, changes your mood, helps you relax, and

provides endless hours of entertainment.

Please read through this manual to familiarize yourself with any safety advice and how best to set up your subwoofer to

achieve the very best listening experience.

Please retain this manual for future reference.

GSW12 Features

• Compact design with forward ﬁring 12” long-throw woofer.

• Class D ampliﬁer section with advanced SMPSU (Switch mode) power supply unit.

• Dynamic power limiter. DSP (Digital Sound Processing) control of the power ampliﬁer monitors available power and limits

certain frequencies dependant on available power reserve.

• Sealed cabinet for ultimate bass control and ease of installation.

• Main features and settings adjustable by remote control.

• Full DSP Control with all functions controlled in the digital domain, providing more advanced control of complex ﬁlter

characteristics than conventional analogue circuitry.

• Individual control of input sources. E.g.; an LFE input and an alternative input such as 2 channel hi-ﬁ amp can share a

single GSW12.

• 4 x pre-set EQ settings and 1 x user adjustable EQ setting.

• 10-band graphic Equaliser to provide room correction and ﬁne-tuning.

• System optimization and integration with a wider range of speaker applications.

• Auto switch on/off, or 12V trigger input. Controlled by DSP to provide accurate automatic switch on when an input signal

is detected.

• Front mounted IR sensor with LED to indicate remote actuation.

• Night mode setting.

monitoraudio.co.uk

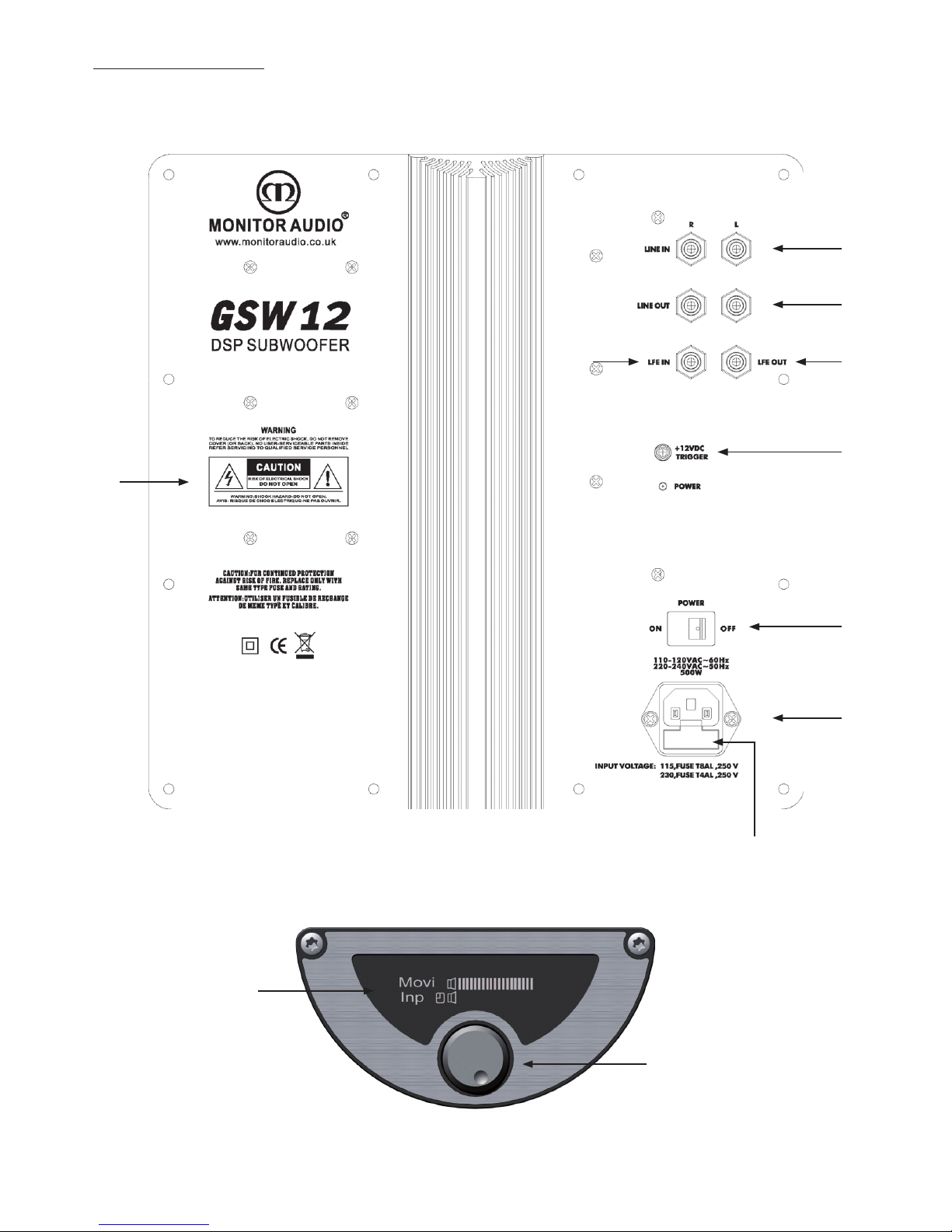

Amp and Control Panel

Monitor Audio 2007 GSW12 Rev 1

1. RCA Line Level Inputs (Stereo Left & Right)

For connection to a 2 channel/ stereo ampliﬁer system. Connection should be provided by a pair of high-quality signal

cables from the pre-out section of an ampliﬁer. Note: - cable lengths should not exceed 10 metres to avoid interference

from other electrical appliances.

2. RCA Line Level Outputs (Stereo Left & Right)

RCA line level outputs are provided in order to use other sub-woofers in conjunction with the GSW12 by ‘daisy chain’ type

connection. The outputs are link out only connections and do not provide any form of ﬁltering.

3. LFE Input (RCA Type)

This input is to be used when connecting the GSW12 to an AV ampliﬁer/receiver. When using the LFE input, the crossover

function in the menu/set-up is not used. This is due to the crossover function being controlled by the AV ampliﬁer/

processor to which it is connected. Please refer to the crossover table on page 10 for further advice on which setting to

use. Input between LFE and Stereo input (Inp) can be switched using the ‘LFE’ button on the remote control unit.

4. LFE Output/Link (RCA Type)

LFE output is provided in order to use other sub-woofers by ‘daisy chain’ type connection. The output is a link out only

connection and does not provide any form of ﬁltering.

5. 12 Volt Trigger Input ~ Centre Pin = +12Vdc.

For external power control from AV ampliﬁer/Receiver to the GSW12. Monitor Audio recommend using this function and a

lead is supplied. This 12 volt signal is supplied by the AV amp/receiver and tells the GSW12 to turn on from standby mode.

This allows a more accurately controlled method of the auto on/off function. It is also a lot more energy efﬁcient. The

display will change from a clock to a ‘3.5mm jack’ image (see key on page 1 of Set Up Guide for illustrations). The stand by

function on the remote will not be operable when using the +12v trigger.

6. Mains Power Switch

Mains ‘rocker switch’ providing overall power off and on/auto. In the on/auto mode, the unit will turn on when an input

signal is sensed, and will turn off after a user preset delay when the signal is removed (source turned off).

7. IEC Mains Power Connector/Fuse Location

The GSW12 is supplied with a two-pin mains input socket for connection to the mains supply. Use ONLY the appropriate

IEC mains lead provided with the product. Also ﬁtted is an external mains fuse. If a fuse blows during operation a spare

fuse is provided within the fuse holder for replacement. If you wish to change the fuse, you can do this by removing the

IEC mains lead and carefully levering out the original fuse from its holder below the IEC mains input socket (7a). If the fuse

blows again it is advisable to seek help from an authorised service agent. DO NOT attempt to re-ﬁt a further fuse as this

could result in serious damage to the ampliﬁer unit.

8. Recycling and Approval Certication

The approval identities will differ to that displayed depending on the country you are in.

9. Display

This LCD display provides full feedback of the ampliﬁer settings. The default display will show the EQ settings, the

output volume and graphic output display (constantly changing). When the enter button is pressed (on the remote), or the

encoder pushed down, the ‘menu’ system is displayed. For full details of the menu system, please go to page 9.

10. Push-Turn Control Button

This gives you full control (except EQ selection) of your GSW12. By default, you can adjust the volume (by

turning the control button) and enter the menu system. Pushing the rotary encoder allows access of the menu system

illustrated on page 9. For more detailed operation and set up please refer to page 10.

Output Level

Graphic Output Display

EQ Setting (e.g. Impact)

Input (e.g. Stereo Input/LFE)

monitoraudio.co.uk

Remote Control

NOTE: - The remote control should be directed towards the IR lens located on the front of the GSW12 cabinet. For distance and

angle limits please refer to the Set Up Guide (page 2).

1. Mute

Toggle between mute and normal operation. Mute can only be accessed by

using the remote control.

2. Power/ Standby

Toggle between standby on/off. Standby can only be operated by the remote

control unit. This function will not be operable when using the +12v trigger.

3. LFE

Toggle between LFE and Stereo input. The input mode can only be accessed by

using the remote control.

4. Night Mode

Toggle between night mode on/off. Night mode can be accessed by the

remote control and by the main control panel menu.

5. Movies

Toggle between movie mode and FLAT/ USER mode.

6. Dynamic

Toggle between dynamic mode and FLAT/ USER mode.

7. Music

Toggle between music mode and FLAT/ USER mode.

8. Impact

Toggle between impact mode and FLAT/ USER mode.

All pre-set EQ’s (5-8) can only be accessed by the remote control.

9. Menu arrow keys

Menu control and settings adjustment. The menu keys work in the same

way as the push and turn control knob on the main control panel. Volume is

facilitated by the up/down keys by default. Menu scroll is facilitated by the

left/right keys.

10. Enter key

Enter settings menu and select desired menu function for adjustment.

11. Exit Key

Exit set up menu. Press once for back a step and again for complete exit from

the menu system.

Monitor Audio 2007 GSW12 Rev 1

Andere Handbücher für GSW12

Inhaltsverzeichnis

Andere Monitor Audio Sprecher Handbücher

Monitor Audio

Monitor Audio AWC265-T2 Bedienungsanleitung

Monitor Audio

Monitor Audio Bronze BR1 Bedienungsanleitung

Monitor Audio

Monitor Audio apex 10 Bedienungsanleitung

Monitor Audio

Monitor Audio 100 series Installations- und Betriebshandbuch

Monitor Audio

Monitor Audio GS10 Bedienungsanleitung

Monitor Audio

Monitor Audio CS180 Bedienungsanleitung

Monitor Audio

Monitor Audio GOLD GX series Bedienungsanleitung

Monitor Audio

Monitor Audio air stream WS100 Bedienungsanleitung

Monitor Audio

Monitor Audio CS160 Bedienungsanleitung

Monitor Audio

Monitor Audio soundframe 1 i-w Service-Handbuch

Monitor Audio

Monitor Audio Loudspeaker Platinum Series Bedienungsanleitung

Monitor Audio

Monitor Audio PLATINUM IN-CEILING II Bedienungsanleitung

Monitor Audio

Monitor Audio Silver RS Bedienungsanleitung

Monitor Audio

Monitor Audio Monitor Reference Series Bedienungsanleitung

Monitor Audio

Monitor Audio M1 Bedienungsanleitung

Monitor Audio

Monitor Audio Gold Reference GR20 Bedienungsanleitung

Monitor Audio

Monitor Audio Radius R225 Bedienungsanleitung

Monitor Audio

Monitor Audio Vector Bedienungsanleitung

Monitor Audio

Monitor Audio Silver 7G Series Bedienungsanleitung

Monitor Audio

Monitor Audio Bronze Series Bedienungsanleitung

Monitor Audio

Monitor Audio Controlled Performance series Bedienungsanleitung

Monitor Audio

Monitor Audio CSS230 Bedienungsanleitung

Monitor Audio

Monitor Audio GSW12 Bedienungsanleitung

Monitor Audio

Monitor Audio ASB-10 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
