Monitor Audio Radius R225 Bedienungsanleitung

©Monitor Audio 2005

Radius 225/ 250 Wall Plate Fixing Instructions

This instruction sheet explains in detail how to fix your Radius 225/

Radius 250 to the wall by using the wall fixing plate. This product

has been designed using the most up-to-date computer technology

to provide you with a secure fixing for your loudspeakers, whether

you want to position them horizontally or vertically. It has also

been designed to ensure that the exceptional sound quality is

maintained.

Please remember to always read the instructions first as they

are sequenced to provide a safe way of working.

WARNING: For safety reasons do not attempt to fix these

speakers to your wall if you are unsure of your ability to

provide a secure and safe fixing.

You will need to determine; the structure of the wall, where to fit the

bracket and if your loudspeaker cable is going to be run through the

wall and out through the cable hole in the fixing plate. If unsure,

please obtain the services of a competent qualified tradesperson.

WARNING: Ensure that there are no water pipes or electricity

cables running behind where the wall bracket is going to be

secured. Work from secure steps and avoid trailing wires.

ALWAYS CONNECT YOUR CABLES TO THE LOUDSPEAKERS

BEFORE CONNECTING THEM TO THE AMPLIFIER

©Monitor Audio 2005

Radius 225/ 250 Wall Plate Fixing Instructions

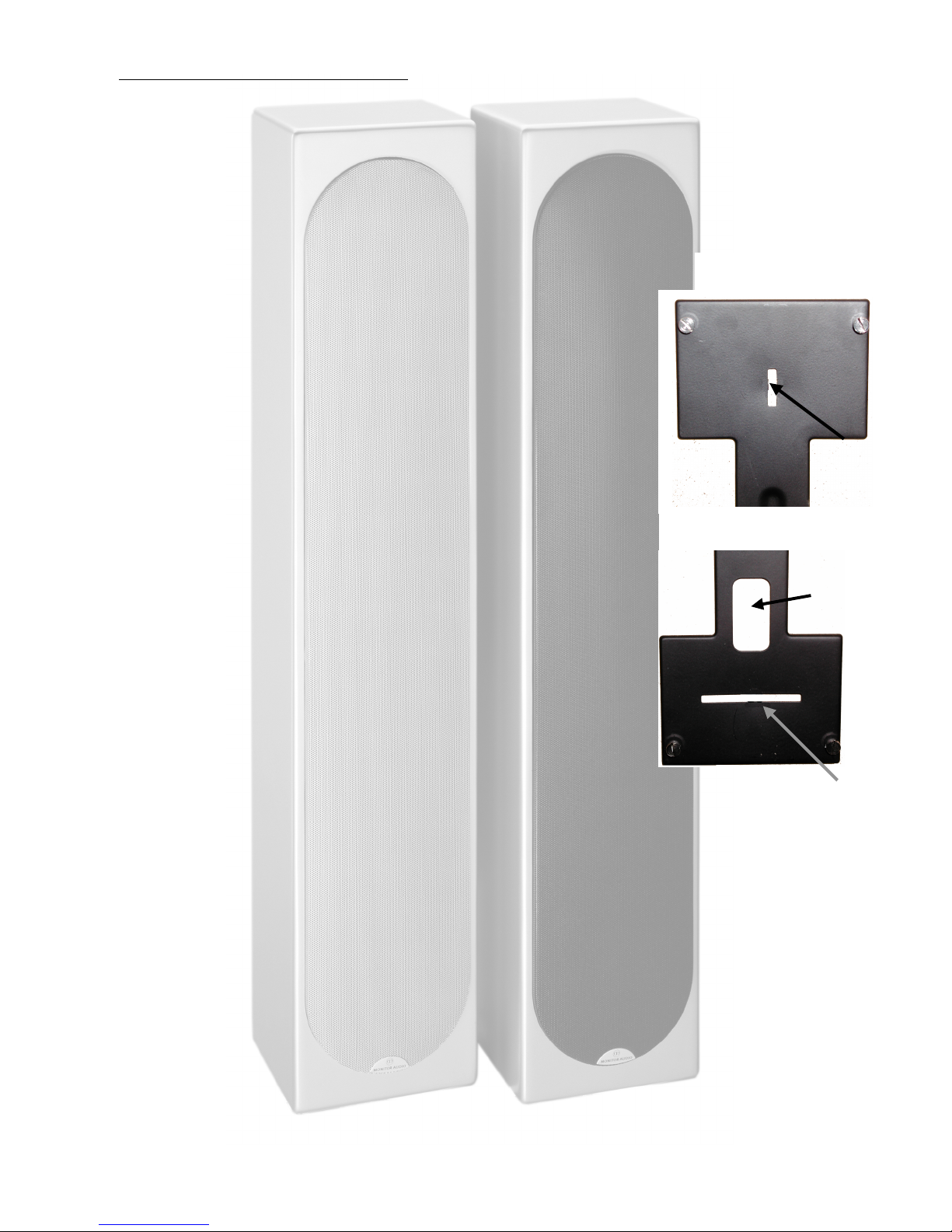

Fixing

Slot

Bottom

Section

Top

Section

Fixing

Slot

FIXING INSTRUCTIONS

1. Decide where you are going to position your Radius 225/ 250

loudspeakers. You can position them horizontally (centre

channel) or vertically (left/ right, front/ rear).

NOTE: The loudspeaker will drop 6mm when placed on the

fixing plate, therefore, take that into account when considering

fixing.

2. Hold the fixing plate to the wall (in the

desired location), and mark the fixing

positions in the two long thin slots. The

centres of the two fixing points are 474mm

apart for the Radius 225 and 624mm for the

Radius 250.

3. For fixing to plasterboard (sheet-rock) or a

solid wall use a suitable 6.5mm (1/4”) drill

bit. Drill the two positions deep enough to

accept the wall plugs provided, this should

be 30mm (1 1/8”). Insert the wall plugs into

the wall. If your cable has been run through

the wall, feed it through the hole (indicated

above) in your wall fixing plate and then

screw the bracket to the wall using the

25mm (1”) screws provided.

3a.For fixing to a wooden wall/structure, use a 2mm drill bit

to drill 2 pilot holes and use 25mm screws to secure the

bracket.

4. Connect your cables to the terminals on the loudspeaker. We

recommend that you use just bare wire into the through hole in

the terminals, and tighten the securing nut.

5. Hook your loudspeaker onto the locating lugs on the fixing

plate. Ensure all four are lined up correctly before pushing

down into place.

Cable

through

hole
