Monoprice Crystal Pro 44029 Bedienungsanleitung

24" Crystal Pro™ Monitor

P/N 44029

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to

these safety warnings and guidelines. Please keep this manual in a safe place for

future reference.

•This device is intended for indoor use only.

•Do not expose this device to water or moisture of any kind. Do not place

drinks or other containers with moisture on or near the device. If moisture

does get in or on the device, immediately remove it from its power source

and allow it to fully dry before reapplying power.

•Do not place the monitor on an unstable surface where it could fall and

cause either personal injury or damage to the monitor and/or other

equipment.

•Do not expose this device to excessive vibration or extreme force, shock, or

fluctuations in temperature or humidity.

•Do not expose this device to excessively high temperatures. Do not place it

in, on, or near a heat source, such as a fireplace, stove, radiator, etc. Do not

leave it in direct sunlight.

•This device ventilates excessive heat through the slots and openings in the

case. Do not block or cover these openings. Ensure that the device is in an

open area where it can get sufficient airflow to keep from overheating.

•Do not place or install this device in an area where it can be exposed to

excessive amounts of dust, humidity, oil, smoke, or combustible vapors.

•Prior to operation, check the unit and power cord for physical damage. Do

not use if physical damage has occurred.

•Before plugging the unit into a power outlet, ensure that the outlet

provides the same type and level of power required by the device.

•Unplug this device from the power source when not in use.

•Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure

that the power cord does not present a tripping hazard.

•Never unplug the unit by pulling on the power cord. Always grasp the

connector head or adapter body.

•Ensure that power is turned off and disconnected before making any

electrical connections.

•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

•This device has no user serviceable parts. Do not attempt to open, service,

or modify this device.

•Do not leave a single image on the display for a long period of time. Doing

so could cause "burn-in" of the image. It is recommended to use a variable

desktop background and to use a screen saver to prevent "burn-in".

Alternatively, ensure that the monitor is powered off for at least 2 hours out

of every 12.

CUSTOMER SERVICE

The Monoprice™ Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link on

our website www.monoprice.com or via email at support@monoprice.com. Check

the website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items

listed below. If anything is missing or damaged, please contact Monoprice™

Customer Service for a replacement.

1x 24" Gaming Monitor

1x Stand Base

1x Stand Stem

1x High Speed HDMI® Cable

1x AC Power Adapter

1x User's Manual

SAMPLE CONNECTION DIAGRAM

Note: When powering on your system, turn the monitor on before turning on your

computer.

OSD MENU

Use the control buttons to access the OSD

menu. The top level of the menu allows access

to the quick View Mode and Input Select menus,

as well as the full Main Menu.

Once a menu is displayed, the following button

indicators will appear on screen over the

buttons that activate those functions.

OSD Menu Options

Select: Use this option to select various options within the OSD menu

system. If editing a value, this option accepts and saves the edited value.

Cancel: Use this option to go back or exit a submenu or option. If editing a

value, this option cancels any changes and exits the option.

Up: Use this option to move the menu highlight up.

Down: Use this option to move the menu highlight down.

Back: Use this option to go back or revert to a previous menu.

Main Menu: Use this option to access the Main Menu. Press and hold the

button for a few seconds to exit the Main Menu.

Left: Moves the selection to the left or decreases an edited value.

Right: Moves the selection to the right or increase an edited value.

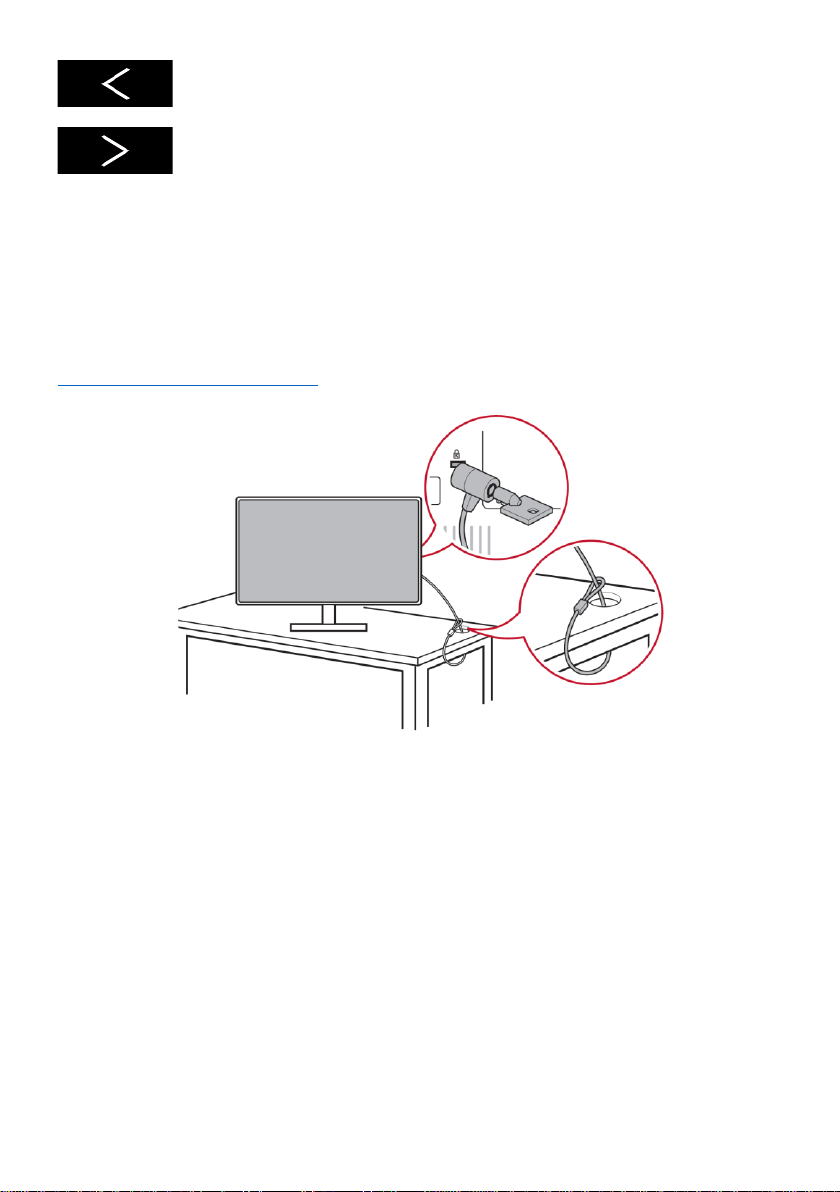

KENSINGTON SECURITY SLOT

This monitor is equipped with a Kensington® Security Slot™, which allows you to

secure the monitor to a table or desk to prevent theft. For more information, refer to

https://www.kensington.com/

TECHNICAL SUPPORT

Monoprice™ is pleased to provide free, live, online technical support to assist you

with any questions you may have about installation, setup, troubleshooting, or

product recommendations. If you ever need assistance with your new product,

please come online to talk to one of our friendly and knowledgeable Tech Support

Associates. Technical support is available through the online chat button on our

website www.monoprice.com or through email by sending a message to

tech@monoprice.com. Check the website for support times and links.

SPECIFICATIONS

P/N

44029

Display Size

23.8"

Maximum Resolution

1920x1080p

Aspect Ratio

16:9

Refresh Rate

75Hz

Video Inputs

1x HDMI® 1.4, 1x VGA

Panel Type

IPS

Number of Colors

16.7M Colors

Maximum Brightness

250cd/m2

Default Color Temperature

6500K

Contrast Ratio

1000:1

Viewing Angles (H/V)

178°/178°

Response Time

14ms

Compatible VESA® Mounting Size

100x100 (2 holes spaced 100mm apart)

Input Power

19 VDC, 1.5A

AC Adapter Input Power

100 ~ 240 VAC, 50/60 Hz

Typical Power Consumption

23 watts

Standby Power Consumption

0.5 watts

Kensington® Security Slot™ Compatible

Yes

Stand Tilt Adjustment

-5 ~ +20°

Operating Temperature

+41 ~ +95°F (+5 ~ +35°C)

Operating Humidity

20 ~ 90% RH, noncondensing

Dimensions (with stand) (WxHxD)

21.2" x 20.2" x 7.3" (539 x 513 x 186 mm)

Weight (with stand)

8.6 lbs. (3.9 kg)

REGULATORY COMPLIANCE

Notice for FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Modifying the equipment without Monoprice's authorization may result in the

equipment no longer complying with FCC requirements for Class B digital devices. In

that event, your right to use the equipment may be limited by FCC regulations, and

you may be required to correct any interference to radio or television

communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Notice for Industry Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Monoprice™, Crystal Pro™, and all Monoprice logos are trademarks of Monoprice Inc.

VESA® is a registered trademark of the Video Electronics Standards Association.

HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other

countries.

Kensington® is a registered trademark of ACCO Brands Corporation. Kensington

Security Slot™ is a trademark of Kensington Computer Products Group.
