1
user guide and warranty
English
1 Safety tips/warning
2 At a glance
3 Box contents
4 Battery installation
5 Operation
6 Care and storage
7 Troubleshooting
8 Warranty
Contents
1
Important Monster®
performance & safety tips
To avoid damage to hearing, make sure
that the volume is turned down before
turning on your BeatsTM.
Once Beats are placed over your
ears, gradually raise the volume
to a moderate level.
Avoid listening at loud volume levels for
prolonged periods as permanent hearing
damage or hearing loss may occur.
Be aware of your surroundings and use Beats
headphones responsibly.
Do not use Beats headphones when it is
unsafe to do so: while operating a vehicle,
crossing street crosswalks, or during any
activity that requires your full attention
and ability to hear.
English
The safety of your ears
is in your hands
Get the most out of your equipment by
playing it at a safe level—a level that lets the
sound come through clearly without annoying
distortion, and most importantly, without
affecting your sensitive hearing.
Learn how to establish a safe listening level
and review other important safety guidelines
from the Consumer Electronics Association
and Deafness Research Foundation.
Visit website at www.drf.org, www.ce.org.
ADVISORY
HEARING DAMAGE
SAFETY
Information courtesy of the Deafness Research Foundation.
CEA is the Consumer Electronics Association
2
At a glance
BeatsTM by Dr. DreTM headphones
Adjustable headband
Swivel ear cups
Beats mute button
Power switch
L
3
Box contents
Monster 1/8-inch to 1/4-inch stereo adapter
Monster®iSoniTalk™cable (black)
AAA batteries (2)
Touring case
Beats™by Dr. Dre™Cable (red)
Monster Clean Cloth™with Aegis Microbe Shield™
4
power
Battery compartment is located
on the outside of the left ear cup.
Grip left ear cup using two hands.
Press down and twist counter-clockwise
approximately 1/8th turn.
Replace old batteries with two fresh
AAA-size alkaline or lithium batteries.
Replace battery cover and carefully
twist clockwise to lock.
NOTE the locking tabs on the inside
of the battery cover. Carefully align them
with the holes in the battery compartment
connect
Beats™is compatible with iPhone™
, BlackBerry®
and other music-enabled phones. Insert
the Monster®iSoniTalk™cable connector
with two rings into the Beats headset
and the connector with three rings
into your music-enabled phone. To answer
calls, press the microphone button on
the cable and talk. To hang up, press the
microphone button again.
listen
Note the “L” and “R” markings on the
inside of the headband. The “L” earcup
goes on the left ear and the “R” goes on
the right ear.
Note the power switch on the right
ear cup.
To listen, move power switch to ON (far
left) position. Red LED will illuminate.
Beats will not work when the power switch is in
the OFF (far right) position or without batteries.
In ON position, red LED will turn amber if
battery power is low. Replace the batteries
as soon as possible with new batteries.
Use rechargable batteries if possible.
5
mute
To mute audio, simply press and hold
the Beats mute button on the center of the
right ear cup.
To resume listening, release the mute button.
adjust
The headband is adjustable to fit
different head sizes.
Grip the headband with both hands.
Pull out equal amounts of headband on
the left and right sides for a comfortable fit.
Ear cups should be centered over the ears.
fold
Beats folds for convenient storage in the
Beats touring case. Before folding remove
the cable.
Note the two folding hinges on the Beats
headband. Fold one side, then the other.
Grip the headband and apply pressure
to hinge, not ear cup when folding.
Do not fold both sides simultaneously.
TIP: Beats powered isolation can be used
without a music source to simply reduce
undesirable sounds, such as airplane
engine noise.
sound check
For the best iPod®or iPhone™listening experience
with Beats, activate iTunes®Sound Check. Sound Check
standardizes the volume of all the songs in your music
library. Beats is specially designed to provide a powerful
but safe listening experience with Sound Check
activated. Learn more about iTunes Sound Check at
http://docs info.apple.com/article.html?artnum=61655
6

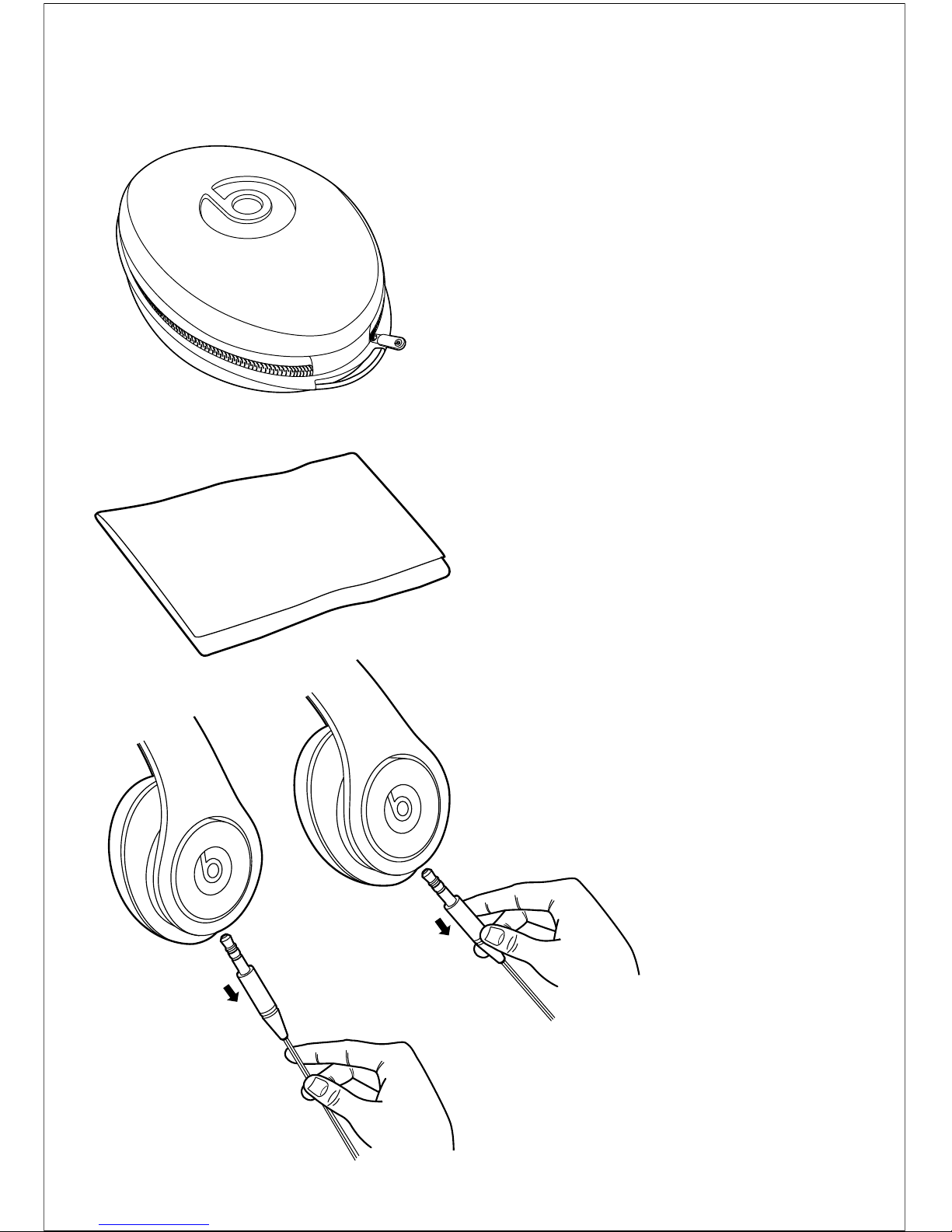

disconnect
Gently remove headphone cable by
pulling the cable connector. Do not pull
directly on the cable. This may cause
unnecessary wear and damage to the
Beats cable jack.
maintain
Clean ear cups and headband regularly
with the supplied Monster Clean Cloth,
TM
specially bonded with Aegis Microbe
ShieldTM antimicrobial technology.
Avoid exposure to water, temperature
extremes, and high humidity.
store
When not in use, always store your Beats
in the touring case. Use the removable
compartment for cables and accessories.
Do not store other items in the case.
This can damage your Beats.
TM
Keep headphone case closed,
and store in a clean, dry environment.
Avoid storage in extreme heat or cold.
Yes
No
7
Troubleshooting
PROBLEM SOLUTION
No sound Check mute button (press it)
Make sure batteries are good
Make sure Beats are switched on
Check plug connection
Check player/audio source
for power and volume
Sound in one earphone only Make sure connector is
completely plugged in
Check cable and plug for damage
Make sure audio source is stereo
(not mono)
Powered isolation not working Replace batteries (AAA)
properly, or distorting sound
Power indicator LED is amber Replace batteries (AAA)
Worn or damaged ear cups Replace ear cups
