TABLE OF CONTENT
CHAPTER 1 - Preface ...................................................... 02
1.1 Regulations Information..................................................02
FCC Information........................................................................03
RF Exposure Information(SAR).............................................04
1.2 Safety Information ............................................................05
1.3 Conventions For This Manual..........................................06
CHAPTER 2 - Getting To Know The Basics ..................... 06
2.1 Product Specifcation........................................................06
2.2 Preparing your Computer ................................................08
2.3 Product Overview...............................................................09
CHAPTER 3 - Getting Started ......................................... 14
3.1 AC Adapter...........................................................................14
3.2 Knowing The Keyboard .....................................................15
3.2.1 For Keyboard Users........................................................15
3.3 Using the touchpad / clickpad........................................17
3.3.1 Touchpad Usage .............................................................18
CHAPTER 4 - Bios Setup ................................................. 18
4.1 About Bios Setup ...............................................................18
4.1.1 When To Use Bios Setup? ............................................18
4.1.2 How to Run BIOS Setup ?.............................................19
4.2 BIOS Setup Menu ...............................................................19
4.2.1 Main Menu........................................................................20
4.2.2 Advanced Menu...............................................................21
4.2.3 Security Menu .................................................................22
4.2.4 Boot Menu........................................................................23
4.2.5 Exit Menu..........................................................................23
02
EN
The information in this user’s manual is protected by copyright laws, all parts of
this manual, including the products and software described in it, can not be
reproduced, transmitted, transcribed, stored in a retrieval system, nor
translated into any language.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR
OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR
USE OF THIS MANUAL.
The illustrations in this user’s manual are for reference only. Actual product
specifcations may vary with territories. The information in this user’s manual is
subject to change without notice.
CHAPTER 1
1.1 Regulations Information
NOTICE
Preface
•CE compliance
This device is classed as a technical information equipment (ITE) in class B
and is intended for use in living room and ofce. The CE-mark approves the
conformity by the EU-guidelines:
- EMC Directive 2014/30/EU,
- Low Voltage Directive 2014/35/ EU(equals A2 : 2013),
- RF Directive 2014/53/EU
The unit can be operated at an ambient temperature of max. 35°C (95°F). Do
not subject it to temperatures below 5°C (41°F) or above 40°C (104 °F).
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
PREVENTION OF HEARING LOSS
CAUTION: Listening to music at high volume levels and for extended durations
can damage one’s hearing. In order to reduce the risk of damage to hearing,
one should lower the volume to a safe, comfortable level, and reduce the
amount of time listening at high levels. Headsets should comply with EN
50332-2 requirements.
03
EN
FCC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved
by the grantee of this device could void the user’s
authority to operate the equipment.
CAUTION:
04
EN
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to
radio waves. This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6
W/kg. Tests for SAR are conducted using standard operating positions
accepted by the FCC with the EUT transmitting at the specified power
level in different channels.
The FCC has granted an Equipment Authorization for this device with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on file with the
FCC and can be found under the Display Grant section of www.fcc.gov/
eot/ea/fccid after searching on FCC ID: 2AKHFAX201NG.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved
by the grantee of this device could void the user’s
authority to operate the equipment.
CAUTION:
05
EN
1.2 Safety Information
Do not apply heavy pressure to the computer
or subject it to any form of strong impact as
this can damage the computer’s components
or otherwise cause it to malfunction.
1
Never cover or block the air vents including
those located at the base of the computer.
Never cover your computer or AC adaptor with
any object.
2
Do NOT expose to or use near liquid, rain, or
moisture.
Do NOT use the modem during electrical
storms.
4
Do not use or expose this device around
magnetic felds as magnetic interference may
affect the performance of the device.
5
To keep your computer in prime operating
condition, protect your work area from direct
sunlight.
3
06
EN
1.3 Conventions For This Manual
2.1 Product Specifcation
This message contains important information
that must be followed for safe operation.
CAUTION:
NOTE: This message contains information for special situations.
CHAPTER 2
Getting To Know The Basics
This User’s Manual provides technical information of instructions and illustra-
tions on how to operate this notebook for the customer. Please read this manu-
al carefully before using this notebook.
Physical Characteristic
Processor - CPU
Graphic Card - GPU
Storage
Webcam
Dimension 356,4mm x 233,73mm x 16,8mm
Support Processor 10. Generation i7 10750H
Graphic Card 4 GB GDDR6 nVIDIA® GeForce® GTX 1650
HDD 2,5” Sata HDD 7mm
Webcam IR camera with D-MIC*2
SSD 2 Slot (Only Support one M.2 Sata SSD)
M2 2280
Slot 1: NVMe/PCIEX4
Slot 2: NVMe / PCIEX4 / SATAX1
RAID 0/1 Support
Weight 1,55 kg +/- 5%
DDR4 DDR4 2933MHz
Bellek
07
EN
MODEL IS DESIGNED TO USE WITH THE
DC INPUT: 90 Watts 19V / 4.74A
CAUTION:
Please use the match adapter basing on the rating of BIOS, to avoid
overheat and abnormal of adapter.
Battery Li- polymer Battery
3 cells (3S1P 4100mAh) 46.74 Wh
NOTE
I/O Port
Audio
Input
Display
Communication Port
Power
DC-In x1
USB x2 USB 3.1 (Gen1)
x1 USB 3.1 Type C (Gen1)
x1 USB 2.0
RJ45 x1
Card Reader x1 (SD/SDHC/SDXC)
HDMI x1
Audio Out x1
Microphone In x1
Audio Codec Azalia standard support, D3 mode support, Smart AMP support
Speaker Build-in 2 speakers (2W / Each)
Microphone Digital Microphone Support
Keyboard Memrane Keyboard backlight support
Pointing Device TDA1470 114.5x70x0.8mm
LCD 15,6” FHD, 16:9 Narrow Border
Lan Supports 10/100/1000 Mb/Sec,
DSM (Deep sleep mode) support
Wireless Lan M.2 2230 w/ CNVI interface (Intel WiFi6 AX series)
IEEE802.11AX mode support,
AC Adapter Automatics Voltage adjustment between 100 and 240V AC
50/60Hz, 90 Watts (19V/4,74A),
Battery Li- polymer Battery, soft pack,
6 cells (3S2P 7900mAh) 91.24 Wh
08
EN
2.2 Preparing your Computer

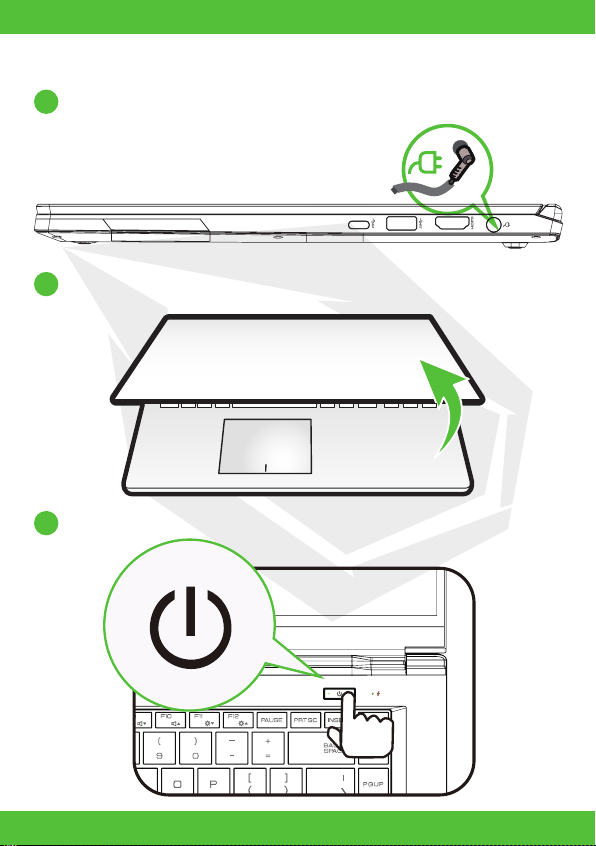

AConnect the AC adaptor’s DC output plug to the DC IN jack.
BThe display panel can be opened to a wide range of angles for optimal viewing.
CPress the power button to turn on your notebook computer.
09
EN
2.3 Product Overview
Please become familiar with each component before you operate the computer.
Top-Open View
The product’s color/ LED color, I/O port, indicator location, and
specification will depend upon the actually shipping product.
NOTE
When you are not using the computer, keep the
LCDscreen closed to protect it from dust.
CAUTION:
1
1
2
3
4
5
6
7
8
