OWNER'S MANUAL

16" X 24"

SIDE LOCKER

M162403SL

www.montezumastorage.com

LIFE ORGANIZED

Montezuma is committed to helping you succeed in both your work

and personal life by being organized, prepared and equipped with

the right tools, gear and home supplies at your finger tips.

We are here to ensure that your life is organized.

Thank you for your purchase of this Montezuma Side Locker.

ATTENTION

TO REDUCE THE RISK OF INJURY, THE USER MUST READ AND

UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THIS

PRODUCT FOR THE FIRST TIME. SAVE THESE INSTRUCTIONS FOR

FUTURE REFERENCE.

Fill in the following information and retain

this owner's manual for future reference:

MODEL(S):

DATE OF PURCHASE:

PLACE OF PURCHASE:

RECEIPT NO:

SPECIFICATIONS

MAXIMUM PRODUCT WEIGHT (INCLUDING CONTENTS): 450 lb (204 kg)

MAXIMUM DRAWER WEIGHT: 100 lb (45 kg)

MAXIMUM SHELF WEIGHT CAPACITY: 100 lb (45 kg)

16" x 24" 3-DRAWER SIDE LOCKER

M162403SL

OVERALL DIMENSIONS:

15-7/8" W x 24-5/8" D x 59-3/4" H

(40.3 cm W x 62.5 cm D x 151.9 cm H)

NET WEIGHT: 128 lb (58 kg)

INSIDE TILL/DRAWER DIMENSIONS:

REF DIMENSIONS QTY

A12-7/8" W x 17-3/4" D x 7-7/8" H

(32.7 cm W x 45 cm D x 20 cm H) 1

B16-3/4" W x 9-3/8" D x 2" H

(42.7 cm W x 23.8 cm D x 5 cm H) 3

WE RECOMMEND USING THIS SIDE LOCKER

WITH ANY MONTEZUMA 24" DEEP TOOL COMBO

THAT IS 46" OR WIDER

PARTS LIST

To order replacement parts, email service@montezumastorage.com or call 1-800-459-4409

(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.

Replacement keys may be ordered using the code that appears on the face of the lock.

Not all parts are covered under warranty. Those parts not covered can be purchased.

REF DESCRIPTION PART NUMBER QTY

1M4 x 5 mm Phillips Head Bolt 320060 2

2Handle 301883 1

3Till Liner 552158 1

4Lock and Key (1201–1204) 304166 1

5Shelf 242013 2

6Shelf Support 203902 8

7Shelf Liner 552157 3

8Drawer Liner 552159 3

9Mat 314219 1

10 Slide Set 300027–300028 3

11 EVA Liner 600100 2

12 End Cover 314047 4

13 M6 x 20 Counter Sink Screw 320049 4

14 Hanger 241998 1

15 Connector 241999 1

16 M6 x 12 Hex Bolt 321051 4

17 Cantridge Magnet 312033 1

18 Gas Strut 303217 2

x x x

The keys

are taped

to the shelf.

M4 x 5 mm Phillips

Head Bolt

Pre-installed

For attached the handle

Handle

Pre-installed

For opening lid

2 1

Till Liner

For protecting your till

Shelf Liner

For protecting your shelves

Drawer Liner

For protecting

your drawers

3 3

x x x

Lock and Key

For securing

your valuables

Shelf

For placing at

desired height

Shelf Support

For installing the shelf

2 8

Mat

For the bottom pivot

of the door

Slide Set

Pre-installed

For installing drawers

End Cover

Pre-installed on side

panel – remove when

hanging on a tool cabinet

EVA Liner

For attaching to the

bottom of the side locker

2 4

1 2

Connector

For attaching the side

locker to a tool combo

M6 x 12 mm Hex Bolt

For attaching

the connector

Cantridge Magnet

Pre-installed

For keeping door closed

Gas Strut

Pre-installed

For lifting the hutch lid

Hanger

For hanging the side

cabinet on a tool cabinet

M6 x 20 Counter

Sink Screw

For installing the hanger

HANGER INSTALLATION

The hanger can be mounted on either side

of a tool cabinet. If necessary, remove the

side handles from the tool cabinet.

To install the hanger, position it over the

holes in the tool cabinet and attach using

four M6 x 20 counter sink screws. Tighten

securely.

EVA LINER INSTALLATION

Attach two EVA liners to the side locker in

the locations indicated.

SIDE LOCKER-CABINET

CONNECTION

Remove the end covers from the side panel of the side locker. Hang the side locker on

your tool cabinet.

Position the connector on the back of the side locker and tool cabinet. Attach to the side

locker using two M6 x 12 hex bolts and to the tool cabinet with two M6 x 12 hex bolts.

SHELF INSTALLATION

Insert shelf supports inside the side locker

at the desired heights.

Place the shelves on the shelf supports.

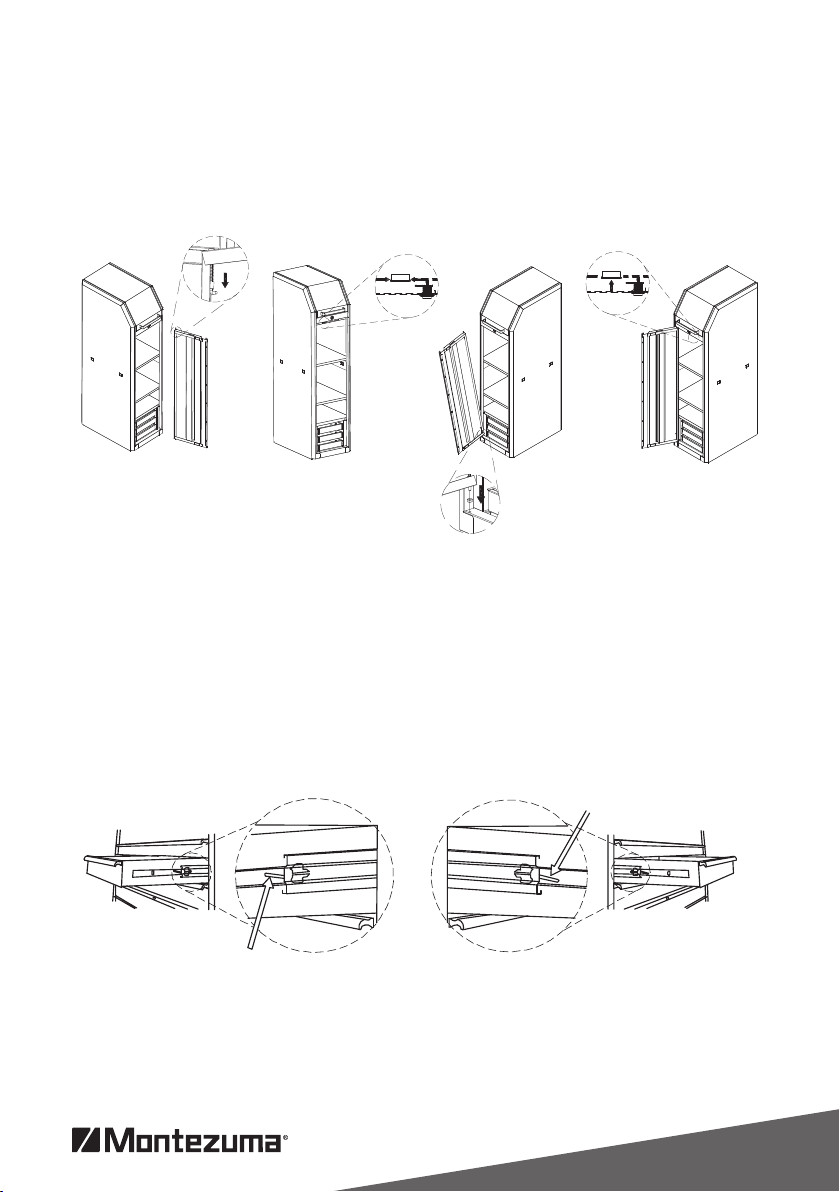

DOOR REVERSAL

To reverse the door, pull off the pivot and remove the door. Then install the door on the

other side by inserting the pivot. Be sure to move the mat on the bottom of the door and

the magnet to the other side.

DRAWER REMOVAL

Pull the drawer out so that it’s almost fully extended. Push up on the black release lever

on one side, while pushing down on the black release lever on the other side. While

holding the levers in these positions, pull the drawer outward until it is released from the

drawer slide.

ONE SIDE – PUSH UP OTHER SIDE – PUSH DOWN

DRAWER REPLACEMENT

Extend the drawer slides from the unit. Insert the brackets on each side of the drawer

into the slots in the slides, being careful that they are properly positioned. Once properly

inserted, completely close the drawer to set the slides in position.

MAINTENANCE

Periodically clean the drawer fronts, trim, and other surfaces with mild detergent and water.

Lubricate the slides (twice a year) with a product like WD40 or other quality lubricant. This

is especially important in low temperatures, which can cause the bearing to become stiff.

Grease and oil can be removed with most standard cleaning fluids. For safety, use a

nonflammable cleaning fluid.

SAFETY

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Close the cover and lock the door before moving this product.

DO NOT stand or lean on this product.

WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could

slip, which may cause personal injury.

BE CAREFUL when opening more than one drawer. The product could become unstable

and tip, which may cause personal injury or product damage.

DO NOT mount this product on a truck bed or any other moving object. This may cause

personal injury or product damage, and will void the warranty.

Secure this product properly before moving it with a forklift.

Keep the product on level surfaces. The product could become unstable and tip if stored

or moved on an uneven surface, which may cause personal injury or product damage.
