montpellier MTC60FW Bedienungsanleitung
60cm Twin Cavity Ceramic Cooker
MTC60FW/FS - White/Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Thank you for choosing this Montpellier Freestanding Cooker.
Our Cookers has been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Freestanding Cooker to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Freestanding Cooker is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Cooker,
you can rest assured that you are fully protected against the cost of repairs for the
first 24 months . Please note that any claim must be accompanied by the model
reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can be
found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
Description of The Appliance:
1.
Hotplate
2.
Control Panel
3.
Top Oven Door
4.
Door Handle
5.
Main Oven Door
(Line drawing indicative of model supplied)
(N.B. Model supplied my not have all features shown in this User Manual).
3
CONTENTS:
Section 1: Installation
Section 2: Safety Advice
Section 3: Operating the Appliance including Temperature
Conversion Chart & Cooking Guidelines
Section 4: Maintenance
Section 5: Guarantee, Points of Contacts & Recycling Info,
Including Product Fiche (pg. 15)
4
Section 1. Installation
-
This appliance must be installed by a qualified
electrician.
-
Remove all packaging, protective film and securing
tape from the appliance.
-
Position the appliance in a dry atmosphere.
-
The following dimensions are provided as a guide for
installation – your installer will carry out the
installation in accordance with the current
regulations.
-
Your electrician will connect the cooker in accordance
with the current regulations.
To install this appliance, please proceed as follows:
1.1.
Positioning the Cooker

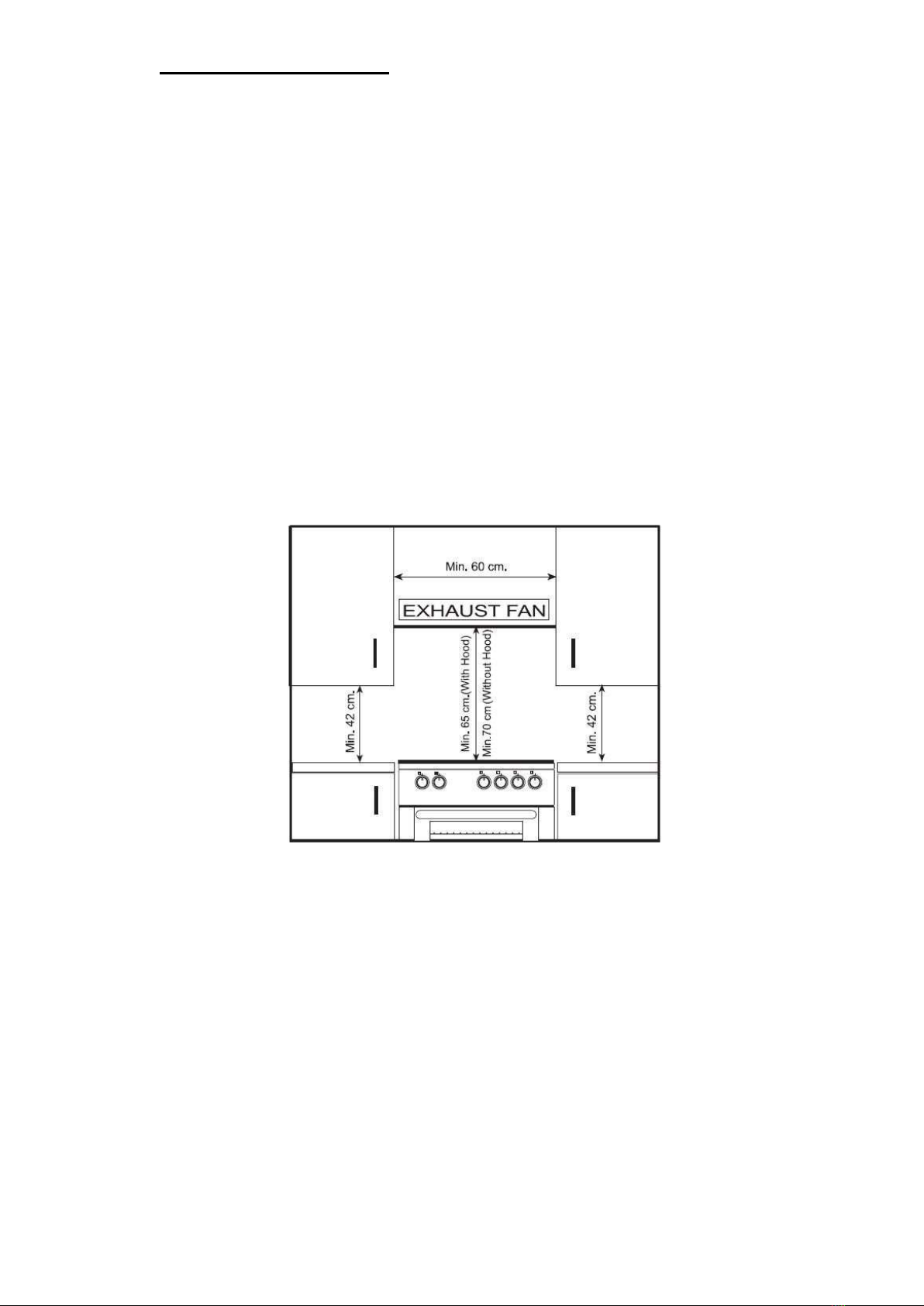

You must ensure a minimum gap of 2cm between
the back of the appliance and the rear wall to allow
for ventilation. You must ensure a minimum distance
of 70cm between the hotplate and overhanging
cupboards or a cooker hood (as shown above).
5
Adjust the height and stability of the cooker by
adjusting the two front feet as shown below. Rotate
in a clockwise direction to decrease the height and
in an anti-clockwise direction to increase the height.
1.2.
Electrical Connection
This appliance must be ‘hard wired’ into a suitable
32A fused spur (Fuse Connection Unit) adjacent to
the appliance housing. The product must be
installed by a Qualified Electrician.
Please note that a switchable spur should be
accessible above the work surface in order that
the power can be turned off.
Appliance connection terminal
1.3.
Technical Specifications
Please refer to the Rating Label affixed to
the appliance for all relevant technical
data.
6
Section 2. Safety Advice
THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN!
It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling. Never
allow cookware and/or utensils to come into contact with the
top heating element/grill.
Do not use melamine or plastic containers when cooking or
grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
It is important that you use only metal pans specifically
designed and/or approved for use on Ceramic Hobs. Never
allow melamine or plastic containers to come in contact with
the heat zones.
-
Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-
This appliance is guaranteed for Domestic Use Only.
-
This appliance shall not be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction on how to use the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
-
This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-
Do not twist or bend the connection/power cable, and keep it
away from hot surfaces.
-
Following installation make sure that the power cable is not
trapped underneath the appliance.
-
Keep the appliance surfaces clean. Failure to do this could lead
to the appliance malfunctioning.
-
The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well away.
-
The interior and surface of this appliance will remain hot after it
has been turned off. Do not touch or clean the appliance until it
has completely cooled down.
-
Never lift this appliance using the door handle or ‘open’ door.
-
If the power supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
7
Section 3. Operating the Appliance
3.1.
Control Panel (N.B. Model supplied my not have all features shown in this User Manual).
1.
Grill/Top Oven Control Knob
2.
Main Oven Control Knob
3.
Left Hand Rear Heat Zone Control Knob
4.
Left Hand Front Heat Zone Control Knob
5.
Right Hand Front Heat Zone Control Knob
6.
Right Hand Rear Heat Zone Control Knob
7.
Top/Main Oven (a) & Heat Zone (b) Warning
Lights
3.2.
Using the Hotplate & Oven
-
It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling.
Never allow cookware and/or utensils to come into contact
with the top heating element/grill.
Do not use melamine or plastic containers when cooking or
grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
-
It is important that you use only metal pans specifically
designed and/or approved for use on Ceramic Hobs. Never
allow melamine or plastic containers to come in contact with
the heat zones.
During initial operation of your oven, as previously
mentioned, a smell will arise from the insulation materials
and initial warming of the element(s).
To avoid it, we recommend o
perating your oven at 250°C
for 45 minutes without putting a
ny trays in and also
removing all furniture from your oven cavity (including wire
shelves). This will allow the materials to bur
n the smell off
and should then be ready to use without smoking or bad
smells occurring
.
8
7a. 7b.
1. 2. 3. 4. 5. 6.
For CLOSED DOOR GRILLING, you wouldn’t
need to fit the heat deflector as the door
wouldn’t be able to be closed. For OPEN
DOOR GRILLING, firstly ensure that your
heat deflector (supplied) is fitted, then close
the door as far as it will go. The door should
now be resting on the heat deflector. If it
isn’t please assess and check again.
3.2.1.
Using the Hob Heat Zones
Turn the required heat zone control knob (3, 4, 5 or 6) to
the required heat setting between 1 (Low) and 6 (High). Whilst
one or more of the heat zones are in use, the heat zone warning
light will be on.
When you have finished, turn the control knob(s) back to the off
position.
3.2.2.
Operating the Grill/Top Oven
Turn the control knob to the required heat setting: top/
bottom heat, top heat, single grill or double grill functions.
The warning light will come on whilst the grill is being used.
You can use the grill either with the door OPEN or
CLOSED. Closed door grilling is more common in Europe
whereas in the UK, we tend to prefer the door to be open.
You have both choices.
To grill, pre-heat the oven to the required temperature for 5
minutes and then insert the grill pan. When using the grill,
you are strongly advised to fit the handle to the grill pan as
shown in the pictures below. When you have finished using
the grill, turn the control knob back to the off position.
9
3.2.1.
Main Oven
We always recommend Pre-Heating. Firstly, set the required
temperature and allow the oven to get to temperature (up-
to 15 minutes) before placing food in the cavity.
To operate the oven, turn the control knob to the required
heat setting. The thermostat light will come on until the
required heat setting is achieved.
When you have finished using the oven, turn the control
knob back to the off position.
When adding or removing items to and from the oven
you are strongly advised to use Oven Gloves!
10
