Installation and Operating Instructions

Models: CHG613MSS & CHG913MSS

60cm & 90cm

CURVED GLASS COOKER HOODS

(Picture shown for indicative purposes only)

Please read these instructions carefully before attempting to install or use this appliance. It is

advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual.

Introduction

Thank you for choosing this Montpellier appliance. It has been

designed to give years of trouble-free use provided it is installed and

maintained correctly.

Please read these instructions carefully before installing or using your

appliance. It is advisable to keep your purchase and installation receipts

with these instructions in a safe place for future reference. Included is

some important safety information in addition to guidelines and

recommendations that will enable you to take full advantage of all the

functions available.

This quality appliance has been tested and certified to meet all applicable

UK electrical and safety standards.

This appliance must be installed and connected in accordance with

current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the

appliance has been damaged during transit, do not use it, contact your

retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new Montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof

of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance with the

manufacturer's instructions.

Any appliance that is used for anything other than domestic purposes.

Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but not

exclusively, cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors following

door reversal procedures carried out by you.

Use of the appliance by anyone other than the

Householder. Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs, bulbs and

breakable items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech and/or carried out

by a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK & SOUTHERN IRELAND.

To Register your Appliance simply complete the card in your appliance pack and return it with a

stamp affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial

number, date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Description of the Appliance

The following image is shown as an example only as the actual

features and controls may vary on the model supplied.

1. Light

The position and number of lights may vary.

2. Function Control Panel

The position of the push button controls may

vary according to the model.

3. Filter(s)

Your model will be fitted with either one or two

filters.

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 1. Installation

A qualified installer must carry out the installation.

This appliance can be used fully ‘vented’ via a ducting hose and external wall

vent, or in ‘re-circulation’ mode by using the charcoal filter provided.

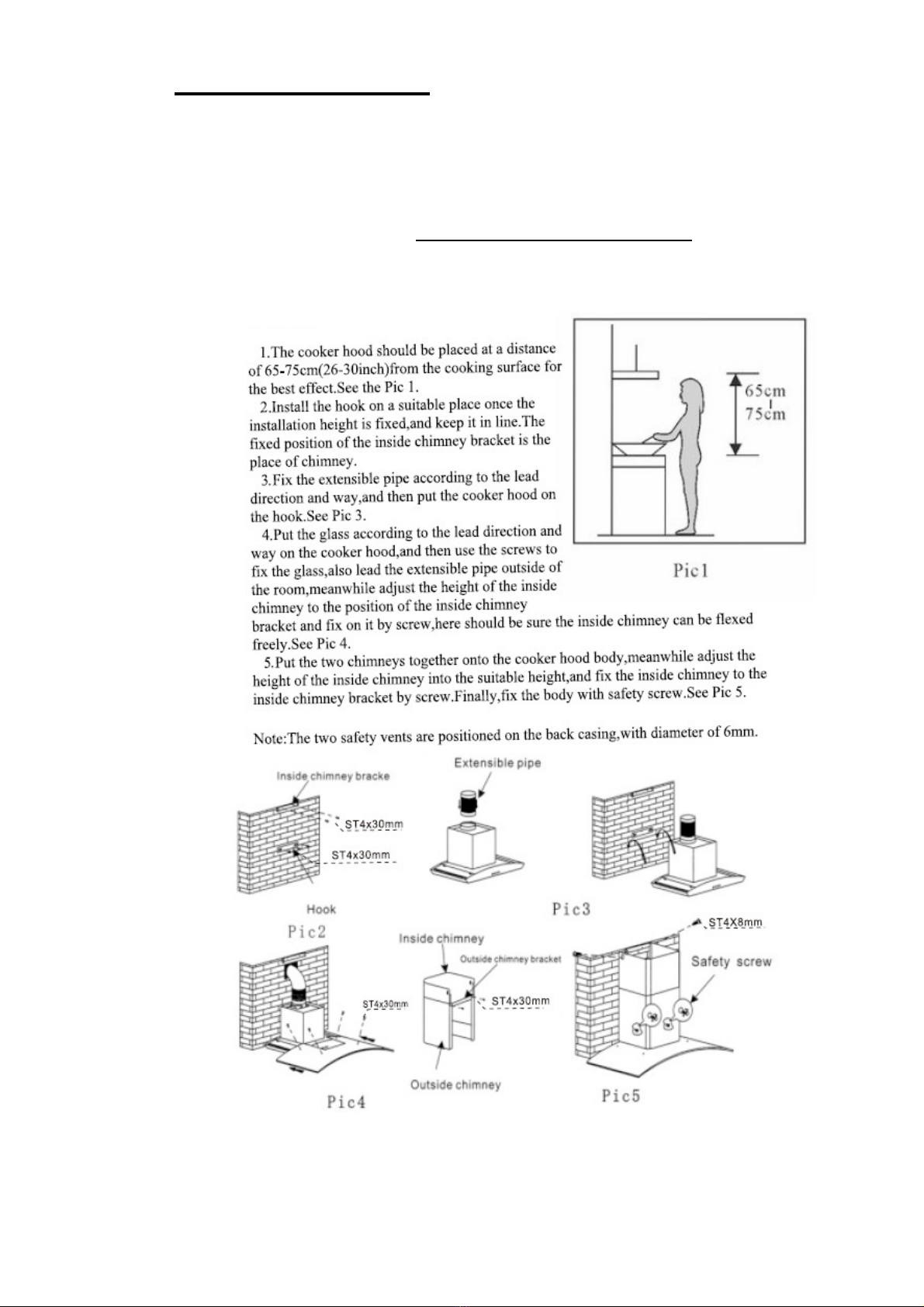

The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm

(See Pic.1)

N.B. To ensure that your cooker hood operates efficiently the hose

length must not exceed 2m with a maximum of one bend.

Section 2. Safety Advice

This appliance is manufactured and intended for DOMESTIC use only. Any

guarantee offered with the appliance is not valid for any installation in a

commercial environment.

This appliance incorporates stainless steel. Handle with care as some of the

edges may be sharp.

The main filter must be cleaned on a regular basis in order to help maintain

the appliance in good working order.

Always turn off the electricity supply before cleaning the filter or the appliance

exterior.

When replacing the bulbs/LED’s or charcoal filter, ensure that you fit a ‘like

for like’ replacement.

We recommend that this appliance is installed by a professional installer.

This appliance shall not be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or

instruction on how to use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.

If the power supply cord is damaged, it must be replaced by the manufacturer,

it’s service agent or similarly qualified persons in order to avoid a hazard.

Section 3. Operating the Appliance

N.B. For best results, we recommend that the Cooker Hood is

switched on at least 10 minutes prior to cooking and left to run for

a period of 10 minutes after cooking is finished.

Push Button Controls

•Push the STOP button and the motor will stop running.

•Push the LOW button and the motor will run at low speed.

•Push the MID button and the motor will run at medium speed.

•Push the HIGH button and the motor will run at high speed.

•Push the LIGHT button to switch the light on or off.

Section 4. Maintenance

4.1. Cleaning the Main Filter

If your cooker hood has aluminium filters, simply remove the filter

panels and wash them in clean soapy water, ensuring that they are dry

prior to refitting.

If you have charcoal filters, remove the aluminium filter panels and

replace the charcoal filter(s) with like for like replacements.

4.2. Replacing the LED Unit(s)

To replace a Bulb/LED(s), isolate the power, remove the light cover

and remove the Bulb/LED. Replace it with the same type/wattage and

replace the light cover. Please note that Bulbs & LED lights are not

covered by your guarantee.

4.3. What to do if something goes wrong

The light does not work:

- A Bulb/LED has probably failed. Replace the Bulb/LED as

referred to in Section

4.2. Please note that lights are not covered by any guarantee

offered with this appliance.

Motor operates but level of extraction appears to be poor:

-Check and clean the filter as detailed in Section 4.1. Dirty filters

will cause a noticeable drop in performance. If you are using the

appliance on ‘re-circulation’ mode the charcoal filter may require

changing as detailed in Section 4.3.

-If the length of flexible extraction hose exceeds 2m and/or you

have installed more than one bend, there will be a noticeable

reduction in extraction power.

There is no power to the appliance:

-Check there is not a power cut

-Check there is power to the electric socket/appliance

-Check the fuse in the plug and/or spur (Must be 13amp)

YOUR GUARANTEE IS VALID ONLY IN THE UK & SOUTHERN

IRELAND.

To Register your Appliance simply complete the card in your appliance pack and return it with

a stamp affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial

number, date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Montpellier Domestic Appliances Ltd.

Unit 1, Tewkesbury Retail Park,

Nort way Lane,

Tewkesbury,

Gloucesters ire,

GL20 8JU.
