Installation and Operating Instructions

CHV60W & CHV60SS

60cm WALL MOUNTED VISOR

COOKER HOOD

(Picture shown for indicative purposes only)

Please read these instructions carefully before attempting to install or use this appliance. It is

advisable to keep these instructions in a safe place for future reference.

Introduction

Thank you for choosing this montpellier appliance. It has been

designed to give years of trouble-free use provided it is installed and

maintained correctly.

Please read these instructions carefully before installing or using your

appliance. It is advisable to keep your purchase and installation receipts

with these instructions in a safe place for future reference. Included is

some important safety information in addition to guidelines and

recommendations that will enable you to take full advantage of all the

functions available.

This quality appliance has been tested and certified to meet all applicable

UK electrical and safety standards.

This appliance must be installed and connected in accordance with

current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the

appliance has been damaged during transit, do not use it, contact your

retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof

of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance with the manufacturer's

instructions.

Any appliance that is used for anything other than domestic purposes.

Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but not exclusively,

cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors following door

reversal procedures carried out by you.

Use of the appliance by anyone other than the Householder.

Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable

items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech and/or carried out by

a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it with a stamp

affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial number,

date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Description of the Appliance

1. Main Body Section

2. Glass Visor

3. Light

4. Function Control Panel

5. Filter Cover

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 5. Electrical Diagram

Section 1. Installation



A qualified installer must carry out the installation.



This appliance can be used fully ‘vented’ via a ducting hose and external wall

vent, or in ‘re-circulation’ mode by using the charcoal filter provided.



The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm.



Remove the hood, chimney and fixings from the carton. Mark out the position

of the four (4) holes for the securing screws. You will need to mark the

position of the holes onto the wall and drill four size 8 holes for the wall plugs.

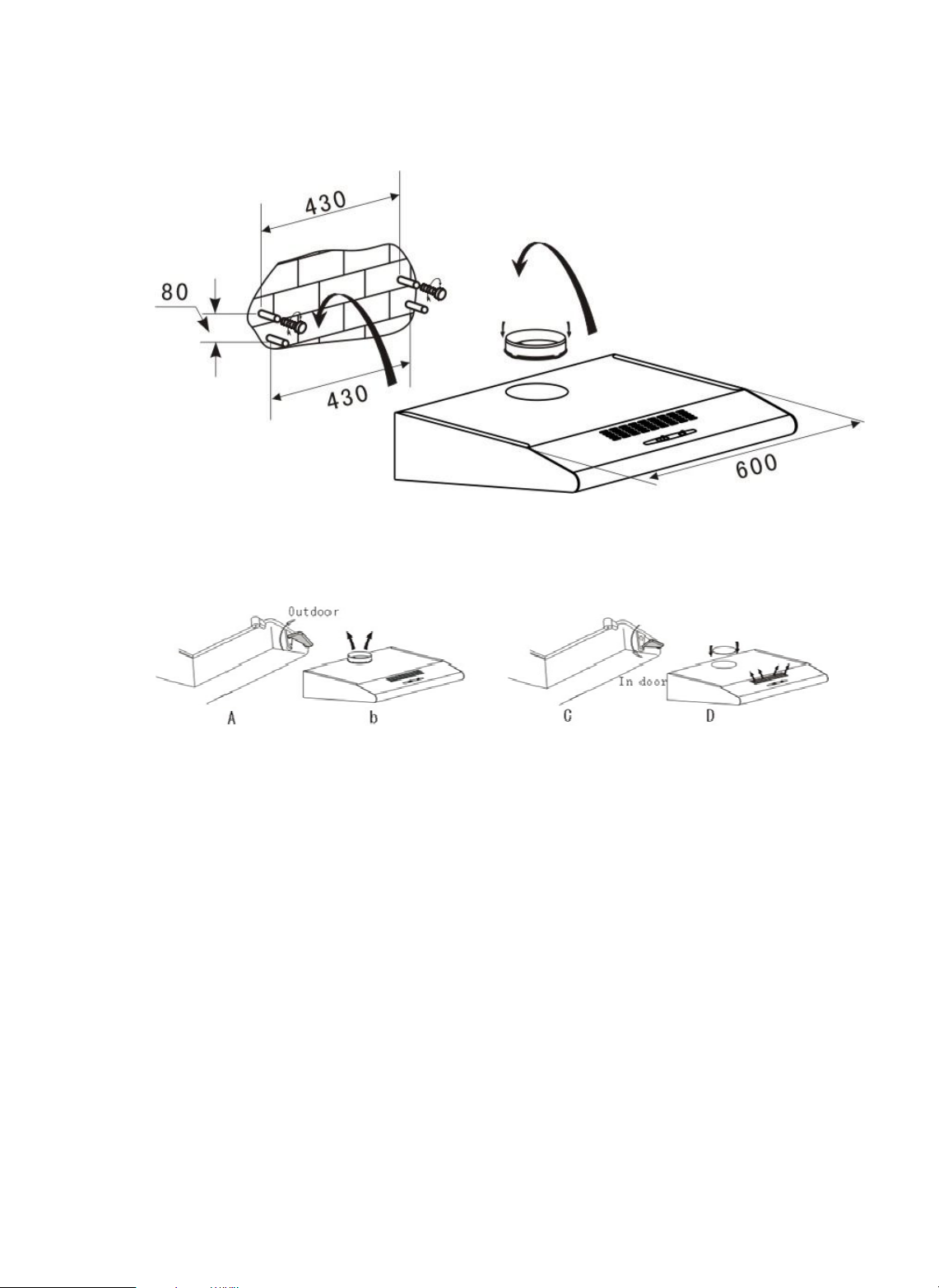

It is important to ensure that the holes are perfectly level in order that the

cooker hood is level once installed (Picture 1.)



Fit the wall plugs and then fix the cooker hood body section to the wall using

the supplied screws. Ensure the body section is secure.



If you want to use this appliance fully ‘vented’, connect the flexible ducting

hose to the one-way valve on the motor and connect the other end to the wall

outlet (not supplied). Do not fit the charcoal filter!

Keep bends in the flexible

ducting hose to a minimum and ensure that it is connected direct to an

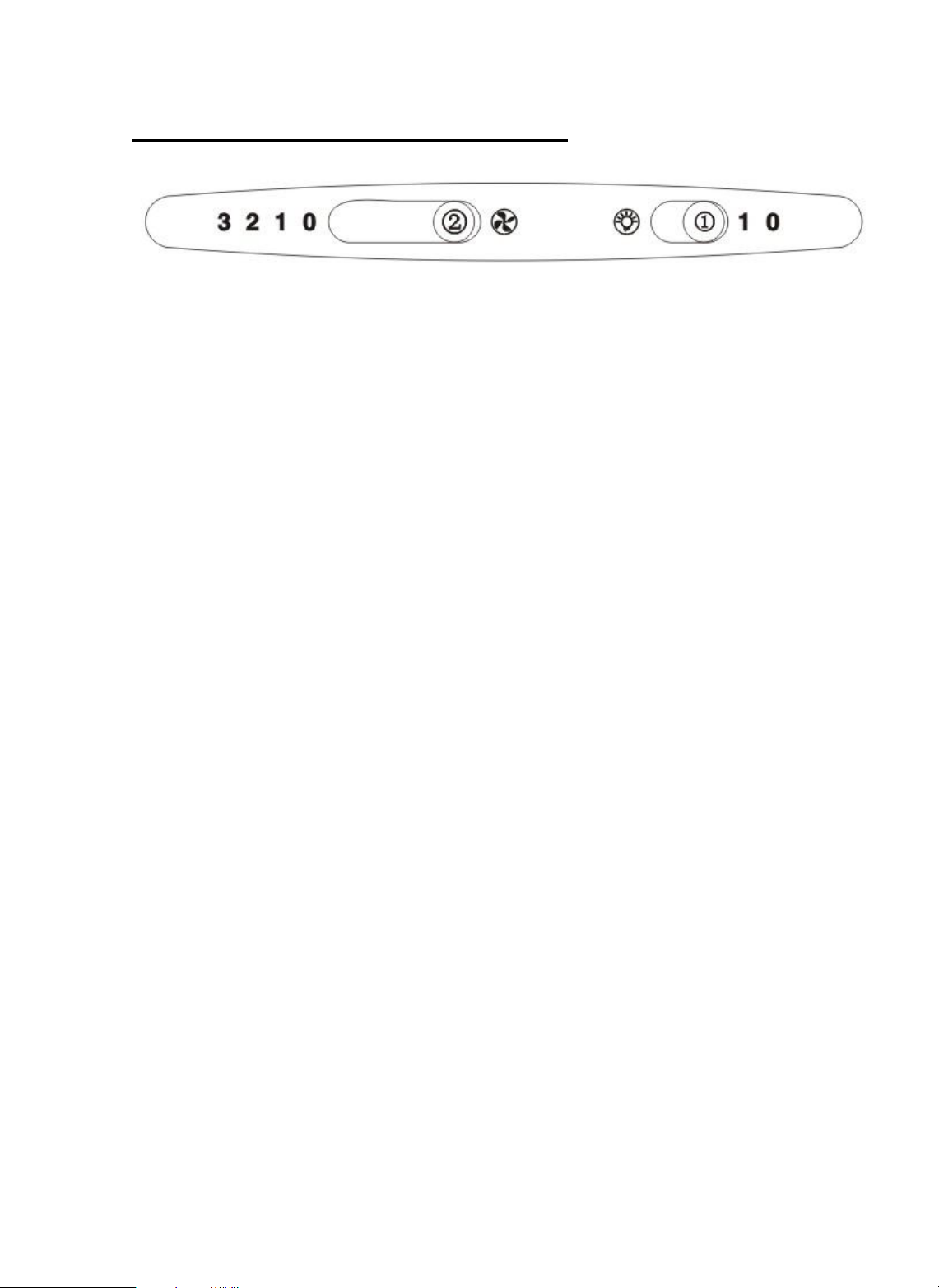

outside wall outlet. Position the small adjuster to ‘outdoor’ setting – Picture 2.

N.B. Your installer will supply a wall outlet and may have to supply a

suitable alternative flexible duct to suit the wall outlet.



If you intend to use the appliance in ‘re-circulation’ mode, simply remove the

Filter Cover by rotating the 2 fixing tabs on either side of the cover and then

lay the charcoal filter on the upper face (facing the inside of the appliance) of

the Filter Cover and secure in place with the retaining wire. Replace the

Filter Cover. For re-circulation mode, you must also position the small

adjuster to ‘indoor’ setting as shown in Picture 2.

This appliance must not share the same air outlet as another appliance, i.e.

gas heating outlet.

The mains lead should be connected to a suitably positioned fused electrical

spur, protected by a 13amp fuse.

Ensure that dust and debris is cleaned up from the immediate area of the

appliance prior to it being switched on and tested for the first time.

Picture 2.

Picture 1.

Section 2. Safety Advice

This appliance is manufactured and intended for DOMESTIC use only. Any

guarantee offered with the appliance is not valid for any installation in a

commercial environment.

This appliance incorporates stainless steel. Handle with care as some of the

edges may be sharp.

The main filter must be cleaned on a regular basis in order to help maintain

the appliance in good working order.

Always turn off the electricity supply before cleaning the filter or the appliance

exterior.

When replacing the bulbs or charcoal filter, ensure that you fit a ‘like for like’

replacement.

We recommend that this appliance is installed by a professional installer.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

the use of the appliance by a person responsible for their safety. Children

should be supervised to ensure that they do not play with the appliance.



If the power supply cord is damaged, it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons in order to avoid

a hazard.

Section 3. Operating the Appliance

Push button 1 to position 1 and the light will operate.

Push button 1 to position 0 and the light will turn off.

Push button 2 to either 1, 2 or 3 and the motor will operate at the

required speed.

Push button 2 to 0 and the motor will turn off.

We recommend that the Cooker Hood is switched on prior to Cooking and

left to run for a period after cooking is finished.

To operate the Cooker Hood, proceed as follows:

Section 4. Maintenance

4.1. Cleaning the Main Filter

Periodically remove the filter cover and wash with warm soapy water. Ensure

the filter is dry before re-fitting.

The main body of the cooker hood should be cleaned with warm soapy water –

never use abrasive detergents on either the filter or main body.

4.2. Replacing the Bulbs

To replace a bulb, isolate the power, remove the filter and unscrew the bulb.

Replace it with the same type/wattage and replace the filter cover.

4.3. Replacing the Charcoal Filter

To replace the charcoal filter, remove the filter cover and then lift out the used

charcoal filter from underneath the retaining wire. Fit a new like for like charcoal

filter and then refit the filter cover to the body of the cooker hood.
