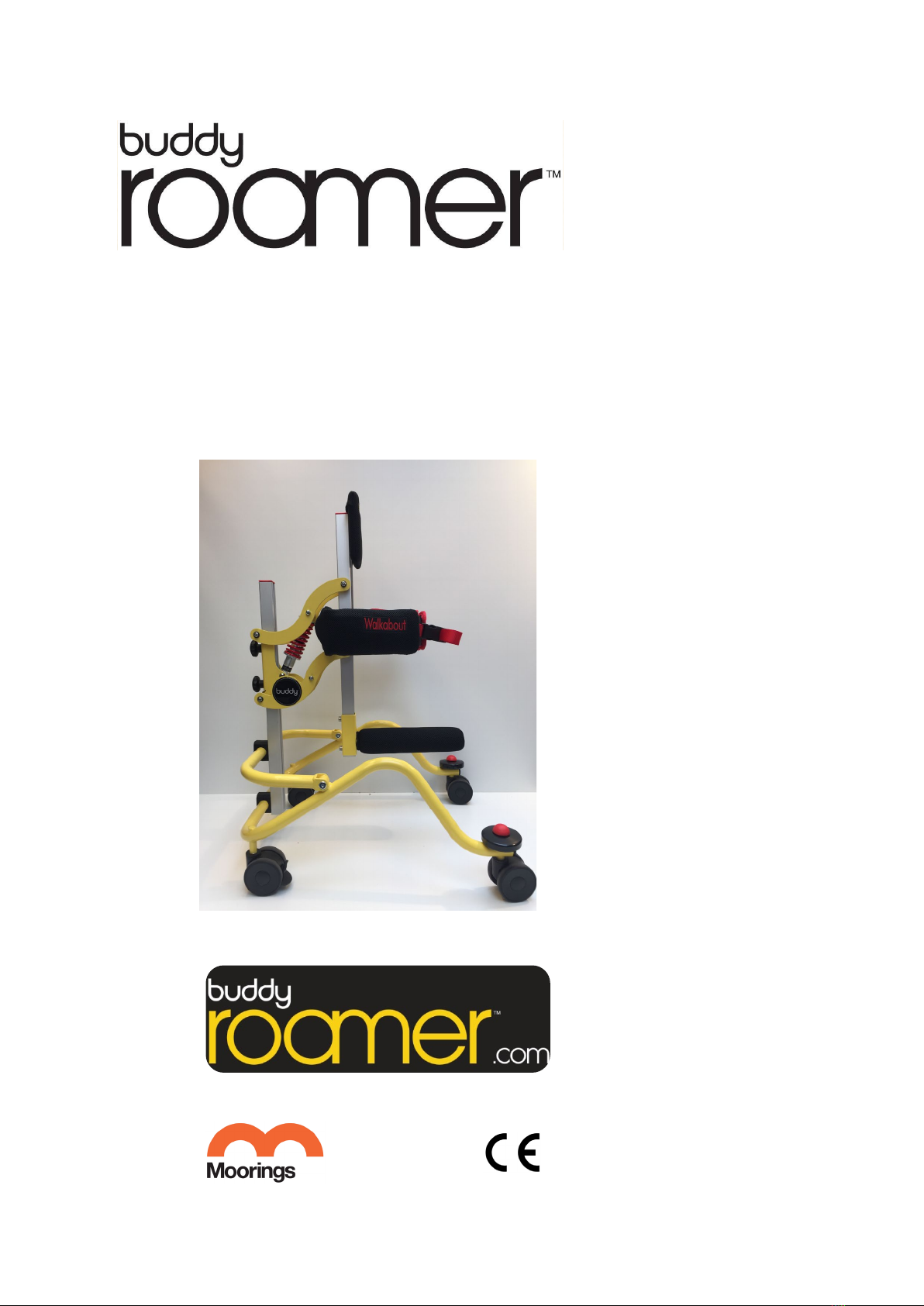

Buddy Roamer Size 0

Instruction Manual

Page | 2

The Buddy Roamer is a posterior walking aid that provides partial weight bearing

postural support with mobility.

The ergonomically designed frame supports body weight while allowing the child to

walk around freely and unaided.

This manual will show you how to easily set-up the walker for first use and the

adjustments available to enable full functionality of the device. Before assembly, please

read the safety, information notices to ensure the Buddy Roamer is used effectively.

Declaration of Conformity

Moorings Mediquip as manufacturer declares that the Buddy Roamer walking aid

conforms to the requirements of (EU) MDR 2017/745

Terms of Warranty

The warranty applies only when the product is used according to the specified

conditions and for the intended purposes, following all manufacturers’

recommendations. A One-year warranty is provided with all Buddy Roamer walking

aids.

CONTENTS

01. Safety Information – Page 3

02. First Assembly – Page 4

03. Measurements – Page 5

04. Adjustments – Page 6, 7, 8, and 9

05. Accessories – Page 10

06. Maintenance – Page 11

07. Care and Cleaning – Page 11

08. Technical information – Page 12

09. Contact us – Page 13

Page | 3

01 Safety information

All instructions in this manual should be read fully before use.

The maximum user weight for the Buddy Roamer Size 0 “Walkabout™” is 30Kg.

This weight limit must not be exceeded.

Users should not be left unattended at any time while using the Buddy Roamer.

All assembly and adjustments to be completed by a Competent adult or Engineer.

Only use Moorings Mediquip approved components with the walker. Never

modify the device in anyway. Doing so may put the user at risk and will

invalidate the warranty.

If any product defects become obvious or if any parts should fail, discontinue use

immediately and contact your local dealer as soon as possible to rectify them.

All positional adjustments should be made before the user is put into the walker.

All adjustment bolts, grip knobs and straps must be securely fastened again

before use.

The product should be kept away from all direct sources of heat including naked

flames, cigarettes, heaters, and radiators. When not in use the walker should be

stored in a dry place that is not subject to extremes of temperature.

Follow all daily, weekly, and annual product inspections. (See maintenance (06)

section of this manual)

Please keep all plastic packaging material away from children as plastic

packaging can present the danger of suffocation.

Recommended for Indoor Use only with competent Supervision.

Page | 4

02 First assembly

Contents of the box:

1) Base frame Assembly

2) Column with Laterals attached

3) Central Positioning Bar

4) User Manual

5) Serial Number Attached to Frame

6) Allen Keys

(4mm and 5mm Allen key provided

in the plastic bag with this manual)

Step 1

Unpack the Base frame assembly

and place on a flat surface as shown.

Step 2

Loosen all the socket screws using

the 5mm Allen key provided and slide Column

into the slot stone. Ensure both Slot stones are

inserted into column.

Step 3

Ensure black clamps are in centre of Walkabout

Frame and Column at proper height before clamps

Are tightened.

Page | 5

03 Measurements

For each child the following measurements should be taken and recorded in the table

below:

These values correspond to the following adjustments on the walker; these adjustments

should be set to the correct value before use:

Measurement

Value (cm / inch)

Inside Leg

Underarm

Overall height

Chest Width

Page | 6

04 Adjustments

Central Positioning Bar Adjustment

Loosen each of the socket screws on the back

of the CPB. This allows the CPB to be raised

or lowered along the extrusion track.

Ensure all Screws are tightened

After adjustments.

Step 5

Loosen 2 Screws of Headrest Bar and adjust

By sliding bar up or down extrusion track to

Preferred position. Tighten screws when complete.

Ensure all screws are

tightened after adjustment

Page | 7

04 Adjustments

Apply Brake on Back Wheel by Pushing down on pedal. Photo 1

Wheel Anti-Lock released by pulling out and turning the Metal Nut at back.

To lock just turn back and slot into position. Photo 2

Please take a note of the Serial number of your Product and keep it in

the box below. You will find it on the base Frame. This will help with

any queries should they arise.

S/N -

Page | 8

Adjustments to height.

This can be done by loosening the 2 Knobs shown in photo 1. Slide to

position up or down then tighten knobs.

Do not Extend over the Extrusion Bar.

Photo 1

Prone Angle Adjustment

The prone angle can be adjusted forward

to a maximum of 10°. Firstly, loosen both

of the socket screws on the top clamp,

Slide the clamp down along the vertical square post to move

the prone angle forward,

Ensure screws are fully

tightened again before use.Do not exceed 10 degrees forward.

Page | 9

Lateral Belt Adjustments

Adjustments to Lateral Belts Step 6

1. Open Buckle at Front of Belt. Photo 1

2. Loosen Bolt at Back of Laterals and Open out to adjust width. Photo 2

3. Adjust height by sliding up or down Extrusion track.

And tighten bolt.

Careful of moving Parts when making any adjustments

Page | 10

05 Accessories

Shoulder Straps 06

This accessory will be mounted off a horizontal bar attached to the front profile extrusion (Photo 1) It will

help hold the user’s shoulders in the correct position while in use. These are adjustable in height, width,

and angle to deal with different size variations.
