Mopar EVTS Bedienungsanleitung
Technical Support 877-477-3710
www.moparevts.com
Contents of box:
1. GPS Module
2. OBDII wire harness
3. Gap Panel switch
4. Zip ties
5. Double sided tape
6. Window Sticker
7. EVTS Owner's Manual
123
4
6
7
IMPORTANT: Make sure to get the ESN from the label on the module or from the box. You should also place
the extra ESN label sticker in the front cover of the EVTS owner's manual. Be sure to provide the ESN to the
customer so that they can easily activate their new EVTS system.
WARNING: Make sure to keep GPS Module and wiring harness away from AIRBAGS, AIRBAG WIRING, and
any moving objects under the dash. (i.e. steering joints, brake pedal and shift levers.)
This information is provided to assist with installation of certain features available
on the EVTS device and
may contain outdated or incorrect information. It is the technician's job to verify all wires being used and
connect them properly. Guidepoint is not responsible for any damage that may occur due to improper testing
and/or installation of components related to this installation supplement. If you feel that the information
contained in this supplement is incorrect, please contact Guidepoint Technical Support at 1.877.477.3710.
Electronic Vehicle Tracking System
(EVTS)
July 20, 2016
1
K6861090AB
ALCOHOL
PAD
For instructions related to trim panel, instrument cluster and radio removal
refer to the vehicle specific service manual.
Technical Support 877-477-3710
www.moparevts.com

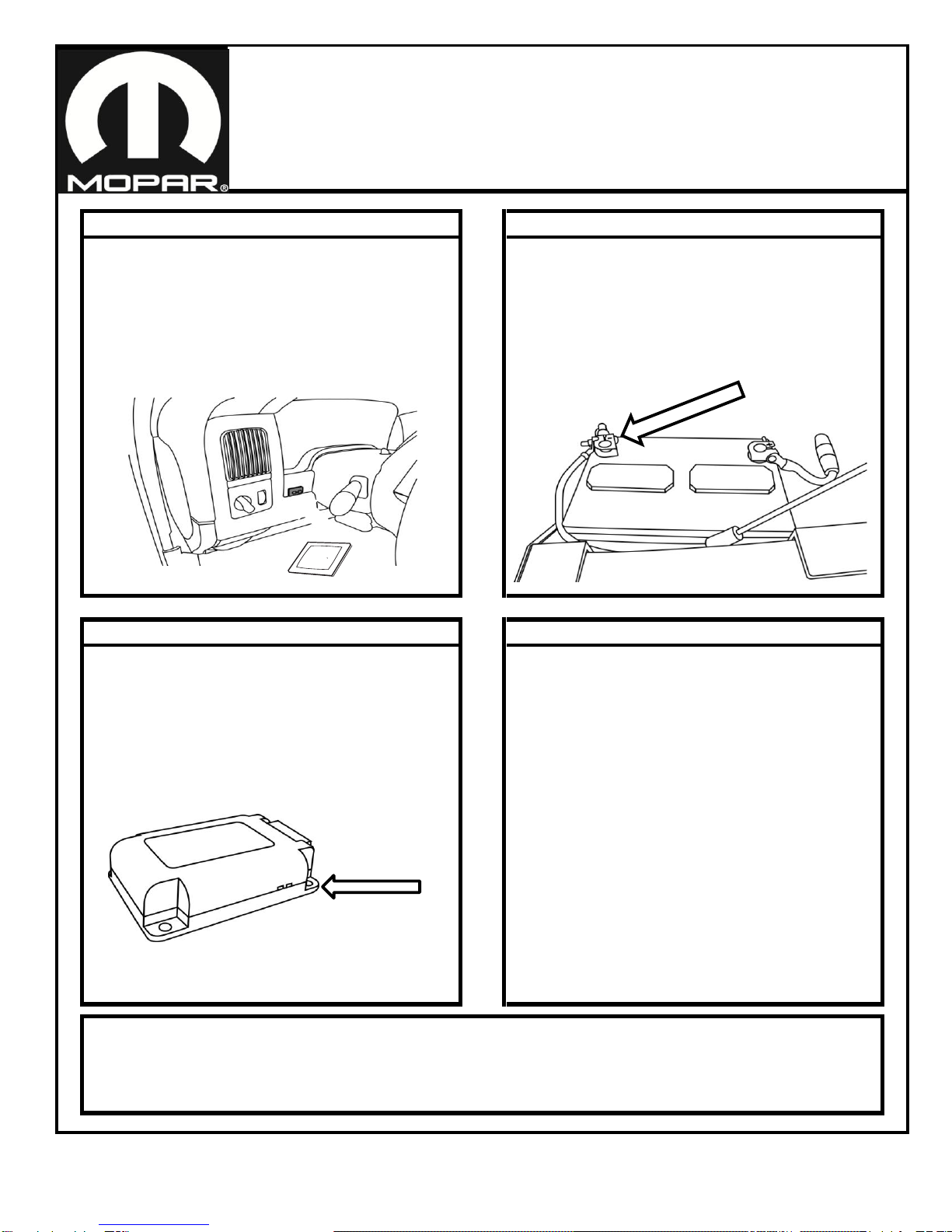

Disconnect Battery Negative Terminal Find a suitable location for the Control Module
Locate the vehicle's OBD-II connector
Route Harness
Installation Instructions
1
For instructions related to trim panel, instrument cluster and radio removal
refer to the vehicle specific service manual.
2
34
The module should be underneath the dash and not
visible. There should not be any metal obstructing
the module's view of the sky. Plastic, vinyl and
glass will not affect signal reception. Make sure
that the label is facing up and that the module is
level. Visit www.moparevts.com for vehicle specific
mounting locations.
The vehicle's OBD-II connector is usually found
underneath the dash to the left of the steering
column. Remove any panels necessary to access it.
Unclip OBD-II from panel it is clipped in to. Clip
OBD-II harness male end where original plug was.
Clip the car OBD-II harness in to the female side of
OBD-II harness. Then find a good spot to zip tie
this harness up. Make sure to keep away from
Airbag wiring and any moving parts under dash.
The harness should be secured every 150 mm.
Route GAP Panel Connector to location where you
are going to install GAP Panel. (i.e. blank knock
outs, around shifter or close to steering wheel)
Then route harness for GPS module and plug in.
Make sure to not route around any moving parts.
Make sure the connection to the harness is secure.
Disconnect the negative terminal of the vehicle's
battery.
July 20, 2016
2
K6861090AB
Technical Support 877-477-3710
www.moparevts.com
Install the Guidepoint Access Panel Reconnect Battery Negative Terminal
Initialize the unit
Finalize the Installation
Installation Instructions
For instructions related to trim panel, instrument cluster and radio
removal
refer to the vehicle specific service manual.
56
78
The Guidepoint Access Panel (GAP) is required and
will provide additional features and functionality for
the end user. Find a suitable location on the dash
to mount the GAP Panel. It may require a small
hole to be drilled. Use the supplied double stick
tape to mount it and then connect it to the GAP
Panel Connector on the OBD
-
II Interface Cable.
Warning: Make sure that you have not left any
plugs unplugged for this may set off the check
engine light. Before you do this, make sure that all
plugs that you have unplugged throughout the
install are plugged in. Note: You will still need to
see the diagnostic LEDs on the GPS Module. Once
you check the plugs you can reconnect the negative
battery terminal.
Test the unit by turning on the ignition of the
vehicle. Once the vehicle is turned on, the
Diagnostic Test LEDs will provide verification that
the installation was done properly and the unit is
functioning correctly. Within a few minutes, only
the green LED should be flashing. If the red LED is
flashing, consult the Installation Manual for
troubleshooting and diagnostics.
After a few minutes, only the green LED should be
blinking.
Once the unit has been initialized and is giving the
proper indication from the Diagnostic Test LEDs,
finalize the installation by using a cable tie and
double-sided tape to secure the control module in
the location determined in step 2 above. Verify that
the wiring is routed properly and clear of any
hazards. Finish up the installation by replacing any
panels or covers that were removed during the
installation process.
For additional information on installation, optional
add-ons or technical information, contact Guidepoint
Technical Support at 1.877.477.3710 or visit
www.moparevts.com
●
July 20, 2016
3
K6861090AB
ALCOHOL
PAD
Technical Support 877-477-3710
www.moparevts.com
Install Window Sticker
c
L.E.D. Pattern L.E.D. Description
Green LED not flashing The ignition has not been turned on
Green LED off for 1 second
GPS module has power and signal is valid, Cell modem is powered, ignition is ON
Green LED off for 3 seconds GPS module has power and signal is valid, Cell modem is powered, ignition is OFF
Red LED blinks 1 time The modem is not detecting a SIM card
Red LED blinks 2 times The modem is not detecting a cellular signal
Red LED blinks 3 times The GPS receiver is not tracking any satellites
Red LED blinks 4 times
The modem has no cellular signal and GPS is not tracking any satellites
Red LED blinks 5 times The modem is not detecting a SIM card and GPS is not tracking any satellites
Red LED blinks 6 times The modem is not responding and may be defective
Red LED blinks 7 times The modem is not responding and GPS is not tracking satellites
Installation Element
Best Practice
Unacceptable Practice
Unit Testing Protocol & Best Practices
This information is provided to assist with installation of certain features available on the Guidepoint device and may conta
in
outdated or incorrect information. It is the technician's job to verify all wires being used and connect them properly. Gui
dep
oint
is not responsible for any damage that may occur due to improper testing and/or installation of components related to this
installatin supplement. If you feel that the information contained in this supplement is incorrect, please contact Guidepoin t
Technical Support at 1.877.477.3710.
Note: The Diagnostic Test LED built into the control module will blink Green (off 1 second/on 1 second) indicating
the control module is working properly.
Module Placement & Mounting
Under dash padding where it is not
visible or easily accessible with the
label facing up
On top of dashboard, under metal
objects, inside of engine
compartment, or anywhere visible
Control module to be located from the center of the instrument panel (area around
and above the radio) to the driver's side of the vehicle only (area around and
forward of the instrument cluster). Control module should never be located on the
passenger side of the instrument panel or around the passenger air bag.
9
Apply Window Sticker to the lower rear of the driver's side window. It should be visible from the outside of the
vehicle.
July 20, 2016
4
K6861090AB
