Motivo Tour Bedienungsanleitung
Tour Owner’s Manual

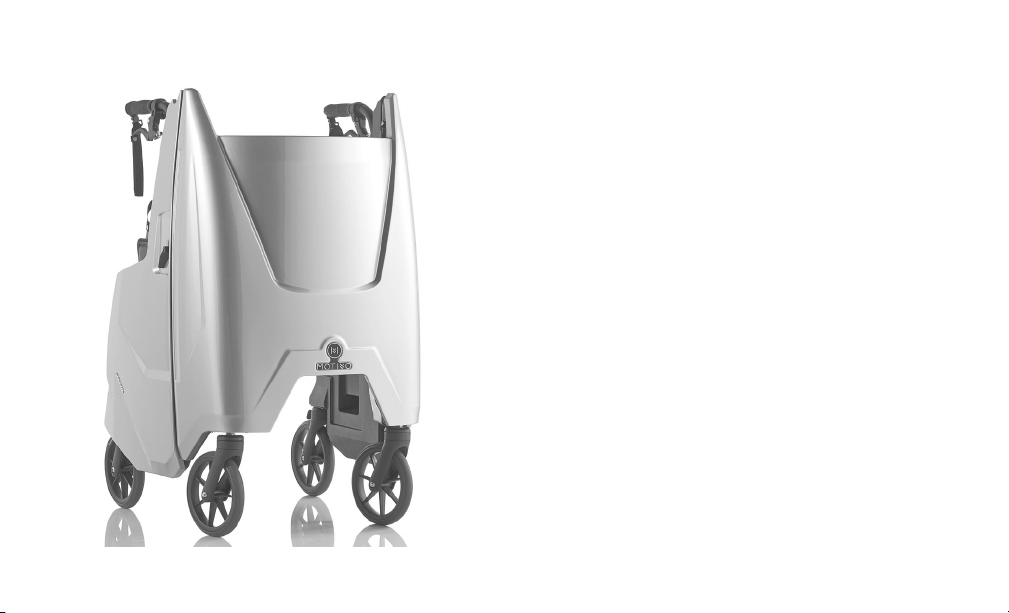

Welcome to Motivo
From all of us at Motivo, thank you for
purchasing the Tour. At Motivo, we are
committed to producing exceptional
independence enabling products that help
enhance people’s lives. We are very pleased
you have chosen the Tour and invite you
to connect with us and other Tour users at
www.facebook.com/motivolife.
The following owner’s manual provides
details on how to safely and effectively use
your Tour and all its integrated features. If
you have any questions, more information
can be found at www.motivolife.com. You
can also reach customer support via email at
support@motivolife.com, as well as by phone
at (414) 235-9409.
2
WARNING & SAFETY INSTRUCTIONS
• DO NOT use your Tour without first completely reading this owner’s manual. If
you are unable to understand any portion of the owner’s manual, please contact
Motivo, your dealer, or healthcare professional before attempting to use your
Tour. Failure to understand may result in personal injury or damage.
• You MUST be able to support the majority of your weight when using the Tour.
Please seek advice from your healthcare professional to determine if the Tour is
appropriate for you to use and the proper adjustment and usage of your Tour.
• DONOTusetheTourasawheelchairortransportdevice.TheTouris
NOTintendedforpropellingwhileseated.Seriousinjurycanoccur.
• ALWAYS observe the Tour’s 300 lb (136 kg) weight limit. The weight limit is the
combined weight of the user and items placed in the storage area, on the tray,
or otherwise attached to the Tour. The tray weight limit is 8 lb (3.6 kg) and the
storage compartment is 10 lb (4.5 kg). The seat weight limit is 300 lb (136 kg).
• DO NOT put more than 5 lb (2.3 kg) on the storage door when open or use it as
a seat.
3
• ALWAYS make sure both side latches are fully secured before use.
• Parking brakes MUST BE LOCKED before using the seat.
• ONLY use seat when secured on the locking post. DO NOT use the seat when the
Tour is on an uneven surface or incline.
• DO NOT use the Tour on stairs, escalators, soft ground, uneven surfaces, steep
inclines, slippery surfaces, moving walkways or in the shower.
• ALWAYS check to ensure handles are secure, handle grips do not twist, there is
nothing hindering the movement of the wheels/casters, and the brakes are operating
properly before use.
• All four wheels MUST remain in contact with the ground at all times during use.
• DO NOT hang anything other than a cane or Motivo certified accessories from
your Tour. Hanging items from the Tour can make it unstable and cause it to tip. To
accommodate a cane, there are special notches designed into the top of the Tour.
4

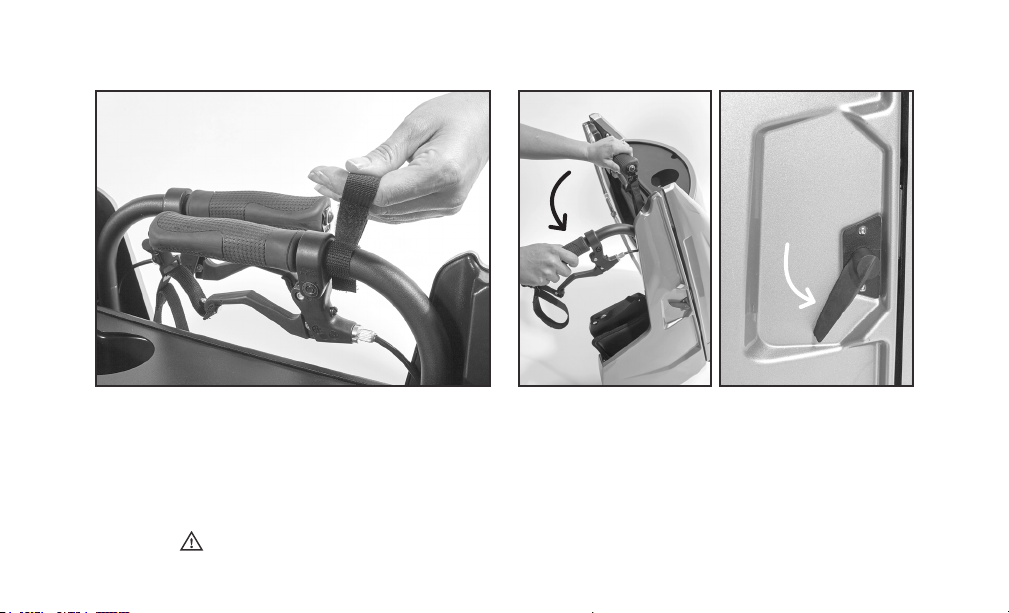

2. Using the RIGHT handle, FULLY
unfold the RIGHT side. Press down
on the RIGHT side lever until it
locks.
Unfolding Your Tour
1. Pull the black strap to release the
Velcro® style closure.
WARNING: Pinch points exist between the front and side panels.
Make sure hands and body are clear of all pinch points.
LOCK
5

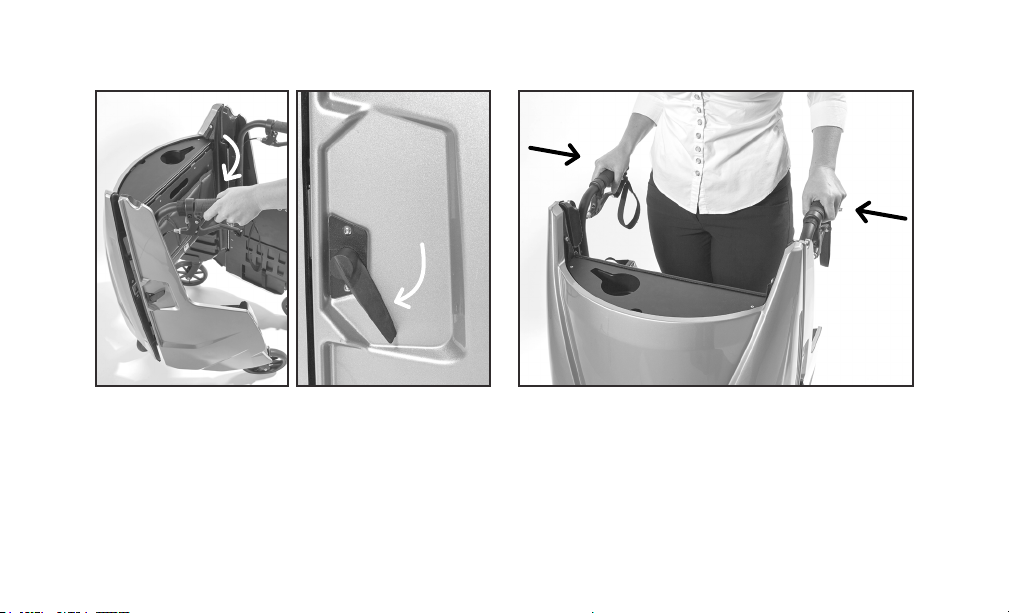

3. Using the LEFT handle, FULLY
unfold the LEFT side. Press down
on the LEFT side latch lever until
it locks.
4. Squeeze handles towards each
other to make certain latches
are FULLY engaged before use. If
panels fold in, repeat steps 2-4.
LOCK
6

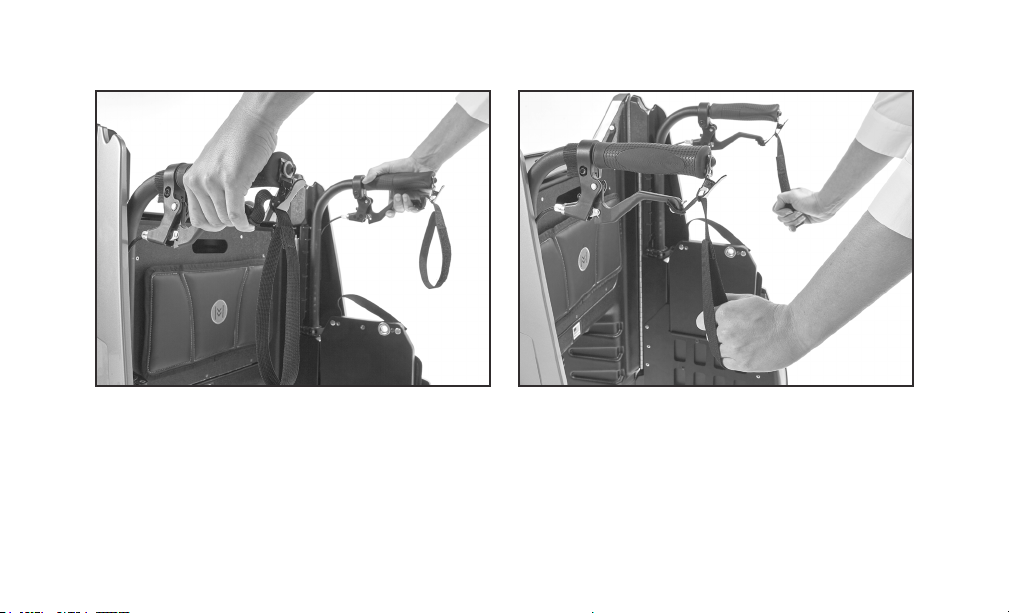

2. Pull down FULLY on each parking
brake strap to engage the parking
brakes. Verify rear wheels do not
rotate before sitting.
How to Operate the Brakes

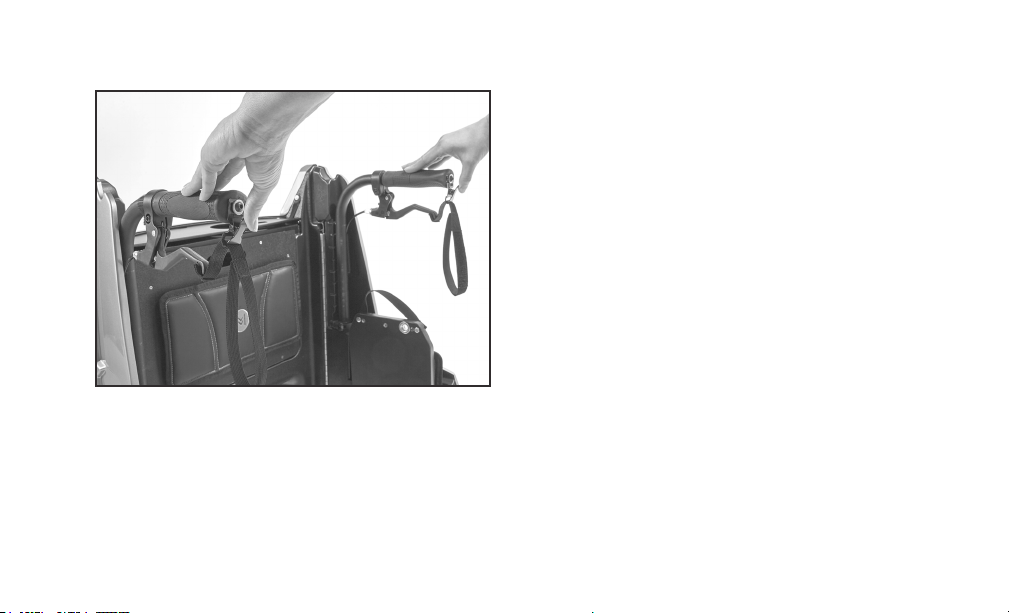

1. Squeeze both hand brake levers
to slow the Tour down or stop the
Tour temporarily.
7
The brakes can also be used as a
drag brake, meaning the brakes are
partially engaged to slow the rotation
of the wheels, such as when going
down a ramp or incline.
1. To activate, partially pull down on
each of the brake straps to the
desired resistance on the wheels.
2. Push on the thumb lever at the end
of each handle to release the drag
brake.
3. Push on the thumb lever at the
end of each handle to release the
parking brakes.
Drag Brake Feature
8

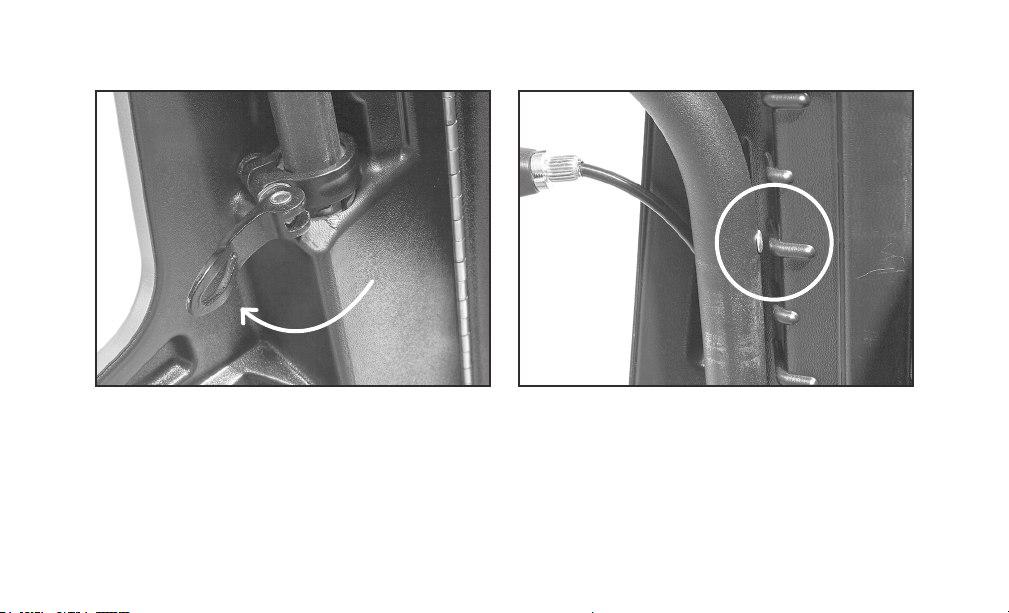

1. To keep the Tour from rolling, set
parking brakes (pg. 6). Complete
steps 1-3 for each handle. Start by
releasing the handle locking clamp
at the base of the handle.
Adjusting the Handle Height
2. Refer to Height Guide (pg. 9) to
determine height setting. Slide the
handle up until the silver rivet aligns
with the selected mark. DO NOT
set handle above 38" (96.5 cm).
9
3. Close handle locking clamp FULLY
to secure. Apply downward
pressure on the handle, also
attempt to rotate. If handle is not
locked, repeat steps 1-3.
Above measurements are from
the ground to the top of the grip.
ALWAYS consult your healthcare
professional to determine proper
adjustment and usage of the Tour.
Height Guide
38” (96.5 cm)
33” (83.8 cm)
37” (94.0 cm)
35” (88.9 cm)
31” (78.7 cm)
36” (91.4 cm)
34” (86.4 cm
32” (81.3 cm)
