Motorola LS6000B-U Bedienungsanleitung

Laser Barcode Scanner

Model no.

LS6000B-U

QUICK GUIDE

INTRODUCTION

LS6000B-U laser barcode scanners series have incorporated the latest wireless

blue-tooth technology. The technology provides customer with the freedom of

mobility, with long communication range from the charging cradle.

The bar code scanner requires establishing communications with its charging

cradle (built-in dongle). After communications have been established between the

scanner and charging cradle, futures bar code scans will be transmitted from the

scanner to the cradle and from the cradle to the host.

For power supply, the charging cradle of LS6000B-U also works as a battery

charger for the scanner. Users can plug in 5V DC power adaptor for power charge

of the scanner.

Package of LS6000B-U series should contain:

1. LS6000B-U Laser Barcode Scanner

(Rechargeable Li-Ion battery pack inside)

2. Charging Cradle with USB cable & DC plug

3. Power Adaptor (5V/1A)

4. User’s Manual

RED BLUE ORANGE

ON Not read Good read

Continual ON

Off line / out of service

range Low power

Blinking Wireless connection not

linked Charging

P.S. If scanner not in use, will automatic switch to sleeping

mode after 30 min.

* When out of service range the laser will on but will not scan.

INSTALLATION

Charging Cradle

Buzzer

Exit Window

Trigger

Handle

3 indicators (LED)

USB dongle

USB Zig-bee dongle

Insert the plug on the free end of the Communications Cable into the

appropriate connector on the host as below described:

USB Connection (RS232 data format)

1. Please switch on and charging scanner for 6 hours at

first time before install driver.

2. Install the software “PL-2303 Driver Installer.exe” to the host system

for LS6000B-U series.

3. Connect scanner cradle to the USB port on the host

system.Once link the red led light on scanner will off.

In case it still keeps ON please re-plug the USB

connector again and click on reset button shown on

picture. That circle on red color.

4. Go to My Computer ÆOne click right button of mouse ÆAdministrate

ÆDevice Administrator ÆConnect Port (COM and LPT).

5. Choose Prolific USB-to-Serial Com Port, and see identify COM number,

ex. COM 5.

6. Go to START ÆPrograms ÆAccessories ÆCommunications Æ

Hyper Terminal.

Detail set up on the Hyper Terminal, please see at the Figure 1 to Figure 3.

Figure 1

Connec

with hos

Figure 2

Figure 3

o need to ke

-in

Step 1: key-in the identify

COM number

Step 1: key-in a file name

Step 2: select the first

Step 3: press OK

Step 2: press OK

Row 1: key-in “9600”

Row 2: key-in “8”

Row 3: key-in “none”

Row 4: key-in “1”

Row 5: key-in “none”

Press OK

Step 1: key-in the identify

COM number, ex.

COM 5

Step 2: press OK

7. Start to aim the scanner at a bar code, you may see data shown on the hyper

terminal.

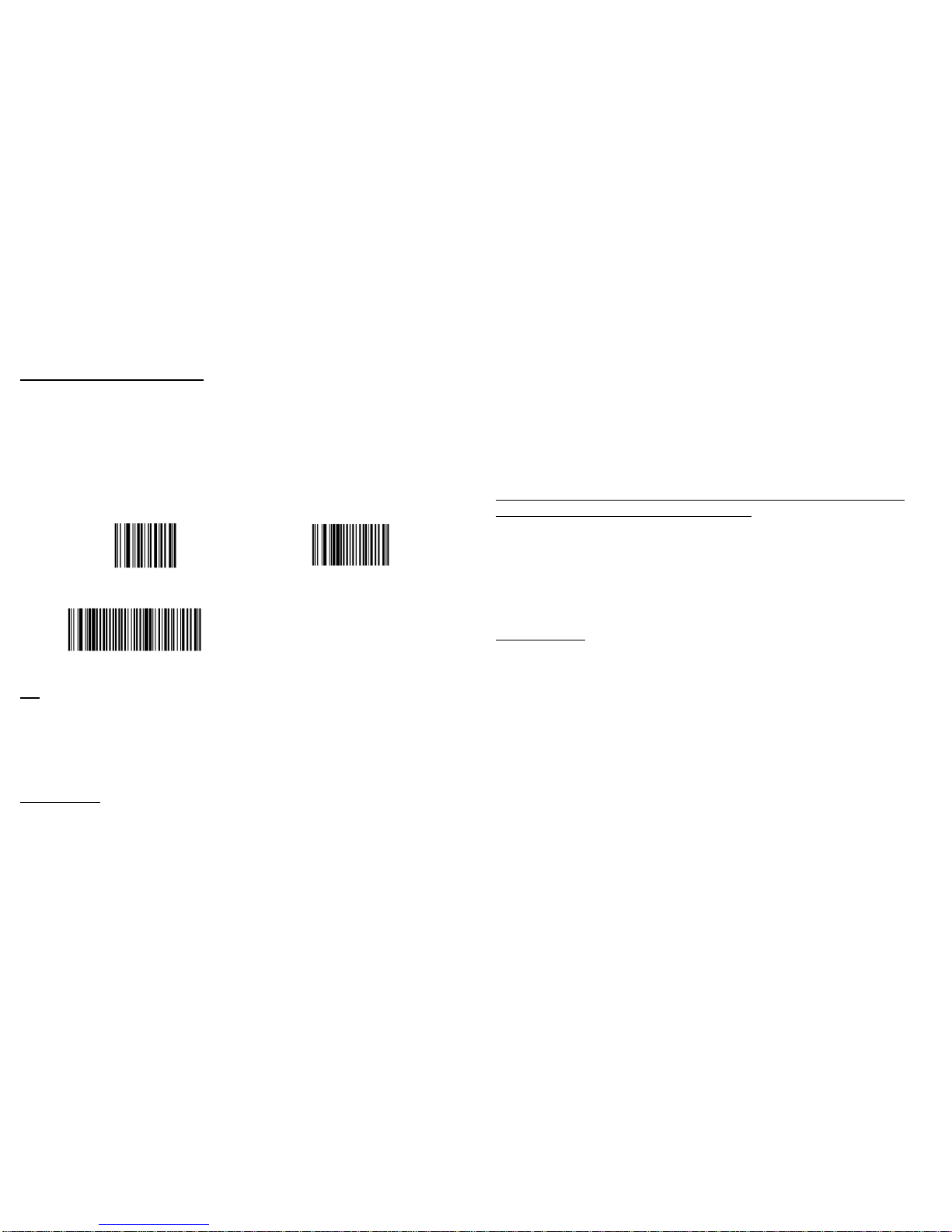

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner

to its factory settings.

RESET CONFIGURATION TO

DEFAULTS

OUTPUT MODE - SERIAL

0B 000601

STRING #1 – TERMINATION

CHAR - CR

0202011000$0D

Tip

Do not hold the scanner directly over a barcode at 90˚. Scanning light bounces

directly back into the scanner from the barcode label is known as specular reflection

which will create a "dead zone" where decoding is difficult. Practice a few times to

find what range of angles works best.

Maintenance

Cleaning the scan window is the only maintenance required. A dirty window may

affect scanning accuracy.

Wipe the scanner window gently with a lens tissue or other material suitable for

cleaning optical material.

Do not spray water or other cleaning liquids directly onto the window.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user‘s authority to operate the equipment.

Limited Warranty

No warranty of any kind is made in regard to this material, including, but not limited to,

implied warranties of merchantability or fitness for any particular purpose. We are not liable

for any errors contained herein or for incidental or consequential damages in connection with

furnishing, performance or use of this material. We shall be under no liability in respect of

any defect arising from fair wear and tear, willful damage, negligence, abnormal working

conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of

the products without written approval.

Setup from Bar Code Label

Multi-Interface Functions – 1

OUTPUT FIRMWARE VERSION

RESET CONFIGURATION TO

DEFAULTS

0A 0B

OUTPUT MODE – KEYBOARD / USB OUTPUT

MODE

OUTPUT MODE - SERIAL

000600 000601

GOOD READ BEEP TONE – NONE BUZZER /

LED

GOOD READ BEEP TONE - RESET

014200 0B142

DECODE OPTIONS REVERSE IMAGE –

ENABLE


DECODE OPTIONS REVERSE IMANGE

- DISABLE

01391 01390

DECODE OPTIONS SEND BAR CODE ID -

DISABLE

CODE ID

DECODE OPTIONS SEND BAR CODE

ID – AS A PREFIX

01400 01401

DECODE OPTIONS SEND BAR CODE ID -

RESET

DECODE OPTIONS SEND BAR CODE

ID – AS A SUFFIX

Multi-Interface Functions – 2

SCAN MODE – SINGLE SCAN READING

MODE

SCAN MODE – SINGLE SCAN NO

TRIGGER

013300 013301

SCAN MODE – MULTISCAN

NO TRIGGER

013302 013303

SCAN MODE - PULSE

013305

LASER/CCD TIMEOUT – 5 SECONDS

LASER/CCD TIMEOUT – 2 SECONDS

0134005 0134002

LASER/CCD PULSE RATE - 7

LASER/CCD PULSE RATE - 3

013507 013503

Interface – KBW

WEDGE MODE - AUTODETECT

Communication

WEDGE MODE – SCAN SET 2 PASS

THRU

000200 000204

TRANSMIT SPEED - 0 TRANSMIT

SPEED

TRANSMIT SPEED - 25

0000000 0000025

KEYBOARD COUNTRY - USA

LANGUAGE

KEYBOARD COUNTRY - GERMAN

0005000 0005010

KEYBOARD COUNTRY – FRANCE

KEYBOARD COUNTRY - UNIVERSAL

0005009 0005025

Interface – Serial - 1

SERIAL BAUD RATE - 2400

BAUD RATE

SERIAL BAUD RATE - 4800

000703 000704

SERIAL BAUD RATE - 9600

SERIAL BAUD RATE - 19200

000705 000706

SERIAL HANDSHAKE - NONE

HAND

SHAKE

SERIAL HANDSHAKE – XON/XOFF

001200 001201

SERIAL HANDSHAKE – RTS/CTS

SERIAL HANDSHAKE – ACK/NAK

001202 001203

SERIAL HANDSHAKE TIMEOUT –

2 SECONDS

SERIAL HANDSHAKE TIMEOUT –

5 SECONDS

0013020 0013050

Interface – Serial - 2

SERIAL DATA BITS - 8

PARAMETERS

SERIAL DATA BITS - 7

00081 00080

SERIAL STOP BITS - 1

SERIAL STOP BITS - 2

00090 00091

SERIAL PARITY - NONE

SERIAL PARITY - ODD

001000 001001

SERIAL PARITY - EVEN

SERIAL PARITY - MARK

001002 001003

SERIAL PARITY - SPACE

SERIAL PARITY - RESET

001004 0B010

Symbologies On/Off - 1

CODE 11 - ENABLE CODE 11

CODE 11 - DISABLE

01261 01260

CODE 39 ENABLE CODE 39

CODE 39 DISABLE

00221 00220

FULL ASCII ENABLE

FULL ASCII DISABLE

00231 00230

Symbologies On/Off - 2

CODE 93 - ENABLE

CODE 93

CODE 93 - DISABLE

00621 00620

CODE 128 - ENABLE CODE 128 CODE 128 - DISABLE

00691 00690

CODE 128 ISBT - ENABLE CODE 128 ISBT - DISABLE

00701 00700

CODABAR - ENABLE CODABAR

CODABAR - DISABLE

00851 00850

I2OF5 - ENABLE

INTERLEAVED 2

OF 5

I2OF5 - DISABLE

00961 00960

ID2OF5 - ENABLE INDUSTRIAL 2 OF 5

ID2OF5 - DISABLE

01061 01060

Symbologies On/Off - 3

MSI - ENABLE

MSI

MSI - DISABLE

01151 01150

UPC-A ENABLE UPC/EAN UPC-A DISABLE

00341 00340

UPC-E ENABLE UPC-E DISABLE

00351 00350

EAN-13 ENABLE

EAN-13 DISABLE

00361 00360

EAN-8 ENABLE

EAN-8 DISABLE

00371 00370

Symbologies Set Up - 1

CODE 11 ID CHARACTER – “m”

CODE 11

CODE 11 ID CHARACTER – “Z”

0131m 0131Z

CODE 11 LASER/CCD REDUNDANCY -

ENABLE

CODE 11 LASER/CCD REDUNDANCY -

DISABLE

01321 01320

CODE 39 SS CHAR - NONE CODE 39 CODE 39 SS CHAR ‛+’

002700 002704

CODE 39 SEND START/STOP CHARS

ENABLE

CODE 39 SEND START/STOP CHARS

DISABLE

00281 00280

CODE 39 ID CHARACTER ‛a’

CODE 39 ID CHARACTER ‛z’

0031a 0031Z

CODE 39 LASER/CCD REDUNDANCY

ENABLE

CODE 39 LASER/CCD REDUNDANCY

DISABLE

00331 00330

Symbologies Set Up – 2

CODE 93 ID CHARACTER – “h”

CODE 93

CODE 93 ID CHARACTER – “Z”

0066h 0066Z

CODE 93 LASER/CCD REDUNDANCY -

ENABLE

CODE 93 LASER/CCD REDUNDANCY -

DISABLE

00681 00680

CODE 128 ID CHARACTER – ‛g’ CODE 128 CODE128 ID CHARACTER - ‛Z’

0081g 0081Z

CODE 128 LASER/CCD REDUNDANCY -

ENABLE

CODE 128 LASER/CCD REDUNDANCY -

DISABLE

00841 00840

CODABAR SEND START/STOP CHARS -

ENABLE

CODABAR

CODABAR SEND START/STOP CHARS -

DISABLE

00861 00860

CODABAR WIDE GAPS ALLOWED -

ENABLE

CODABAR WIDE GAPS ALLOWED -

DISABLE

00901 00900

Symbologies Set Up – 3

CODABAR ID CHARACTER –‛k’ CODABAR CODABAR ID CHARACTER –‛Z’

0094k 0094Z

CODABAR LASER/CCD REDUNDANCY

- ENABLE

CODABAR LASER/CCD

REDUNDANCY - DISABLE

00951 00950

I2OF5 CHECK DIGIT - DISABLE Interleaved 2 of 5 I2OF5 CHECK DIGIT - ENABLE

00970 00981

I2OF5 ID CHARACTER – ‛i’ I2OF5 ID CHARACTER – ‛Z’

0104i 0104Z

I2OF5 LASER/CCD REDUNDANCY -

ENABLE

I2OF5 LASER/CCD REDUNDANCY -

DISABLE

01051 01050

ID2OF5 BAR START/STOP - ENABLE Industrial 2 of 5 ID2OF5 BAR START/STOP - DISABLE

01071 01070

ID2OF5 ID CHARACTER - ‛j’ ID2OF5 ID CHARACTER - ‛Z’

0113j 0113Z

Symbologies Set Up – 4

ID2OF5 LASER/CCD REDUNDANCY -

ENABLE

ID2OF5 LASER/CCD REDUNDANCY -

DISABLE

01141 01140

MSI CHECK DIGIT – MOD 10 MSI MSI CHECK DIGIT –RESET

01160 0B116

MSI ISBN ID CHARACTER –‛f’ MSI ISBN ID CHARACTER –‛Z’

0053f 0053Z

MSI LASER/CCD REDUNDANCY -

ENABLE

MSI LASER/CCD REDUNDANCY -

DISABLE

01251 01250

EXPAND UPC-E TO UPC-A ENABLE UPC/EAN

EXPAND UPC-E TO UPC-A DISABLE

00381 00380

EXPAND UPC-A TO EAN-13 ENABLE

EXPAND UPC-A TO EAN-13 DISABLE

00391 00390

CONVERT EAN-13 TO ISBN ENABLE CONVERT EAN-13 TO ISBN DISABLE

00481 00480

Inhaltsverzeichnis

Andere Motorola Barcode-Lesegerät Handbücher

Motorola

Motorola MC55 - Enterprise Digital Assistant Bedienungsanleitung

Motorola

Motorola SYMBOL DS3578 Installations- und Betriebshandbuch

Motorola

Motorola DS4208 Bedienungsanleitung

Motorola

Motorola Symbol DS6607 Installations- und Betriebshandbuch

Motorola

Motorola DS9808 - Symbol - Wired Handheld Barcode... Bedienungsanleitung

Motorola

Motorola DS4208 Installations- und Betriebshandbuch

Motorola

Motorola DS3508 Installations- und Betriebshandbuch

Motorola

Motorola Symbol DS9808-R Bedienungsanleitung

Motorola

Motorola DS9808 - Symbol - Wired Handheld Barcode... Bedienungs- und Wartungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Motorola

Motorola Symbol LS3578-ER Betriebsanleitung

Motorola

Motorola Symbol DS6878 Bedienungsanleitung

Motorola

Motorola MK500 Bedienungsanleitung

Motorola

Motorola Symbol DS3408 Installations- und Betriebshandbuch

Motorola

Motorola SYMBOL DS3578 Bedienungsanleitung

Motorola

Motorola Symbol CS3000 Series Bedienungsanleitung

Motorola

Motorola Symbol DS6878 Installations- und Betriebshandbuch

Motorola

Motorola MC92N0-G Bedienungsanleitung

Motorola

Motorola DS4800 Series Installations- und Betriebshandbuch

Motorola

Motorola MC32N0 SERIES Bedienungsanleitung

Motorola

Motorola Symbol LS1203 Bedienungsanleitung

Motorola

Motorola SYMBOL LS3478 Bedienungsanleitung

Motorola

Motorola LS4208 - Symbol - Wired Handheld Barcode... Bedienungsanleitung

Motorola

Motorola DS9808 - Symbol - Wired Handheld Barcode... Installations- und Betriebshandbuch

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Element

Element P130BT Bedienungsanleitung

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung

Atid

Atid AT188N Plus Bedienungsanleitung

AZENTA

AZENTA 281947 Bedienungsanleitung

Datalogic

Datalogic DS2x00N-DS4800 Series Leitfaden
