Motorola MPx200 Bedienungsanleitung

CMCS Proprietary & Confidential

Date: 2003/11/28

Motorola MPx200 Service Manual

Rev 4.0

part of this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system or translated into any language or computer language, in any form

or by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of Chi Mei Communication Systems,

Inc.

ALL INFORMATION IS PROVIDED BY CMCS ON AN "AS IS" BASIS ONLY.

CMCS PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A

PARTICULAR PURPOSE, MERCHANTABILITYAND NONINFRINGEMENT.

Motorola MPx200 Service Manual

C O N T E N T S

PREFACE.............................................................................................................................................................. 2

CHAPTER 1 PRODUCT SPECIFICATIONS................................................................................................... 3

CHAPTER 2. CONFIGURATION...................................................................................................................... 6

2-1 FRONT 6

2-2 SIDE 7

2-3 OPEN 8

CHAPTER 3 TROUBLE SHOOTING............................................................................................................... 9

3-1. TEST EQUIPMENT AND TOOLS 9

Confidential

CHAPTER 4 MECHANICAL EXPLODED DIAGRAM OF MPX200......................................................... 19

3-2. PC UPGRADEWIZARD 9

3-3 INITIAL INSPECTION 16

3-4 LEVEL 1 AND LEVEL 2 REPAIR 16

CHAPTER 5 DISASSEMBLYAND ASSEMBLY TIPS.................................................................................. 20

5.1 LEVEL 1 DISASSEMBLY 21

5.2 LEVEL 1 ASSEMBLY 23

5.3 LEVEL 2DISASSEMBLY 25

5.4 LEVEL 2 ASSEMBLING 37

CHAPTER 6 SPARE PART LIST..................................................................................................................... 48

1 CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

Confidential

Preface

This service manual is designed for experienced technicians to support basic

servicing on Motorola MPx200. It consists product specification, configuration,

level 1 and level 2 troubleshooting , and disassembly of MPx200.

CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

Confidential

Chapter 1 Product Specifications

Clam Shell Style Phone

Internal Antenna

Tri-band E-GSM 900, GSM 1800, GSM 1900

GPRS Class B, 4+1 Slot (Class 8)

2.2 “ 65K Color Display with 0.8” Monochrome LCD

Five Way Navigation Key

SD/MMC Slot

Infrared & USB Connectivity

Polyphonic Ring (16 voices)

Image & Sound Personalization

Multimedia Messaging (MMS)

Overview

Microsoft Smart Phone 2002

Messaging (SMS, Email, MSN Messenger) Telephony

Contacts

Calendar

Tasks

ActiveSnyc

Internet Explore (Web and WAP Browser)

Media Player

Game

General

Style: Clam Shell

Size: 89 x 48 x 27mm, 98cc

Weight: 117.8g

OS: Microsoft Smart Phone 2002

Processor: TI OMAP

Available Storage: 10 MB

Features

Specifications

Battery Information

860mAHr

Talk Time: Up to 4.5 hours

Standby Time: Up to 112 hours

3 CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

Confidential

GSM

Tri-band Operation: E-GSM 900, GSM 1800, and GSM 1900

GSM Phase 2+

GSM Data: Up to 14.4 kbps

GPRS

Class: B

Slots: 4+1

Coding Scheme: CS-1, CS-2, CS-3, CS-4

Downlink Rate: Up to 53.6 kbps (CS-2)

Uplink Rate: Up to 13.4 kbps (CS-2)

Main Display

Type: TFT Transflective

Size: 176 x 220 pixels, 2.2 inch

Pixel Size: 0.198mm

Color Depth: 16-bit (65K colors)

Display

Type: Monochrome STN

Size: 80 x 48 pixels, 0.8 inch

Input

ITU-T Numeric Keypad: Send, End, Numeric Input (0-9), or

Characters (A-Z, a-z) supported

Two Soft Keys

Five Navigation Key

Dedicated HOME & RETURN Key

Smart Input: T9

Speaker-dependent Voice Recognitions

Jag-Dial (Vol up/ down, Recorder)

Phone

Mobile Originated and Terminated Call

Speakerphone

SIM Manager (Phonebook in SIM)

Speed Dialling

Polyphonic Ring (16 Voices): WAV and MIDI File supported

Radio Off: Use PDAfunctions only during Flight

SIM Tool Kit: Class 3

USSD

CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

Confidential

Personal Organizer

Contacts

Calendar

Tasks

Voice Notes

Calculator

Management

Personalization

Home Screen

Ring Tones (MIDI and WAV Format)

Alarm Tones

Messaging

SMS

MMS

MSN Messenger

Internet Explore

Language: WAP, HTML, cHTML Supported

Images and Sounds Supported, but Frames on a Web Page is

NOT Supported

Media Player

Supported File Format: MP3 (.mp3) and Windows

Media .asf, .asx, .wax, .wm, .wma, .wmv, .wmx, .wvx)

Supported Codecs: Media Audio/Video Codec, MP3, Microsoft

MPEG-4, and ISO MPEG-4

Connectivity

USB 1.1 Client

Infrared: Serial IrDA (SIR)

Synchronization

Synchronizing Information: Inbox, Contacts, Calendar, Tasks

PC Applications: ActiveSync

Bearer: IrDA, USB, Over the Air (OTA)

Game

Solitaire

5 CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

Chapter 2. Configuration

2-1 Front

Confidential

External Display

Handstrap Hole

Speaker

Sync/charger socket Memory card slot

CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

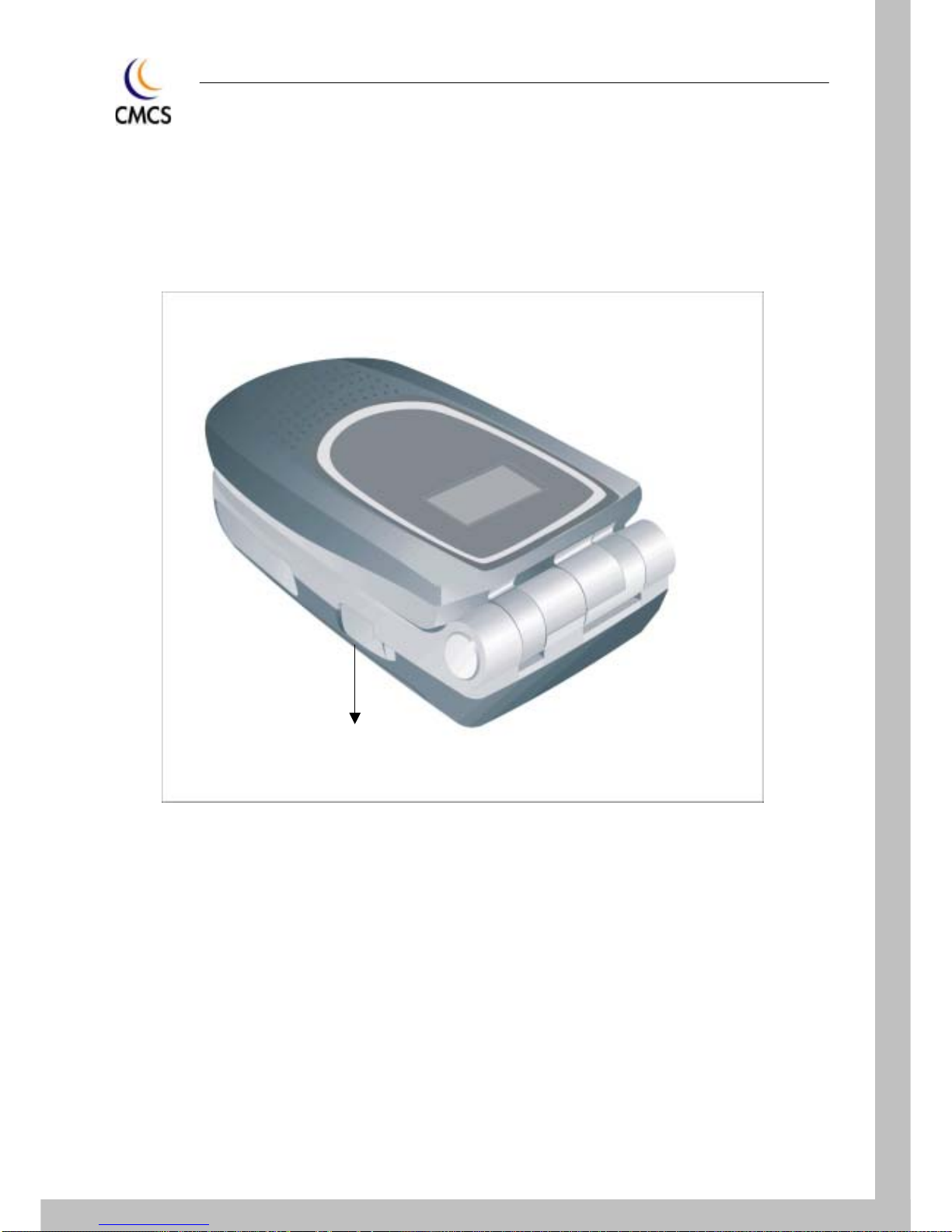

2-2 Side

Confidential

Handset Socket

7 CMCS Proprietary & Confidential

Motorola MPx200 Service Manual

2-3 Open

Confidential

Main Dis

Direction Ke

Soft Ke

End Button

ction Button

Soft Ke

Back Button

Talk Button

Pound Ke

Dial

Home Button

Power Button

Infrared

Micro

hone

sterisk Ke

CMCS Proprietary & Confidential
