Mottura ASTABLOCK 99251 Bedienungsanleitung

www.mottura.it

La confezione contiene i particolari per l’abbinamento di tutti gli

articoli Astablock per porte blindate, in versione senza aste di

collegamento, alle serrature con corsa aste mm 40.

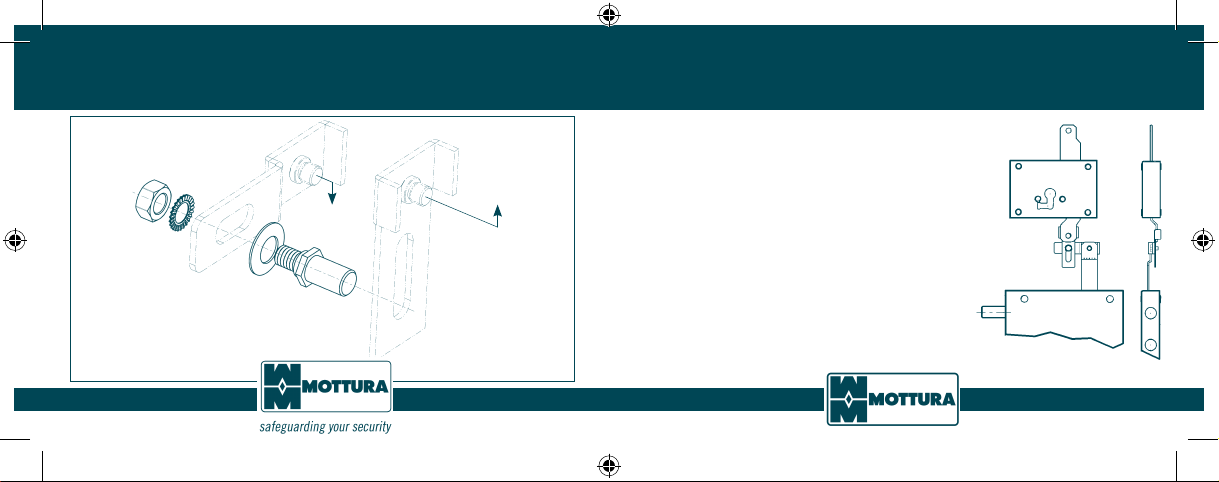

Il montaggio va eseguito con la serratura e l’Astablock in posi-

zione di chiusura. In gura vengono rappresentati gli articoli

Astablock 36257 e serratura 64561. Vericare che il perno scorra

liberamente dentro l’asola verticale, in modo da ottenere, in posi-

zione di chiusura, la situazione ragurata a lato.

The package contains the spare parts for the combination of all

Astablock for armoured doors, without connecting bars, to locks

with 40 mm bar travel. The installation should be done with the lock

and the Astablock in the closed position. In the gure are represented

articles 36257 (Astablock ) and 64561 (lock). Verify that the pin slides

freely in the vertical loop, so as to obtain, in the closed position, the

situation shown in gure beside.

ASTABLOCK

®

FISSAGGIO ASTABLOCK + SERRATURE CORSA ASTE 40

ASTABLOCK+LOCKS FIXING FOR 40 MM BAR TRAVEL

3

99160A - 04/2014 - a_013000

36257

64561

ART.99251

SERRATURA

LOCK

ASTABLOCK

99160A.indd 1 17/04/2014 15:24:50

SEQUENZA DI MONTAGGIO

- Avvitare i particolari rappresentati in gura 1 e 2 rispettivamente sugli “attacchi aste” di

Astablock e della serratura.

- Fissare il perno rappresentato in gura 3 nell’asola orizzontale, in posizione che consen-

ta il perfetto allineamento dell’entrata chiave o dei chiavistelli, di Astablock e serratura.

ASSEMBLY SEQUENCE

- Screw the parts shown in Figure 1 and 2 respectively on the “bars attachments” of Asta-

block and the lock.

- Attach the pin shown in Figure 3 on the horizontal eyelet, which allows perfect ali-

gnment to backset slot or latches of Astablock and lock.

1 2

99160A.indd 2 17/04/2014 15:24:51
