Realizzazione: EDIPROM / bergamo

GGP ITALY

SPA

Via del Lavoro, 6

I-31033 Castelfranco Veneto (TV) ITALY

LWA

Year . . . . . . . S/N°. . . . . . . . . . . . . . . .

Model: . . . . . . . . . . . . . . . .

TONDEUSE AUTOPORTÉE

MANUEL D’UTILISATION

ATTENTION! - Avant d’utiliser la machine, lire attentivement le

présent manuel.

LAWN-TRACTOR

OWNER’S MANUAL

WARNING!

Read this manual carefully before using the machine.

RASENTRAKTOR

GEBRAUCHSANWEISUNG

ACHTUNG! - Bevor man die Maschine verwendet lese man das

vorliegende Handbuch sorgfältig durch.

TRATTORINO RASAERBA

MANUALE DI ISTRUZIONI

ATTENZIONE: prima di utilizzare la macchina, leggere attentamente

il presente manuale.

ZITMAAIER

GEBRUIKERSHANDLEIDING

LET OP! – Vooraleer de machine te gebruiken, lees aandachtig deze

handleiding.

71505175/1

102-122

• Tout de suite après l’achat, transcrire dans les espaces prévus les

données d’identification (3 – 5 – 6) qui sont indiquées sur l’étiquette

d’identification de la machine (☛2.1 - IDENTIFICATION DE LA MACHINE).

• As soon as you have purchased the machine, write the machine

identification data (3 - 5 - 6) found on the identification label in the spaces

provided (☛2.1 - IDENTIFICATION OF THE MACHINE).

• Tragen Sie sofort nach dem Kauf die Kennnummern (3 - 5 - 6) in die

entsprechenden Felder auf dem Kennungsschild der Maschine ein (☛2.1

- KENNZEICHNUNG DER MASCHINE).

• Immediatamente dopo l’acquisto, trascrivere negli appositi spazi i dati di

identificazione (3 - 5 - 6) riportati sull’etichetta di identificazione della

macchina (☛2.1 - IDENTIFICAZIONE DELLA MACCHINA).

• Onmiddellijk na aankoop worden de identificatiegegevens (3 - 5 - 6)

genoteerd in de ruimten op het identificatielabel van de machine (☛2.1 -

IDENTIFICATIE VAN DE MACHINE).

Dear Customer,

thank you for having chosen one of our products. We hope that you will get complete

satisfaction from using your new lawn-tractor and that it will fully meet all your expec-

tations.

This manual has been compiled in order that you may get to know your machine and

to be able to use it safely and efficiently. Don’t forget that it forms an integral part of

the machine, so keep it handy so that it can be consulted at any time, and pass it on

to the purchaser if you resell the machine.

This new machine of yours has been designed and made in line with current regula-

tions, and is safe and reliable if used for cutting and collecting grass exactly following

the instructions given in this manual (proper usage). Using the machine in any other

way or ignoring the instructions for safe usage, maintenance and repair is considered

"incorrect usage" which will invalidate the guarantee, and the manufacturer will

decline all responsibility, placing the blame with the user for damage or injury to him-

self or others in such cases.

Since the product is continually being improved, you may find slight differences

between your machine and the descriptions contained in this manual. Certain modifi-

cations can be made to the machine without prior warning and without the obligation

to update the manual, although the essential safety and function characteristics will

remain unaltered. In case of any doubts, do not hesitate to contact your Retailer. And

now enjoy your work!

AFTER-SALES SERVICE

This manual gives all the necessary instructions for using the machine and the basic

maintenance that may be carried out by the user.

Any adjustments or maintenance operations not described in this manual must

be carried out by your Dealer or a specialized Service Centre. Both have the nec-

essary knowledge and equipment to ensure that the work is done correctly with-

out affecting the safety of the machine.

If you wish, your Reitailer will be pleased to offer a maintenance programme person-

alised to your needs. Like this you will be able to keep your new acquisition in peak

performance, maintaining its value.

INTRODUCTION 1

INTRODUCTION

TABLE OF CONTENTS

1. SAFETY ..................................................................................................................... 3

Regulations for using the machine safely

2. IDENTIFICATION OF THE MACHINE AND COMPONENTS ................................. 7

Explanations on how to identify the machine and its main components

3. UNPACKING AND ASSEMBLY ............................................................................... 9

Explanations on how to remove the packing and on how to assemble

separated parts

4. CONTROLS AND INSTRUMENTS ........................................................................ 13

Position and functions of all the controls

5. HOW TO USE THE MACHINE ............................................................................... 21

Provides indications for working efficiently and safely

5.1 Safety recommendations ................................................................................. 21

5.2 Why the safety devices cut in .......................................................................... 21

5.3 Preliminary operations before starting work ..................................................... 22

5.4 Using the machine .......................................................................................... 24

5.5 Using on slopes ............................................................................................... 32

5.6 Transporting ..................................................................................................... 33

5.7 Lawn maintenance .......................................................................................... 33

6. MAINTENANCE ..................................................................................................... 35

All the information for maintaining the machine in peak efficiency

6.1 Safety recommendations ................................................................................. 35

6.2 Routine maintenance ....................................................................................... 35

6.3 Checks and adjustments ................................................................................. 38

6.4 Dismantling and renewing parts ...................................................................... 39

6.5 Information for Service Centres ..................................................................... 41

7. TROUBLESHOOTING ............................................................................................ 43

A help in quickly resolving any problems

8. ACCESSORIES ON REQUEST ............................................................................. 46

A description of the accessories available for particular types of work

9. SPECIFICATIONS .................................................................................................. 47

A summary of the main specifications of your machine

TABLE OF CONTENTS

2EN

1.1 HOW TO READ THE MANUAL

Some paragraphs in the manual containing information of particular importance for

safety and operation are highlighted at various levels of emphasis, and signify the fol-

lowing:

or These give details or further information

on what has already been said, and aim to prevent damage to the machine.

Non-observance will result in the risk of injury to oneself or

others.

Non-observance will result in the risk of serious injury or

death to oneself or others.

This manual describes various versions of the machine, which mainly differ in:

– type of transmission: with mechanical gear-change or with hydrostatic continuous

speed adjustment. The models with hydrostatic transmission can be recognised by

the word "HYDRO" on the identification label (☛ 2.1);

– the inclusion of components or accessories which may not be available in some

areas;

– special equipments fitted.

The symbol highlights all differences in usage and is followed by the indication of

the version to which it refers.

The symbol “ ☛” makes a reference to another part of the manual where further infor-

mation or clarification can be found.

Whenever a reference is made to a position on

the machine “front”, “back”, “left” or “right” hand side, this is

determined by facing the direction of forward travel.

For all operations regarding the use and main-

tenance of the engine or the battery not described in this manual,

refer to the relevant manuals which form an integral part of all the

documentation supplied with the machine.

IMPORTANT

NOTE

➤



!DANGER!



!WARNING!

IMPORTANTNOTE

SAFETY 3

1. SAFETY

1.2 SAFETY REGULATIONS

Read carefully

before using the machine.

A) TRAINING

1) Read the instructions carefully. Be

familiar with the controls and the proper

use of the equipment.

2) Never allow children or people unfa-

miliar with these instructions to use the

lawnmower. Local regulations can restrict

the age of the operator.

3) Never mow while people, especially

children, or pets are nearby.

4) Keep in mind that the operator or user

is responsible for accidents or hazards

occurring to other people or their proper-

ty.

5) Do not carry passengers.

6) All drivers should seek and obtain pro-

fessional and practical instruction. Such

instruction should emphasise:

– the need for care and concentration

when working with ride-on machines;

– control of a ride-on machine sliding on

a slope will not be regained by the appli-

cation of the brake. The main reasons for

loss of control are:

– insufficient wheel grip;

– being driven too fast;

– inadequate braking;

– the type of machine is unsuitable for

its task;

– lack of awareness of the effect of

ground conditions, especially slopes;

– incorrect hitching and load distribu-

tion.

B) PREPARATION

1) While mowing, always wear sub-

stantial footwear and long trousers. Do



!WARNING!

not operate the equipment when barefoot

or wearing open sandals.

2) Thoroughly inspect the area where the

equipment is to be used and remove all

objects which can be thrown by the

machine.

3) DANGER! Petrol is highly flammable:

– store fuel in containers specifically

designed for this purpose;

– refuel outdoors only and do not smoke

while refuelling;

–add fuel before starting the engine.

Never remove the cap of the fuel tank

or add petrol while the engine is run-

ning or when the engine is hot;

– If petrol is spilled, do not attempt to

start the engine but move the machine

away from the area of spillage and avoid

creating any source of ignition until the

petrol vapours have dissipated;

– replace all fuel tank and container caps

securely.

4) Replace faulty silencers.

5) Before using, always visually inspect

to see that the blades, blade bolts and

cutter assembly are not worn or dam-

aged. Replace worn or damaged blades

and bolts in sets to preserve balance.

6) On multi-bladed machines, take care

as rotating one blade can cause other

blades to rotate.

C) OPERATION

1) Do not operate the engine in a con-

fined space where dangerous carbon

monoxide fumes can collect.

2) Mow only in daylight or good artificial

light.

3) Before attempting to start the engine,

disengage all blade attachment clutches

and shift into neutral.

4) Do not use on slopes of more than

10° (17%).

SAFETY

4EN

5) Remember there is no such thing as

a “safe” slope. Travel on grass slopes

requires particular care. To guard against

overturning:

– do not stop or start suddenly when

going up or downhill;

– engage the clutch slowly and always

keep the machine in gear, especially

when travelling downhill;

– machine speeds should be kept low on

slopes and during tight turns;

– stay alert for humps and hollows and

other hidden hazards;

–never mow across the face of the

slope.

6) Use care when pulling loads or using

heavy equipment:

– use only approved drawbar hitch

points;

– limit loads to those you can safely con-

trol;

– do not turn sharply. Use care when

reversing;

– use counterweight(s) or wheel weights

when suggested in the instruction hand-

book.

7) Stop the blades rotating before cross-

ing surfaces other than grass.

8) Never operate the machine with

defective guards, or without safety pro-

tective devices in place.

9) Do not change the engine governor

settings or overspeed the engine.

Operating the engine at excessive speed

can increase the hazard of personal injury.

10) Before leaving the operator’s posi-

tion:

– disengage the power take-off and

lower the attachments;

– change into neutral and set the parking

brake;

– stop the engine and remove the key.

11) Disengage drive to attachments,

stop the engine and remove the igni-

tion key:

– before clearing blockages or unclog-

ging chutes;

– before cleaning, checking or working

on the machine;

– after striking a foreign object. Inspect

the machine for damage and make

repairs before restarting and operating

the equipment;

– If the machine starts to vibrate abnor-

mally (check immediately).

12) Disengage drive to blades when

transporting or not in use.

13) Stop the engine and disengage

drive to the attachment:

– before refuelling;

– before removing the grass catcher.

14) Reduce the throttle setting during

engine run-out and, if the engine is pro-

vided with a shut-off valve, turn the fuel

off at the conclusion of mowing.

D) MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tight to

be sure the equipment is in safe working

condition.

2) Never store the equipment with petrol

in the tank inside a building where fumes

may reach an open flame or spark.

3) Allow the engine to cool before storing

in any enclosure.

4) To reduce the fire hazard, keep the

engine, silencer, battery compartment

and petrol storage area free of grass,

leaves, or excessive grease.

5) Check the grass catcher frequently for

wear or deterioration.

6) Replace worn or damaged parts for

safety.

7) If the fuel tank has to be drained, this

should be done outdoors.

8) On multi-bladed machines, take care

as rotating one blade can cause other

blades to rotate.

9) When the machine is to be stored or

left unattended, lower the cutting deck.

SAFETY 5

6EN SAFETY

1.3 SAFETY DECALS

Your machine must be used with care. Therefore, decals have been placed on the

machine, to remind you pictorially of the main precautions to take during use. These

decals are to be considered an integral part of the machine.

If a decal should fall off or become illegible, contact your Retailer to replace it. Their

meaning is explained below.

1.4 REGULATIONS FOR TOWING

A kit for towing a small trailer is available on request.

This accessory is to be fitted as per the instructions provided.

When using, do not exceed the recommended drawbar loads

stated on the decal and follow the safety instructions, (☛1.2,

C-6).

Warning: Read the Operator’s

Manual before operating this

machine.

Warning: Disconnect the igni-

tion key and read the instructions

before carrying out any repair or

maintenance work.

Danger! Ejected objects: Do

not operate without either the

stone-guard or grass-catcher in

place.

Danger! Ejected objects:

Keep bystanders away.

Danger! Machine rollover: Do

not use this machine on slopes

greater then 10°.10°.

Danger! Dismembetment: Make sure that children stay

clear of the machine all the time when engine is running.

Danger of cutting yourself. Blades in movement. Do not

put hands or feet near or under the opening of the cutting plate.

112

3 4

2.1 IDENTIFICATION OF THE MACHINE

The plate located near the battery housing has

the essential data of each machine.

1. Acoustic power level according

to directive 2000/14/CE

2. Conformity mark according to

directive 98/37/EEC

3. Year of manufacture

4. Operating engine speed in r.p.m

(if indicated)

5. Type of machine

6. Serial number

7. Weight in kg

8. Name and address of

Manufacturer

9. Type of transmission (if indicated)

2.2 IDENTIFICATION OF MAIN COMPONENTS

Various main components can be seen on the machine, and these have the following

functions:

11. Cutting deck: this is the guard enclosing the rotating blades.

IDENTIFICATION OF THE MACHINE AND COMPONENTS

16201918

171314

15 1211

2. IDENTIFICATION OF THE MACHINE AND COMPONENTS

Write your machine’s serial

number here (6)

✍

LWA

S/N

min-1

8 5 4 7

3 9 6 2 1

12. Blades: these are what cut the grass. The wings at the ends help convey the cut

grass towards the collector channel.

13. Collector channel: this is the part connecting the cutting deck to the grass-

catcher.

14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety ele-

ment in that it stops any objects drawn up by the blades from being thrown out-

side of the machine.

15. Stone-guard or deflector (available as optional part): this can be fitted in place

of the grass-catcher and prevents objects drawn up by the blades from being

thrown outside of the machine.

16. Engine: this moves the blades and drives the wheels. Its specifications and regu-

lations for use are described in a specific manual.

17. Battery: provides the energy for starting the engine. Its specifications and regula-

tions for use are described in a specific manual.

18. Driver seat: this is where the machine operator sits. It has a sensor for detecting

the presence of the operator which is a safety device.

19. Decals for regulations and safety: give reminders on the main provisions for

working safely, each of which is explained in chapter 1.

20. Inspection hatch: for access to make several adjustments.

IDENTIFICATION OF THE MACHINE AND COMPONENTS

8EN

16201918

171314

15 1211

For storage and transport reasons, some components of the machine are not directly

installed in the factory, but have to be assembled after their removal from the packing.

Final assembly is carried out by following these simple instructions.

The machine is supplied without engine oil or fuel. Before starting

up the engine, fill with oil and fuel following the instructions given in the engine man-

ual.

3.1 UNPACKING

When unpacking the machine, take care to gather all individual parts and fittings, and

do not damage the cutting deck when taking the machine off the base pallet.

The packing contents:

– the machine;

– the battery;

– the steering wheel;

– the seat;

– the grass-catcher brackets;

– the grass-catcher components;

– an envelope containing:

– the operator’s manuals and documents,

– the nuts and bolts including a pin for blocking the steering wheel,

– 2 starter keys and a spare 10 A fuse.

To prevent damaging the cutting deck when getting the machine

down from the pallet, take it to the maximum height and be very careful. For

hydrostatic drive models: to make it easier to get the machine off the pallet and to

move it, the drive disengage lever should be put in position «B» (

☛

4.33).

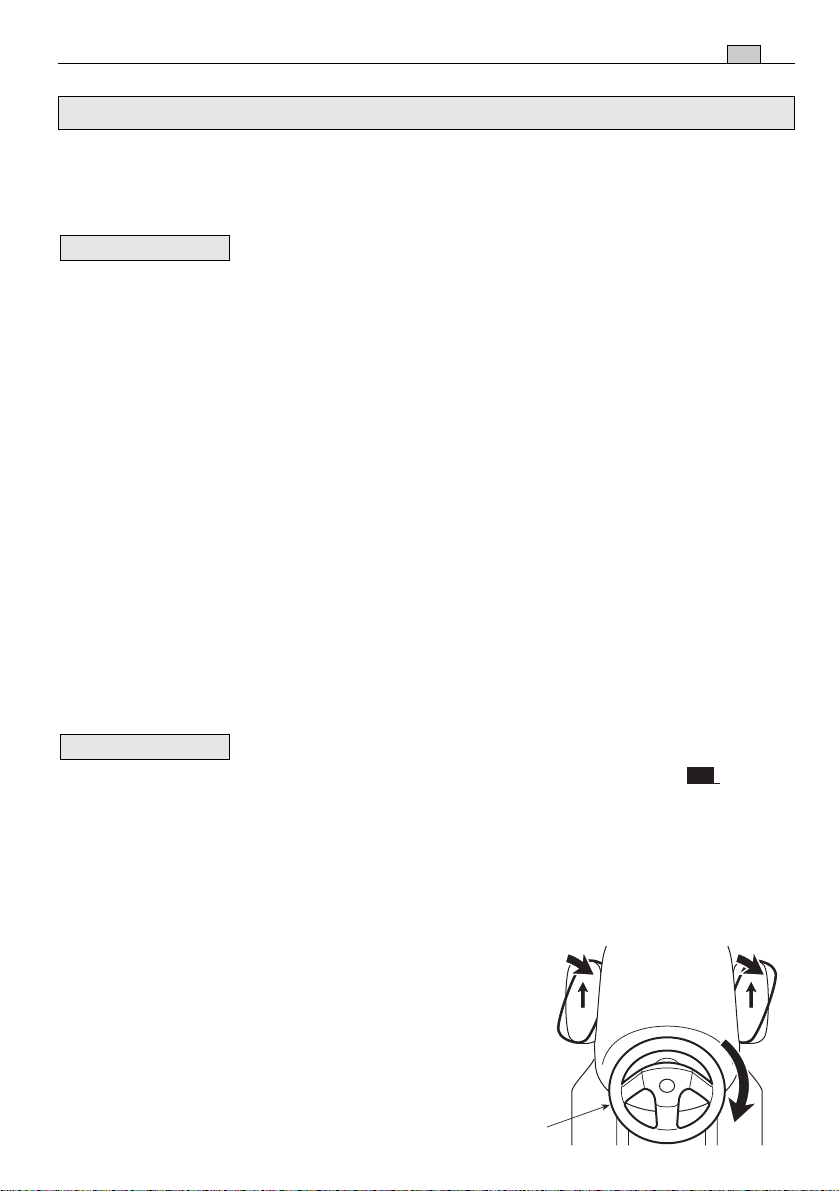

3.2 FITTING THE STEERING WHEEL

Put the machine on a flat surface and straighten up

the front wheels. Fit the steering wheel (1) onto the

protruding shaft (2) so that the spokes are correctly

lined up.

Move the front wheels to turn both the shaft (2) and

the steering wheel (1) about a quarter of a turn in

order to get to the hole (3) on the shaft.

➤

NOTE

IMPORTANT

UNPACKING AND ASSEMBLY 9

3. UNPACKING AND ASSEMBLY

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mountfield Rasenmäher Handbücher

Mountfield

Mountfield SP550 Combi Bedienungsanleitung

Mountfield

Mountfield NTL 430 TR-R Li 48 Series Bedienungsanleitung

Mountfield

Mountfield SP160 R Bedienungsanleitung

Mountfield

Mountfield 1538M SD Bedienungsanleitung

Mountfield

Mountfield 2105M Bedienungsanleitung

Mountfield

Mountfield 2L0536033/MC Bedienungsanleitung

Mountfield

Mountfield UV 34 E Bedienungsanleitung

Mountfield

Mountfield VE 32 Bedienungsanleitung

Mountfield

Mountfield EL 340 Li 48L Bedienungs- und Montageanleitung

Mountfield

Mountfield SP51 Bedienungsanleitung

Mountfield

Mountfield 1228M H Bedienungsanleitung

Mountfield

Mountfield HP45 Bedienungsanleitung

Mountfield

Mountfield MJ 66 Series Bedienungsanleitung

Mountfield

Mountfield HP46 R Bedienungsanleitung

Mountfield

Mountfield HP184 Bedienungsanleitung

Mountfield

Mountfield M150 Bedienungsanleitung

Mountfield

Mountfield SP555 Bedienungsanleitung

Mountfield

Mountfield 4125M Bedienungsanleitung

Mountfield

Mountfield 297411048/MC Bedienungsanleitung

Mountfield

Mountfield HP454 Bedienungsanleitung

Mountfield

Mountfield SP534-ES Bedienungsanleitung

Mountfield

Mountfield SP535 Bedienungsanleitung

Mountfield

Mountfield 420 Bedienungsanleitung

Mountfield

Mountfield EL350 Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
