MD2377-KT INSTALLATION INSTRUCTION

If you have any questions, please contact us via customerservice@mountingdream.com

or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).

(A1)

26"~55" Max:400x400mm/16x16in

Min:75x75mm/3x3in

Für die Installationsanweisungen auf deutsch, Siehe Seite 10~11.

Pour l'instruction en français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en español, favor vea la página 14-15.

Per le Istruzioni in italiano, vedi pagina 16~17.

1 2

x1 x1 1x6'+1x9' x3 x1

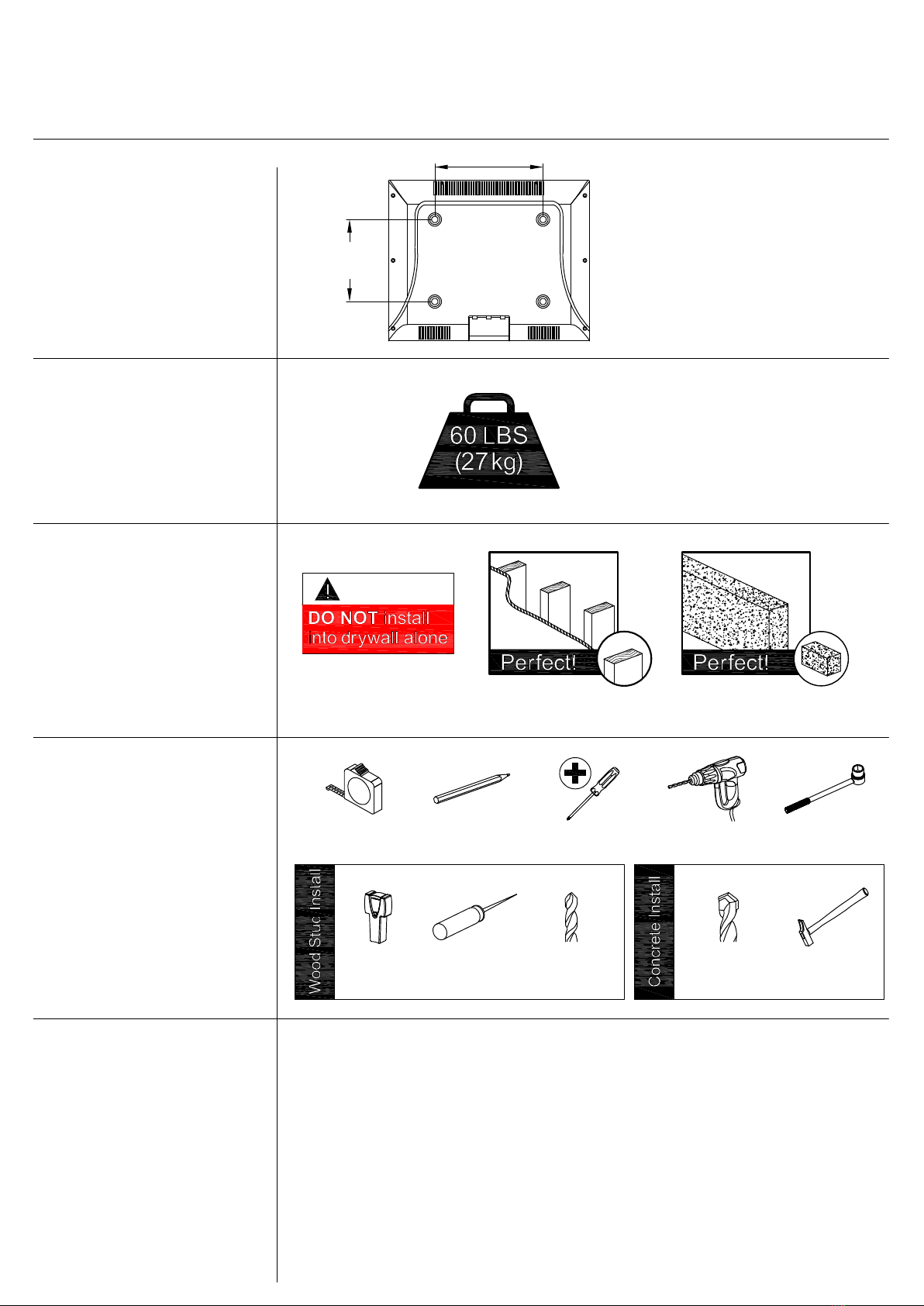

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3in and

equal to/less than

400x400mm/16x16in?

2 Does your TV

(including accessories)

weigh less than

60 LBS (27 kg)?

4 Installation Tools

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon

- Fri 10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

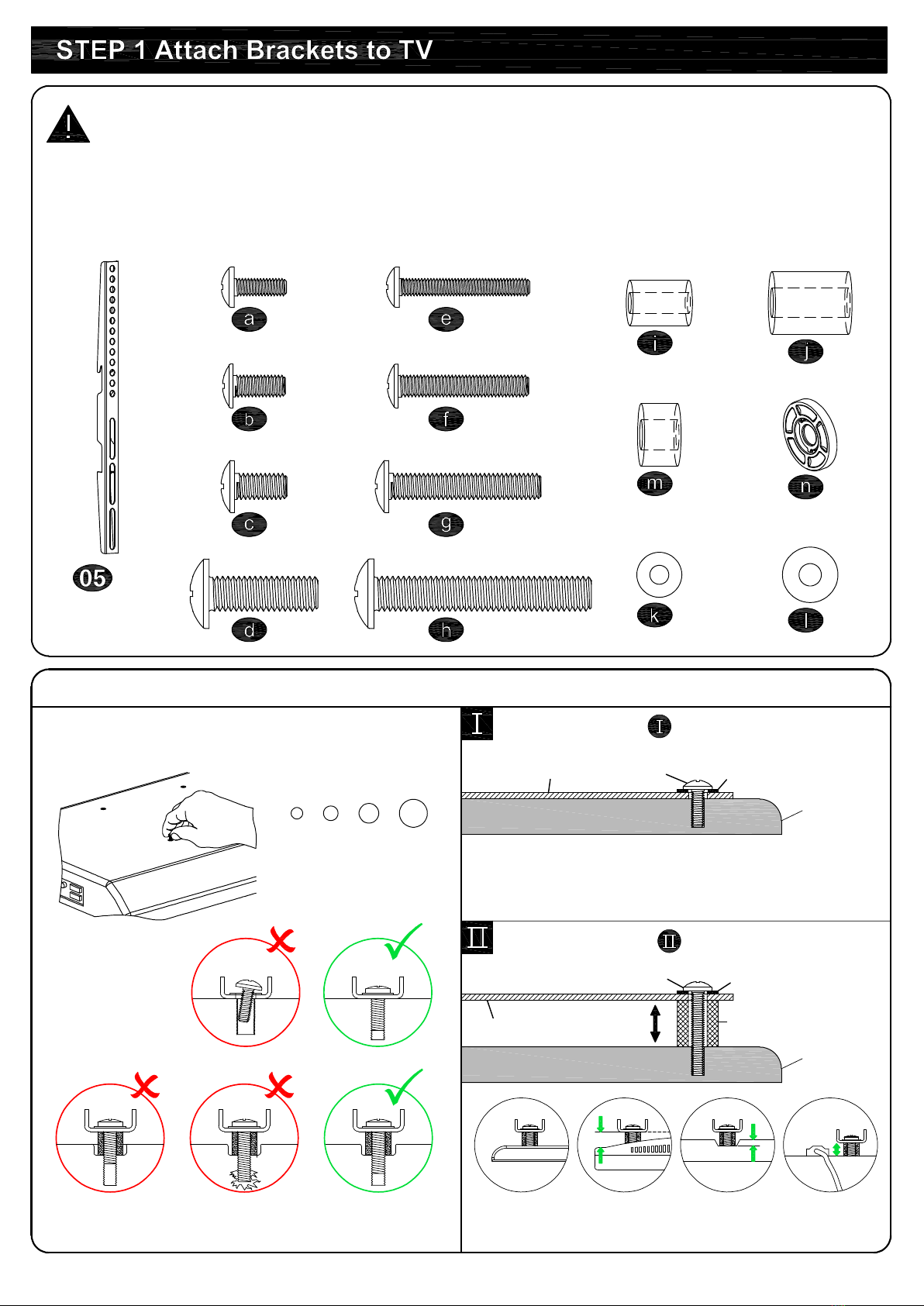

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@mountingdream.com.

NOTE: Not all hardware included will be used.

M4x12mm

M5x12mm

M6x12mm

M8x25mm

M4x30mm

M5x30mm

M6x35mm

M8x50mm

TV Brackets

M5/M6x17mm M8x22mm

M5/M4 M6

10mm 2.5mm

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

Washers

Spacers

TV Screws

x4 x4

x4 x8

1-2 Need Spacer?

Short Screw

Washer

Tips: If you need to combine M8(d/h) screw with 2.5mm spacer(n), you have to remove

the inner circle.

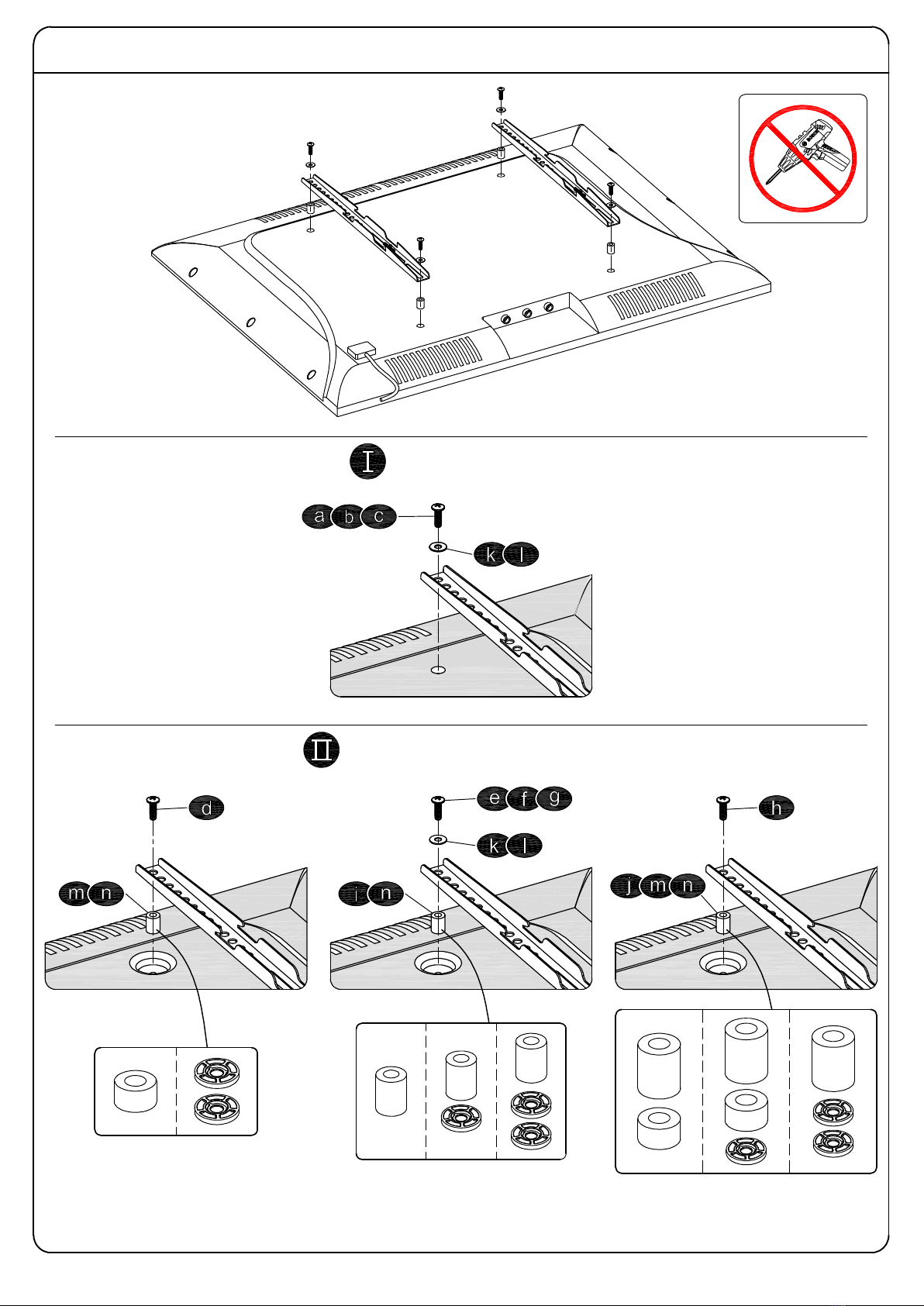

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 6

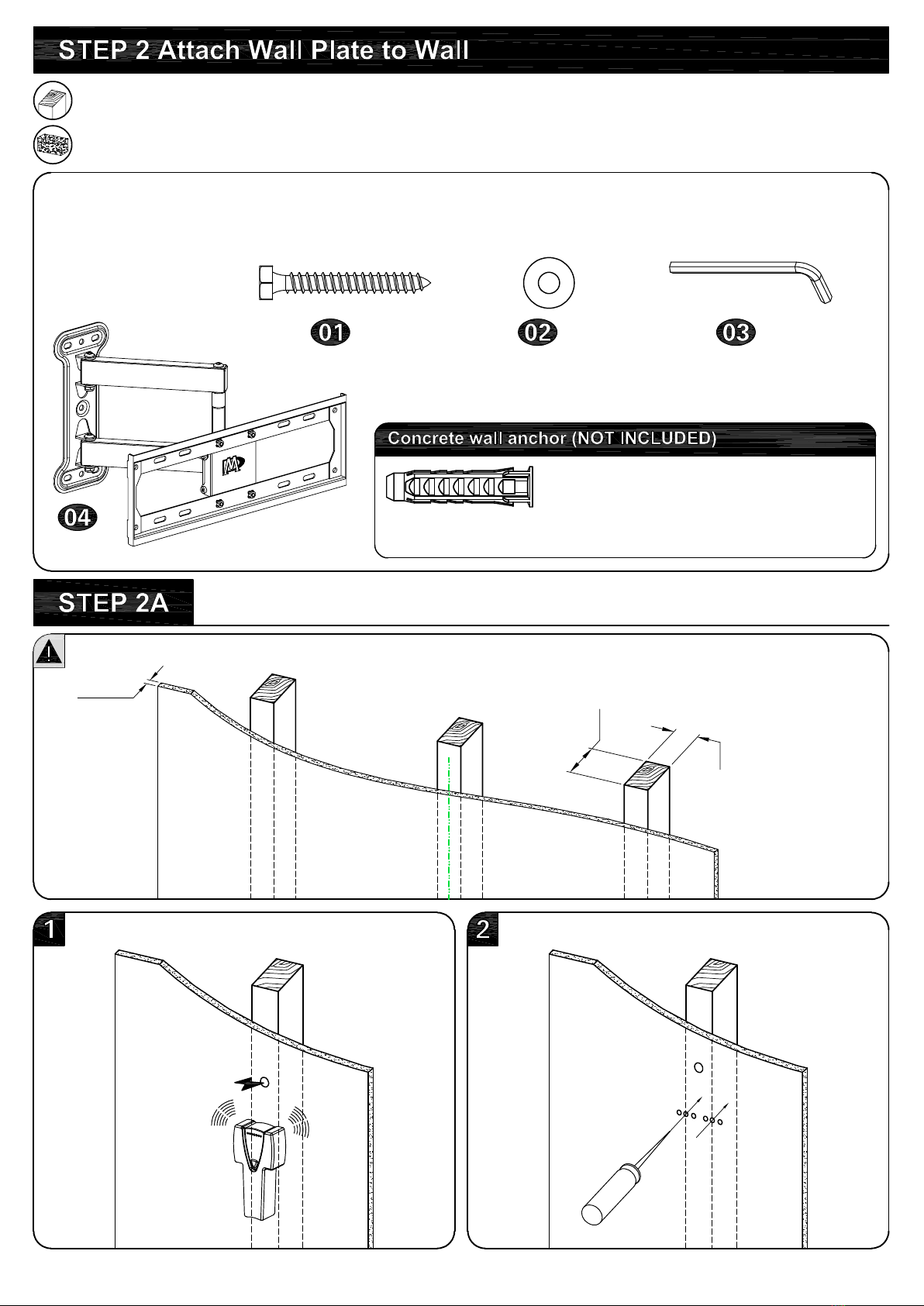

Parts and Hardware

Lag Bolt M8x60mm M8 Washer Allen Key

Wall Plate

Unit

x4 x4 x1

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

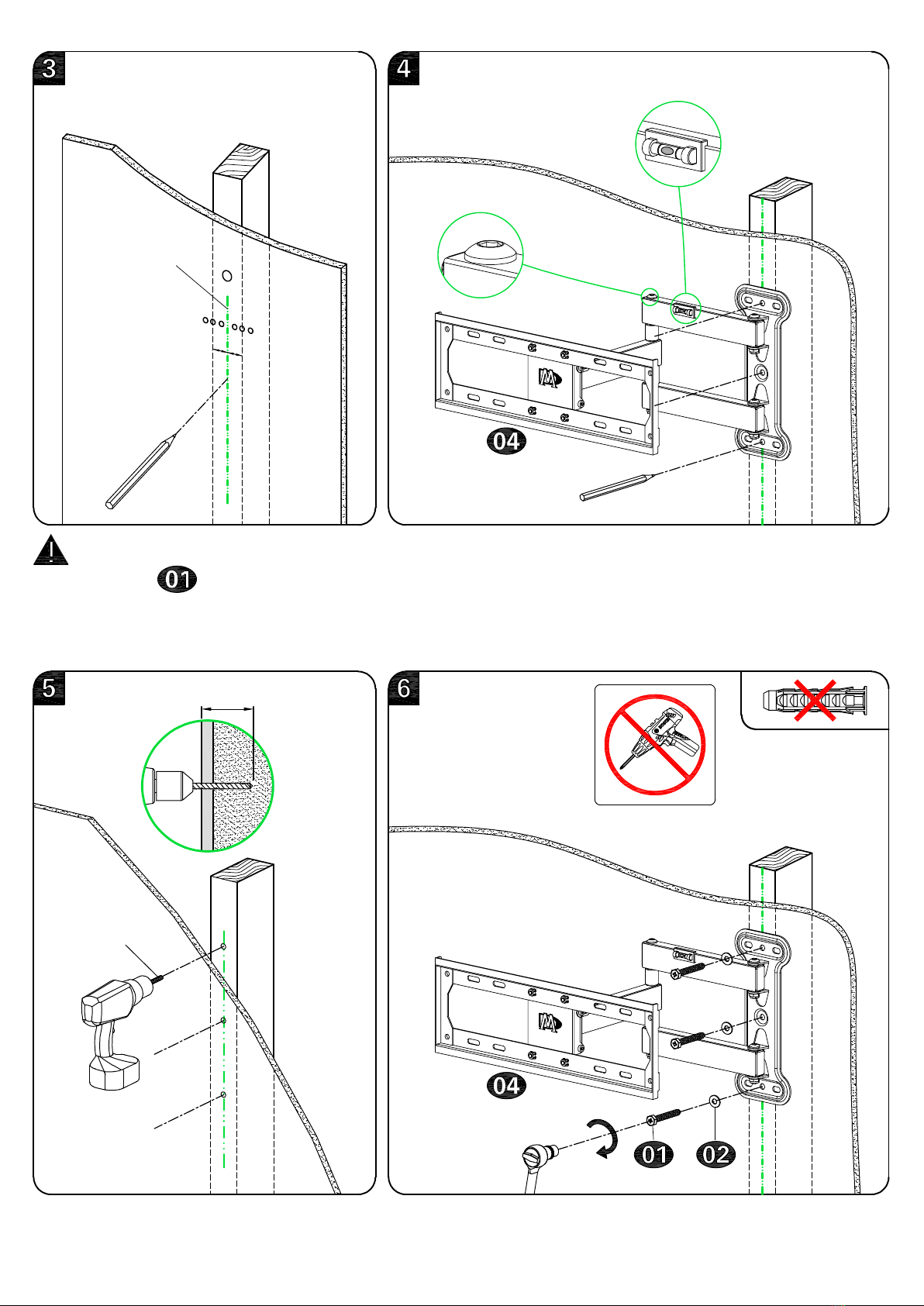

Wood Stud Installation

Mon - Fri 10am - 6pm (Pacific time) or email

us by customerservice@mountingdream.com

to have these additional pieces shipped

directly to you.

Concrete Wall Anchor

4pcs

7/32"

(5.5mm)

Go to Step 3 on PAGE 7.

Centre line

2.5"(64mm)

Bolt Head UP!

Level

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

No!

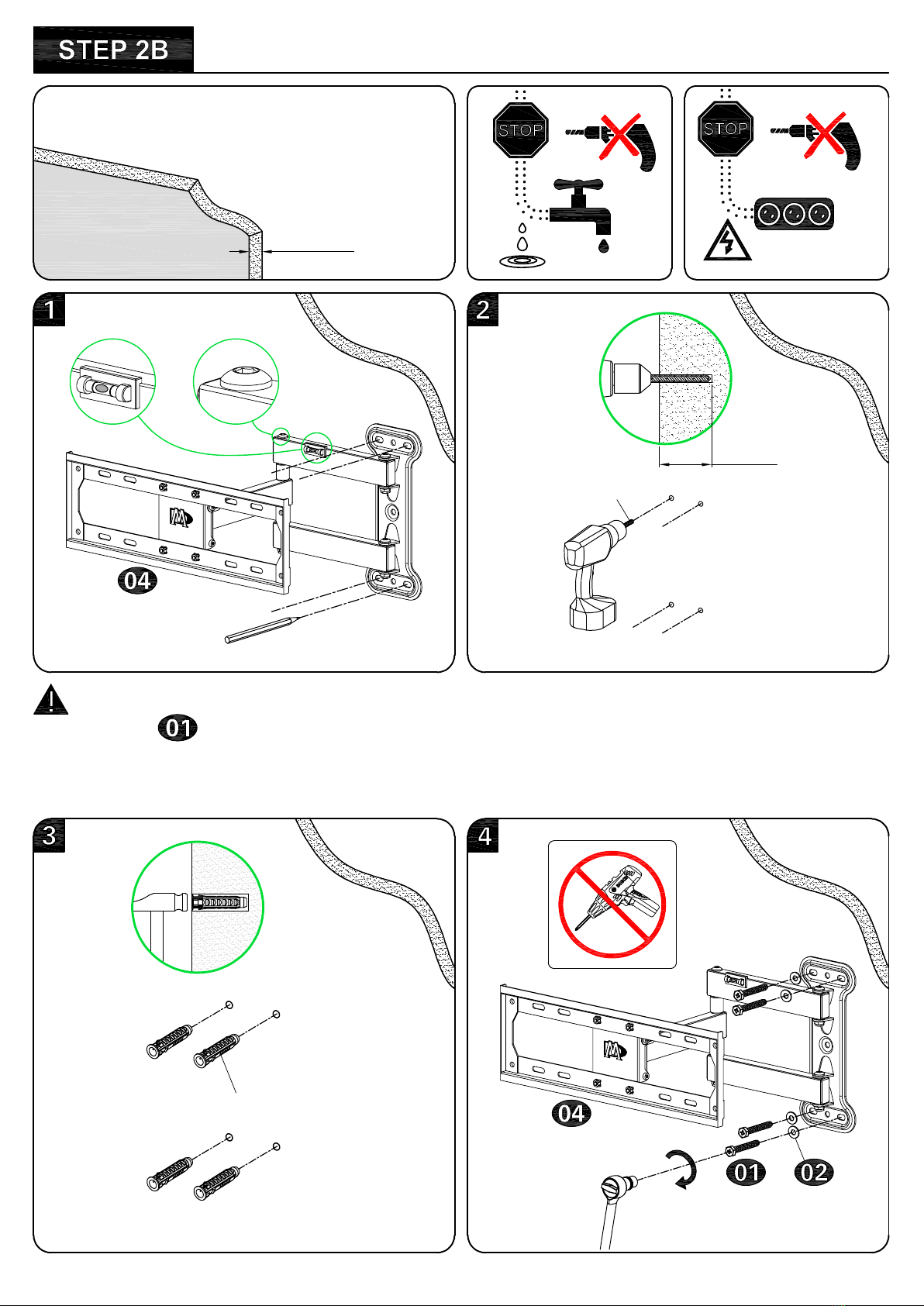

Solid Conrete Wall Installation

2.5"

(64mm)

3/8"

(10mm)

Concrete Wall

Anchor

Bolt Head UP!Level

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

No!

60 LBS (27 kg)

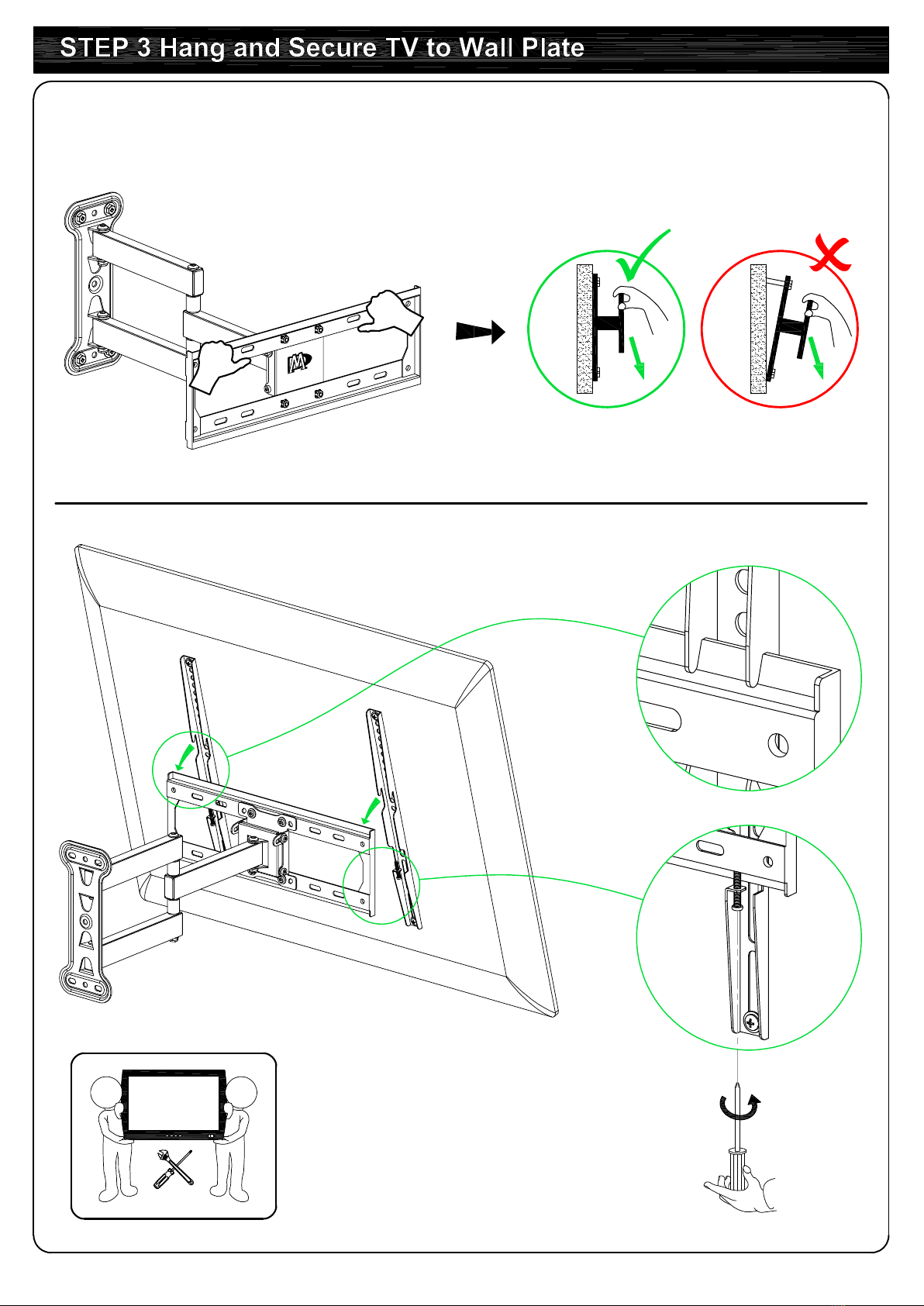

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

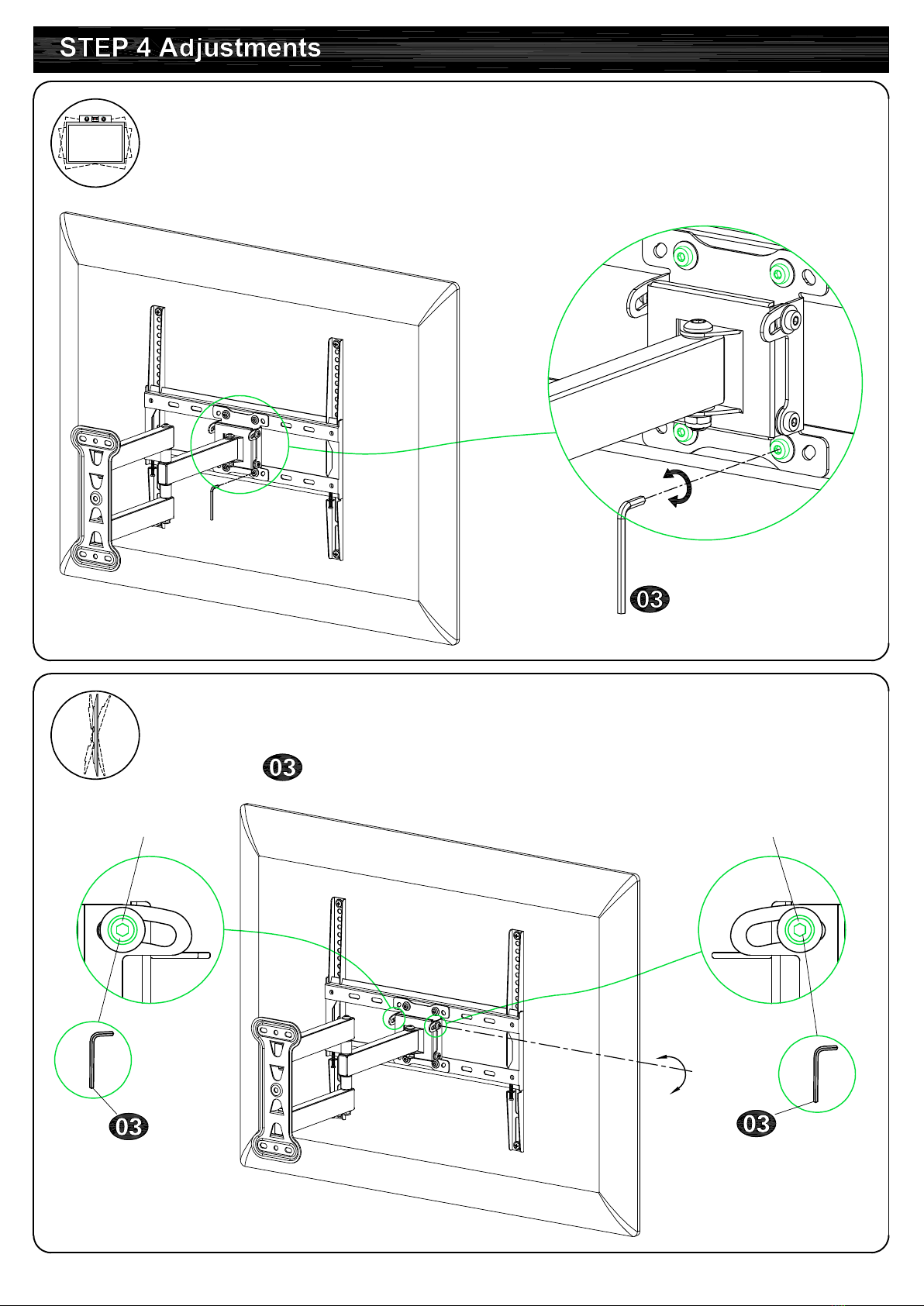

4-1 TV leveling adjustment (±3°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

4-2 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

Tilting bolts Tilting bolts

Loosen

Tighten

-15°

+5°

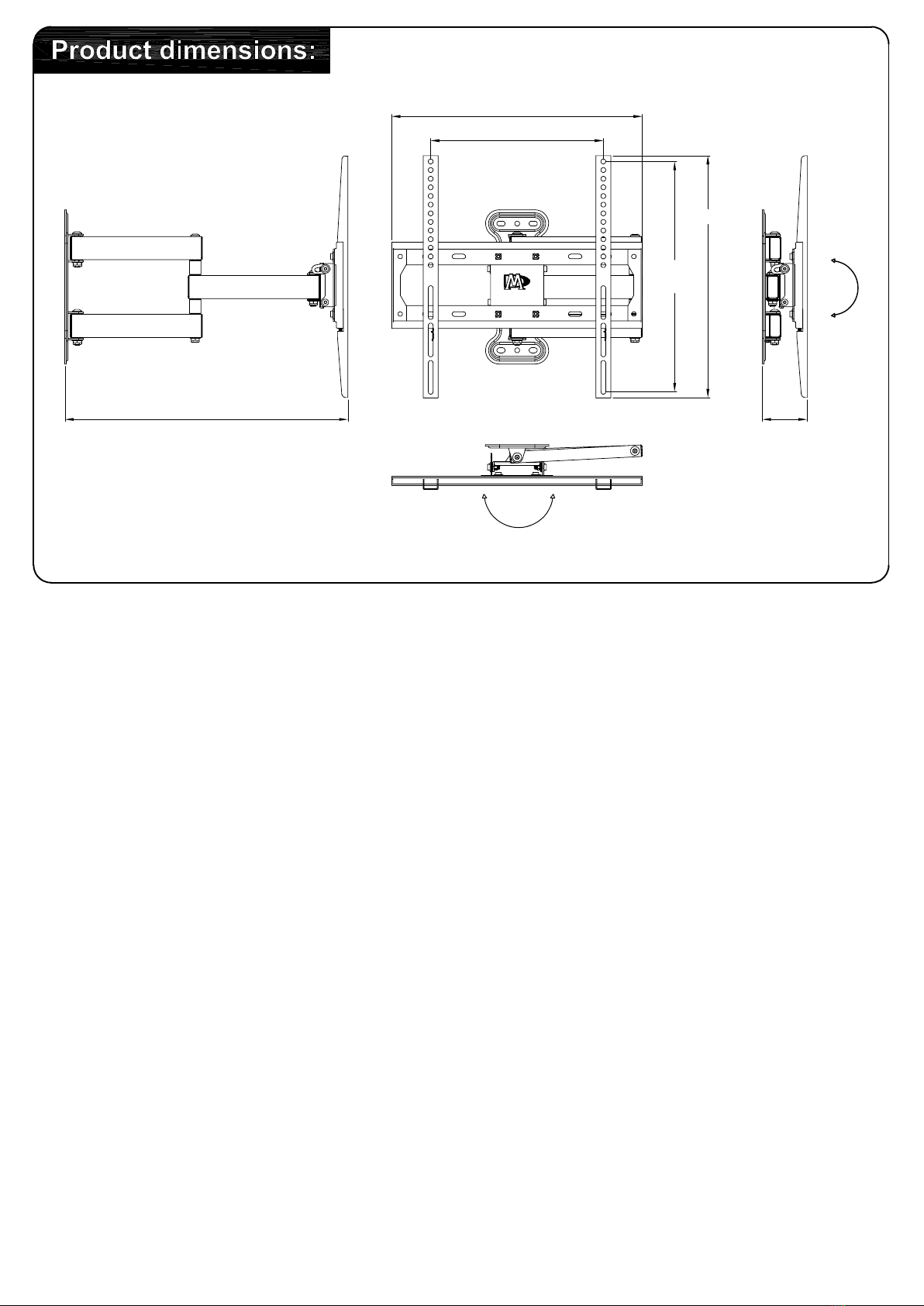

MAX:400mm

435mm

MAX:

400mm

420mm

492mm 78mm

+90°/-90°

+5°

-15°
