The SR-800/48U is a sound rack that provides mounting space for standard 19 inch devices. This rack

features 19 inch rails on the front, rear, side, top and bottom panels, providing ultimate mounting con-

venience for any installation.

The SR-800/48U is available in two versions, a basic and an extended kit version. The basic version pro-

vides the essential frame and side covers; the extended kit version additionally includes set of 19 inch

covers to also ll the front, back, top and bottom spaces.

This high end and robust sound rack is assembled in less than 10 minutes using only one size standard

hex key, which is provided with the rack.

All parts of this sound rack are covered with scratch-resistant black polymer nish.

SPECIFICATIONS:

Functions 19” Sound Rack

Front / Rear / Side mounting space 48U

Top / Bottom mounting space 15U

Weight capacity 700 kg 1543,24 lbs

Dimensions (HxWxD) 2284 x 592 x 792 mm

89,92” x 23,31” x 31,18”

Shipping dimensions

(not assembled, 2 boxes)

1th box 900 x 700 x 250 mm

35,43” x 27,56” x 9,84”

2nd box 600 x 2300 x 250 mm

23,62” x 90,55” x 9,84”

Net weight 72,35 kg 159,50 lbs

Shipping weight 75,30 kg 166,00 lbs

Color Black

Steel grade A 283 Grade C

BASIC version

PACKAGE CONTENTS

1. SR-800/48U (not assembled) - 1 pcs

2. Set of mounting hardware - 1 pcs

3. SD-42U (removable side covers) - 2 pcs

4. SDF-6U (xed side covers) - 2 pcs

5. M6 rack screw pack - 4 pcs

6. Hex key 5 - 1 pcs

7. Installation manual - 1 pcs

SR-800/48U Rack stand

19 inch

www.mnmounting.com

[email protected]om

2 Merezhna str., Bila Tserkva,

Kyiv region, 09100, Ukraine

EMEA & Asian region:

+32 (0) 472 630212

USA, LATAM, Canada, Australia

& New Zealand region:

+1 (562) 607 7348

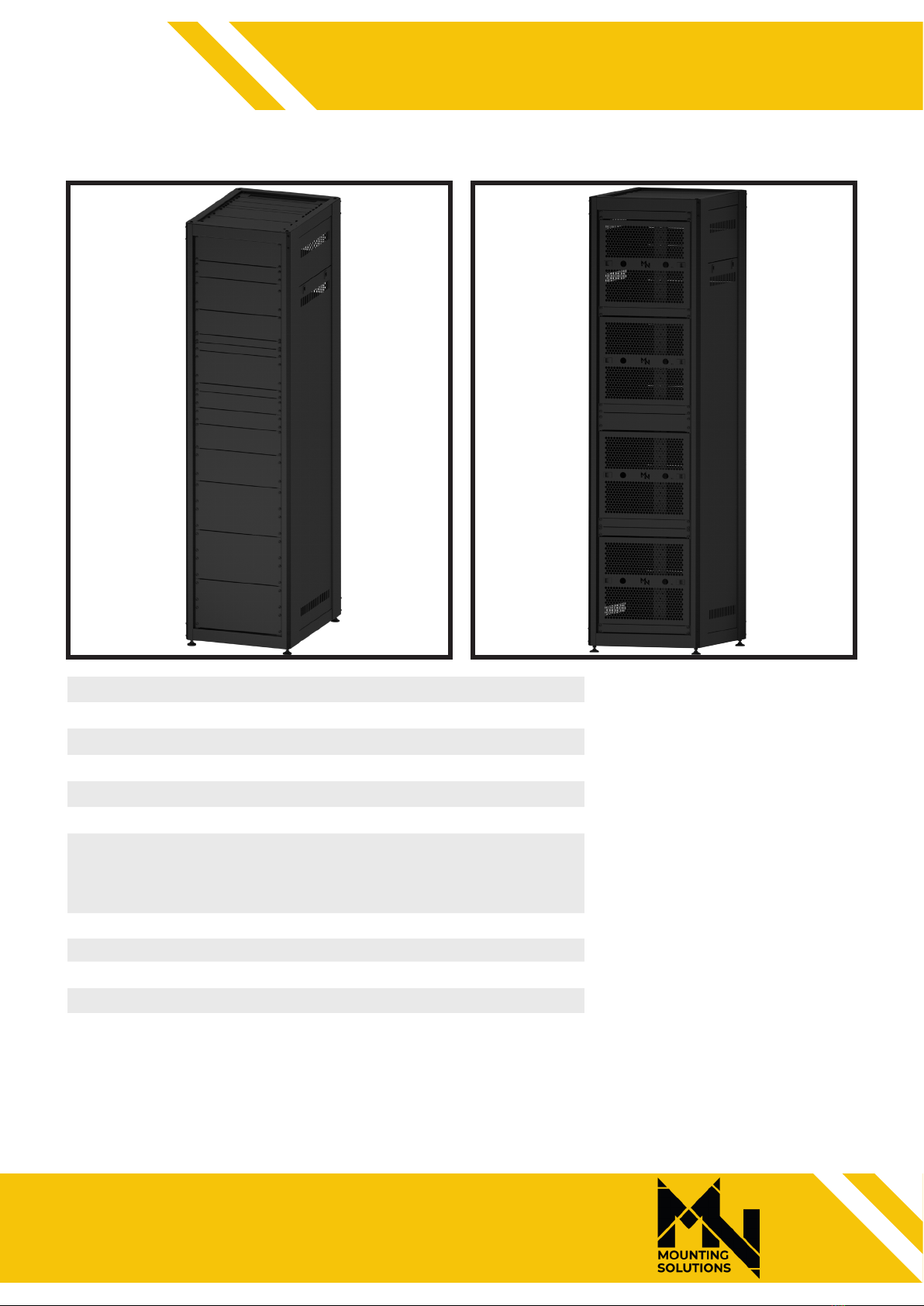

Extended KIT version

SAFETY INSTRUCTIONS

1. Entrust mounting equipment only to experienced professionals and strictly follow the

providedv safety instructions. Improperly installed equipment may result in property damage,

personal injury and/or liability for the installing contractor.

2. Only use appropriate fastening hardware.

3. Always make sure to securely use and lock all mounting bolts. Loose bolts may become

unscrewed over time due to vibration which will then create a safety hazard.

SPECIFICATIONS:

Functions 19” Sound Rack

Front / Rear / Side mounting space 48U

Top / Bottom mounting space 15U

Weight capacity 700 kg 1543,24 lbs

Dimensions (HxWxD) 2284 x 592 x 792 mm

89,92” x 23,31” x 31,18”

Shipping dimensions

(not assembled, 4 boxes)

1th box 900 x 700 x 250 mm

35,43” x 27,56” x 9,84”

2nd box 600 x 2300 x 250 mm

23,62” x 90,55” x 9,84”

3rd box 500 x 480 x 400 mm

19,69” x 18,90” x 15,75”

4th box 80 x 80 x 2200 mm 3,15” x 3,15” x 86,61”

Net weight 101,64 kg 224,08 lbs

Shipping weight 105,60 kg 232,80 lbs

Color Black

Steel grade A 283 Grade C

PACKAGE CONTENTS

1. SR-800/48U (not assembled) - 1 pcs

2. Set of mounting hardware - 1 pcs

3. SD-42U (removable side covers) - 2 pcs

4. SDF-6U (xed side covers) - 2 pcs

5. RC-1U - 5 pcs

6. RC-2U - 6 pcs

7. RC-3U - 4 pcs

8. RC-4U - 3 pcs

9. RC-6U - 5 pcs

10. RPB-2U - 1 pcs

11. RCM-1U - 5 pcs

12. VCM-48U - 1 pcs

13. RCHV-10U - 4 pcs

14. M6 rack screw pack - 150 pcs

15. Hex key 5 - 1 pcs

16. Installation manual - 1 pcs

SR-800/48U Rack stand

19 inch

www.mnmounting.com

[email protected]om

2 Merezhna str., Bila Tserkva,

Kyiv region, 09100, Ukraine

EMEA & Asian region:

+32 (0) 472 630212

USA, LATAM, Canada, Australia

& New Zealand region:

+1 (562) 607 7348

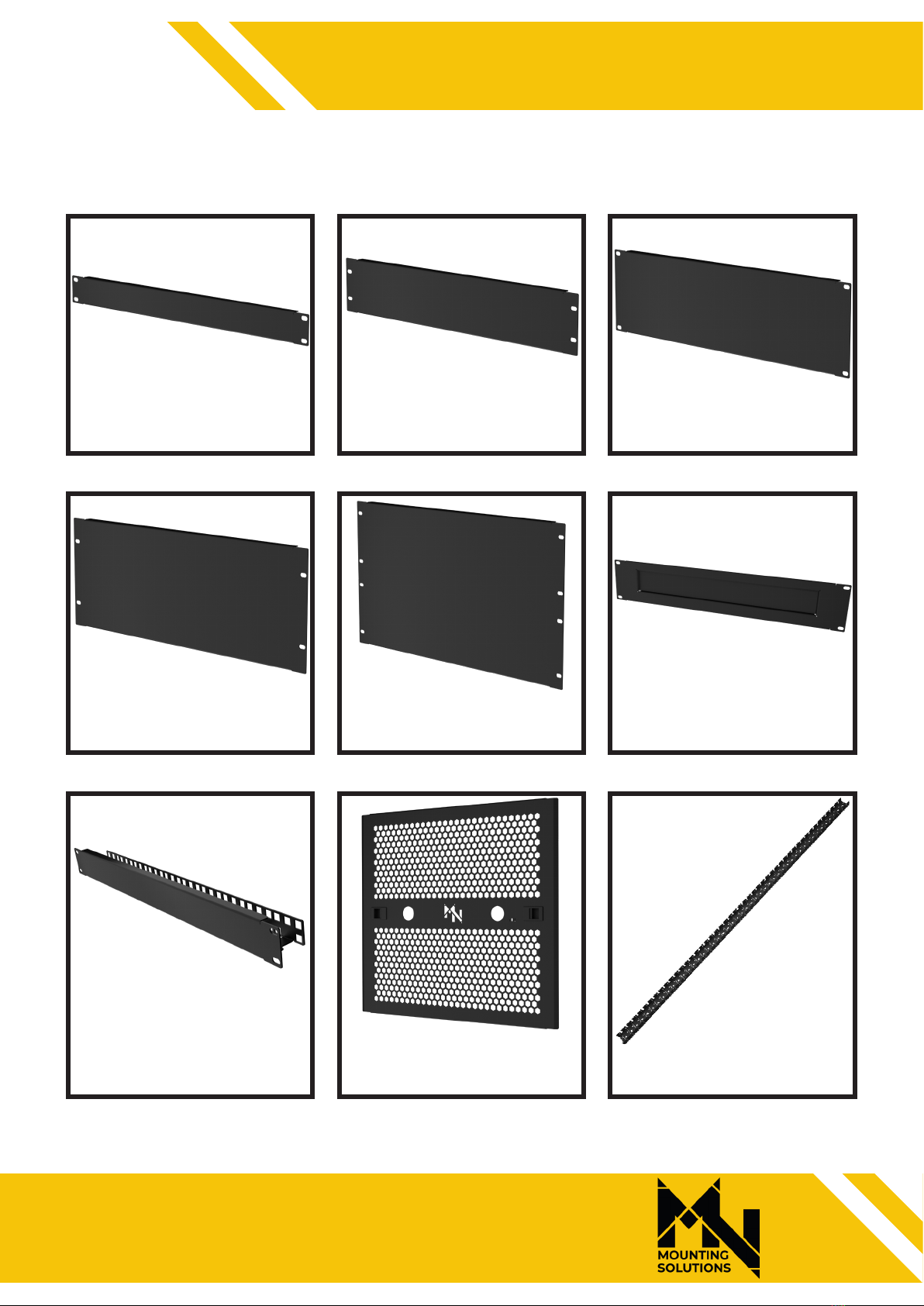

ACCESSORIES FOR EXTENDED KIT VERSION

RC-1U

Rack Blank, 1U height

(5 pcs included)

RC-2U

Rack Blank, 2U height

(6 pcs included)

RC-3U

Rack Blank, 3U height

(4 pcs included)

RC-4U

Rack Blank, 4U height

(3 pcs included)

RCM-1U

Rack Blank with mounting holes for

cable manager, 1U height

(5 pcs included)

RPB-2U

Rack Panel with cable access slot and

brushes , 2U height

(1 pcs included)

RCHV-10U

Hinged rack mount vented cover,

10U height

(4 pcs included)

VCM-48U

Vertical cable manager, 48U height

(1 pcs included)

RC-6U

Rack Blank, 6U height

(5 pcs included)

SR-800/48U Rack stand

19 inch

www.mnmounting.com

[email protected]om

2 Merezhna str., Bila Tserkva,

Kyiv region, 09100, Ukraine

EMEA & Asian region:

+32 (0) 472 630212

USA, LATAM, Canada, Australia

& New Zealand region:

+1 (562) 607 7348

Dimensions

Basic Version

Extended Kit Version

Front View

Side View

Top View

Bottom View
