READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS.
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 2
FOREWORD
Congratulations on purchasing the MovinCool portable air conditioner.
This manual explains how to assemble, install and operate the
MovinCool 24HFU and 24HFU-1 portable air conditioning units. Please
read this operation manual thoroughly to familiarize yourself with the
features of the unit and to ensure years of reliable operation. You may
also find it useful to keep this operation manual on hand for reference.
Components and/or procedures are subject to change without prior
notice.
Definition of Terms
WARNING: Describes precautions that should be observed in
order to prevent injury to the user during installation or unit
operation.
CAUTION: Describes precautions that should be observed in
order to prevent damage to the unit or its components, which may
occur during installation or unit operation if sufficient care is not
taken.
NOTE: Provides additional information that facilitates installation
or unit operation.
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 3
GENERAL WARNINGS & CAUTIONS
• All electrical work, if necessary, should only be performed by
qualified electrical personnel. Repair to electrical components by
non-certified technicians may result in personal injury and/or
damage to the unit. All electrical components replaced must be
genuine MovinCool, purchased from an authorized reseller.
• The proper electrical outlet for MovinCool units must be equipped
with a “UL” approved ground-fault breaker to prevent electrical
shock from the unit.
• Both models (24HFU and 24HFU-1) are equipped with a six (6) foot
power cord. If replacement, fixed location (hard wired) or power
cord lengthening are required, contact your reseller for approved
replacement methods and a qualified electrician.
• Never fold, or place heavy objects on the power cord. This could
result in damage to the power cord causing electrical shock or fire.
• Do not place water or any other liquid on the unit. This can cause
damage to the unit and increase the risk of electrical shock.
• Do not sit or stand on the unit.
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 4
INVENTORY & ASSEMBLY
Inventory

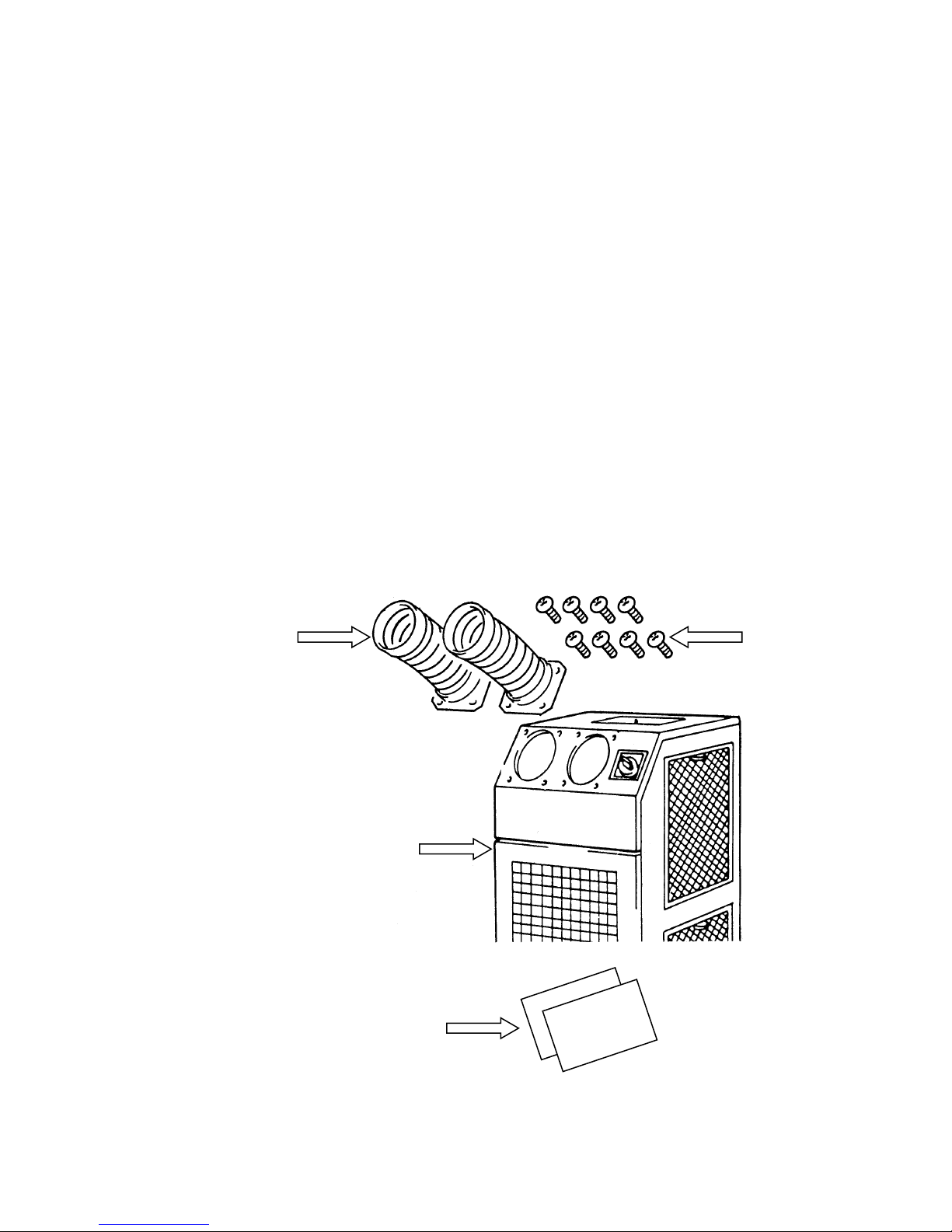

After unpacking your MovinCool unit, please check to make sure
you have the following items:
• MovinCool Unit (1)
• Cool Air Outlet Ducts (2)
• Screws (8)
• Operation Manual/Warranty Card (1)
NOTE: If any of these items were not included in the box or
appear damaged, please contact your MovinCool reseller for
replacement.
COOL AIR OUTLET DUCTS SCREWS
MOVINCOOL UNIT
OPERATION MANUAL/
WARRANTY CARD
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 5
INVENTORY & ASSEMBLY
Assembly
CAUTION: Before assembling
make sure the unit is on a flat,
level surface and the casters are
in the “LOCKED” position. (Both
the 24HFU and 24HFU-1
MovinCool units have locking
swivel casters in the front only.)

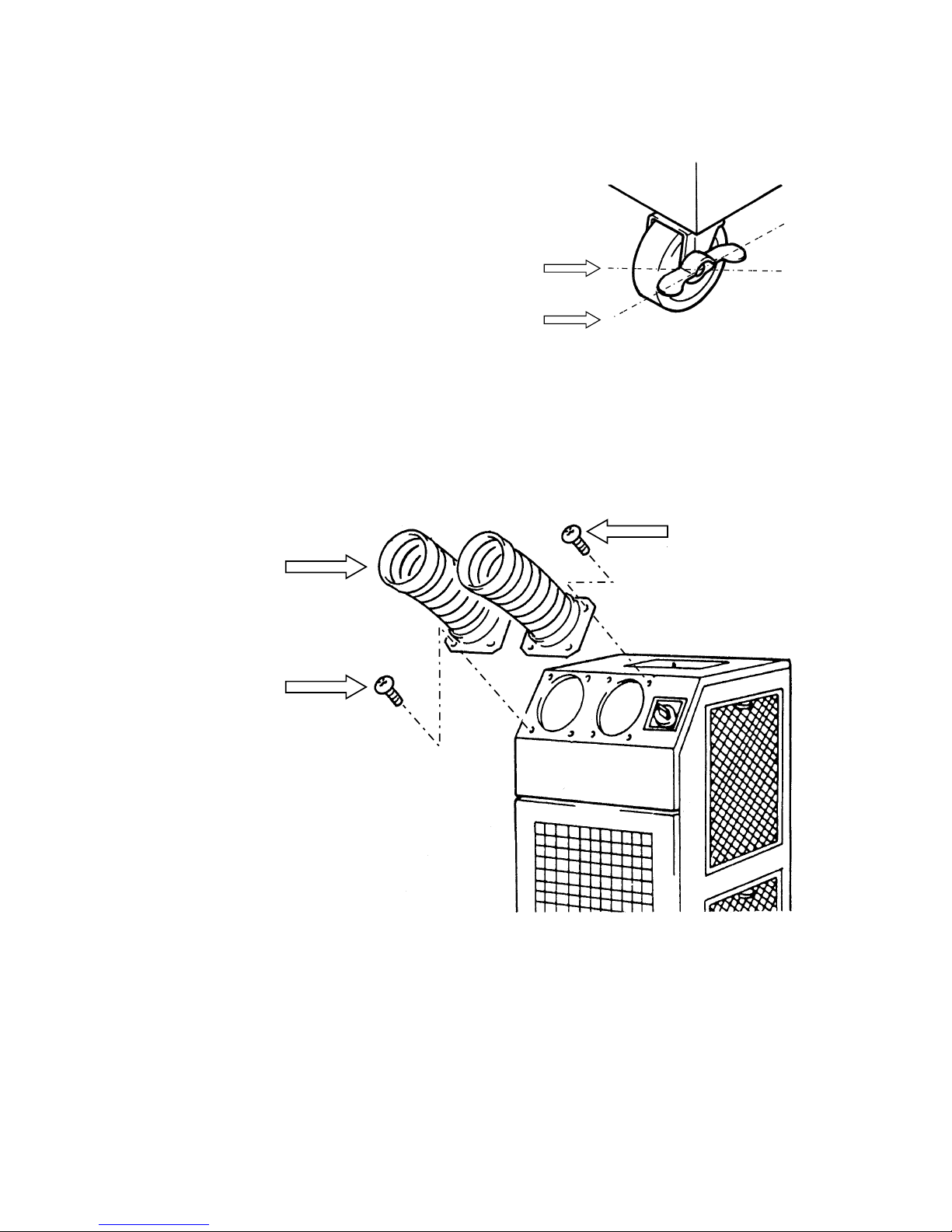

Install each cool air outlet using 4 screws each as shown.
NOTE: Do not overtighten the screws when installing the cool air
outlets. This could damage the base on the cool air outlet assembly.
LOCKED
UNLOCKED
SCREW (4)
COOL AIR OUTLET (2)
SCREW (4)
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 6
INSTALLATION
Choosing an Installation Site
CAUTION: Following are some precautions to consider before
choosing your installation site. Please review carefully as improper
installation may result in personal injury or damage to the unit.
• Do not use the unit in areas where leakage of flammable gas may
occur.
• Do not use the unit in areas where it will be exposed to rain or
water.
• Do not use the unit in an atmosphere of excessively corrosive gas
or vapor.
• Do not use in areas where the temperature is outside the allowable
operating range.
• Do not install the unit in sloping areas. The unit may move or topple
over even if the caster levers are set to LOCKED.
• Install the unit in areas that can withstand the weight of the unit.
The unit weighs approximately 280 lbs (when the drain tank is full of
water).
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 7
INSTALLATION
Moving the Unit

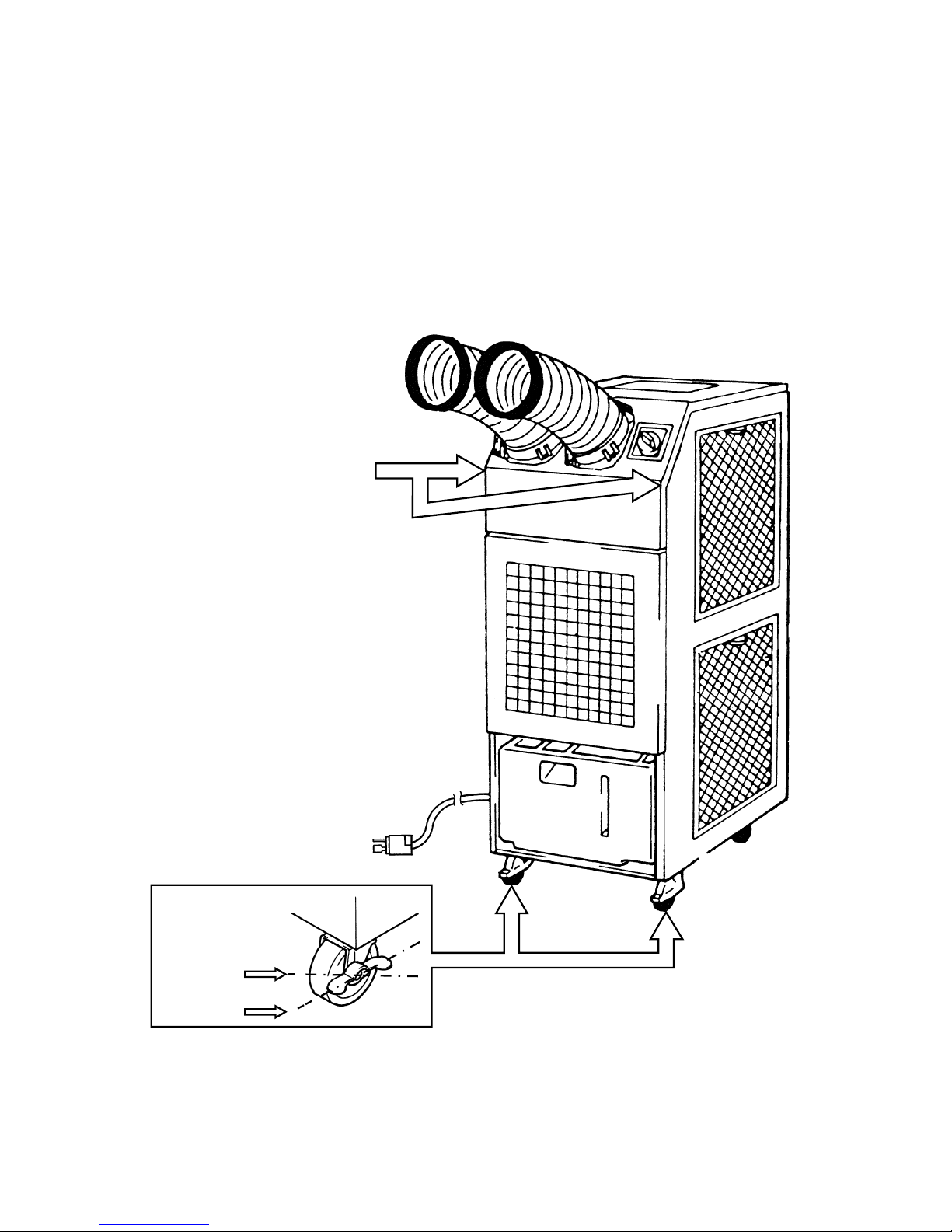

Unlock the casters and push the MovinCool Unit from the front panel
edge to a flat, level surface and set the casters back to the “LOCKED”
position.
FRONT PANEL EDGE
LOCKED
UNLOCKED
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 8
OPERATION
Before operating the unit, it is important to familiarize yourself with the
basic controls located on the control panel.
Listed below are 2 types of control panels. Carefully review the figure
pertaining to your model for proper configuration.

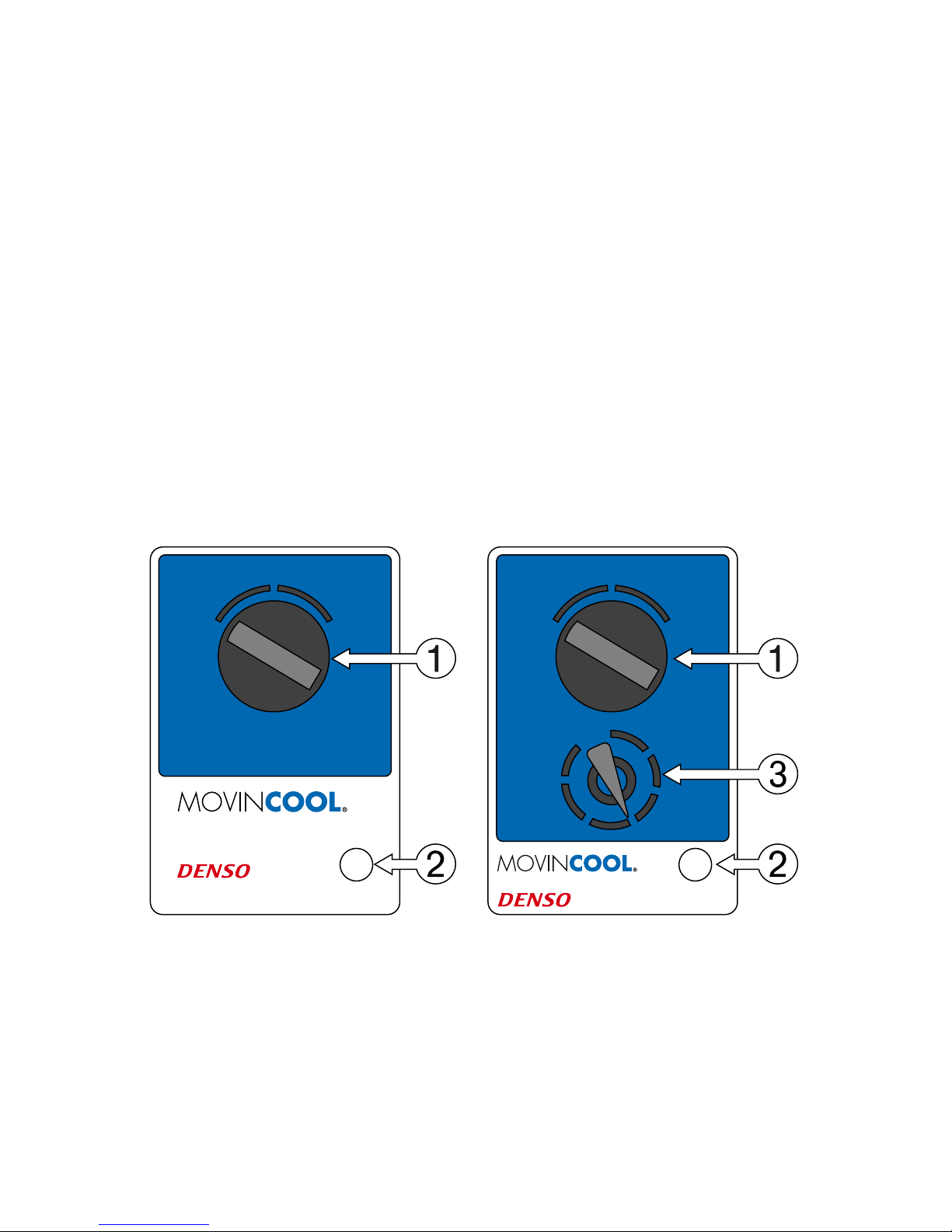

➀Control Switch: Used to select desired operation mode (OFF/
FAN/COOL)
➁“FULL TANK” Lamp: Turns on when drain tank is full
➂“THERMOSTAT”: Used to control operation according to inlet
air temperature (Model 24HFU-1 Only)
Spot Cooling Systems 24HFU
Spot Cooling Systems 24HFU-1
FULL
TANK
FULL
TANK
OFF
OFF
FAN
AN
OFF
OFF
FAN
AN
COOL
COOL
THERMOST
THERMOST
AT 1
2
3
4
5
6
7
COOL
COOL
24HFU 24HFU-1
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 9
OFF
FAN
COOL
AC OUTLET (208/230 VAC
SINGLE-PHASE, 60Hz)
POWER CORD PLUG
OPERATION
Plugging in the Unit
➀Before plugging the power cord into the
outlet, turn the Control Switch on the
control panel to the “OFF” position.
WARNING
➀If the power cord or plug is damaged, repair should only be
performed by qualified electrical personnel.
➁Do not connect or disconnect the power cord or operate
any switches with wet hands. This could result in electrical
shock.
NOTE:
➀Make sure the AC outlet is free of dirt, dust, oil, water, or any
other foreign matter.
➁Both models (24HFU and 24HFU-1) are equipped with an
approved NEMA plug configuration (L6-20). The appropriate
outlet must be used for this plug type.

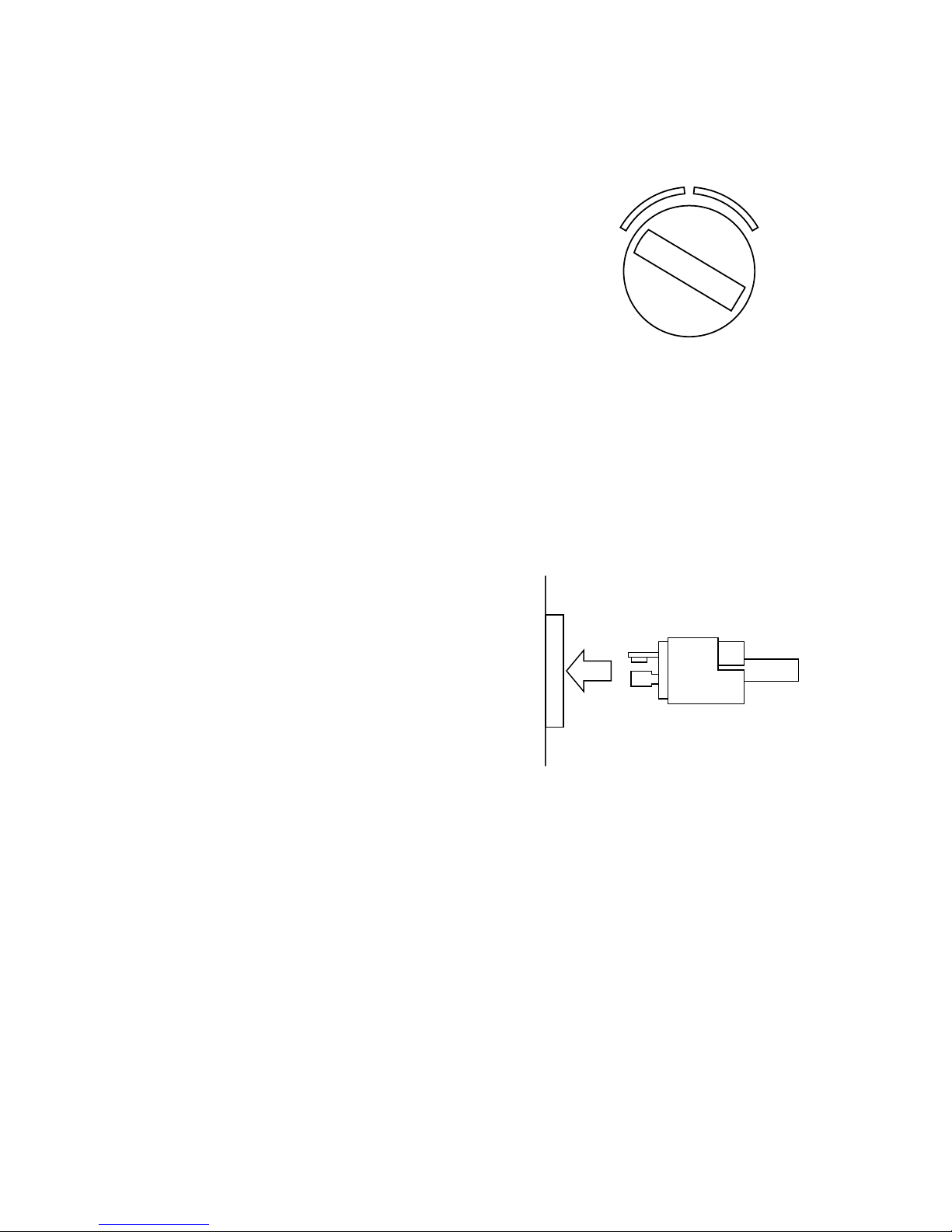

➁Fully insert plug into the AC outlet and rotate clockwise until it locks
in place.
CAUTION: AC outlet rating
needs to be 20A or higher. Do not
share AC outlet with any other
instrument or equipment.
MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 10
OPERATION
Operating Modes
Both the 24HFU and 24HFU-1 operate in 2 modes, “FAN” and “COOL”.
When in “FAN” mode the unit circulates the air. When in “COOL” mode,
the compressor is engaged and cool air is circulated.
Auto Restart Feature
• 24HFU-1
If there is interruption of electrical power to the unit, the auto restart
feature will reset the unit, resuming normal operation.
• 24HFU
Must be manually restarted.

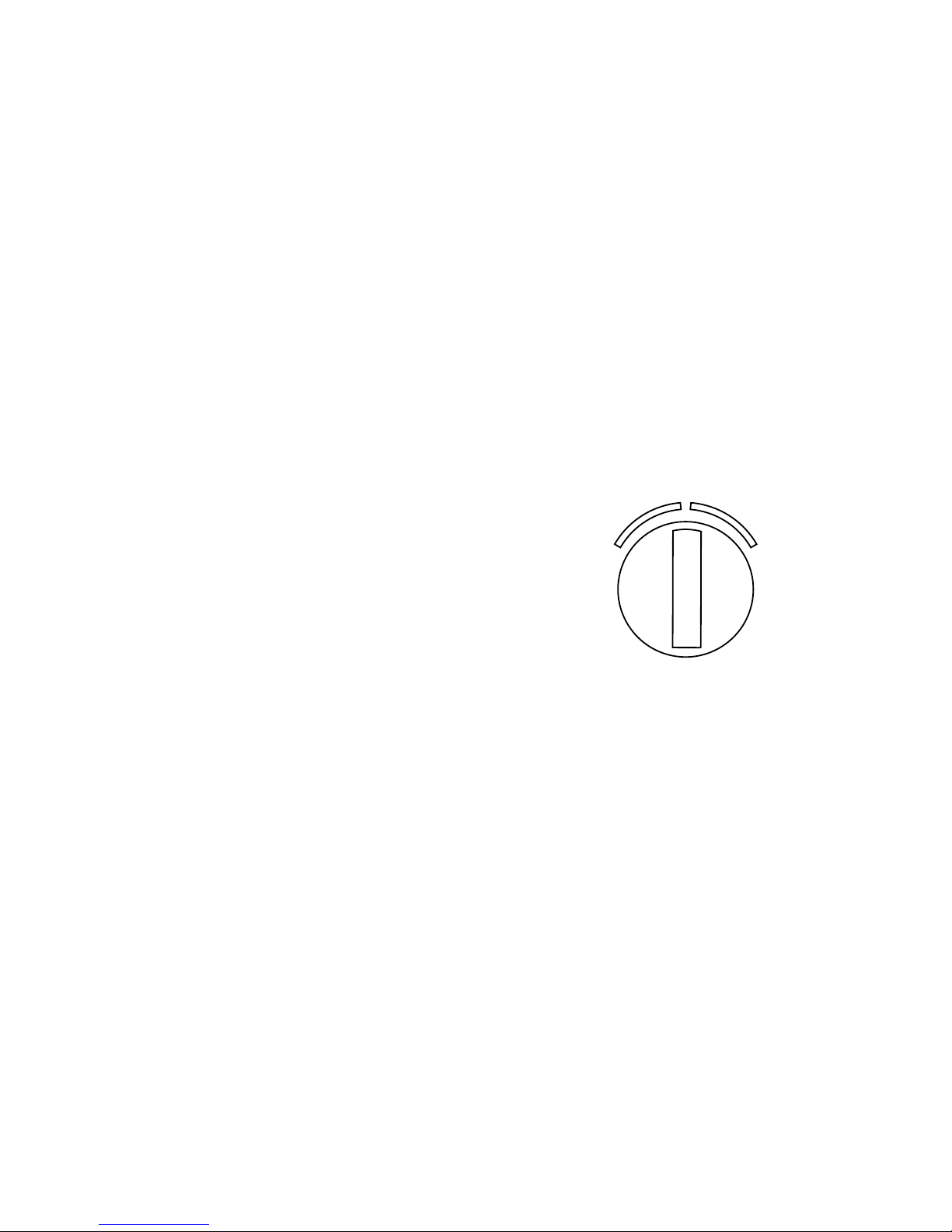

“FAN” Mode
Turn the Control Switch to “FAN” position.
OFF
FAN
COOL
