Congratulations on purchasing the MovinCool portable air conditioner.

This manual explains how to install and operate the MovinCool PC 7

portable air conditioning unit. Please read this operation manual

thoroughly to familiarize yourself with the features of the unit

and to ensure years of reliable operation. You may also find it

useful to keep this operation manual on hand for reference.

Foreword

Attention:

(1) This unit is not intended for use by young children without supervision.

(2) The plug shall be accessible after installing the unit.

(3) The unit shall be installed in accordance with national wiring regulation.

(4) If the power cord is damaged, it must be replaced by the manufacturer or

a qualified technician.Contact your reseller for more information.

(5) Please wait 3 minutes before restarting the unit.

(6) Do not sit or stand on the unit.

(7) The proper electrical outlet for MovinCool unit must be equipped with a UL

approved ground fault breaker to prevent electrical shock from the unit.

(8) The minimum clearance from the unit to combustible surface: 3 feet (1.0 m)

(9) The AC outlet (115VAC, Single Phase, 60Hz) must be rated at 15A or higher.

WARNING This symbol refers to a hazard or unsafe practice which can result

in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result

in personal injury or product or property damage.

CAUTION

Contents

Introduction 5

Unit description and function 6

Operation and indicators or remote control 8

Use of control panel 10

Water drainage methods 11

Maintenance/service 12

Safety cautions 13

Troubleshooting 14

Installation 15

LCDI Power Cord 20

Warranty 21

www.sylvane.com 1-800-934-9194

INTRODUCTION

Mobile Air Conditioner

Other air conditioning solutions are recommended when the ambient temperature is either

below 63 °F (17°C) or above 88° F (31°C).

Note: When the ambient temperature is high, condensation may occur to the unit.

ATTENTION

There might be some water remained in the bottom of the condensate pan, push the PC7

gently and carefully to prevent water splashing out. Empty the water when moving the unit.

CAUTION

Before you use your PC7 air conditioner, please read this operation manual carefully so

that you get the best from the unit.

This operation manual is used for guidance and does not form part of a contract. We reserve

the right to make technical changes without prior notice.

The PC7 is a small unit, which can adjust the temperature and humidity in a room

making it easy to use in different occasions.

It also has multiple functions, included Cooling, Dehumidifying, and Fan Modes.

This unit was designed especially to be used in a family house, office, etc. It has a compact

design compared to others with the same coolig capacity. Power consumption is low and the

noise is especially low.

www.sylvane.com 1-800-934-9194

UNIT DESCRIPTION AND FUNCTION

FRONT

Air outlet

Left/right air direction

control tab

Caster

Up/down air louver

Handle

Note: Open the up/down air louver to the highest position before the unit is turned on.

Control panel

Left/right air swinging fins

BACK

Air-return grill

Power cord holders

Base stopper

Air inlet

Exhaust air outlet

www.sylvane.com 1-800-934-9194

UNIT DESCRIPTION AND FUNCTION (cont.)

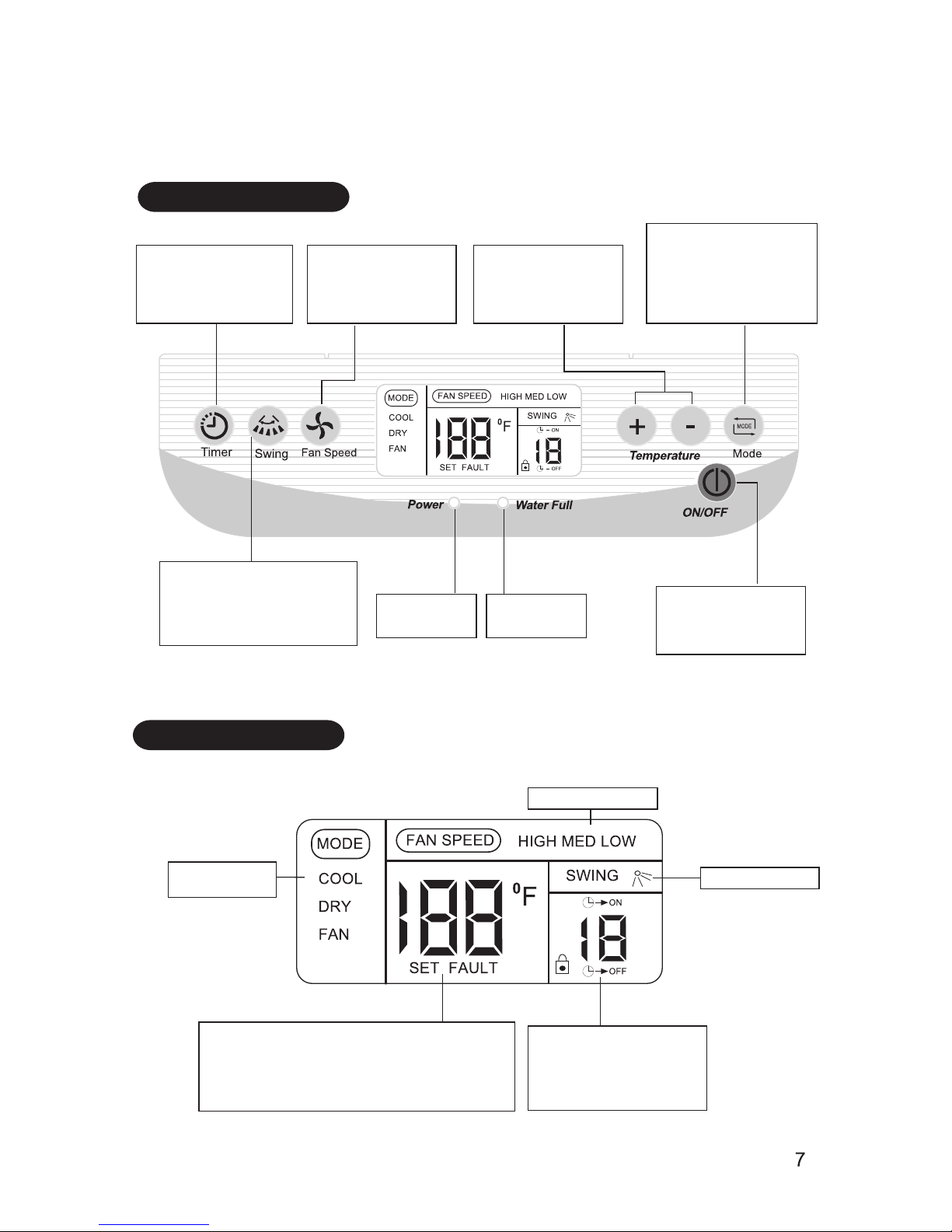

TIMER Button

Press this button to set the

time for switch-on, switch-off

timer or to delete the timer.

FAN SPEED Button

Press this button to

choose high, medium or

low speed of air delivery.

TEMP Button

Press these buttons to

change the set point

temperature.

MODE Button

Press this button to select

the modes of cooling,

dry or fan mode.

SWING Button

Press this button to

activate/deactivate

auto-swing feature.

POWER

Indication lamp

WATER FULL

indication lamp

ON/OFF Button

Press this button to turn

the unit ON or OFF.

Fan speed indicator

Operation mode

indicator Swinging indicator

Display of preset temperature and failure code

when SET is displayed, the displayed digits indicate

the preset temperature.

When FAULT is displayed, the displayed digits

indicate the code of failures.

Display of time setting

The displayed digits indicate

the remaining time of

on/off operation.

DISPLAY SCREEN

CONTROL PANEL

www.sylvane.com 1-800-934-9194

OPERATON AND INDICATORS OF REMOTE CONTROL

Remote Control

Install the supplied batteries (type AAA 1.5V) to the remote controller.

This button is used to select the cooling,

drying,fanning mode of operation.

This button is used to set the switch-on or

switch-off time. Use together with the “HOUR”

button, the time setting can be made within

the range of 00-23 hours, with the interval of

one hour.

Press this button to choose high, medium

or low-speed of air delivey.

Fan speed indicator

Lock key indicator

Air flow indicator

SWING button

Press this button to select the swinging or

fixed air delivery.

Press this button to lock or unlock the keyboard.

Temperature setting button

Each presing of the button, the

temperature setting is increased or

decreased by 1°F.

ON/OFF button

Press this button to turn the unit ON or OFF.

HOUR button

This button is used to set the timer time or the

present time.

MIN button

This button is used to set the present time.

HOLD button

Set temperature indicator

Cooling indicator

Drying indicator

Fan Mode indicator

Timer time or present time indicator

MODE button

TIMER button

FAN SPEED button

Not Used.

www.sylvane.com 1-800-934-9194

OPERATION AND INDICATORS OF REMOTE CONTROL (cont.)

Present Time Setting Procedure

When batteries are inserted,time is automatically set to 00:00. Set the present time as

follows.

Example:Set time to 10:30

Continuously press the HOUR button for

2 seconds .

The time indicator is blinking and can set the HOUR time.

Press the HOUR button. (Set to 10 :)

The time indicator is blinking and can set the MIN time.

If the remote control is at abnormal state, take out the batteries under the back cover

to clear off the display.

NOTE : The timer is set based on the present time.So set the present time correctly.

Continuously press the MIN button for 2

seconds .

Press the MIN button. (Set to 30)

Press the ON/OFF button to confirm the set time

or it automatically exits the time setting state after

15 seconds.

www.sylvane.com 1-800-934-9194

The operating ranges for cooling operation and dehumidifying are 63ºF-88ºF(17ºC-31ºC).

Dehumidifying and Cooling Operation

Power Source

WARNING

The AC outlet (115 VAC,Single Phase,60Hz) must be rated at 15A or higher.

The AC socket must be firm and reliable.

Do not connect the unit to a multiple socket outlet which is also being used for other

electrical appliances.

Insert the AC power plug securely into the AC socket before using the unit, when it beeps

after 2 seconds, press ON/OFF button, the unit begins to operate.

Cooling Operation

1.Repeatedly press MODE button to choose the cooling mode, LCD window shows"COOL".

2.Repeatedly press TEMP+or TEMP-button to set a proper room temperature at 63ºF-88ºF

(17ºC-31ºC).

3. Press FAN SPEED button to choose a proper fan speed: high, medium, low speed.

4. Press SWING button to adjust the air delivery direction, the LCD window shows"

Note:

In order to improve the cooling efficiency of the unit:

a) Do not place the unit in direct sunlight.

b) Do not place the unit in near other heat source.

c) The set temperature can be set at 63ºF(17ºC) or higher, however the unit operates

intermittently at less than 70ºF (21ºC).

Dehumidifying Operation

1. Keep the windows and the doors closed to effectively dehumidify the room.

2. Repeatedly press MODE button to choose the dehumidifying mode, the LCD window

shows "DRY", and fan speed can not be adjusted.

USE OF CONTROL PANEL
