Movistar Xavi 7968 Bedienungsanleitung

ADSL Router

Freedom

in a box

Installation guide

For further information please refer to the User’s manual on the Advanced Settings CD, section 2, or the

glossary section in this guide.

Package contents

(7) Advanced settings CD (8) Warranty card

This guide details about the start up process for your Internet connection. You will

be able to enjoy your connection in an easy, simple and quick way. Please follow the

guide instructions step by step.

The Advanced Settings CD includes a video le (AyudaGraca.exe) with a graphic help of

the installation and conguration of your Internet connection.

(2) Power adapter

(5) Telephone line cable (6) Ethernet cable

(1) Wireless router (3) Three ADSL microlters

(4) Multiple adapter

V 1.0

00412849

Router

ADSL

For further information please refer to sections 3.2 and 3.3 of the user’s manual on the Advanced Settings CD

Start using your ADSL…

1. Microlters installation 2. Telephone line connection

Connect a microlter between each tele-

phony device (telephones, faxes,…) and

the telephone socket.

Connect the multiple adapter (4) and the

microlter (3) to the selected telephone

socket where the router will be connec-

ted, as shown in the gure.

For the rest of the telephone sockets

where there is connected a telephony

terminal, you will just have to connect a

microlter (3).

Connect the grey telephony line cable (5)

to the free outlet (without microlter) of

the multiple adapter (4) and to the ADSL

connector of the router labeled as ADSL.

3. Power adapter connection

Plug the power adapter (2) into the mains

supply and into the 12V-1A ADSL con-

nector of the router.

For further information please refer to section 3.4 of the user’s manual on the Advanced Settings CD.

4. Switching on the router

Turn the router on by putting the switch into the ON position. Wait for a few minutes until

the LEDs shine as shown below.

Indicators

Current Status Description

Ethernet OFF Status of the Ethernet connection.

WLAN OFF Status of the wireless network.

(green) Status of the power supply.

ADSL ON

(green)

Connectivity established with the exchange. The indicator will blink in

green while the connection is being established.

PPP ON

(green)

Status of the Internet connection. The indicator will blink in green if

there is trafc.

The routers provided by Movistar are optimised so that they can establish the connection with

Internet without any need for installations or congurations.

You may either connect your computer to the router using an Ethernet cable if they are

sufciently close to each other or by means of a wireless network. Furthermore, you

can simultaneously have certain items of equipment connected to the router using the

Ethernet cable and others as portable through the wireless network.

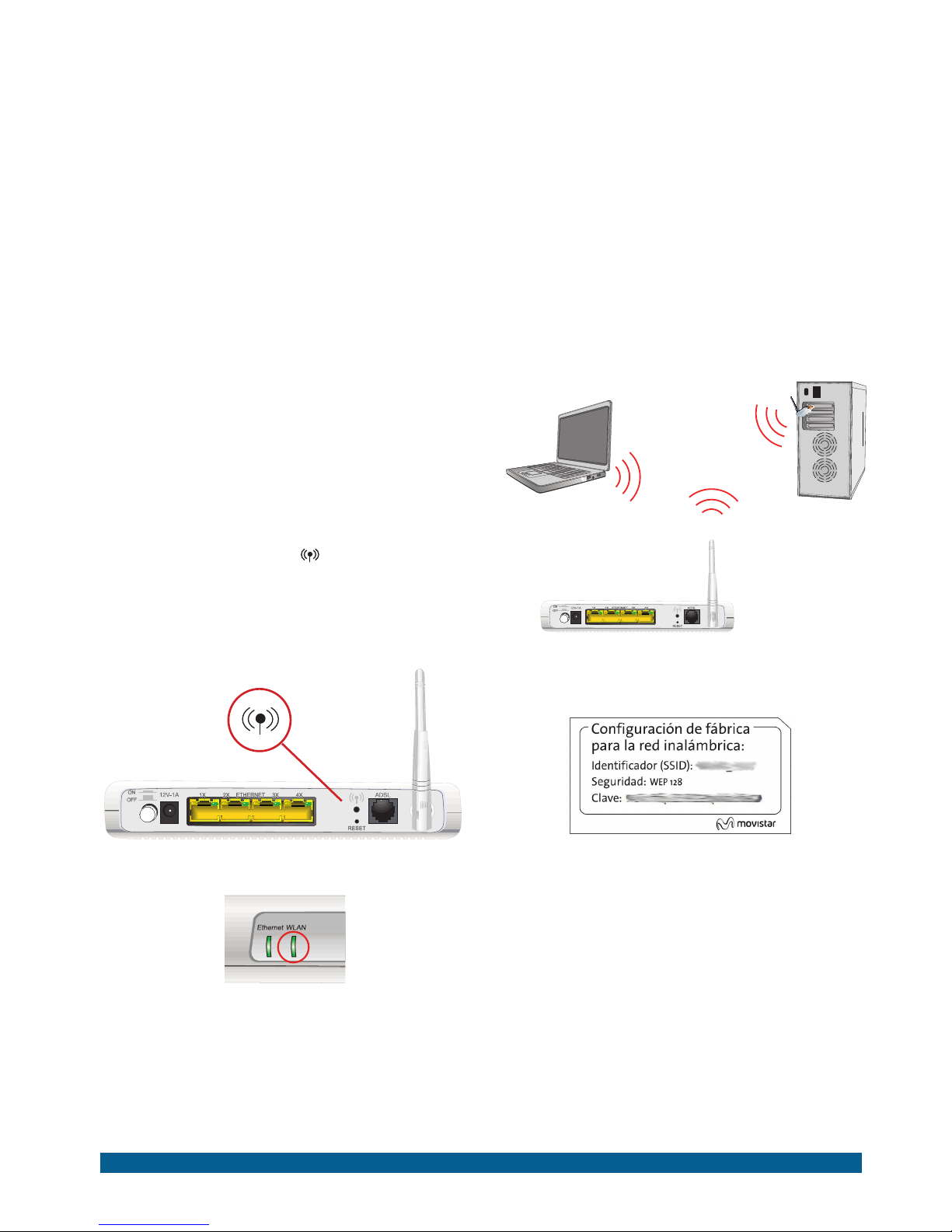

You can use the wireless network as long

as your computer is equipped with a wire-

less adapter installed or this is integrated

into your equipment.

The rst step will be to enable the wire-

less network for your router. This is done

by pressing the button located at the

back of the router for one (1) second. The

WLAN indicator will light up in green and

will blink when navigating.

The conguration parameters by default

for your wireless network are shown on

the label at the bottom of your router.

The next step is to congure the com-

puters on your wireless network in

accordance with your router’s wireless

parameters.

A. Connection using wireless

network

5. Connecting the computer to the router. Two options are available

Start using your ADSL…

For further information please refer to section 3.5 of the user’s manual on the Advanced Settings CD.

If you are equipped with an external

wireless device (PCMCIA or USB adapter),

install it with the aid of the CD that is

provided with it. If you have a wireless

device that is already integrated into your

equipment, make sure that it is enabled

with the aid of your operating system.

Connection using Windows wireless

client

When conguring your wireless device

in Windows XP SP2, Vista or Windows 7

you can use the wireless client manage-

ment application. For Windows XP SP2 or

Vista, press with the right mouse button

on the wireless network connection icon

on the system tray (next to the clock) and

select “View available wireless networks”.

For Windows 7, press with the left mouse

button on the same icon. For other ope-

rating systems refer to the wireless client

assistance manual.



For further information please refer to section 3.5 of the user’s manual on the Advanced Settings CD.

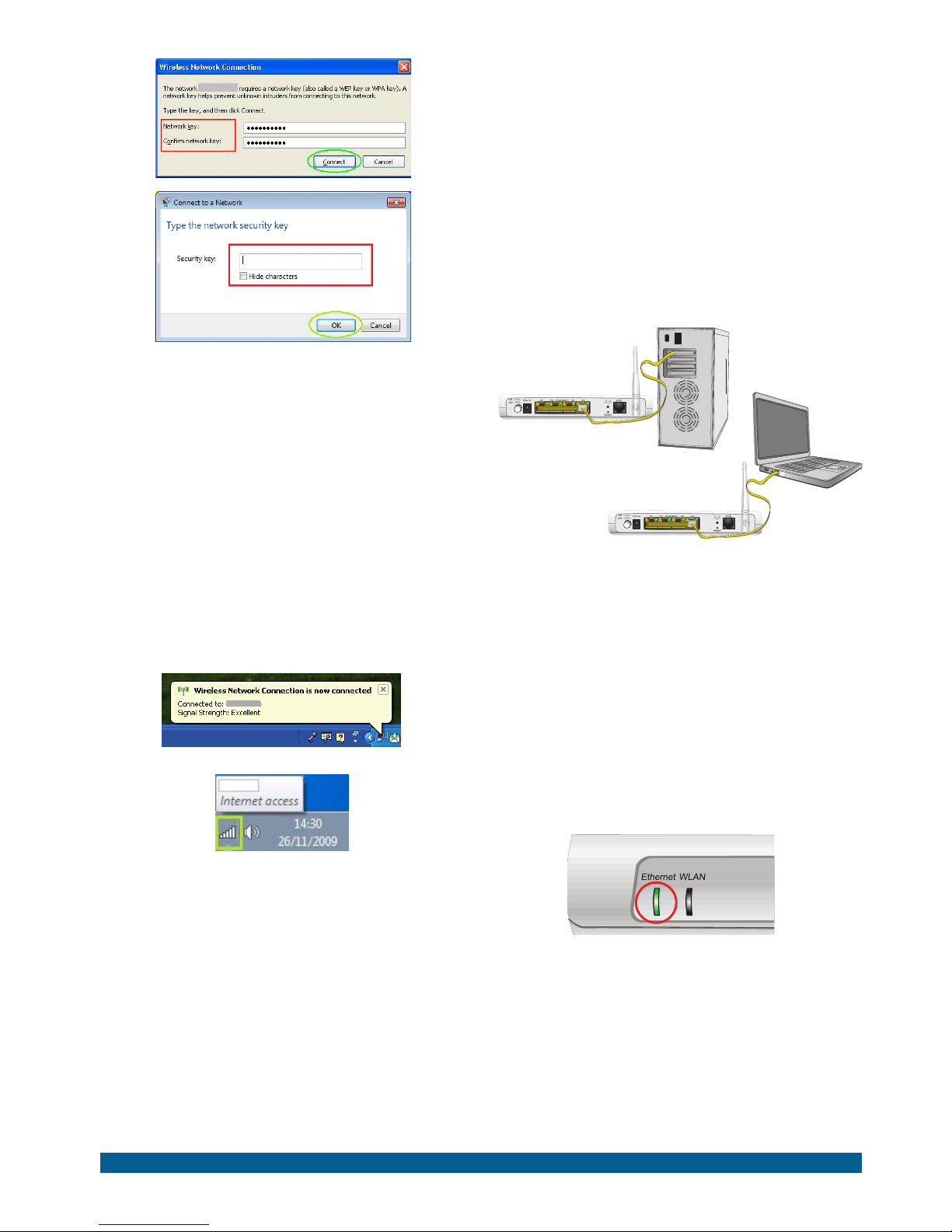

Search the available wireless networks.

You can update this list with the button

“Refresh network list” or by clicking the

button .

Select the network whose identier

(SSID) is the one that appears on the

router’s label and press on “Connect”.

Enter the security key that appears on

the router’s label.

Important. The wireless security key for

the router is of the WEP 128 bits type and

its format is alphanumerical. Make sure

you enter that security key exactly as it

appears on the label.



Connect to the wireless network (to do

this, use the Connect or OK button).

Check to make sure that the wireless net-

work connection icon at the system tray

indicates that the connection has been

correctly established.



Connect the yellow Ethernet cable (6) to

the Ethernet card on the PC and to one

of the router’s connectors labelled as

ETHERNET 1X a 4X

Switch the PC on. The ETHERNET

indicator will light up in green after a few

seconds. This LED will blink when transfe-

ring data.

For further information please refer to section 3.5 of the user’s manual on the Advanced Settings CD.

B. Connection using Ethernet

cable

¡ Congratulations, now you can access Internet

using your ADSL !

Open your browser, go to the web address www.movistar.es and start

surng the net.

Should you not be able to access, please refer to the Solutions to frequent

problems in this guide.

Activate your free e-mail accounts and your website with the In-

ternet access service contracted.

Once you have accessed www.movistar.es, you can activate your mail account. After

typing in the initial identicador (user) and contraseña (password) provided in the letter

with the service data or the one obtained calling 900 50 20 10 from the telephone line

where you have installed the ADSL service, you will access a website where you can

publish your personal web pages.

Protect your PC

Once you are connected to the ADSL service we strongly recommend you to protect your

PC against Internet viruses or attacks. If you wish to do so, you can contract these servi-

ces (Antivirus PC, Anti-Intrusos PC, Pack Seguridad PC, etc.) at www.movistar.es

, calling

1004 or through your usual channel.

Advanced Settings CD

On the CD you will be able to nd fur-

ther help in response to any needs that

might arise regarding your ADSL Internet

connection.

Ayuda Conexión:

Graphic help which will guide you along

the whole start up procedure to connect

to the Internet and the advanced congu-

ration of the ADSL Service. This graphic

help is in Spanish language.

Agente ADSL:

An Advanced Conguration Tool which

will allow you to carry out some advan-

ced conguration tasks, such as opening

ports, modifying the access password,

etc.

Asistente Técnico:

A support tool which will enable you to

detect and solve problems concerning

your Internet connection.

Ver Documentación:

It includes more detailed information

about the additional tools and certain

aspects of your Internet connection. This

documentation is in Spanish language.

The CD is not required to set up your ADSL connection.
