MP-Man MP-F400 - annexe 1 Bedienungsanleitung

DIGITAL VIDEO AND MUSIC PLAYER

MP3, WMA, AMV

USER MANUAL

MP-F400 FM

www.mpmaneurope.com

Please read these instructions completely before you connect, operate or setup this product.

GENERAL

1.1 MP-F400 Features

zSupports the following music formats: MP1, MP2, MP3, WMA

zLCD screen

zGraphical user interface control

1.2 The package contents

zMP3 player

zStereo earphones

zCD-ROM with driver programs and useful software

zQuick-start guide

zUSB cable

1.3 Computer requirements

zPentium 100 MHz or faster

z32 MB RAM or more

zCD-ROM

zHard disk with a minimum of 15 MB free space

zUSB 1.1/2.0

zWindows 98/ME/2000/XP, Mac OS 10, Linux 2.4.2

1.4 The player interface

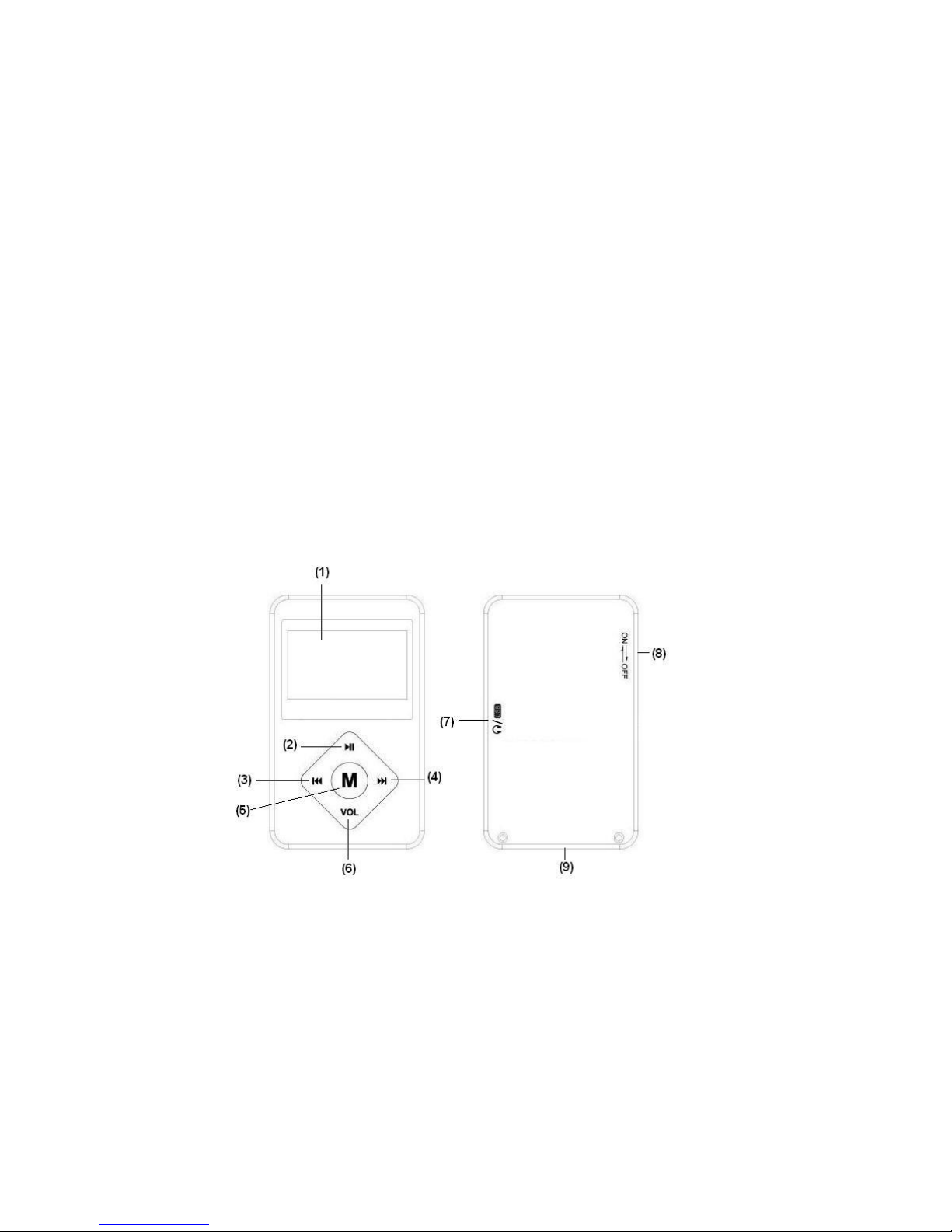

1.5 Layout and controls

(1) LCD screen

(2) PLAY button

(3) PREV/REV or reduce volume

(4) NEXT/FWD or increase volume

(5) MENU button (press and hold for 2 seconds to return to the main menu)

(6) VOL : volume mode

(7) Earphone and USB cable connection

(8) ON/OFF switch

(9) Attachment point for carrying cord

1.6 Battery

The MP-F400 has an on-screen battery power indicator:

•Charge the battery when the remaining power is low (connect the MP-F400 via USB to the PC or optional charger).

1.7 Switching on and off

zSwitch the player on and off with the ON/OFF switch.

zIf you press and hold the PLAY button for 2 seconds, the player will be switched off. If you press and hold the PLAY button again, the

player will be switched on again.

OPERATION

2.0 Main menu

In the main menu you can choose one of three modes with different features:

zMusic

zFM Mode

zSetting

You can choose a function with the NEXT and PREV buttons. Press the MENU button to activate the function.

Keep the MENU button pressed for 2 seconds to return to the main menu.

2.1 Music mode

Choose MUSIC mode in the main menu and press MENU to activate it.

You can choose a music file with the NEXT and PREV buttons. Press PLAY to play the file.

MUSIC mode has two sub-modes:

zPlay mode (available during playback)

zStop mode (available during standby)

Play mode

During playback, press the MENU button to activate Play mode. There are 7 options:

Repeat

Normal All songs will be played once

Repeat One Repeat the current song

Folder Play all the songs in a specific folder

Repeat Folder Repeat all the songs in a specific folder

Repeat All Repeat all songs

Random Play all the songs in random order

Intro Play the first 10 seconds of each song

Equalizer

Natural

Rock

Pop

Classic

Soft

Jazz

DBB

Tempo rate

Press the NEXT and PREV buttons to change the playback speed.

Note: The Tempo rate option only works with MP3 files!

Replay

A-B replay – you can mark selected music segments for continual replay.

When Replay mode is selected, the icon appears and the letter A flashes.

Press NEXT to set the starting point (A) of the segment to be repeated.

The letter B starts to flash.

Press NEXT to set the end point (B) of the segment to be repeated.

The A–B segment will now be replayed continuously. Press the MENU button to return to normal playback.

Replay times

Choose how many times the A-B segment must be repeated (1 to 10 times).

Replay gap

Choose the time interval between each A-B-segment (1-10 seconds).

Exit

Stop mode

Press the MENU button briefly while the player is in standby to activate Stop mode. There are 4 options:

Local folder

You can browse files and folders saved on the player here.

Select with the NEXT and PREV buttons and press MENU to activate or confirm the selection.

Delete file

You can delete files and folders saved on the player here.

Select with the NEXT and PREV buttons and press MENU to confirm the deletion.

Delete all

Deletes all the music files on the player.

Exit

2.2 FM radio

Choose FM radio in the main menu and press MENU to activate it.

- Briefly press or to change the frequency in steps of 0.1 MHz

- Keep the or button pressed. Release it when the frequency changes. The radio receiver searches automatically for the next

available station.

- Press PLAY to select the next saved radio station.

- Press and hold the MENU button to return to the main menu.

- Briefly press the Vol button to open the volume control and press or to adjust the volume.

- Press the MENU button once to display the FM sub-menu:

zSave: save the current radio frequency

zRecord: Record the FM program from the current radio station

zDelete: delete the current radio frequency

zDelete All: delete all saved frequencies

zAuto search: the available radio stations will be selected and saved automatically

zNormal Band: American FM radio frequency (87-108 MHz）

zJapan Band: Japanese FM radio frequency (76-90 MHz)

zExit: leave the sub-menu

Press the or buttons to select the various functions.

Press the MENU button once to activate the function.

Press and hold the MENU button to return to the main menu.

2.3 Setting mode

Choose SETTING mode in the main menu and press MENU to activate it.

zBacklight

Here you can set how quickly the LCD screen will be switched off.

You can briefly press any button to switch the LCD screen on again.

Choose a duration between 0 and 30 seconds. 0 seconds means that the screen will always be lit.

zLanguage

Here you can choose the interface language.

zPower off

Off time - Battery saving function. Here you can set the number of seconds after which the player will be switched off

when it is not being used. (0-60 seconds in 10-second intervals).

Sleep time - Here you can set the time after which the player will be switched off automatically (0-120 minutes in

10-minute intervals)

Note: 0 seconds /minutes means that automatic switching off or sleep mode are disabled.

Sleep mode must always be set again.

zContrast

zMemory info

Here you can see the storage capacity (in MB) of the F400 and the percentage capacity used.

zF/W version

Here you can find information about the current firmware version.

zExit

SPECIFICATIONS

SCREEN LCD screen

PC CONNECTION USB 2.0, high speed

FLASH MEMORY 1, 2, 4 GB

POWER SUPPLY Rechargeable lithium polymer battery

MUSIC FORMAT MP1, MP2, MP3, WMA

DISTORTION Less than 0.1 %

FREQUENCY RANGE 20 Hz~20 KHz

EARPHONE OUTPUT 5 mW (320 Ohm)

OPERATING SYSTEM Windows 98/ME/2000/XP, Mac OS 10, Linux 2.4.2

TECHNICAL SUPPORT

For more information, please visit our website

www.mpmaneurope.com
