MP-Man MP-F72 Bedienungsanleitung

MP-F72

Instruction manual

Table of Contents

Key Features

I. Position 3

II. Function Keys 3

III. LCD Windows 3

Operation

I. Installing the "DIGITAL AUDIO PLAYER" CD software 4

II. Getting Started 6

III. To Begin Listening 7

IV. Listening 7

1. MUSIC PLAYER 7

2. NAVIGATION 7

3. FM RADIO 7

4. VOICE RECORDER 7

V. Useful Features 12

VI. Safe Removal Procedure 13

VII. Additional Information 14

1. Installing Battery 14

2. Accessories 14

3. Precautions 15

4. Troubleshooting 16

5. Technical Specifications 17

6. Care and Maintenance 18

Key Features

lDigital Audio Player

-Supports MP3 and WMA.

-Supports WAV format (ADPCM Encoding)

lUSB interface for upload and download files (USB 1.1)

lFirmware Upgradeable

-Provides the latest updated features via free downloads from our

website and upgradeable to other digital music format if available.

llFull Graphic LCD for displaying information with blue backlight.

lFM Tuner function with memory function (Preset channel).

l6 Equalizing Patterns

lFM Tuner recording function.

lBuilt-in microphone for Voice Recording Function (High, Normal and

Low Quality selectable).

lProgrammable Music Playlist.

lLow battery level indicator.

lThe Digital Audio Player will power off automatically if the player is

idle for about 3 minutes.

lSupport for Win98SE (Installation of driver is required), Win ME, Win

2000 and Win XP.

Key Features

Part I Position

Part II Function Keys

4; Play / Pause button

< Stop button

+Increase volume / move up button.

-Decrease volume / move down button

9 Backward / Rewind button

: Forward / Next button

HOLD Hold button

NAVI Navigation / Enter button

MODE Mode button

n /EQ/

Record / Equalizer / Repeat button

AUTO Auto button (for FM Radio mode)

PRESET Preset button (for FM Radio mode)

MONO Mono button (for FM Radio mode)

Part III LCD Windows

USB So

cket

Earphone Jack

Control Keys

NAVI Button

Operation

Part I. Installing the "DIGITAL AUDIO PLAYER" CD software in

your computer

For Windows 98SE: The USB mass storage function will not be

activated without driver installation. To activate the USB mass storage

function, please use the installation CD-Rom to install the driver.

For Windows ME, Windows 2000 or Windows XP: Windows can

detect

Audio player without installing the CD software automatically after

connection with the USB port is established.

If you are connecting your player to your computer for the first time,

please follow these instructions: (For Windows 98SE)

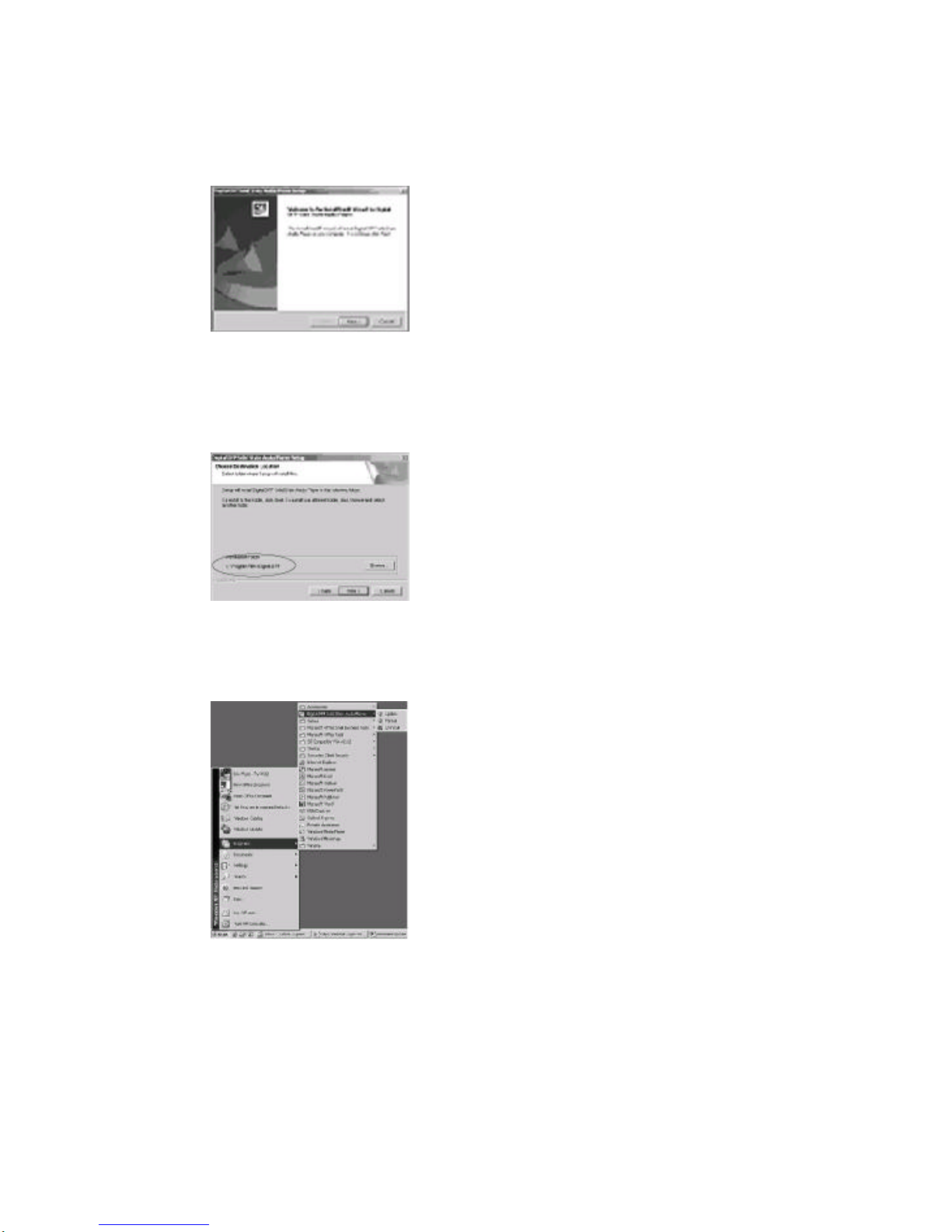

1. Insert the Installation CD-ROM into the CD Drive. The Auto run

program will start to install the player driver automatically.

Hint: If the Install Shield Wizard does not start, please run the

Setup.exe under your CD-ROM Drive directory. Double click Setup.exe.

2. Follow the on screen instruction to install

the player driver.

Install the player driver under the preset directory.

Warning: DO NOT change the preset installation path. Otherwise, the

player driver cannot run properly.

3. Wheninstallationiscompleted,the new program will be added

to the folder of programs.

Part III. To begin listening

a. Insert the earphone plug into earphone jack of player and press

button.

b. Press MODE button once and MAIN MENU (MUSIC PLAYER,

NAVIGATION,FMRADIO, VOICERECORDER)will appear

on the LCD screen

c. You can press:or 9button to scroll different modes of "MUSIC

PLAYER" or "NAVIGATION" or "FM RADIO" or "VOICE

RECORDER",

and press NAVIbutton to confirm the selection.

Part IV. Listening

To listen to the MP3/WMA/ FM recording file or run the programmed list,

you maygo toMUSICPLAYERmode.

1. MUSIC PLAYER

2. a. Press MODE button to select the "MUSIC PLAYER" and press

NAVIbutton to confirm the selection

b. Press button to play or pause during playing music

c. Press button to stop

d. Press and hold button to turn off the player

e. Scroll up +to increase the volume and scroll down -to

decrease the volume

f. Press :to select the next track and 9to select the

previous track

g. Press and hold 9for fast rewind and press and hold :for

fast forward

h. Switch HOLD button to lock all buttons and all buttons will

not have function after locking

i. EQ button

Press and hold EQ button while playing music to display the

current EQ, the current [EQ] icon will change the background

color. Then press EQ button again to select the six EQ modes

[NORM, ROCK, UBASS, JAZZ, CLASS, POP ] icon. The program

will quit the EQ mode if no consecutive key pressed

j. Repeat Button

Press the /EQ/ button once to toggle different repeat mode

functions:

-Randomly play all files in the player and stop

-Randomly play all files in the player repeatedly

-Play a single file repeatedly

-Play all files in the player repeatedly

-Edit and play one section repeatedly. Press NAVIbutton

once to

start with point A and press NAVIbutton again to end with

point B.

-Play program list file and stop (only be activated upon

playlist is created)

-Play program list file repeatedly (only be activated upon

playlist is created)

k. Play the Playlist

Once the playlist is created (please refer to NAVIGATION mode

for

detail), press EQ button to select or icon. Then press

button and press button againtostartplaying the music

according to the programmed playlist

Remark:

甲、If the player stops during MUSIC PLAYER mode or VOICE

RECORDERmode,itwill automaticallyshutoff afterabout3

minutes.

2. NAVIGATION

You may search file, delete file and program the playlist in

"NAVIGATION"

mode.

a. Press MODE button to select the "NAVIGATION" and press NAVI

button

to confirm. Alternatively, you can simply press NAVIbutton to enter

the

function of "NAVIGATION" during "MUSIC PLAYER" mode

b. The LCD displays the music files in folders and files

c. Scroll up +to move up in the list and scroll down -to move down in

the list

d. Push :to enter a folder and 9to quit after selected the music file

Listen to the selected song/ file

Press button or NAVIbutton to play

CLEAR FILE / CLEAR LIST

Press button and a dialogue box [DELETE FILE / CLEAR LIST] icon

will show on the LCD screen. Scroll up+or scroll down-to toggle the

confirmation. Then another dialogue box [YES / NO] icon will appear.

Push

:or 9to select and pressNAVIbutton to confirm.

If [YES] icon is selected, LCD will display [File deleted] or [List deleted]

icon.

Remark:

-You cannot delete the file while music is playing

-[Operation Fail] icon: The file in the folder is protected so that you

cannot delete the file inside folder. These files can only be deleted

through the computer, not by the MP3 unit itself.

Program the Playlist

-Press EQ button once, a number will be displayed adjacent to the

song

name [01], [02], [03]...etc. Press EQbutton again to confirm, then

the

number will disappear and the song is stored in the playlist

-If more than one song is stored in the playlist, before pressingEQ

button to confirm, you can scroll up +or scroll down -to change

the playlist order number.

-Press MODE button to quit

Note: You cannot program the same music file on the Playlist more than

once.

3. FM RADIO

You may set the whole FM radio band, listen to the radio or record file of

FM radio program; please go to FM Radiomode.

a. Press MODE button to select the FM RADIO and press NAVI

button to

confirm.

b. Setting the FM band by auto scanning or manual present

Auto scanning the whole FM band

-If the [PRESET] icon is on, then press PRESET button to remove

it.

-Press and hold AUTO button to start auto scanning the whole FM

band.

[AUTO SCAN] icon and Channel number icons [C01], [C02] ~

[C10]... will be shown on LCD.

Each FM station detected will be stored in the 10-preset memory

(previously preset channel will be overwritten by new FM station

detected). Only the last 10 FM stations will remain in the memory.
