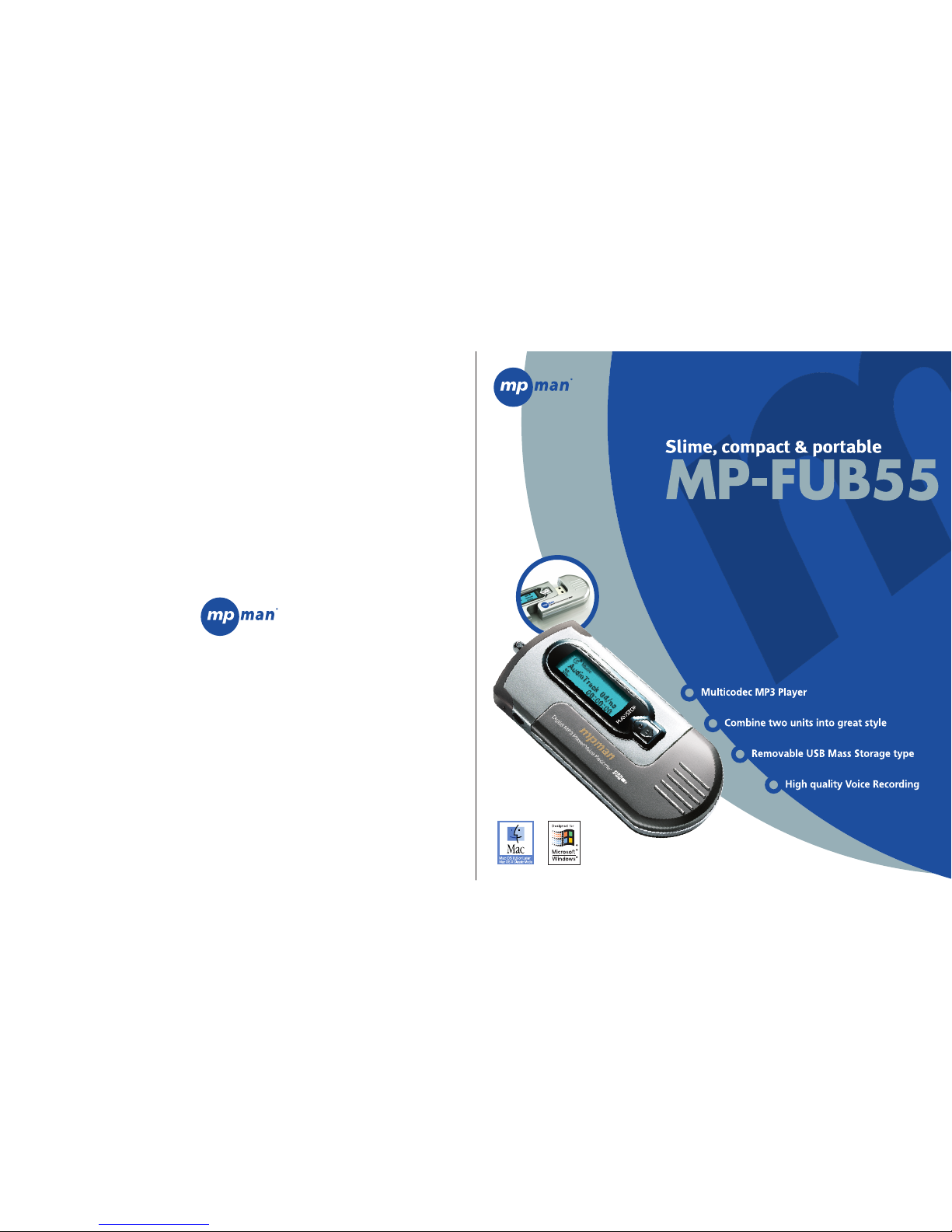

MP-Man MP-FUB55 Bedienungsanleitung

www.mpman.com

DIGTAL AUDIO MP3 PLAYER

MP-FUB55

PREPARATION

Features

Checking parts

Names and function of MP-FUB55

LCD panel

INSTALLATION AND USE

Turning on/off the power

Setting the modes

Playing back digital music/voice files

Adjusting the volume

Searching music/voice file

Setting the section repeating function

Recording voice

Button table

APPLICATION

Setting the menu

Setting the repeat function

Setting the equalizer function

Managing file

Setting the logo

Setting the display function

Display the file information

Setting the language

Menu table

COMPUTER CONNECTION

Installing USB Device Driver

for Windows98SE

Connecting MP-FUB55 to PC

Managing files

Formatting

Disconnecting MP-FUB55 from PC

LOGO EDITOR

Installing logo editor

Editing logo

Installing logo

LISTENING VOICE RECORDER

FILES ON PC

Installing voice file converting program

Converting voice recorder files

Listening voice recorder files on PC

PRODUCT SPECIFICATION

Product Specifications

Warning

Continuous use of full

output might damage

the ears

MP-FUB55

DIGTAL AUDIO MP3 PLAYER

Features

Checking Parts

Names and functions of MP-FUB55

MP-FUB55

Digital Audio Player

Stereo Earphone

USB cable

Installation CD

One AAA size battery

User manual

Compact and slim design

Plug and play USB flash drive

(USB driver is needed only for Windows 98SE)

MP3, WMA music file playback

Voice recording

10 band equelizer

Controlling diverse menu

Multi language support

User logo support

Blue backlight

High-speed USB communication

Diverse OS support for Windows, Mac, and Linux

Mode icon Mode File no. / Total file No. battery icon

Text scroll area

Playing timeRepeat iconEQ icon

MP-FUB55

76 MP-FUB55

Earphone jack

USB connection

terminal

LCD display panelL

Battery case Microphone

Volume control

button(+, -)

Mode button

Button

Turn on/off the power

Converting modes

Playing back digital music/voice files

Controlling volume

Searching music/voice files

Setting section repeating function

Recording voice

Button table

MP-FUB55

Press the



button on the MP-FUB55 for more than one

second to turn on the power.

To playback - Press





button on MP-FUB55 in stop mode,

and digital music/voice will be played back.

To stop - Press





button on MP-FUB55 in playback mode,

and digital music/voice will be stopped.



Control volume with volume control button

()

on MP-FUB55 player.

Volume can be controlled in the range from 0 to 30.

Press the button briefly to control the volume by one level.

Press and hold button to control continuously.

To move desired music/voice file

Press thebutton to move one track backward in the playback or stop mode.

Press the button to move one track forward in the playback or stop mode.

Note)

If the  button is pressed within 5 seconds after a song is started, the previous song will be repeated.

If the button is pressed 5 seconds after the song started, the current song will be repeated.

(For VBR files, the previous song wont be played even if the button is pressed within 5 seconds.)

For VBR files, the actually playtime may not match the playback time displayed on MP-FUB55.

*VBR(Variable Bit Rate) file : MP3 file which has multi compression rates applied

Press the



button on the MP-FUB55 for more than one

second to turn off the power.

If the unit is in the Stop mode for longer than one minute,

it will power off automatically.

Stop playback and press the mode button.

It converts like Music mode Voice mode Voice recording mode

Music mode Voice mode Voice recording mode

MP-FUB55

1110 MP-FUB55

To move to the desired spot of the song during playback

Press the / button for more than 1 second and release the /

button at the desired spot of the song.

To cancel a section repeating

Press the mode button in the section repeating status.

Then, the section repeating is cancelled, and it will automatically playback .

To set an end point of section repeating

Press the mode button again briefly at the end point of the desire

section repeating.

Then, it shows Icon on the display panel and the section from A to

B will be automatically repeated.

To set a start point of section repeating

Press the mode button briefly at the start point of the desire section repeating

during digital music/voice playback. Then, the icon on the display panel.

To record voice

Move the voice recording mode

Press





button and recording starts.

To finish voice recording

Press





button. Then, recording stops and voice file will be created.

MP-FUB55

1312 MP-FUB55

Note) When memory is fully used, recording stops automatically and voice file will be created.

Possible recording time shows in the lower of the 'standby' text in accordance with memory capacity.

Button



Former staus

Power Off

Longer Power on

Music / Voice playback

Briefly Stop

Music, Voice playback /

Voice recording / Stop

Power Off

Longer

Stop (M/V mode) Briefly Playback / recording

Push time Operation Button





MODE

Former staus

Briefly/Longer

Briefly

Playback / Stop

Menu status

Briefly/Longer

Briefly Volume ()

To move in the menu

Push time Operation

Playback / Stop

Menu status





Stop (Record mode) Briefly

Briefly

Recording

Less than 5 sec. after beginning playback : Former file playback

Longer than 5 sec. after beginning playback : File playback from the start

Voice recording

Briefly

Longer

Stop

Fast backward search in playback

Menu status

Stop

Briefly

To exit menu

To move the menu mode

To select the menu item

To move the former file

Playback Briefly Playback the next file

Playback

Stop Longer

Briefly Fast forward search in playback file

To move the next file

Playback

Playback Briefly

Briefly

To appoint the starting spot of the section repeating

During setting section repeating

Briefly

To appoint the ending spot of the section repeating

Status of setting section repeating

Briefly To cancel the section repeating

To change the mode

(music



voice

voice recording

)

Stop Briefly

Volume ()

Playback / Stop

MP-FUB55

1514 MP-FUB55

Setting the menu

Setting the repeat function

Setting the equalizer function

Managing files

Setting the logo

Setting the display function

Display the file information

Setting the language

Menu table

MP-FUB55

Press the mode button more than 1 sec and it will be converted to the menu mode.

When selecting menu, use the mode button and when moving the different

order, use the

(



)

button.

Pressing the



button is to cancel the menu mode.

Repeat when selecting the repeating playback

EQ when using the equalizer function

File when deleting or formatting the music/voice file

Logo when selecting the logo

Display when controlling the display panel

File Info when display the file information

Languge when controlling the language

Exit menu when exiting the menu

Select Repeat in the menu mode.

Move the desired repeat mode with the

(



)

button, and then select

the mode button.

Normal when playing back 1 time each of collection in order

Repeat one when listening to one file repeatedly

Repeat all when listening to all files repeatedly

Repeat list when listening to some files after making the list

Shuffle when listening to the appointed file randomly

Intro when listening to the first 10 secs of all the appointed files

Note) If there is no any input in the menu mode for 10 secs,

then it will be automatically cancelled.

Return is not the function in the menu to mode.

Select Return to exit the present mode.

To make the repeat list

When the repeat list menu is selected, it shows the list control panel.

When selecting the desire music/voice file and making the list,

it playbacks and repeats the appointed song only.

Select EQ in the menu mode

Select the mode button after moving to the desire the EQ mode

with the

(



)

button.

MP-FUB55

1918 MP-FUB55
