MP-Man CONVERTER8 Bedienungsanleitung

Product Features

OS Window 10

8" IPS LCD multi touch screen

Quad core

DDR3L 1GB, eMMC 16GB / 32GB

Bluetooth 4.0

Camera front 0.3M, rear 2.0M

Wi-Fi and G-sensor

Support USB host and OTG

Micro SD (support SDHC)

External speakers

Docking Keyboard

Cautions

●Do not press the surface of touch screen using sharp object. Touch screen can be stabbed or

pressed, may not work or cause malfunction.

● Be careful of using, touch screen and display can be damaged if it undergo external shocks or

pressure.

In case of external damage or transformation, customer needs to pay repairing charge even though in

warranty period.

● Do not give excessive shock to equipment or drop it.

● Be careful of long time using with high volume. It can occur hearing damage.

● Do not discretionally disassemble equipment as you can’t receive free warranty service.

● Equipment can be damaged excessively or loss date if the equipment cable is disconnected or

powered off during firmware update and file uploading or downloading.

● Do not use in cold, wet and dusty place. It may occurs external transformation or screen

condensation, and malfunction.

● We don’t take responsibility for data loss stored in equipment. Please use equipment after back

important file up.

● Please avoid using in dusty environments as dust may goes into inside of equipment or screen.

● There may be some febrility during charging or using program which has high workload because of

high-speed operation CPU.

● B grade equipment (Broadcast and Communication equipment for residential use): As EMC

equipment for residential use (B grade), main purpose is using in residential, usable in all area.

This equipment has possibility of interference, cannot support service related with human life safety.

Name of Parts

1. Front Camera : Supports video and photo shoot

2. Speaker : Output sound

3. Volume - : Reduce PC volume

4. Volume + : Raise PC volume

5. Power Button : Turn on/off

6. Micro USB Port : Connect Micro USB cable and supply PC with power

7. Rear Camera : Supports video and photo shoot

8. Earphone Jack : Connect earphone up with PC

9. Micro SD Slot : Insert Micro SD card into PC

Turn on PC

1. Press Power button to turn on PC

Turn off PC

1. Touch Power icon on the bottom left corner of the screen

2. Touch “Shut down”to turn off PC

Understanding the Screen

Desktop mode

Tablet mode

How to change Desktop mode to Tablet mode

1. Slide to the left from the right side of screen.

2. Touch “Tablet mode”to change between Desktop and Tablet mode.

Charm menu on Tablet mode

1. Slide to the left from the right side of screen.

2. “Tablet mode”, “Rotation lock”, “Setting”, “Wi-Fi” and other functions comes up.

All Applications menu on Tablet mode

1. Touch Application icon on the bottom left corner of screen.

2. All applications comes up on the screen.

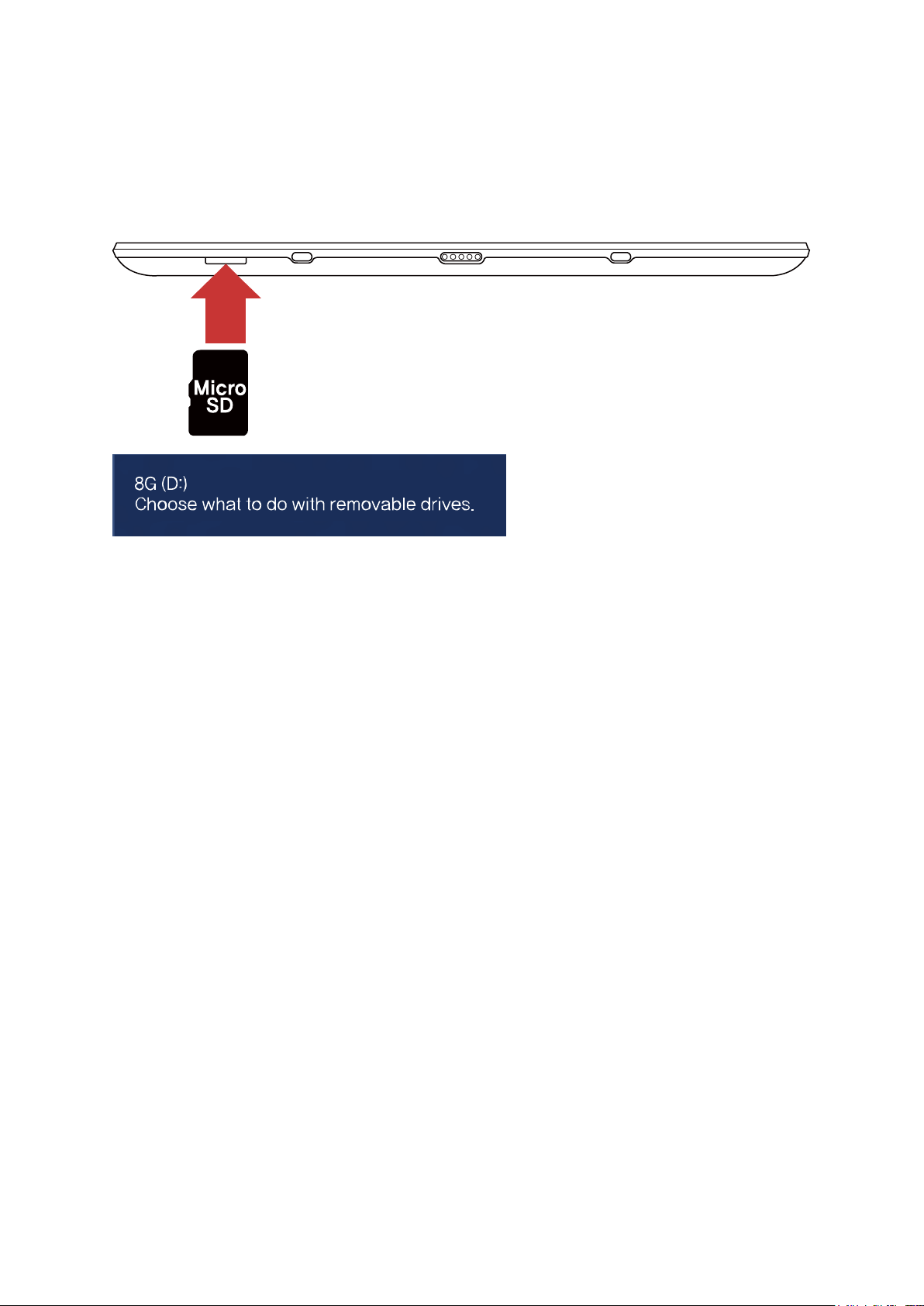

Micro SD card slot

Micro SD is the removable drive anc can move various data easily and expand capacity of PC

Using Card

1. Insert the Micro SD card into Micro SD card slot

2. Message in top of right side

3. Click and touch ‘Open folder to view files’

4. Now you can save, move and delete data on Micro SD card.

5. After finish use, press inserted Micro SD card and Micro SD card sticks out.

Setting Volume

Volume setting is available by button and the volume icon on the bottom right corner of screen.

.

Setting Volume by button

Press the volume key on top of PC and set volume

Setting Volume by volume icon

Touch the volume icon on the bottom right corner of screen.
